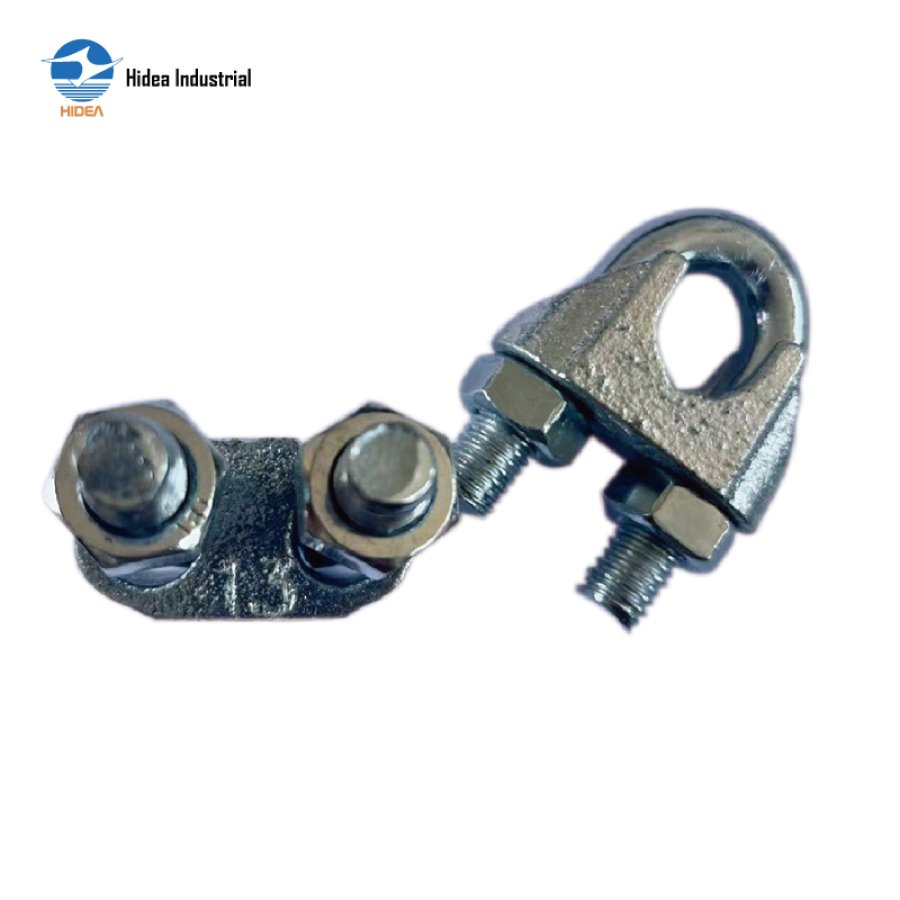

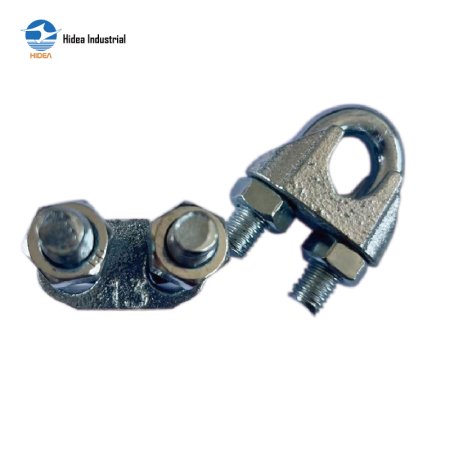

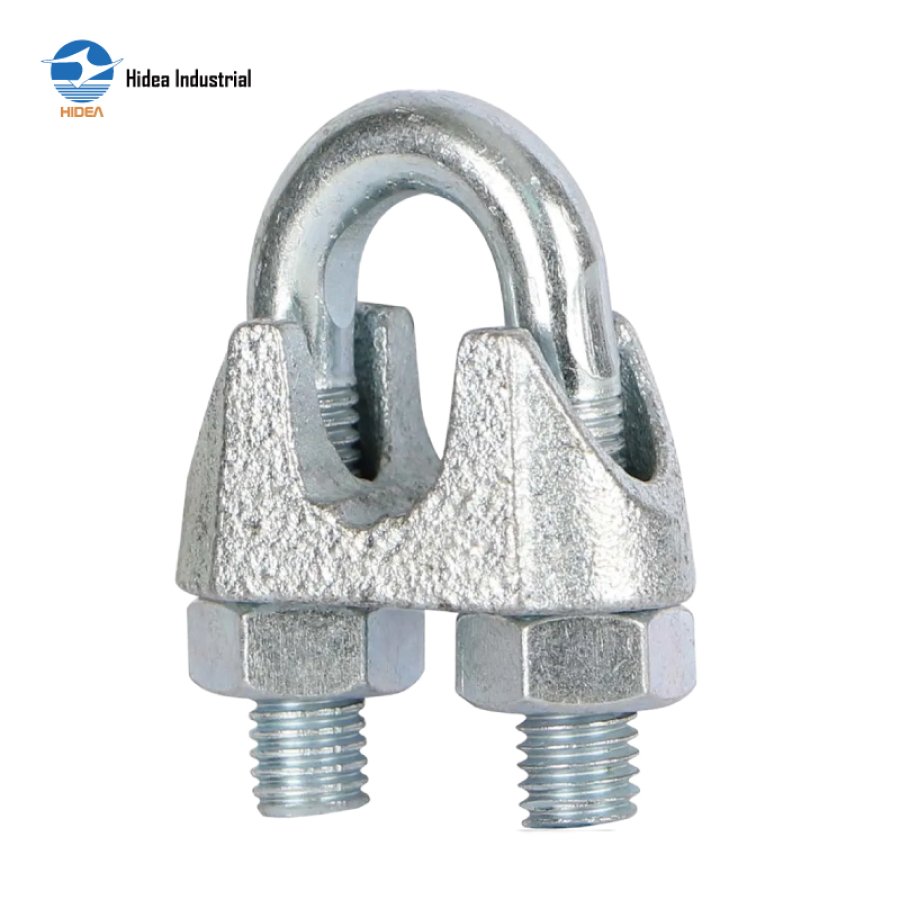

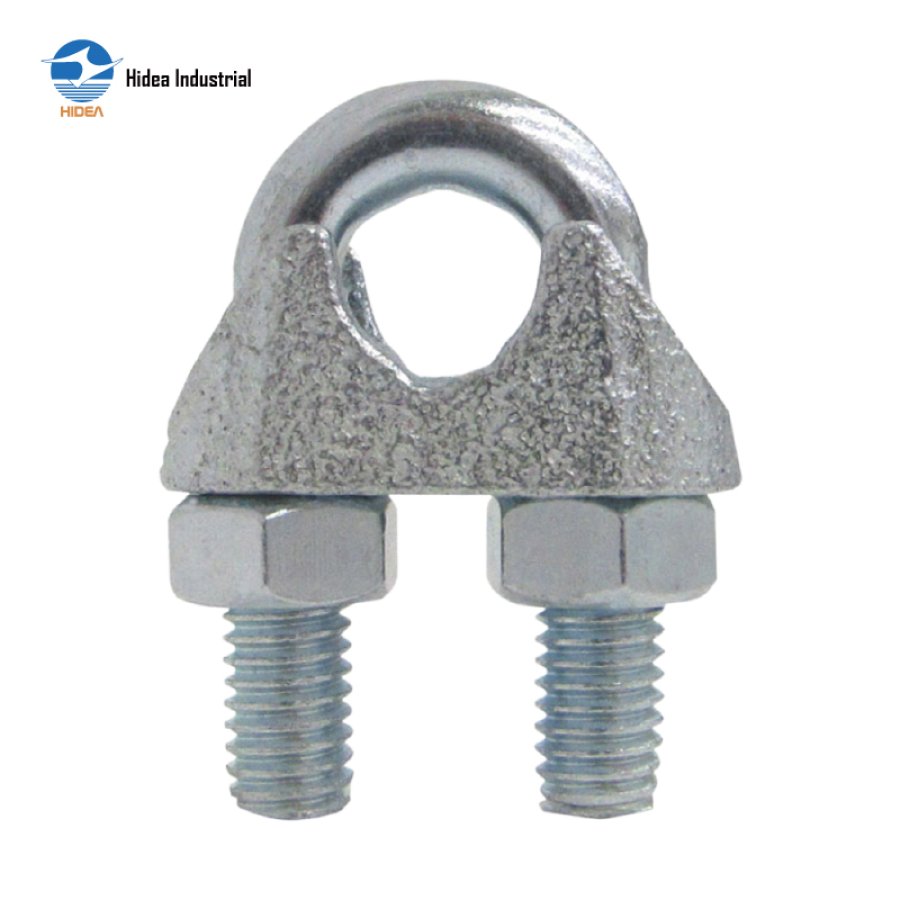

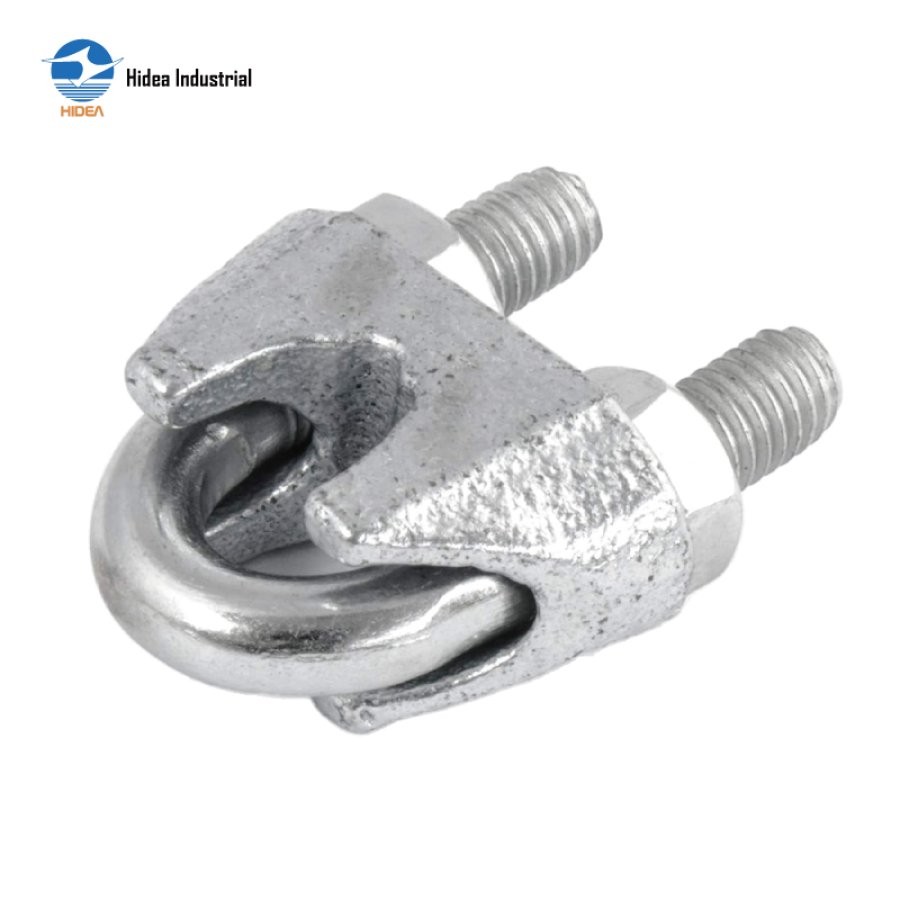

Hidea Casted Malleable Steel Wire Rope Clip – Engineered for Maximum Load Strength

DIN 741 GALV MALLEABLE WIRE ROPE CLIPS

Casted Malleable Steel
Casted,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Casted Malleable DIN741 Wire Rope Clips,and acc. BS EN 13411-5 Type A

Inquire Now

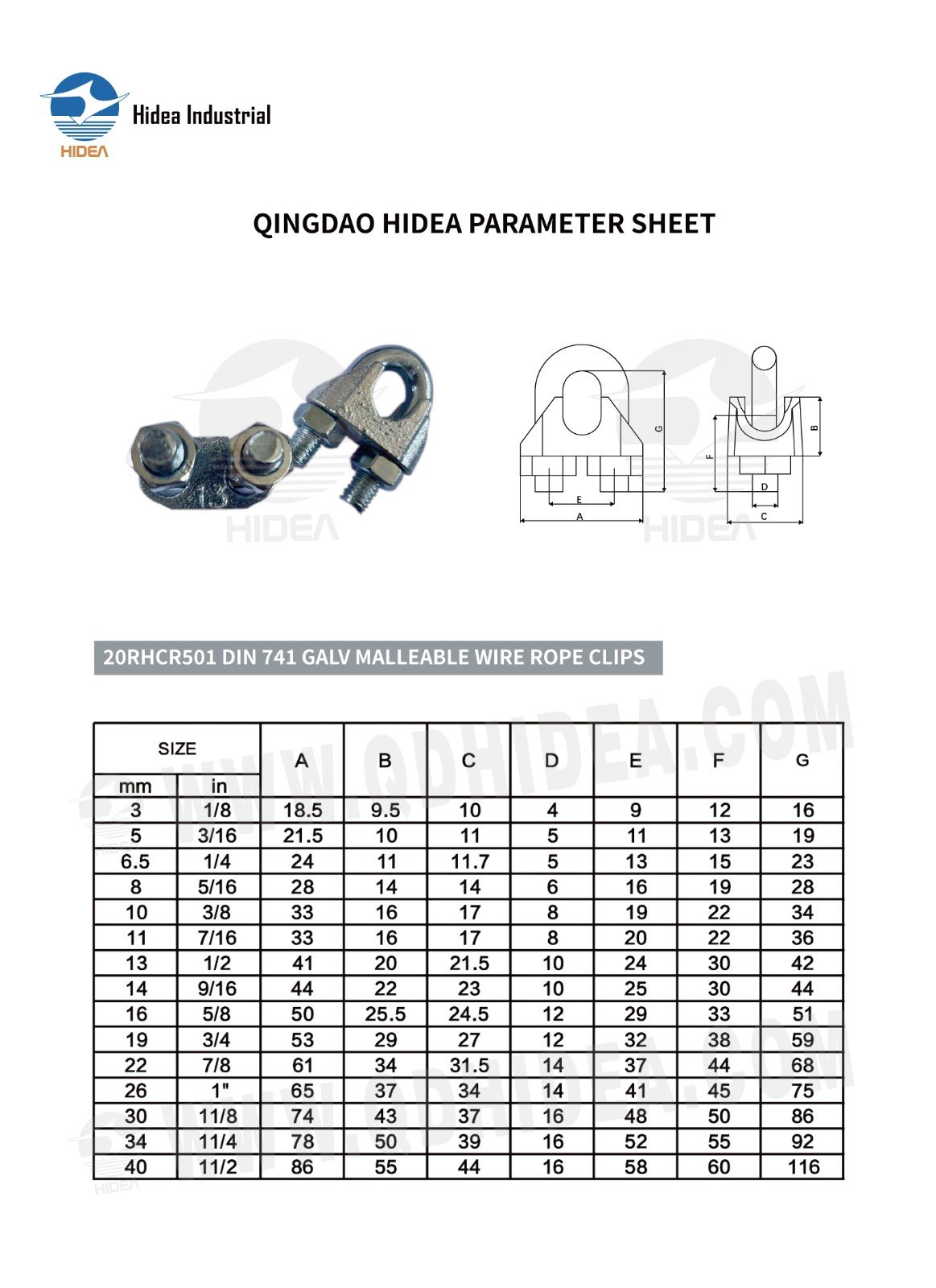

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR501 DIN741 GALV MALLEABLE WIRE ROPE CLIPS

SIZE		A	B	C	D	E	F	G
mm	in	A	B	C	D	E	F	G
3	1/8.	18.5	9.5	10	4	9	12	16
5	3/16.	21.5	10	11	5	11	13	19
6.5	1/4.	24	11	11.7	5	13	15	23
8	5/16.	28	14	14	6	16	19	28
10	3/8.	33	16	17	8	19	22	34
11	7/16.	33	16	17	8	20	22	36
13	1/2.	41	20	21.5	10	24	30	42
14	9/16.	44	22	23	10	25	30	44
16	5/8.	50	25.5	24.5	12	29	33	51
19	3/4.	53	29	27	12	32	38	59
22	7/8.	61	34	31.5	14	37	44	68
26	1"	65	37	34	14	41	45	75
30	11/8.	74	43	37	16	48	50	86
34	11/4.	78	50	39	16	52	55	92
40	11/2.	86	55	44	16	58	60	116
