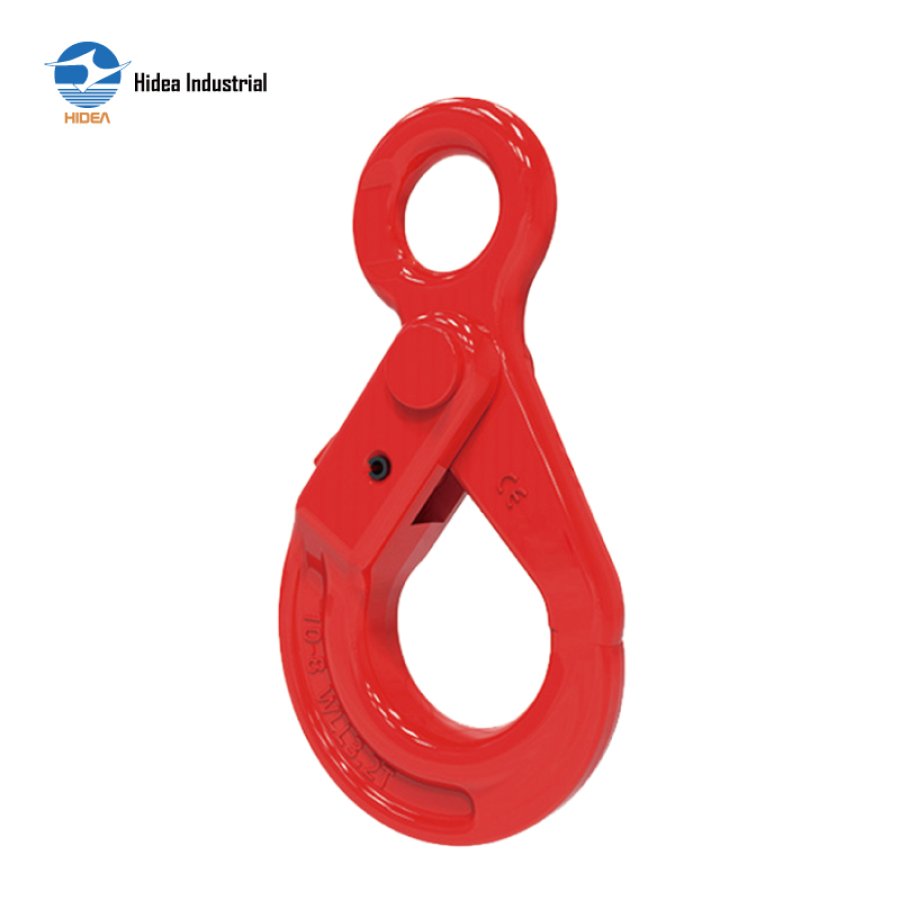

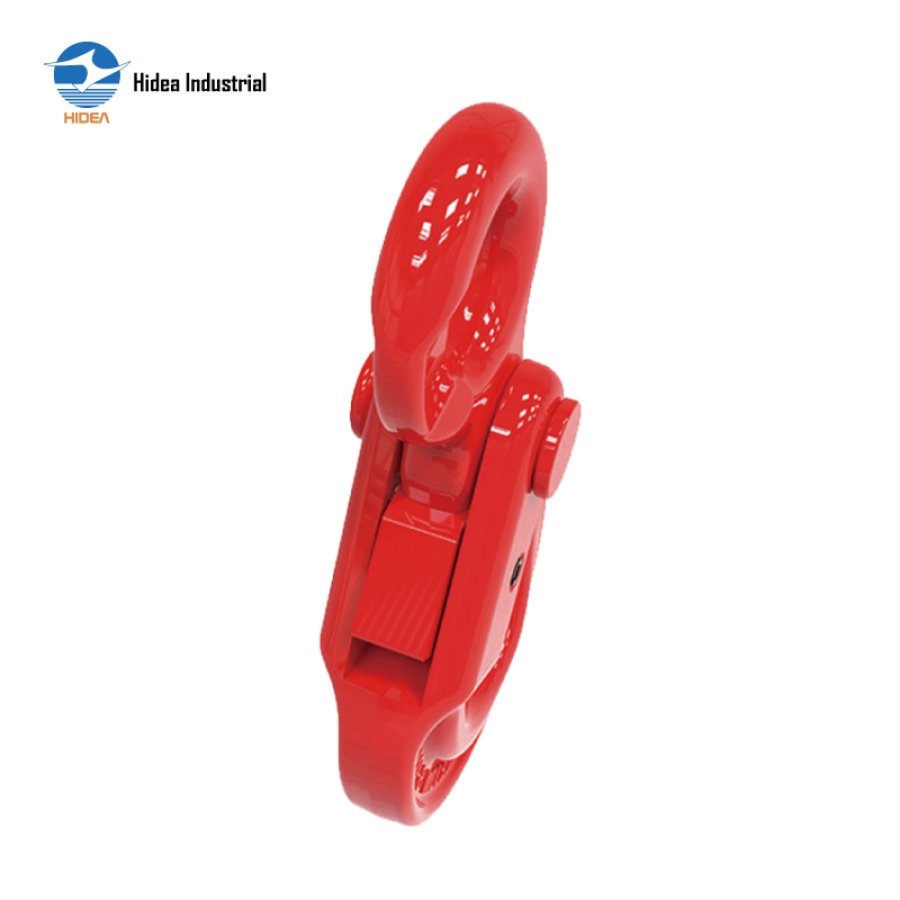

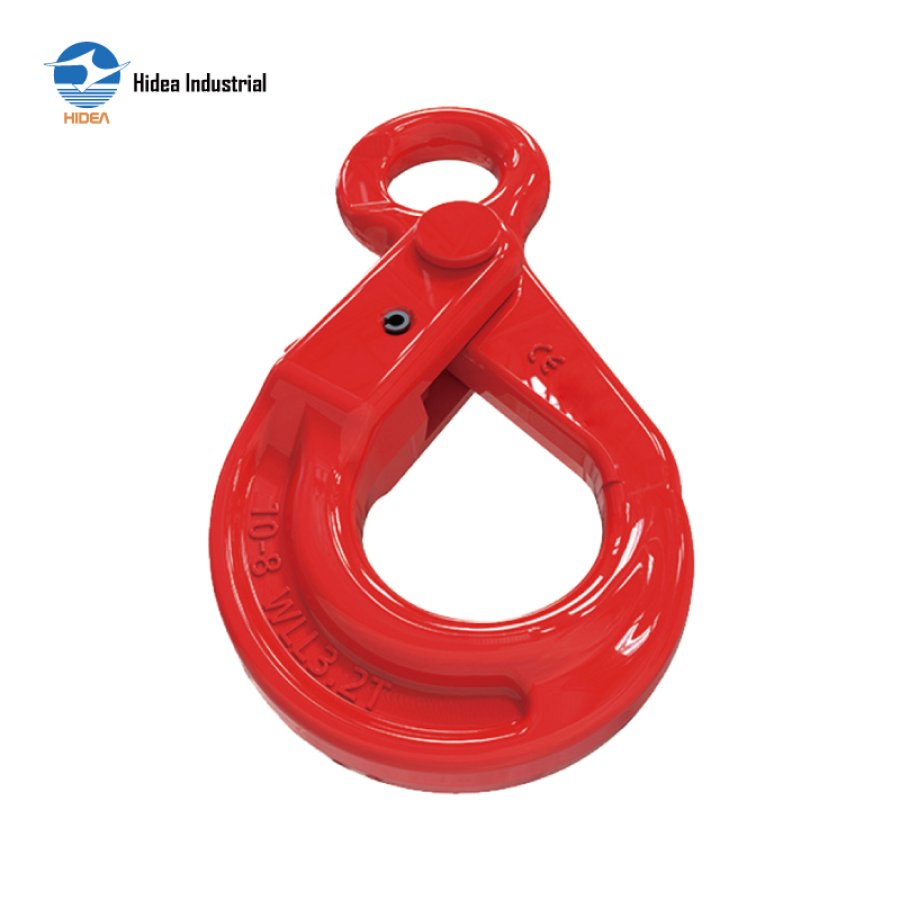

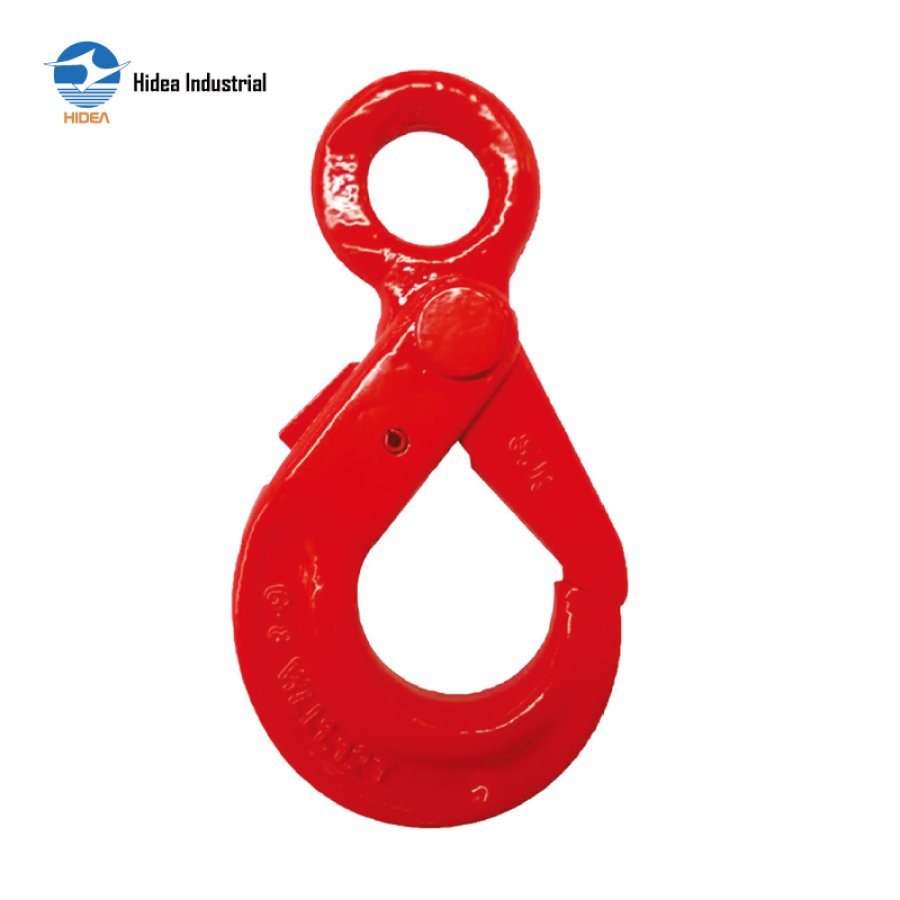

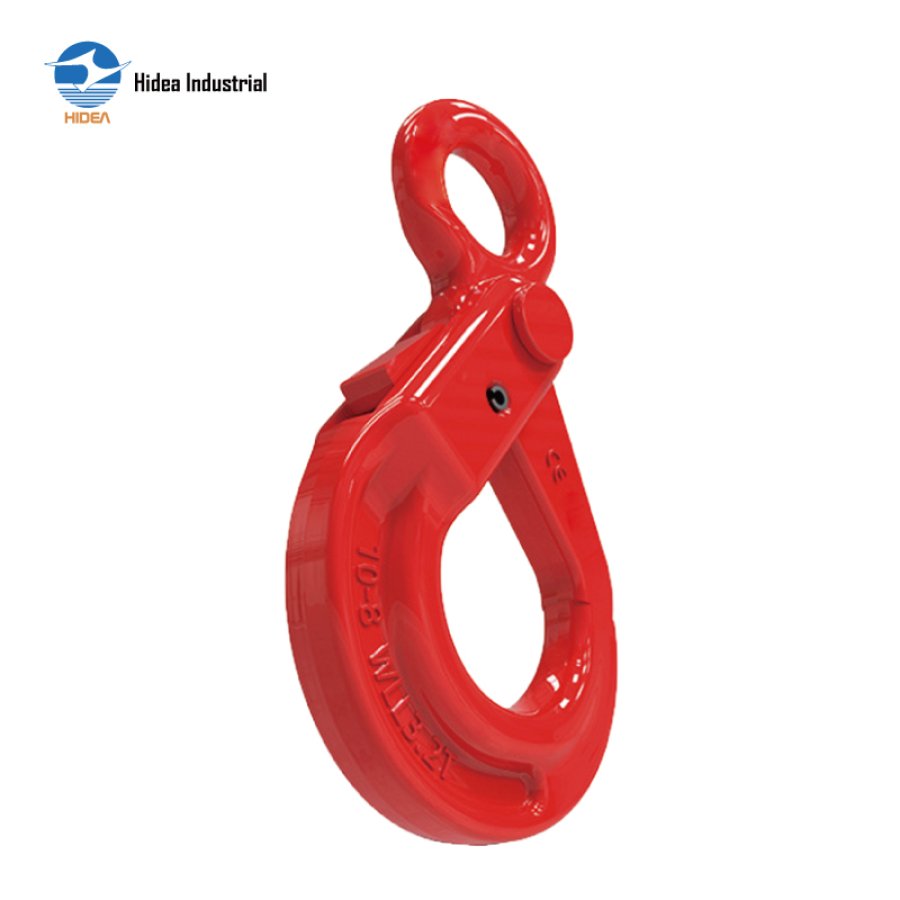

Hidea Grade 80 US Type Eye Self-Locking Safety Hook for Efficient Load Connections

G80 US TYPE EYE SELF-LOCKING SAFETY HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
With latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

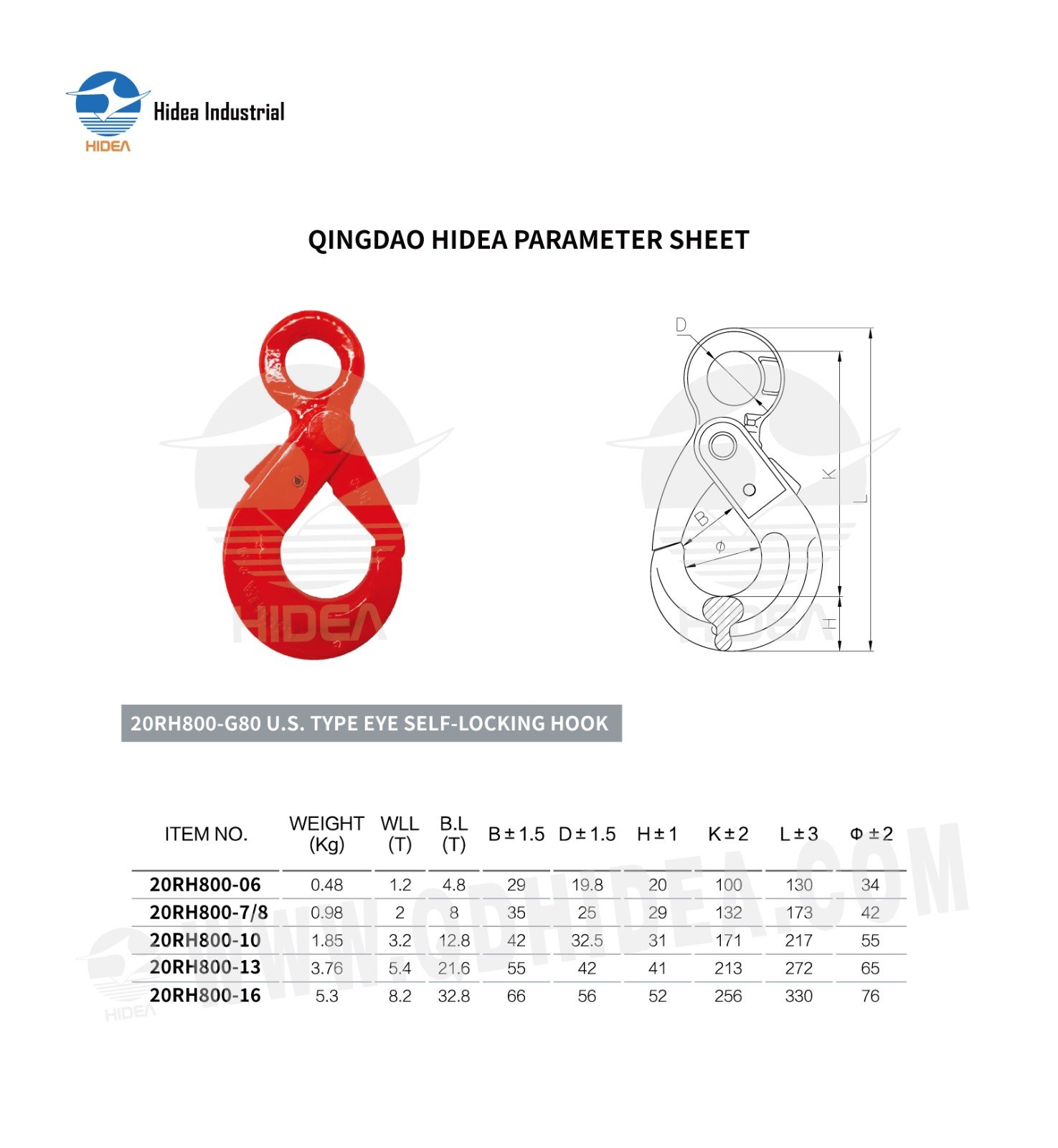

QINGDAO HIDEA PARAMETER SHEET FOR

20RH800-G80 U.S.TYPE EYE SELF-LOCKING HOOK

ITEM NO.

WEIGHT

WLL

B.L

B±1.5

D±1.5

H±1

K±2

L±3

Φ±2

(Kg)

(T)

(T)

20RH800-06

0.48

1.2

4.8

29

19.8

20

100

130

34

20RH800-7/8

0.98

2

8

35

25

29

132

173

42

20RH800-10

1.85

3.2

12.8

42

32.5

31

171

217

55

20RH800-13

3.76

5.4

21.6

55

42

41

213

272

65

20RH800-16

5.3

8.2

32.8

66

56

52

256

330

76
