Steel Wire Rope RR-W-410 IPS/EIPS+ FC

FEDERAL SPEC. RR-W-410 WIRE ROPE IPS/EIPS+ FC

Federal Spec. RR-W-410 Wire Rope IPS / EIPS
Constructions 6x19+FC, 6x19(S)+FC, 6x19(W)+FC, 6x25(Fi)+FC, 6x26(WS)+FC, 6x37+FC, 6x36(S)+FC
Improved Plow Steel OR Extra Improved Plow Steel, High Carbon Steel

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

FEDERAL SPEC.RR-W-410 WIRE ROPE IPS/EIPS+FC

				Specification:RR-W-410

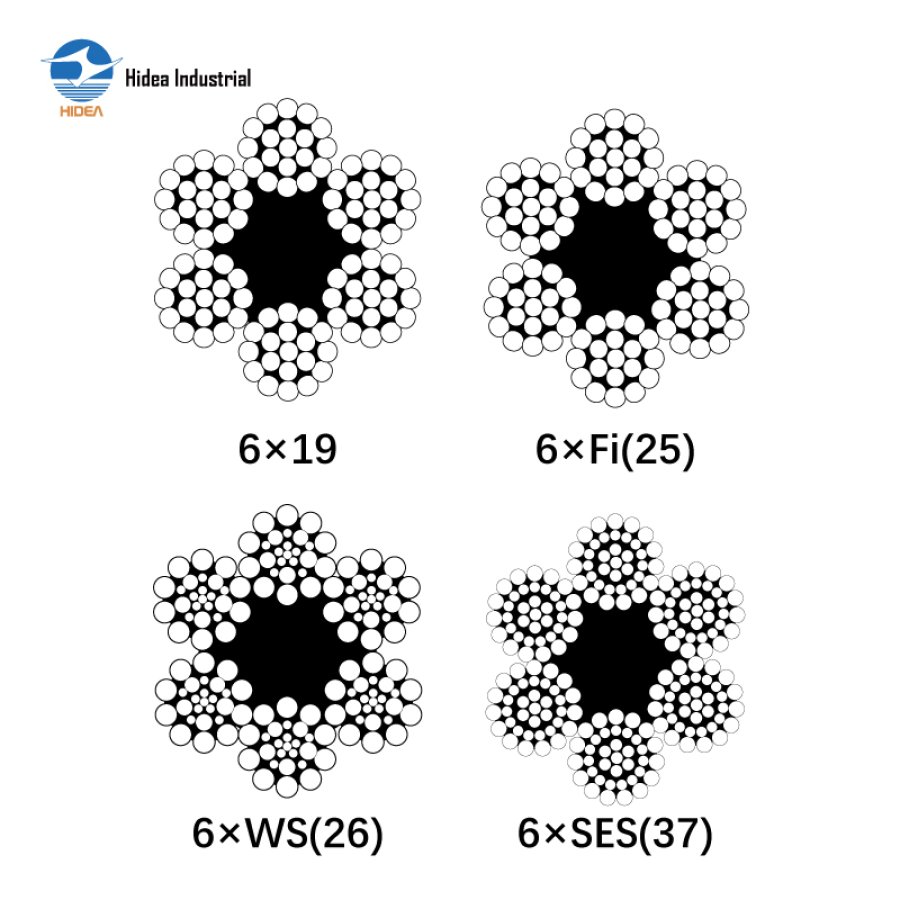

6×196×S(19)6×W(19)6×Fi(25)6×SES(37)6×WS(36)6×WS(26)
Improved Plow Steel(IPS)
Diameter mm	Min.Breaking Strength		Unit Weight
Diameter mm	Ungalv	Galvanized	6×19 or 6×37		6×25,6×26 or 6×36
in	b	Ib	b/1000'	kg/1000°	Ib/1000	kg/1000'
1/4”	5480	4940	94	43
5/16"	8520	7660	147	67
3/8"	12200	10980	211	96	236	107
7/16"	16540	14880	287	130	320	146
1/2”	21400	19260	375	170	420	191
9/16"	27000	24300	475	215	530	242
5/8”	33400	30000	586	266	660	298
3/4”	47600	42800	844	383	950	430
7/8"	64400	58000	1150	521	1290	584
1"	83600	75200	1500	680	1680	763
1-1/8	105200	94600	1900	861	2130	966
1-1/4”	129200	116200	2340	1063	2630	1190
1-3/8"	155400	139800	2840	1287	3180	1440
1-1/2"	184000	165600	3380	1530	3780	1720




Diameter mm	Min.Breaking Strength		Unit Weight
Diameter mm	Ungalv	Galvanized	6×19 or 6×37		6×25,6×26 or 6×36
in	Ib	Ib	Ib/1000	kg/1000°	Ib/1000	kg/1000'
1/4"	6300	5680	94	43
5/16"	9800	8810	147	67
3/8"	14000	12600	211	96	236	107
7/16"	19000	17100	287	130	320	146
1/2”	24600	22200	375	170	420	191
9/16"	31100	28000	475	215	530	242
5/8	38400	34500	586	266	660	298
3/4	54700	49200	844	383	950	430
7/8”	74100	66700	1150	521	1290	584
1"	96100	86500	1500	680	1680	763
1-1/8"	121000	108800	1900	861	2130	966
1-1/4"	148600	133600	2340	1063	2630	1190
1-3/8"	178700	160800	2840	1287	3180	1440
1-1/2"	211600	190400	3380	1530	3780	1720
