The auto brake hand winch is equipped with a friction brake, providing an automatic self-braking system for added safety and control during operation, i.e. when the user stops pulling rope the cable or webbing, the ratchet engages and prevents the winch drum from rotating backward and lock the load in place
The winch body & drum are made of high tensile steel and properly heat treated to handle heavy loads, used for lifting or moving heavy loads in applications such as boat trailers, ATV ramps, and construction sites to prevent the load from accidentally dropping or drifting out effectively
The auto brake hand winch is designed 2 ways and 1 speed and can be equipped with both wire ropes cables of webbing straps, BS capacity from 500Kgs to 1,800Kgs
The auto hand winches meeting standards of and in conformity with ASME B30.7, OSHA regulations & EN 13157

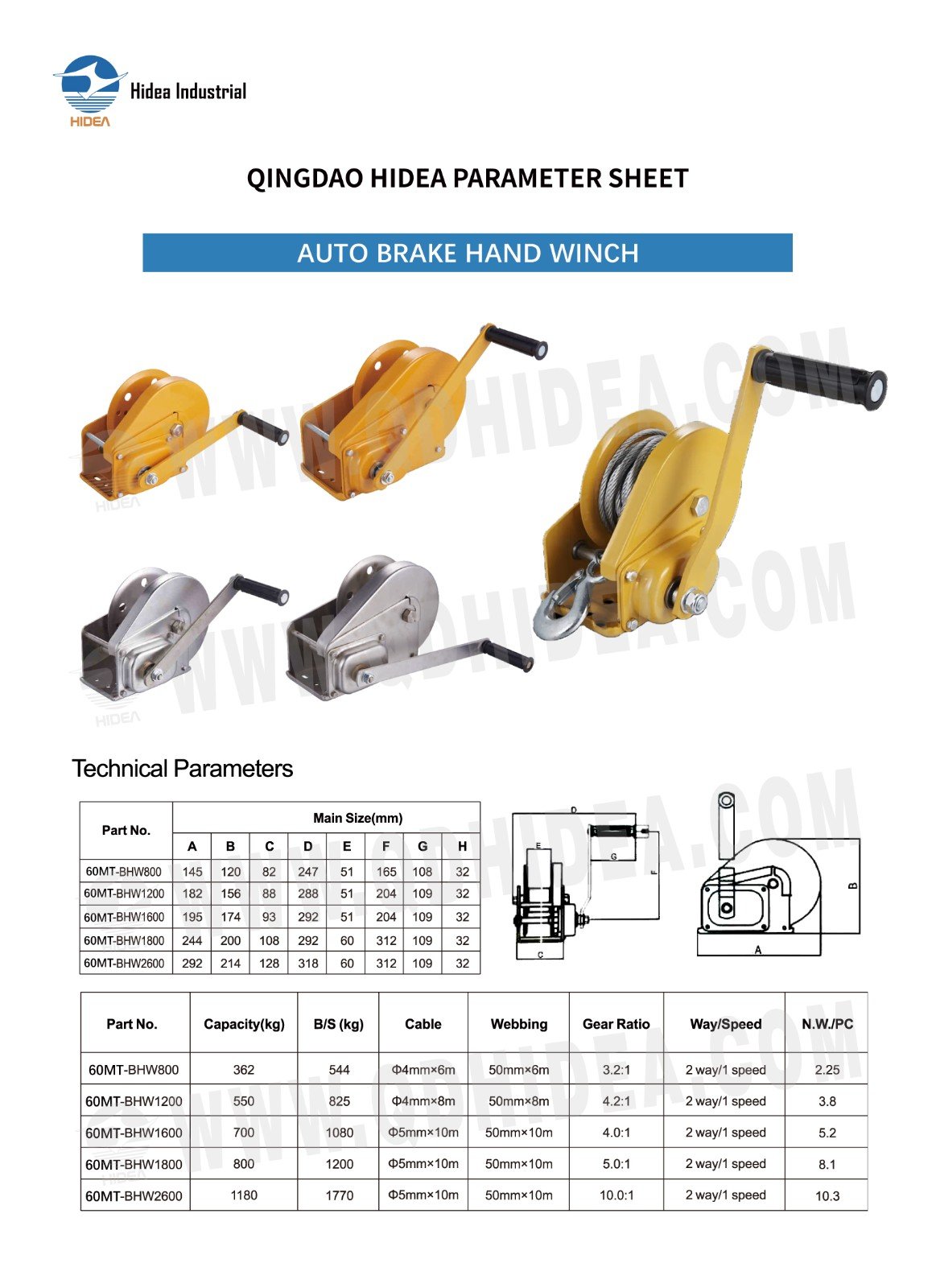

QINGDAO HIDEA PARAMETER SHEET FOR
AUTO BRAKE HAND WINCH
| Part No. | Main Size(mm) | ||||||||||||
| A | B | C | D | E | F | G | H | ||||||
| 60MT-BHW800 | 145 | 120 | 82 | 247 | 51 | 165 | 108 | 32 | |||||
| 60MT-BHW1200 | 182 | 156 | 88 | 288 | 51 | 204 | 109 | 32 | |||||
| 60MT-BHW1600 | 195 | 174 | 93 | 292 | 51 | 204 | 109 | 32 | |||||
| 60MT-BHW1800 | 244 | 200 | 108 | 292 | 60 | 312 | 109 | 32 | |||||
| 60MT-BHW2600 | 292 | 214 | 128 | 318 | 60 | 312 | 109 | 32 | |||||
| Part No. | Capacity(kg) | B/S(kg) | Cable | Webbing | Gear Ratio | Way/Speed | N.W.IPC | ||||||||||
| 60MT-BHW800 | 362 | 544 | φ4mm×6m | 50mm×6m | 3.2:1 | 2 way/1 speed | 2.25 | ||||||||||
| 60MT-BHW1200 | 550 | 825 | φ4mm×8m | 50mm×8m | 4.2:1 | 2way/1 speed | 3.8 | ||||||||||
| 60MT-BHW1600 | 700 | 1080 | φ5mm×10m | 50mm×10m | 4.0:1 | 2way/1 speed | 5.2 | ||||||||||
| 60MT-BHW1800 | 800 | 1200 | φ5mm×10m | 50mm×10m | 5.0:1 | 2way/1 speed | 8.1 | ||||||||||
| 60MT-BHW2600 | 1180 | 1770 | φ5mm×10m | 50mm×10m | 10.0:1 | 2 way/1 speed | 10.3 | ||||||||||
