Hidea G80 Forged Alloy Steel Ring | Heavy-Duty Lifting Component for Rigging and Hoisting

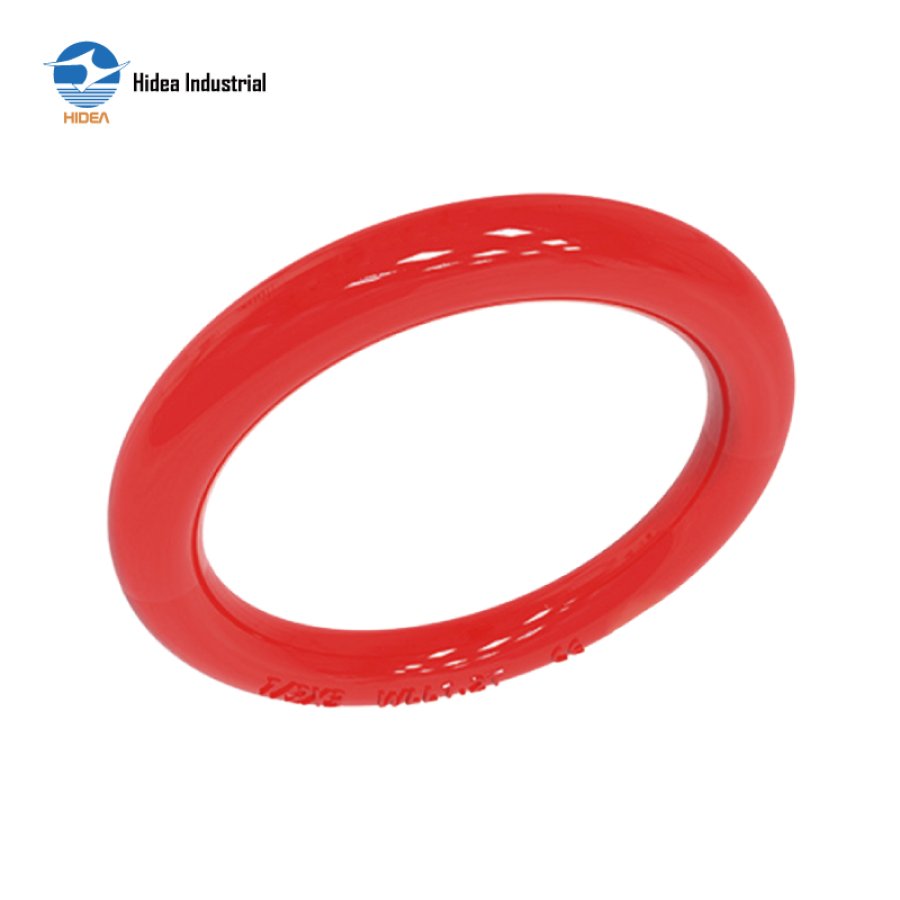

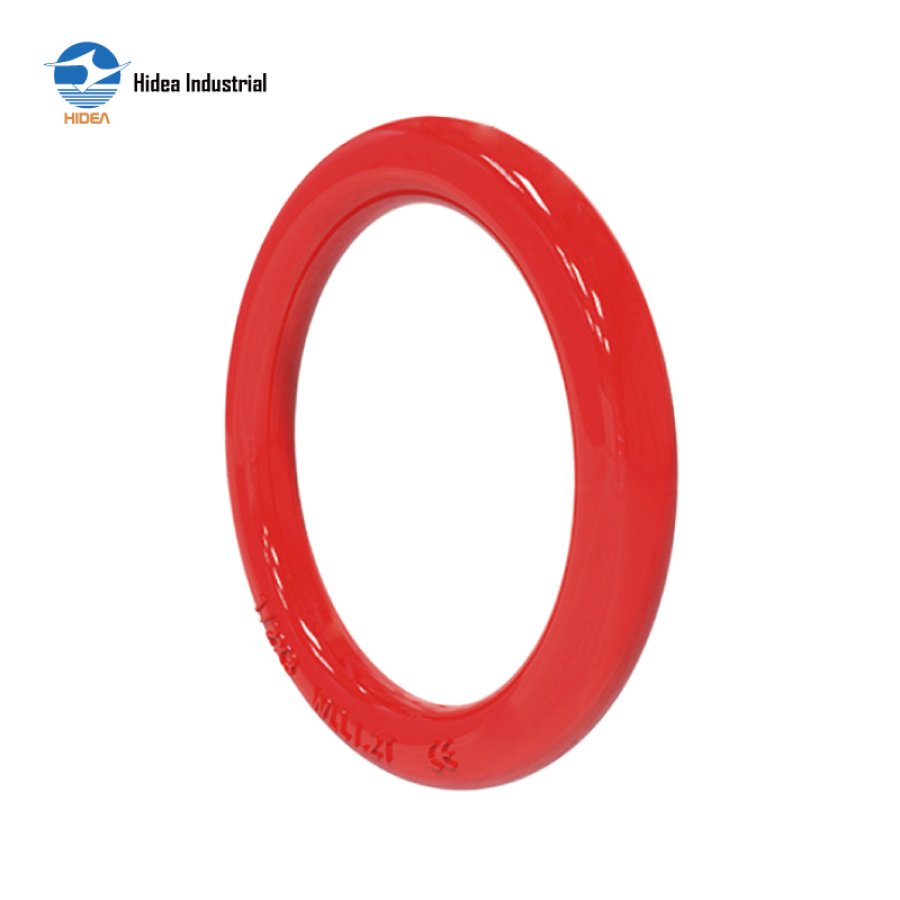

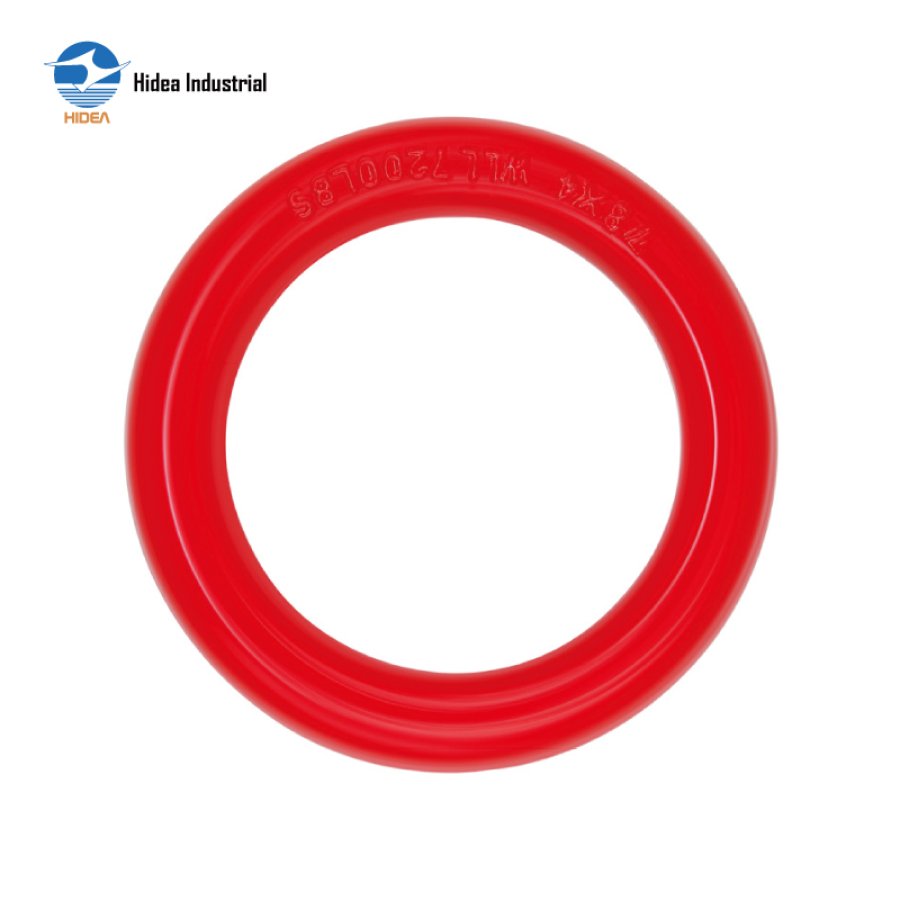

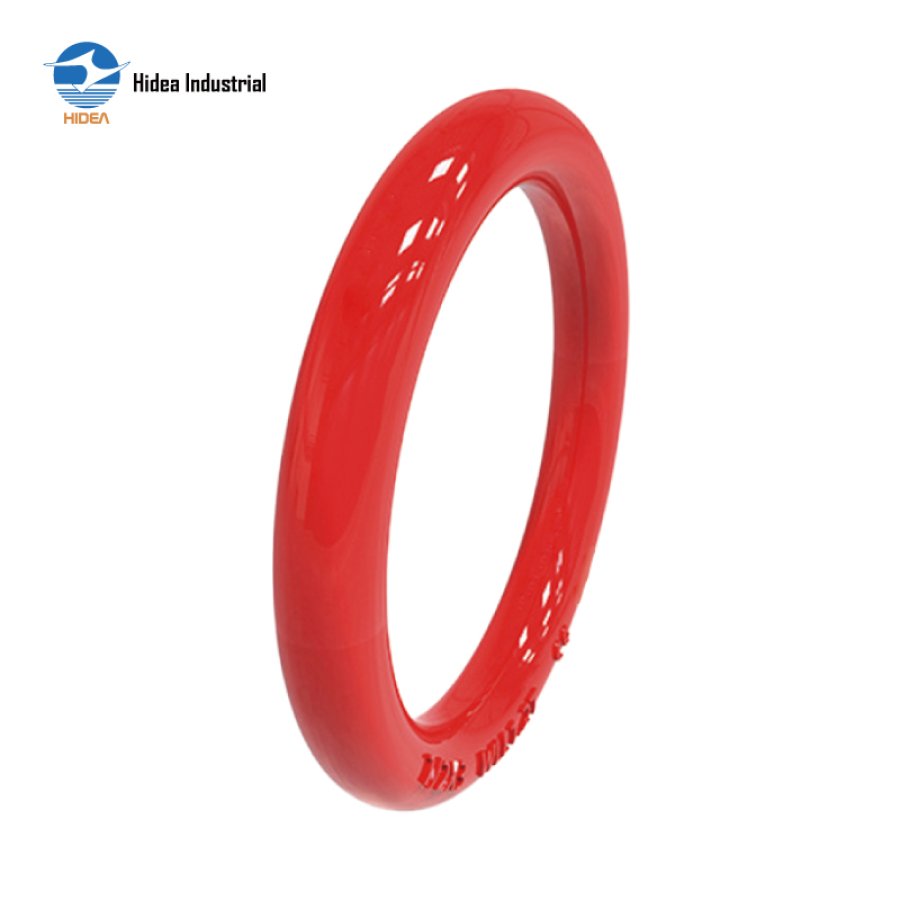

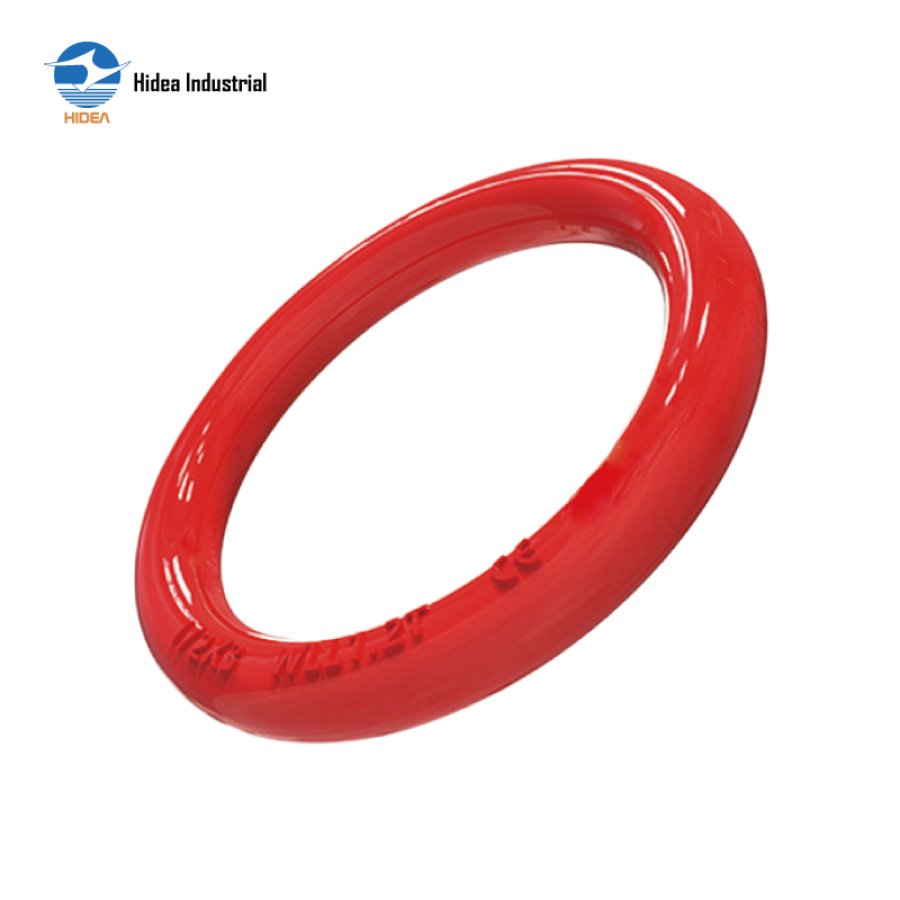

G80 FORGED ALLOY STEEL LIFTING RING

Forged alloy steel-Quenched and Tempered
Forged from Grade 80 alloy steel.
The rounded shape minimizes rope bend and allows smooth movement of the rope.
WLL is up to 15.9T.

Inquire Now

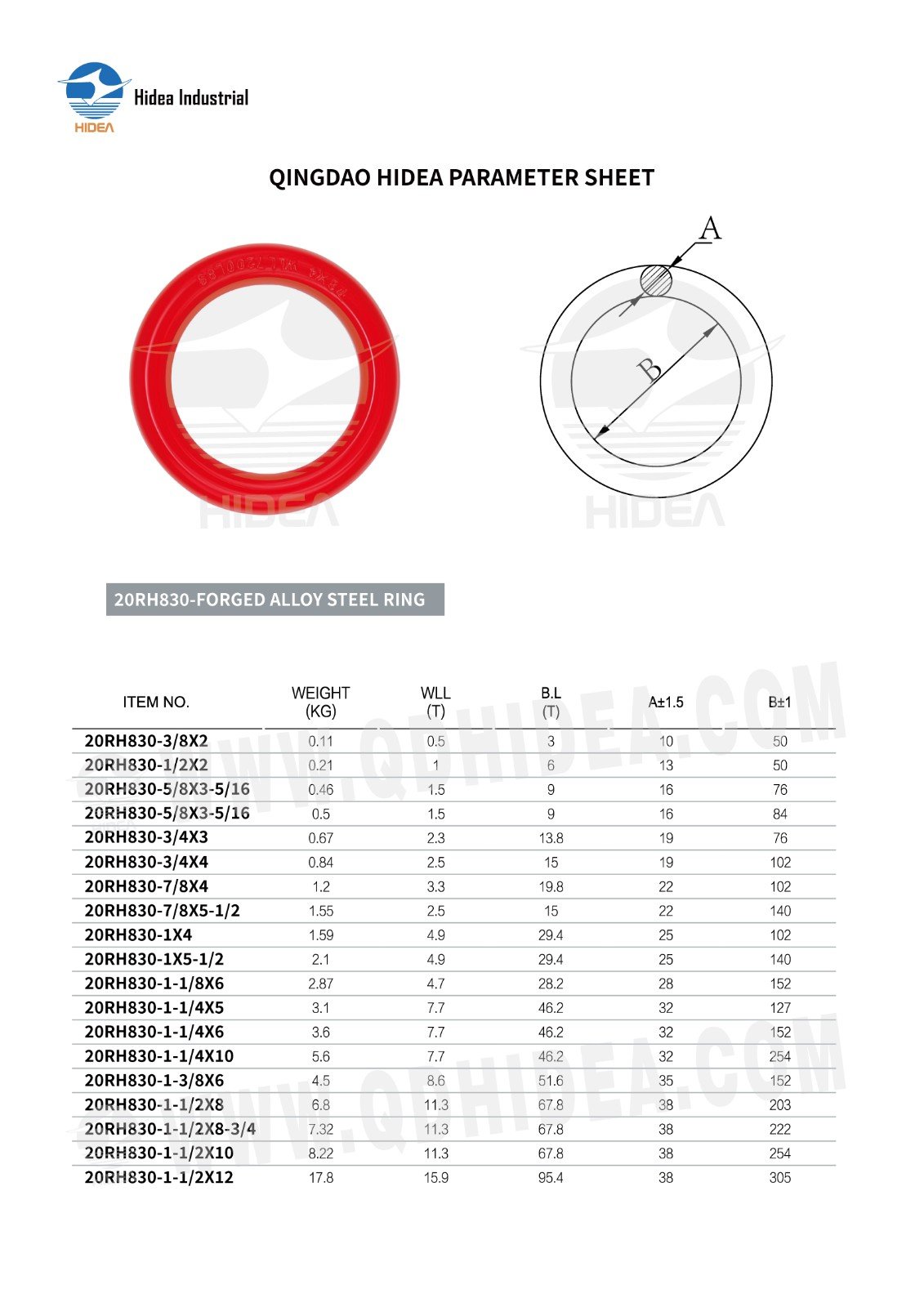

QINGDAO HIDEA PARAMETER SHEET FOR

20RH830-FORGED ALLOY STEEL RING

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1.5	B±1
20RH830-3/8X2	0.11	0.5	3	10	50
20RH830-1/2X2	0.21	1	6	13	50
20RH830-5/8X3-5/16	0.46	1.5	9	16	76
20RH830-5/8X3-5/16	0.5	1.5	9	16	84
20RH830-3/4X3	0.67	2.3	13.8	19	76
20RH830-3/4X4	0.84	2.5	15	19	102
20RH830-7/8X4	1.2	3.3	19.8	22	102
20RH830-7/8X5-1/2	1.55	2.5	15	22	140
20RH830-1X4	1.59	4.9	29.4	25	102
20RH830-1X5-1/2	2.1	4.9	29.4	25	140
20RH830-1-1/8X6	2.87	4.7	28.2	28	152
20RH830-1-1/4X5	3.1	7.7	46.2	32	127
20RH830-1-1/4X6	3.6	7.7	46.2	32	152
20RH830-1-1/4X10	5.6	7.7	46.2	32	254
20RH830-1-3/8X6	4.5	8.6	51.6	35	152
20RH830-1-1/2X8	6.8	11.3	67.8	38	203
20RH830-1-1/2X8-3/4	7.32	11.3	67.8	38	222
20RH830-1-1/2X10	8.22	11.3	67.8	38	254
20RH830-1-1/2X12	17.8	15.9	95.4	38	305
