G80 Master Link with Flat | Forged Oblong Master Link

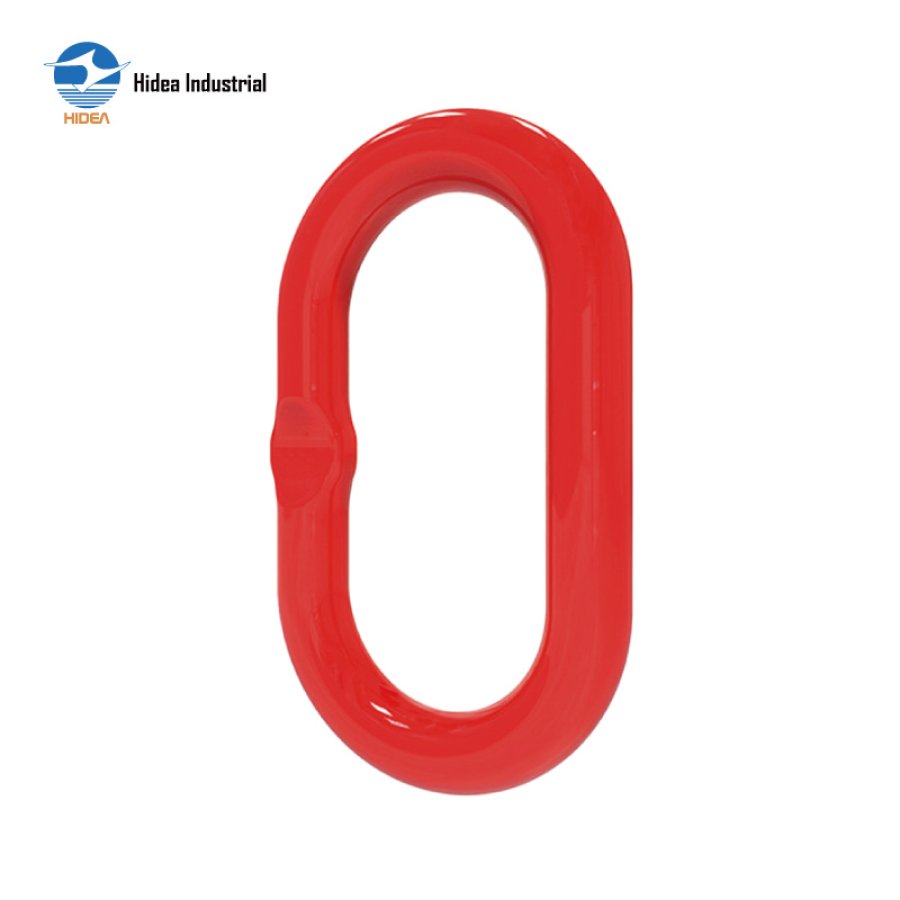

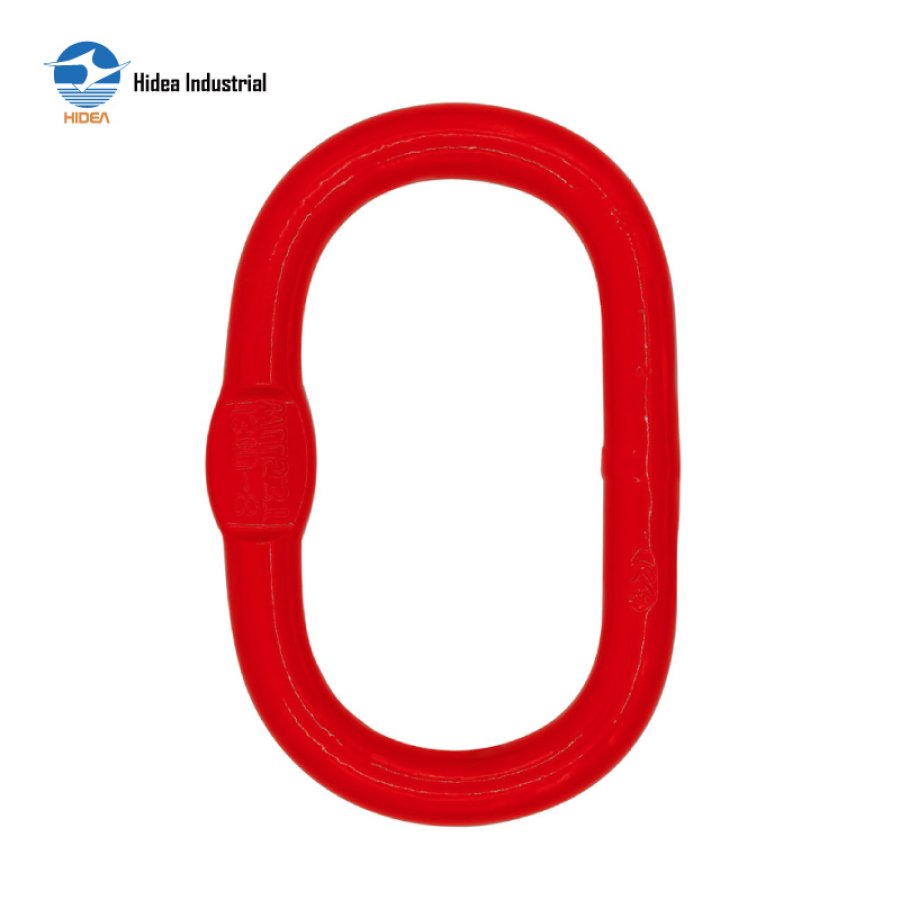

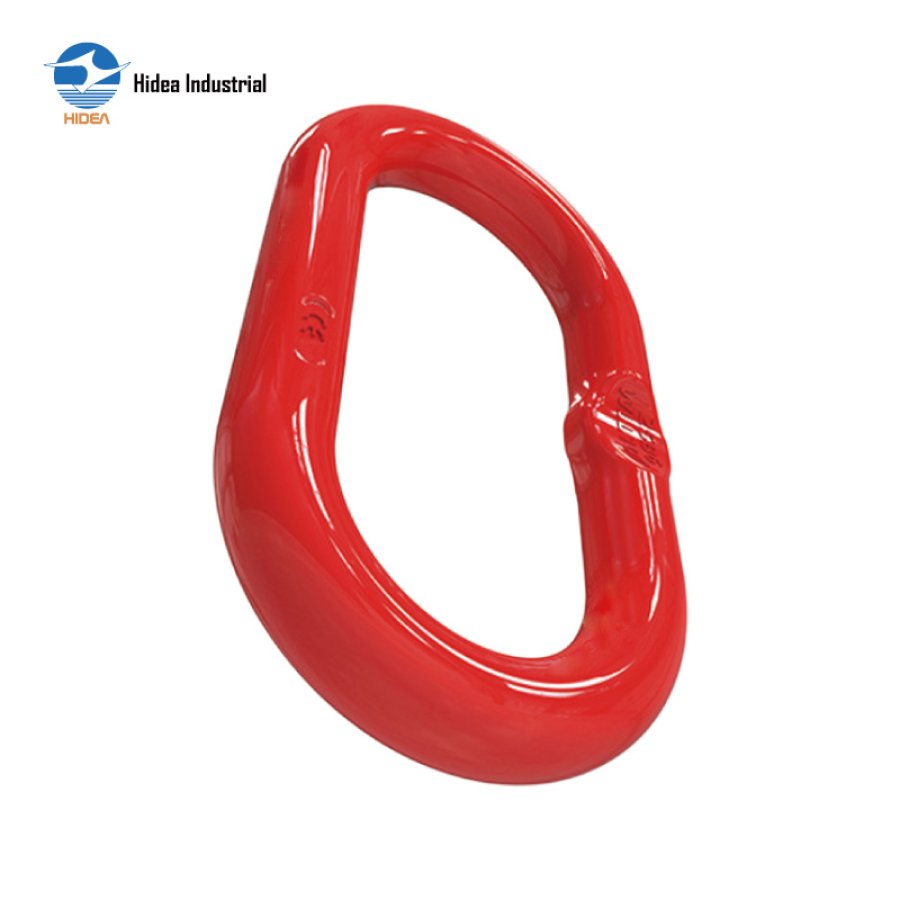

G80 MASTER LINK WITH FLAT

Made of super alloy steel-Quenched and Tempered
Individually proof test at MPF
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed

Inquire Now

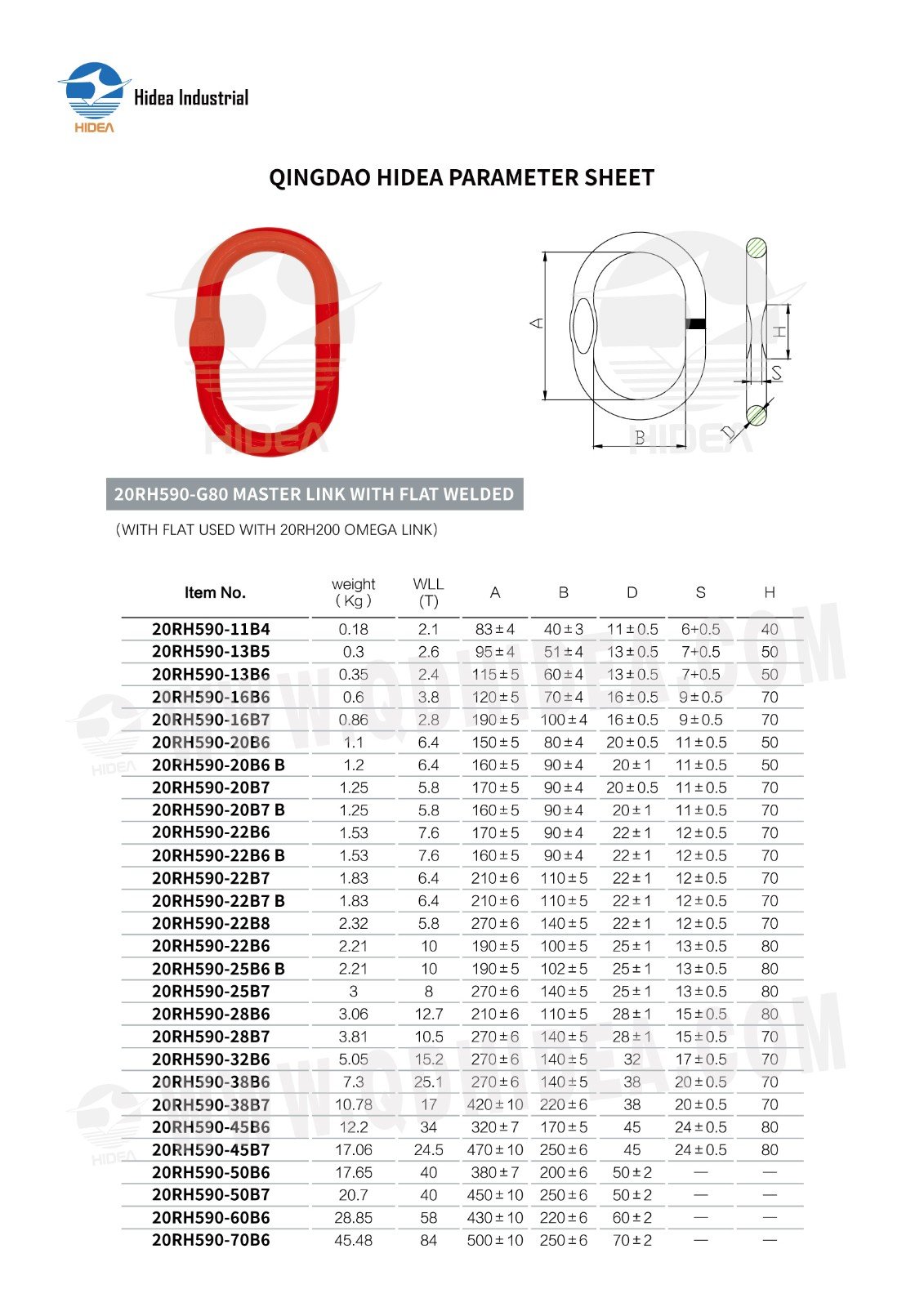

QINGDAO HIDEA PARAMETER SHEET FOR

20RH590-G80 MASTER LINK WITH FLAT WELDED

Item No.	weight (Kg)	WLL (T)	A	B	D	S	H
20RH590-11B4	0.18	2.1	83±4	40±3	11±0.5	6+0.5	40
20RH590-13B5	0.3	2.6	95±4	51±4	13±0.5	7+0.5	50
20RH590-13B6	0.35	2.4	115±5	60±4	13±0.5	7+0.5	50
20RH590-16B6	0.6	3.8	120±5	70±4	16±0.5	9±0.5	70
20RH590-16B7	0.86	2.8	190±5	100±4	16±0.5	9±0.5	70
20RH590-20B6	1.1	6.4	150±5	80±4	20±0.5	11±0.5	50
20RH590-20B6B	1.2	6.4	160±5	90±4	20±1	11±0.5	50
20RH590-20B7	1.25	5.8	170±5	90±4	20±0.5	11±0.5	70
20RH590-20B7B	1.25	5.8	160±5	90±4	20±1	11±0.5	70
20RH590-22B6	1.53	7.6	170±5	90±4	22±1	12±0.5	70
20RH590-22B6B	1.53	7.6	160±5	90±4	22±1	12±0.5	70
20RH590-22B7	1.83	6.4	210±6	110±5	22±1	12±0.5	70
20RH590-22B7B	1.83	6.4	210±6	110±5	22±1	12±0.5	70
20RH590-22B8	2.32	5.8	270±6	140±5	22±1	12±0.5	70
20RH590-22B6	2.21	10	190±5	100±5	25±1	13±0.5	80
20RH590-25B6B	2.21	10	190±5	102±5	25±1	13±0.5	80
20RH590-25B7	3	8	270±6	140±5	25±1	13±0.5	80
20RH590-28B6	3.06	12.7	210±6	110±5	28±1	15±0.5	80
20RH590-28B7	3.81	10.5	270±6	140±5	28±1	15±0.5	70
20RH590-32B6	5.05	15.2	270±6	140±5	32	17±0.5	70
20RH590-38B6	7.3	25.1	270±6	140±5	38	20±0.5	70
20RH590-38B7	10.78	17	420±10	220±6	38	20±0.5	70
20RH590-45B6	12.2	34	320±7	170±5	45	24±0.5	80
20RH590-45B7	17.06	24.5	470±10	250±6	45	24±0.5	80
20RH590-50B6	17.65	40	380±7	200±6	50±2	一	—
20RH590-50B7	20.7	40	450±10	250±6	50±2	一	—
20RH590-60B6	28.85	58	430±10	220±6	60±2	一	—
20RH590-70B6	45.48	84	500±10	250±6	70±2	—	—
