Hidea G80 Swivel Hook with Latch – Secure and Versatile Lifting

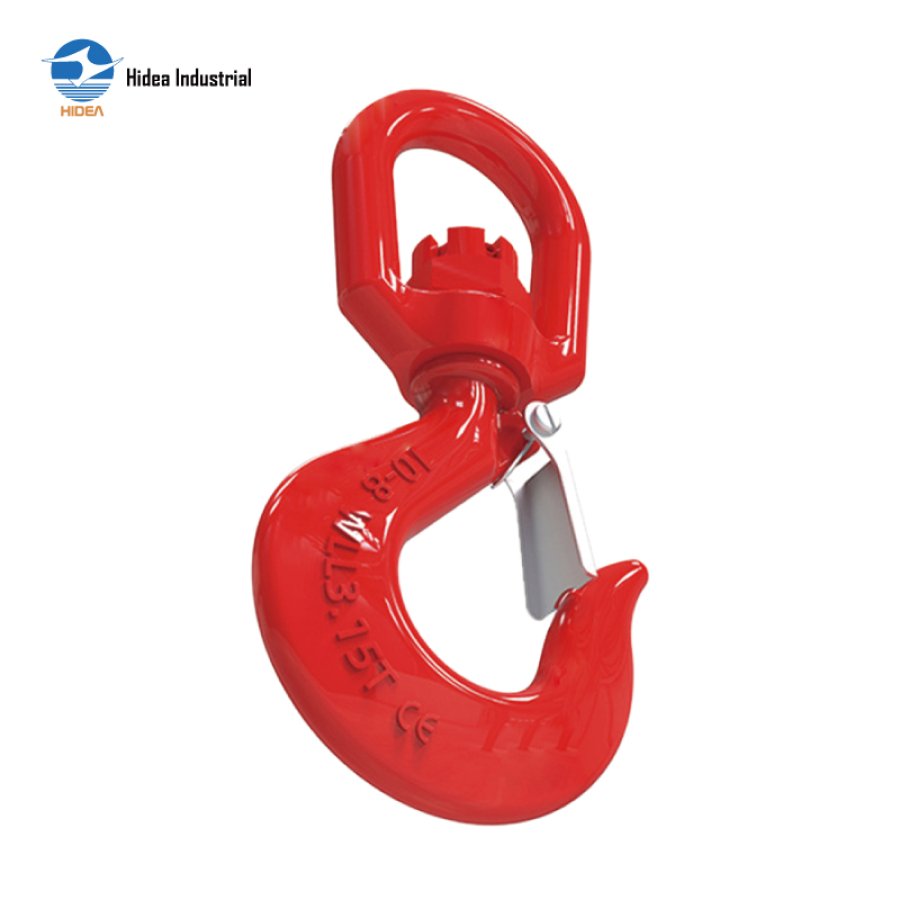

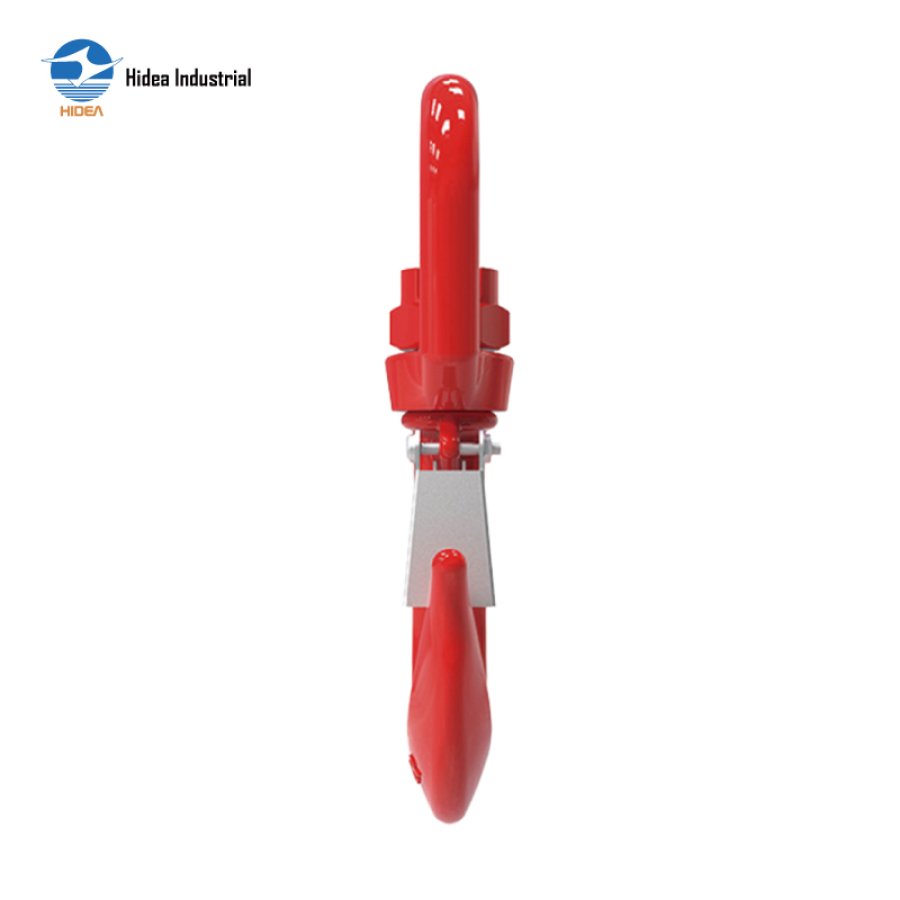

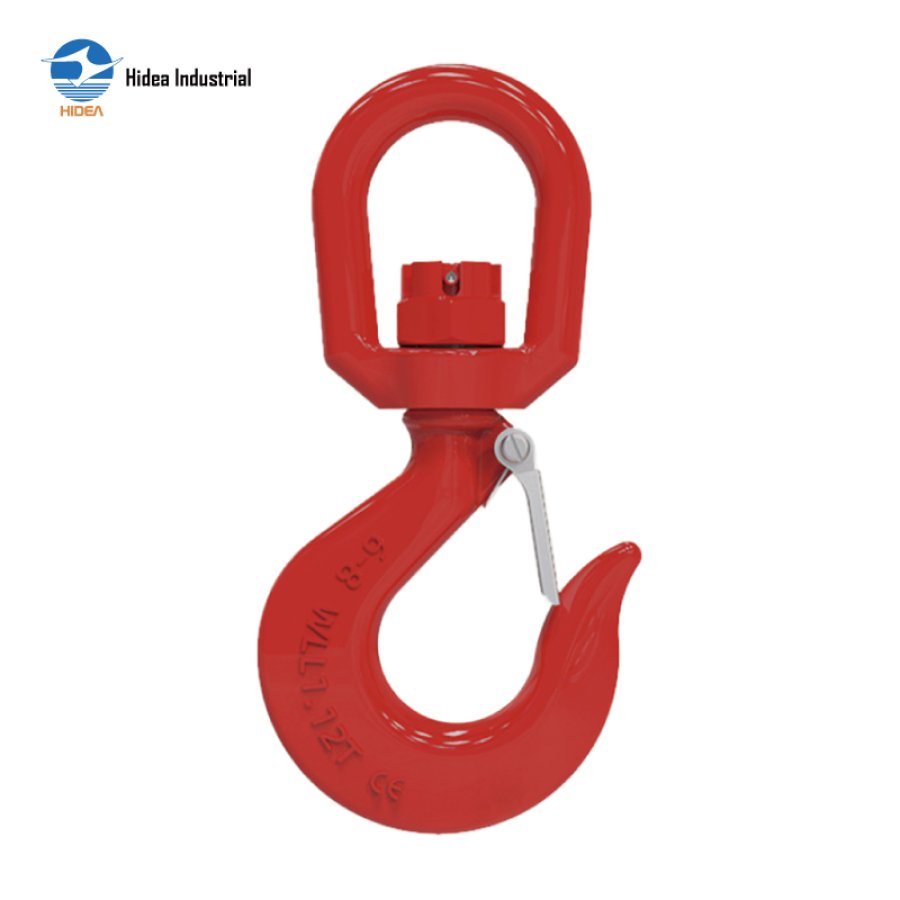

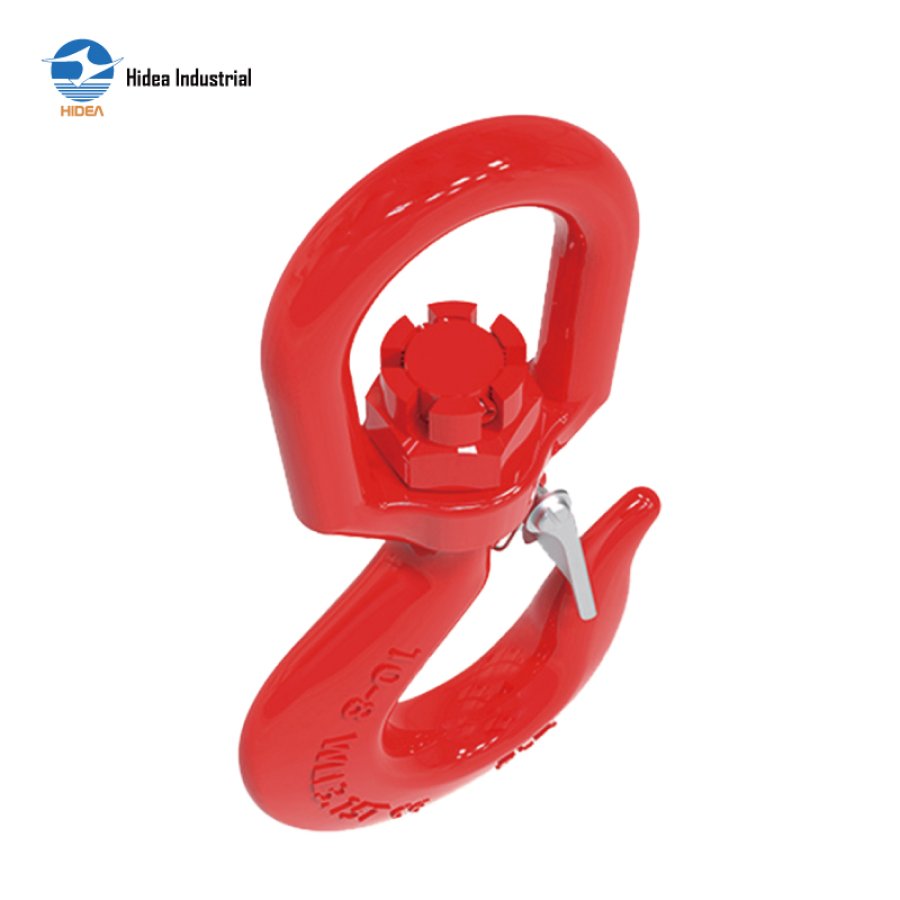

G80 SWIVEL HOOK WITH LATCH

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Can be rotated under Non-load Conditions

Inquire Now

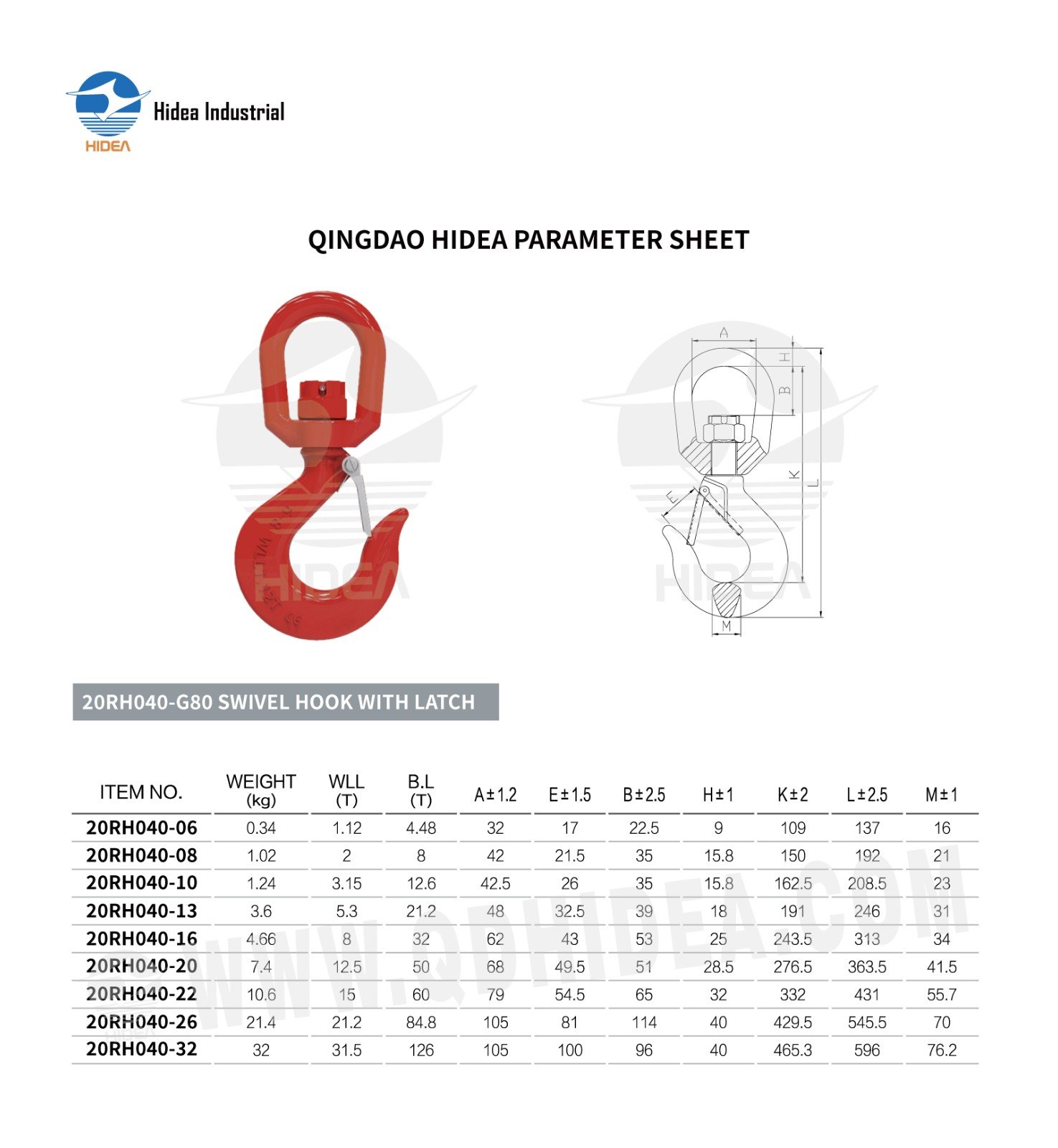

QINGDAO HIDEA PARAMETER SHEET FOR

20RH040-G80 SWIVEL HOOK WITH LATCH

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±1.2	E±1.5	B±2.5	H±1	K±2	L±2.5	M±1
20RH040-06	0.34	1.12	4.48	32	17	22.5	9	109	137	16
20RH040-08	1.02	2	8	42	21.5	35	15.8	150	192	21
20RH040-10	1.24	3.15	12.6	42.5	26	35	15.8	162.5	208.5	23
20RH040-13	3.6	5.3	21.2	48	32.5	39	18	191	246	31
20RH040-16	4.66	8	32	62	43	53	25	243.5	313	34
20RH040-20	7.4	12.5	50	68	49.5	51	28.5	276.5	363.5	41.5
20RH040-22	10.6	15	60	79	54.5	65	32	332	431	55.7
20RH040-26	21.4	21.2	84.8	105	81	114	40	429.5	545.5	70
20RH040-32	32	31.5	126	105	100	96	40	465.3	596	76.2
