Raw Material 100% high tenacity and tensile strength polyester yarns of low elongation for lifting webbing slings
Colors coded and application properties constructed according to EN1492-1, also meeting ISO4878, machinery directive 2006/42/EC, ASME B30.9, compliant with GS, CE safety requirements
Webbing can also be constructed single, triple and four plies upon request
Safety Factors 5:1, 6:1, 7:1 and 8:1 available upon request; clearly marked with WLL and length on surface of sling and a tag with serial number and technical data

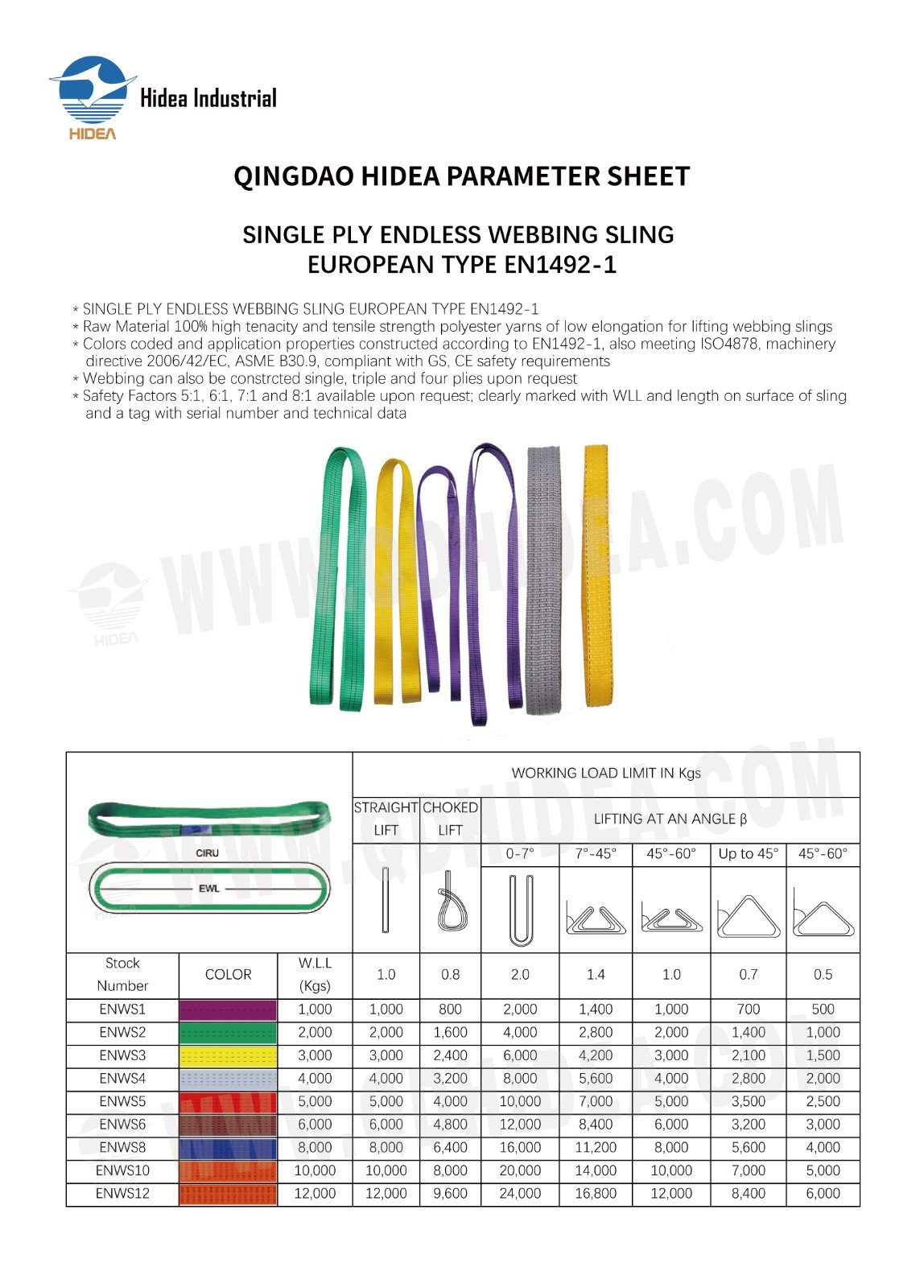

QINGDAO HIDEA PARAMETER SHEET FOR

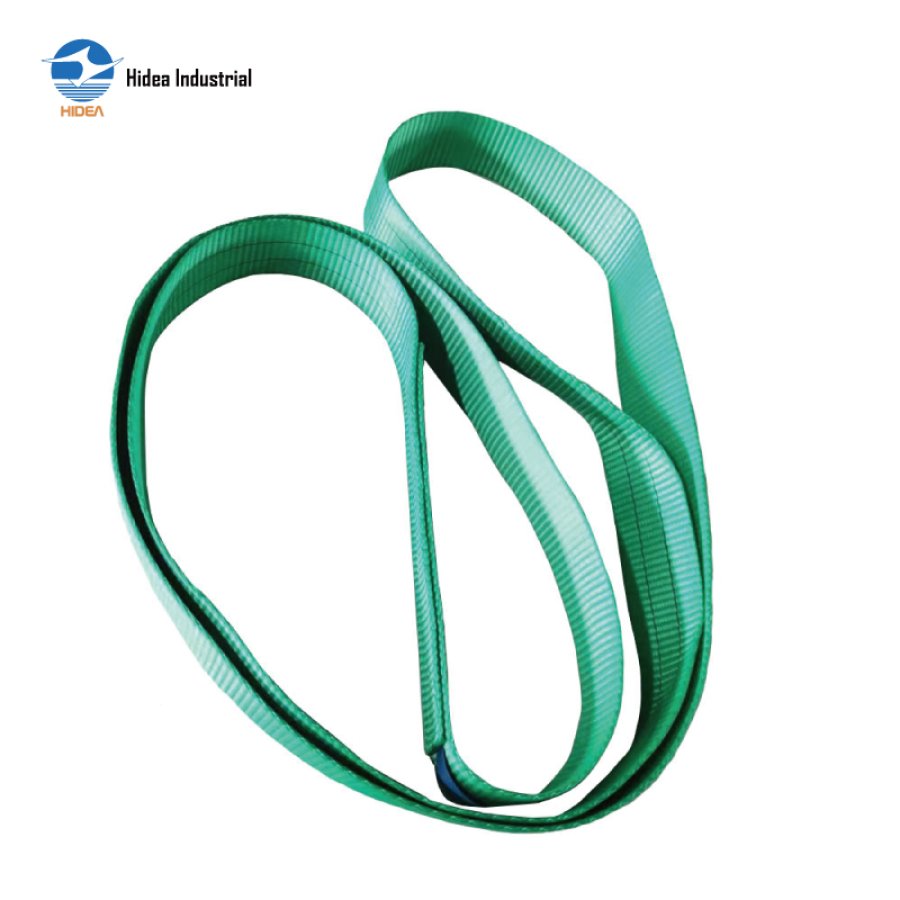

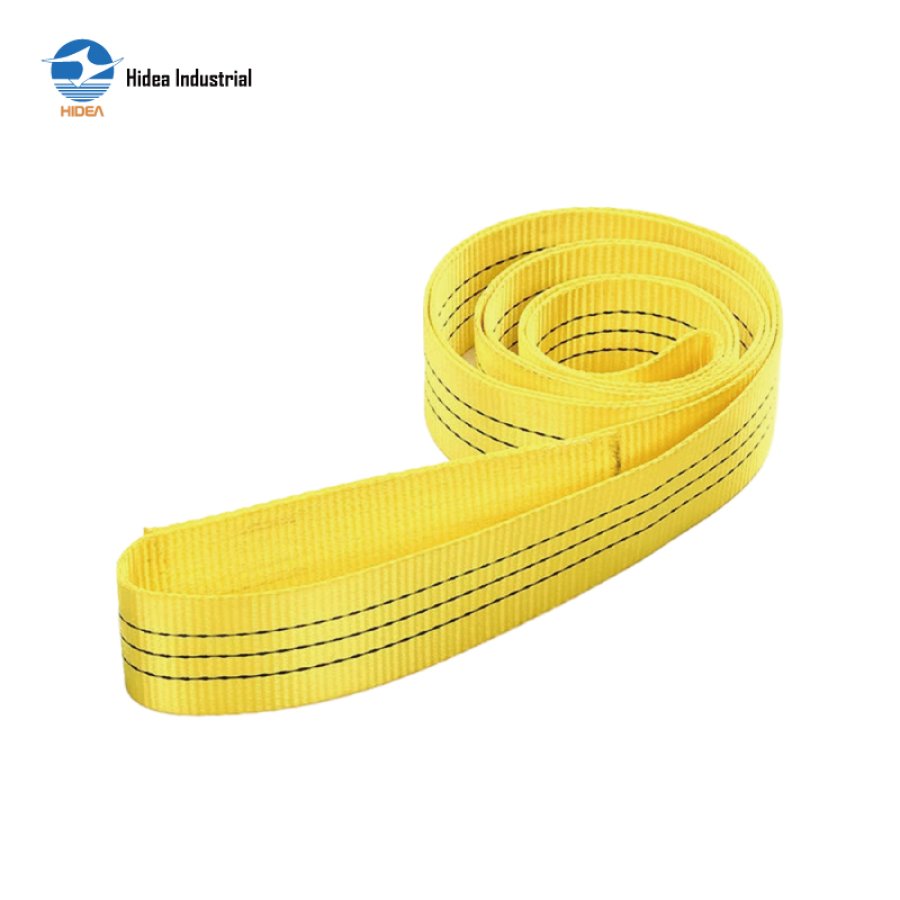

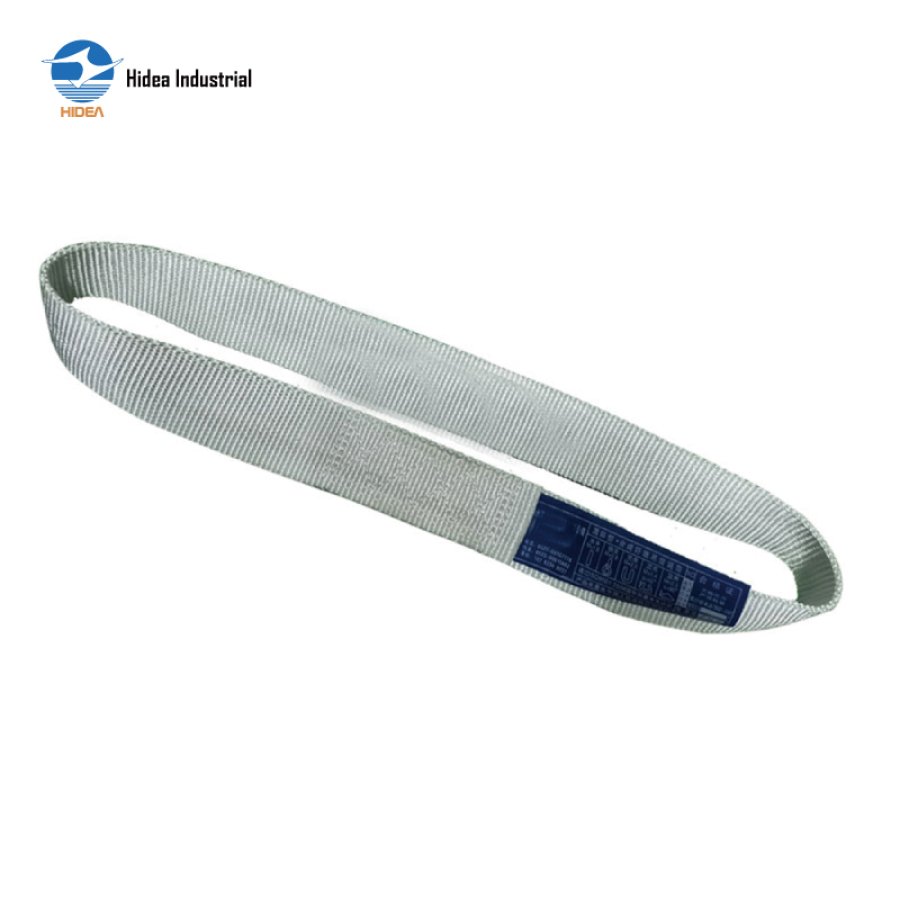

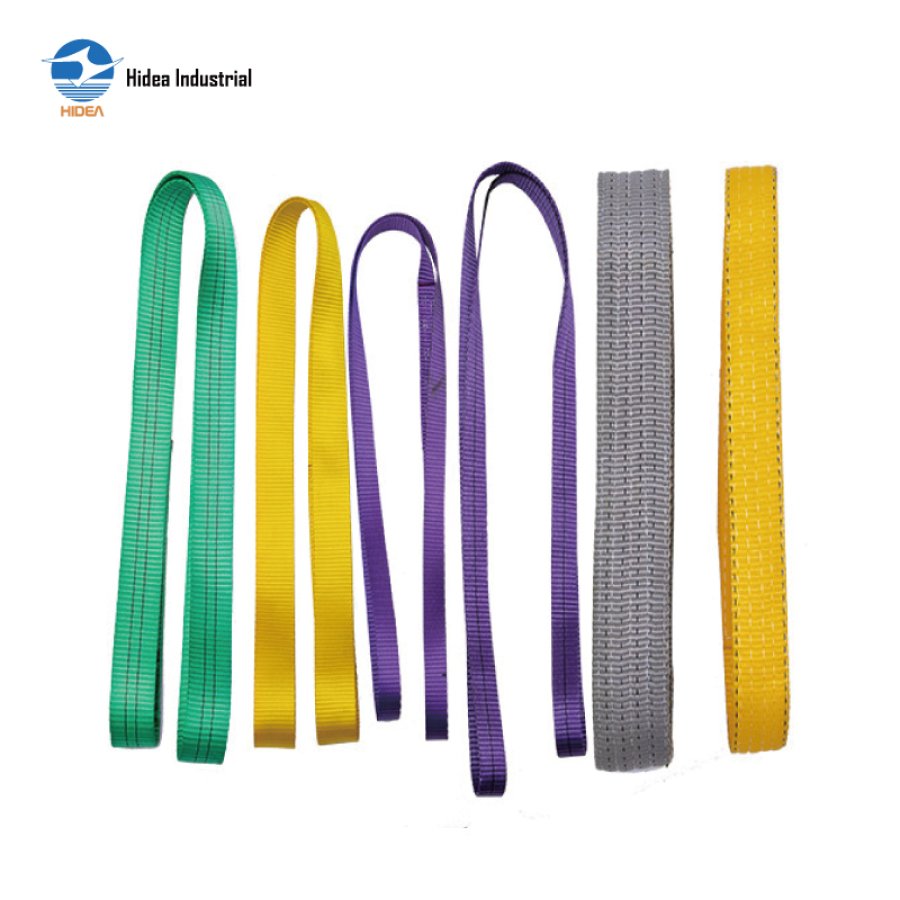

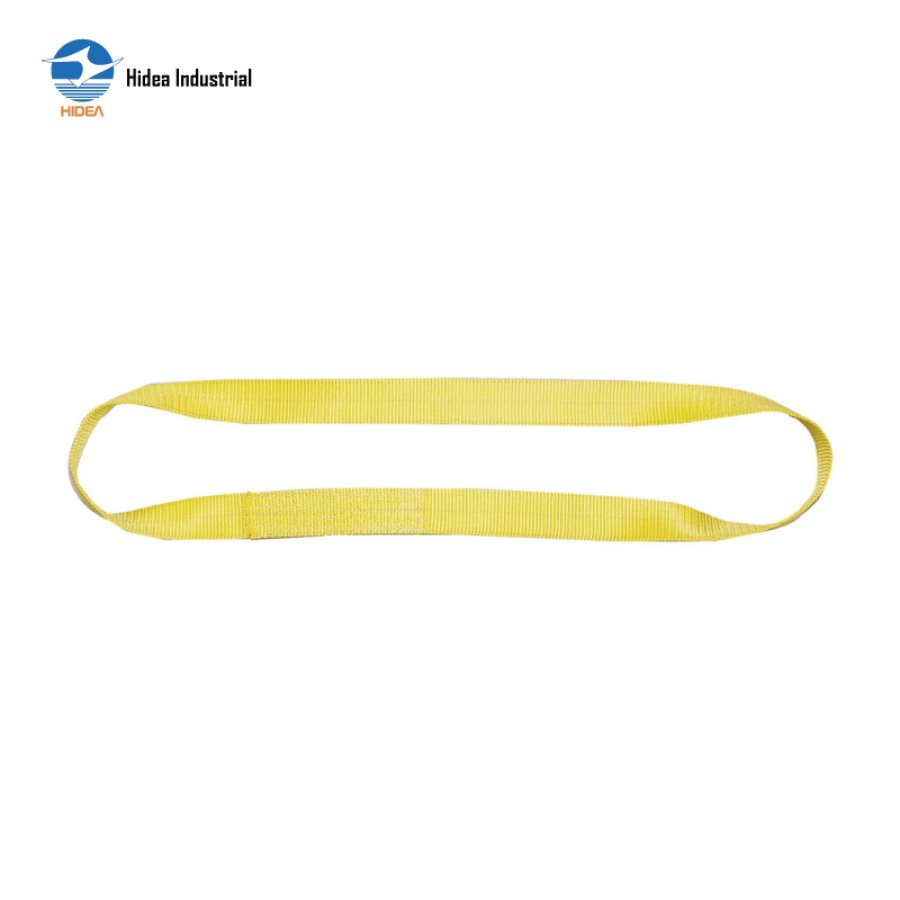

SINGLE PLY ENDLESS WEBBING SLING
EUROPEAN TYPE EN1492-1
| CIRU EWL | WORKING LOAD LIMIT IN Kgs | ||||||||||
| STRAIGHT LIFT | CHOKED LIFT | LIFTING AT AN ANGLEβ | |||||||||
| 0-7° | 7°-45° | 45°-60° | Up to 45° | 45°-60° | |||||||
| Stock Number | COLOR | W.L.L (Kgs) | 1.0 | 0.8 | 2.0 | 1.4 | 10 | 0.7 | 0.5 | ||
| ENWS1 | 1,000 | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 700 | 500 | |||
| ENWS2 | 2,000 | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 1,400 | 1,000 | |||
| ENWS3 | 3,000 | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 2,100 | 1,500 | |||
| ENWS4 | 4,000 | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 2,800 | 2,000 | |||
| ENWS5 | 5,000 | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 3,500 | 2,500 | |||
| ENWS6 | 6,000 | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 3,200 | 3,000 | |||
| ENWS8 | 8,000 | 8000 | 6,400 | 16,000 | 11,200 | 8,000 | 5,600 | 4,000 | |||
| ENWS10 | 10,000 | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 7,000 | 5,000 | |||
| ENWS12 | 12,000 | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 8,400 | 6,000 | |||
