Unyielding Strength with Hidea G70 Forged Alloy Steel Clevis Grab Hook

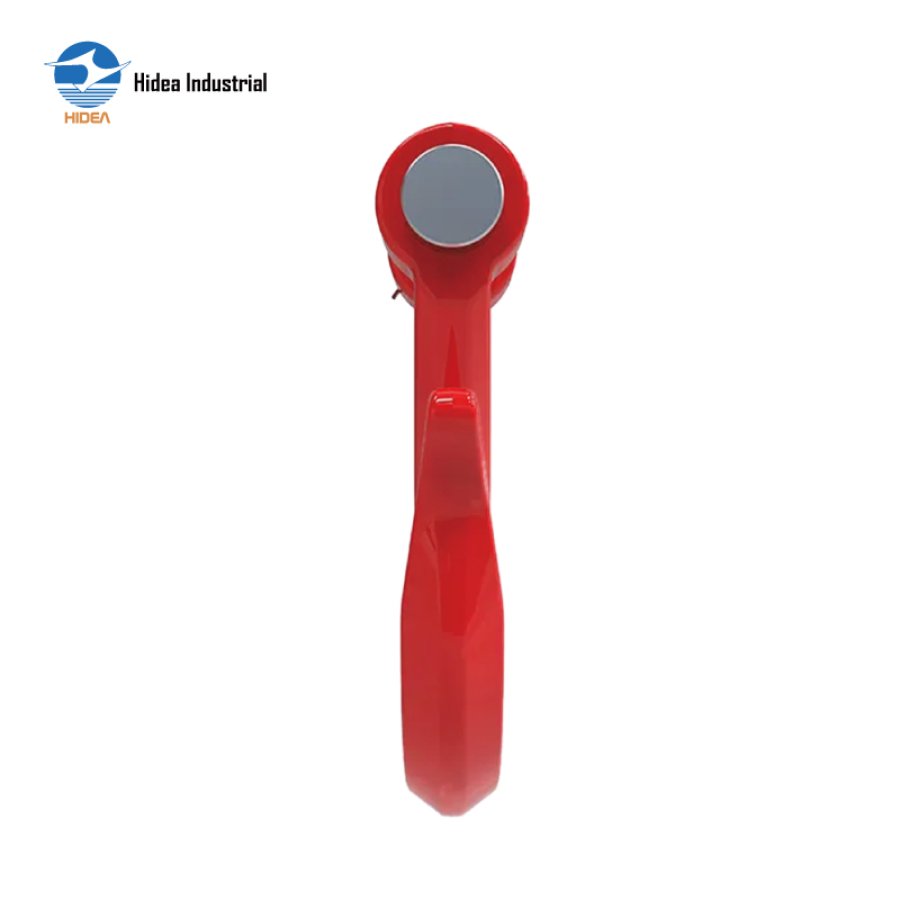

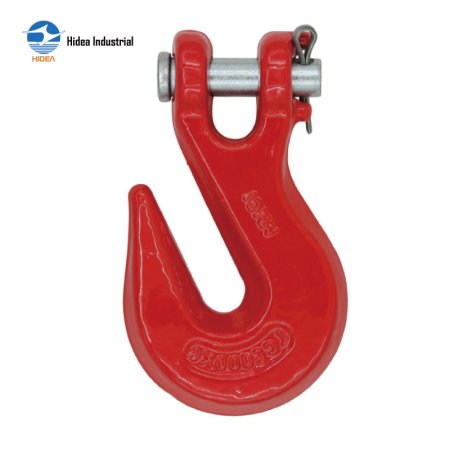

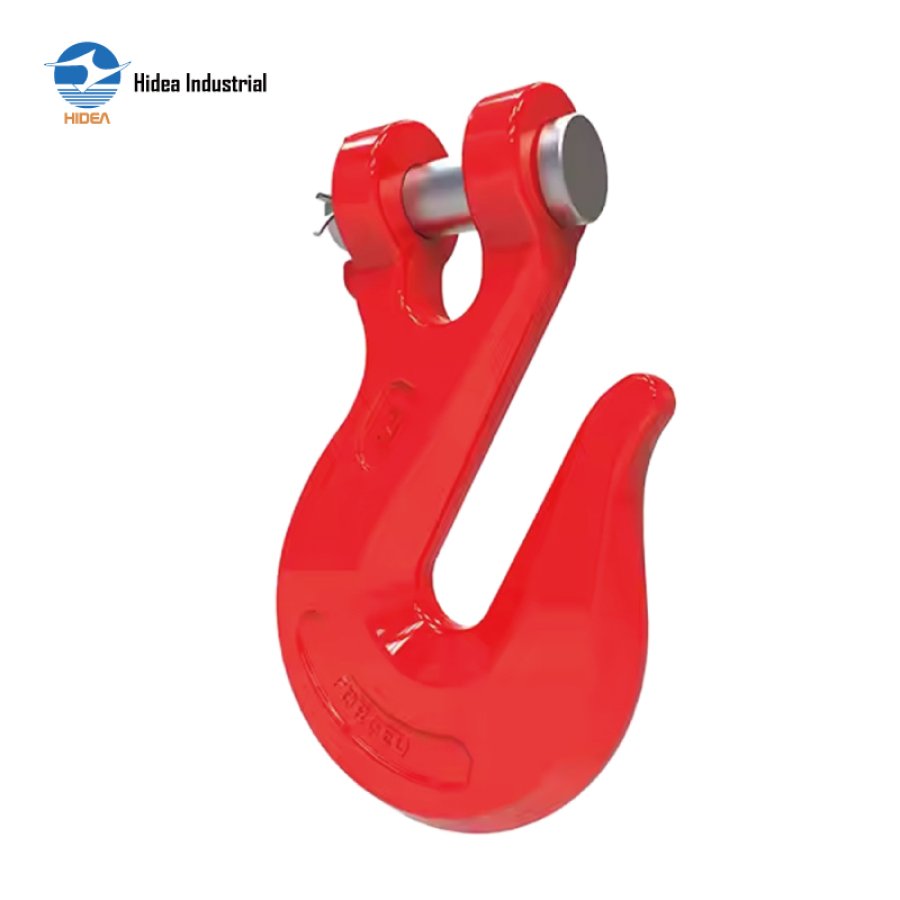

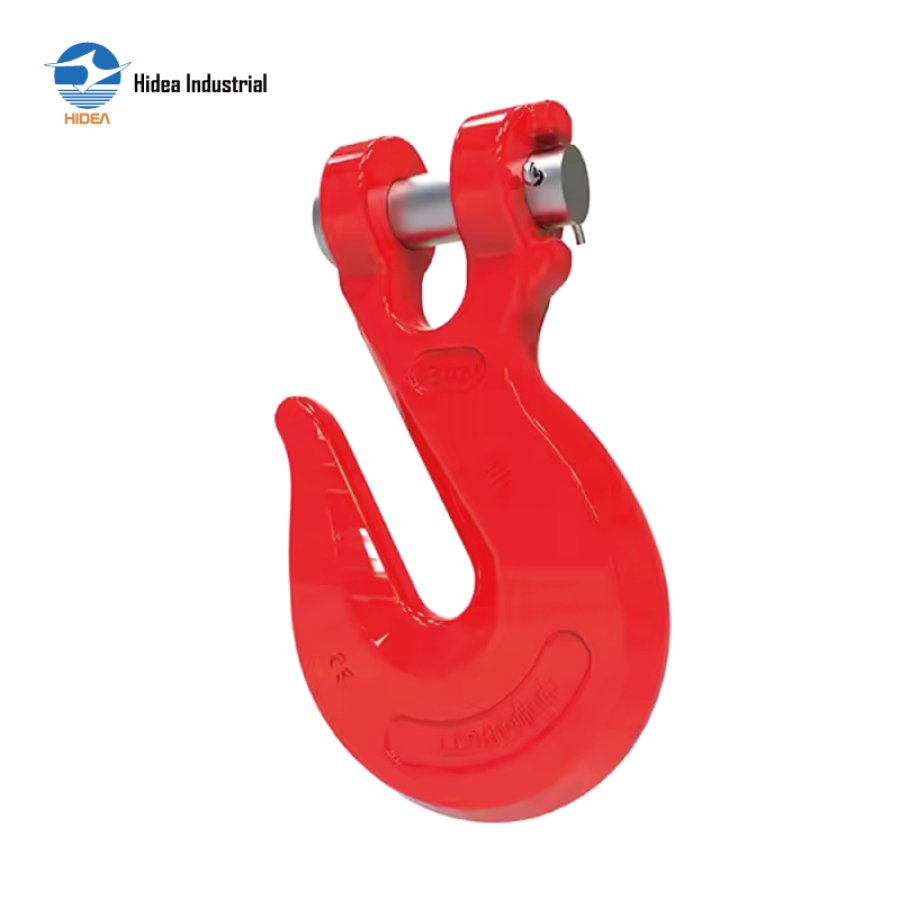

G70 CLEVIS GRAB HOOK AUSTRALIA TYPE

Material: alloy steel rated G70
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 2:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

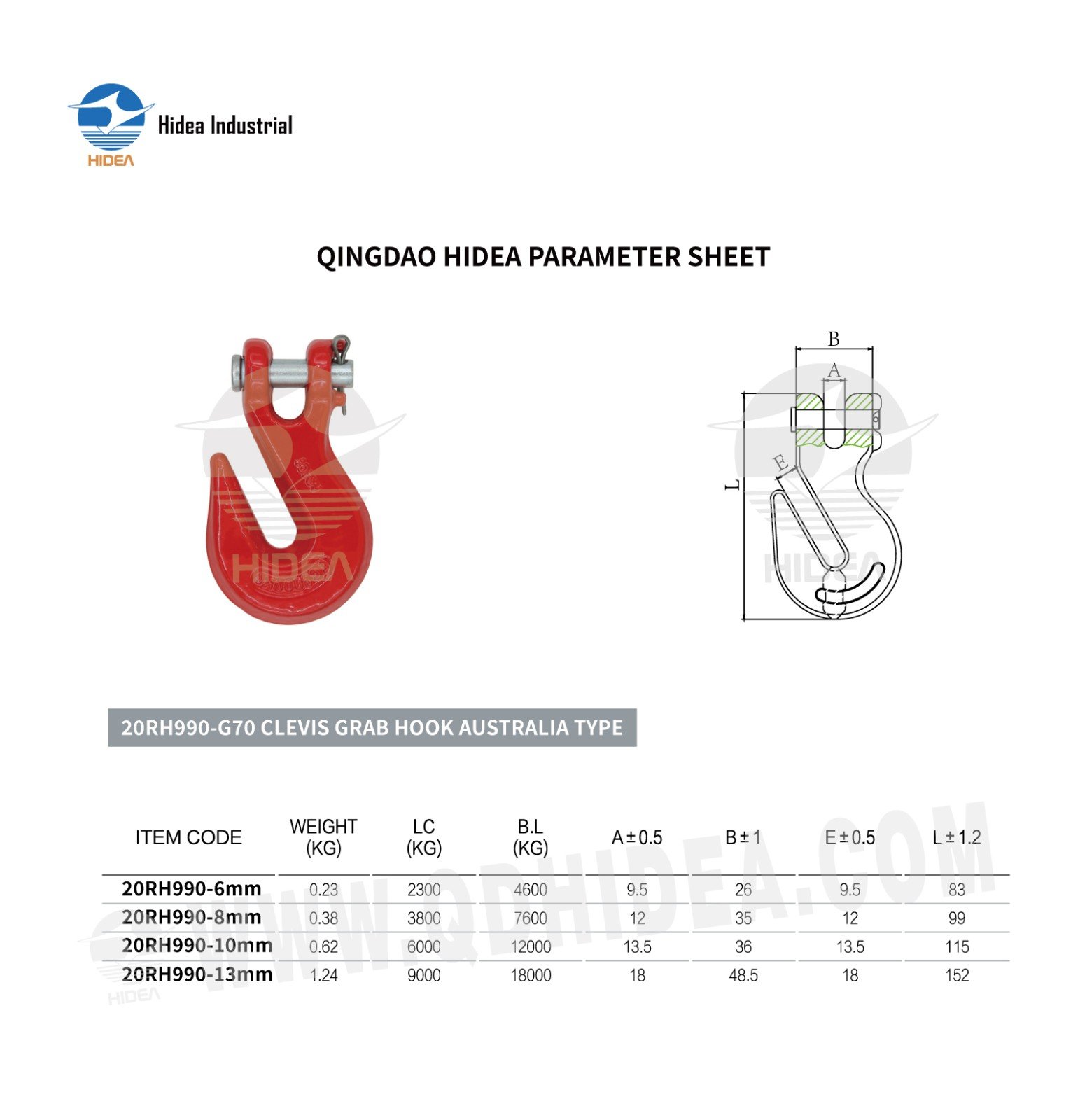

QINGDAO HIDEA PARAMETER SHEET FOR

20RH990-G70 CLEVIS GRAB HOOK AUSTRILIA TYPE

ITEM CODE	WEIGHT (KG)	LC (KG	B.L (KG)	A±0.5	B±1	E±0.5	L±1.2
20RH990-6mm	0.23	2300	4600	9.5	26	9.5	83
20RH990-8mm	0.38	3800	7600	12	35	12	99
20RH990-10mm	0.62	6000	12000	13.5	36	13.5	115
20RH990-13mm	1.24	9000	18000	18	48.5	18	152
