Hidea Grade 100 Alloy Chain Slings – Ideal for High-Load Industrial Applications

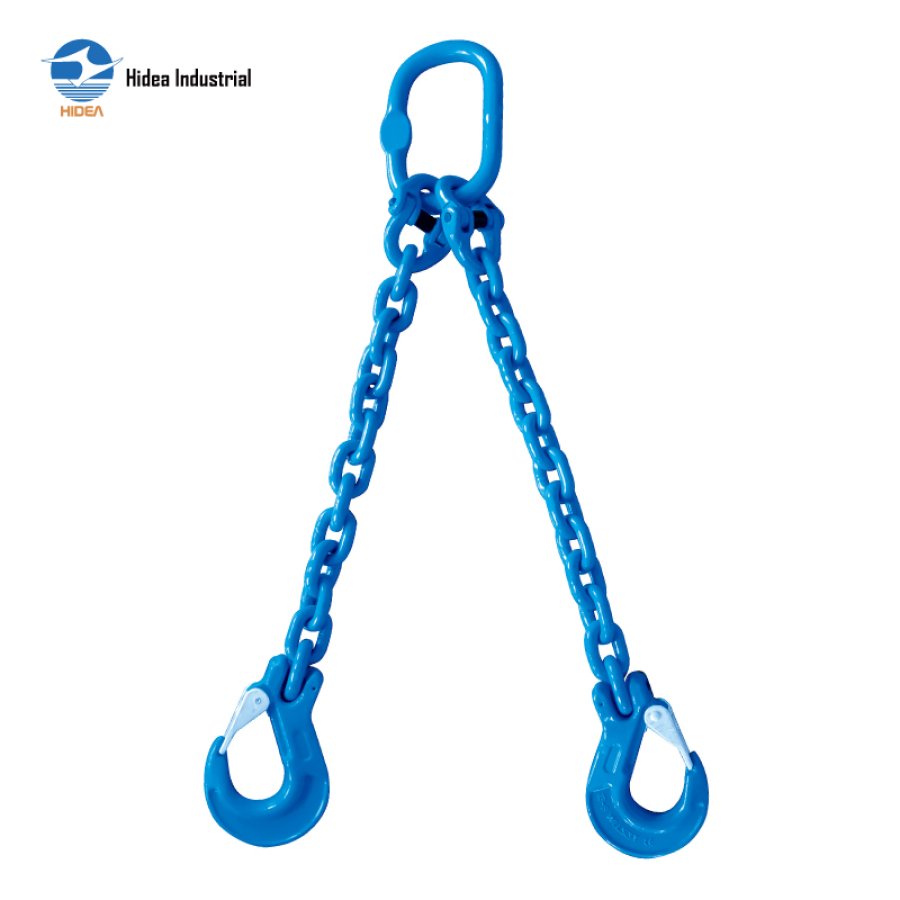

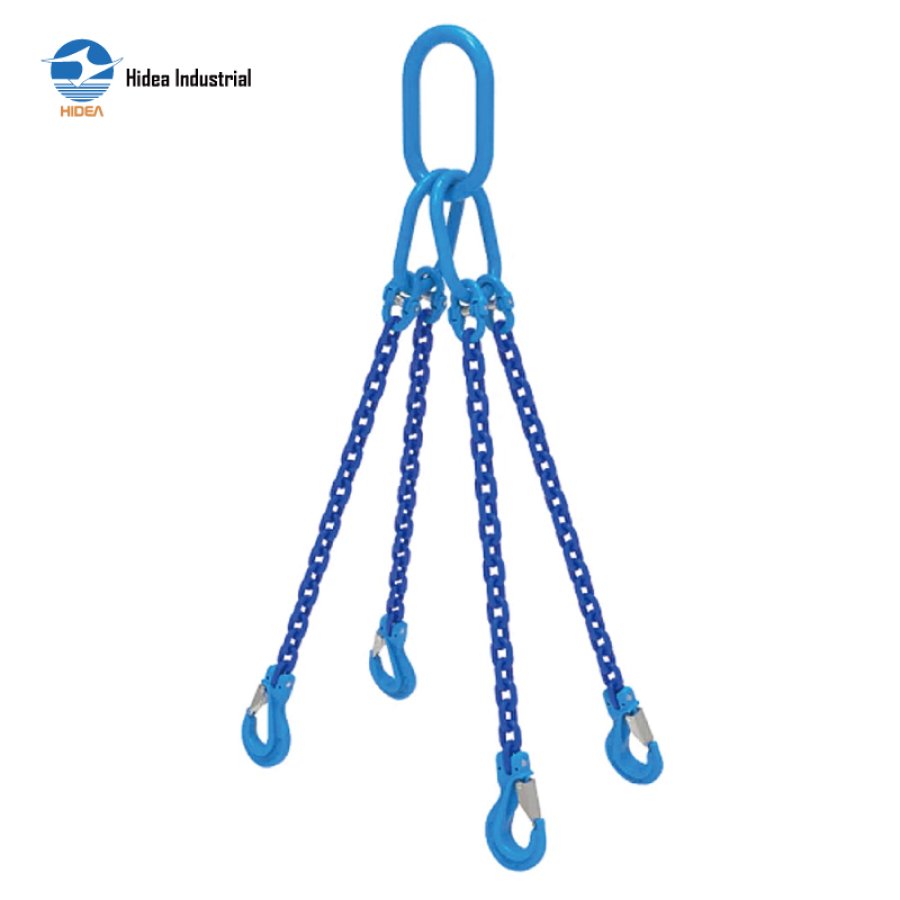

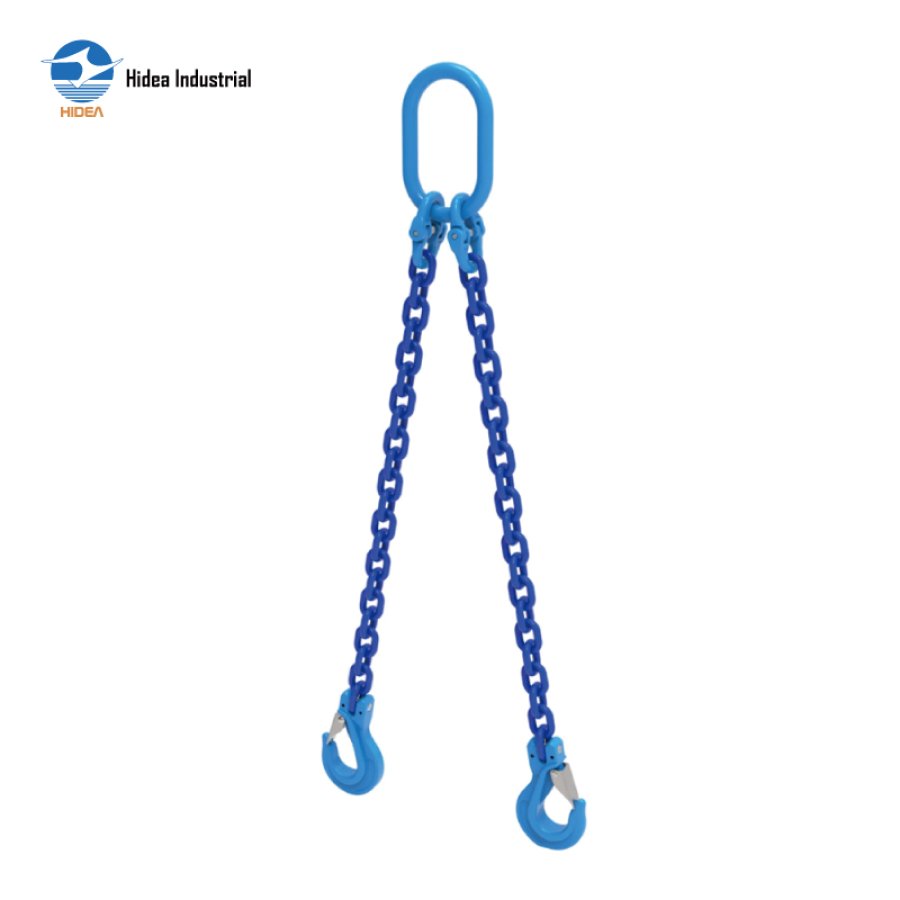

G100 LIFTING CHAIN SLINGS

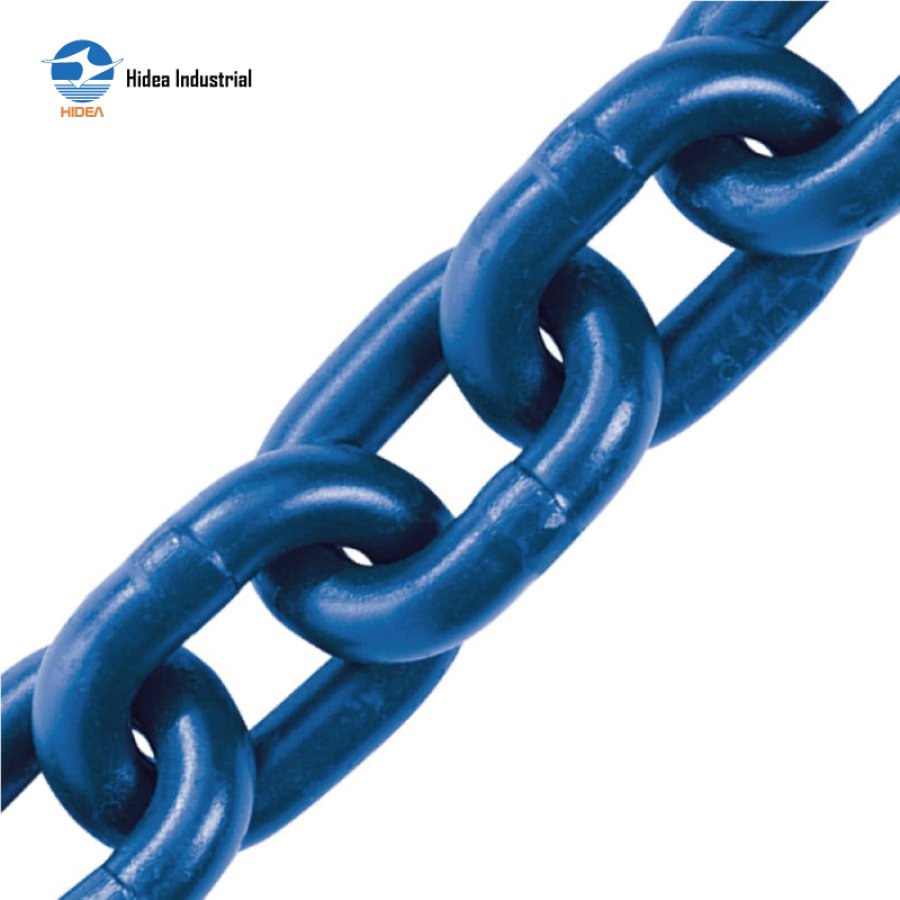

Material for Chain Super Alloy Steel SAE8620
Standard Acc. BS EN 818-4:1996+A1:2008 for 1 Legs to 4 Legs
Permanently embossed on chains with G100
Proof Tested Chains at minimum 2.5 times the Working Load Limit with certification
Ideal options for higher rated lifting than G80 Chain Sling

Inquire Now

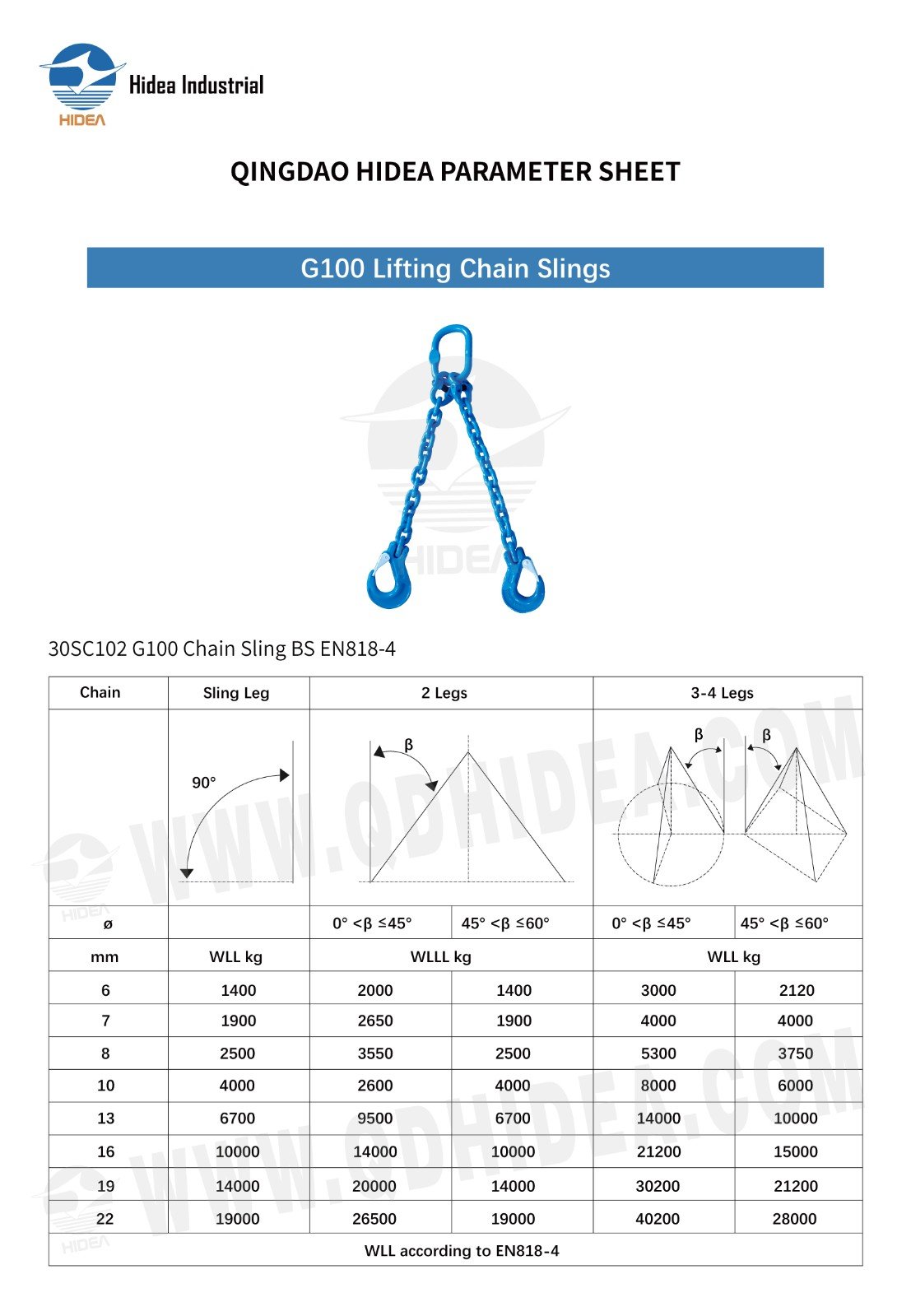

QINGDAO HIDEA PARAMETER SHEET FOR

30SC102 G100 Chain Sling BS EN818-4

Chain	Sling Leg	2 Legs		3-4 Legs
Ø		0°<β≤45°	45°<β≤60°	0°<β≤45°	45°<β≤60°
mm	WLL kg	WLLL kg		WLL kg
6	1400	2000	1400	3000	2120
7	1900	2650	1900	4000	4000
8	2500	3550	2500	5300	3750
10	4000	2600	4000	8000	6000
13	6700	9500	6700	14000	10000
16	10000	14000	10000	21200	15000
19	14000	20000	14000	30200	21200
22	19000	26500	19000	40200	28000
WLL according to EN818-4
