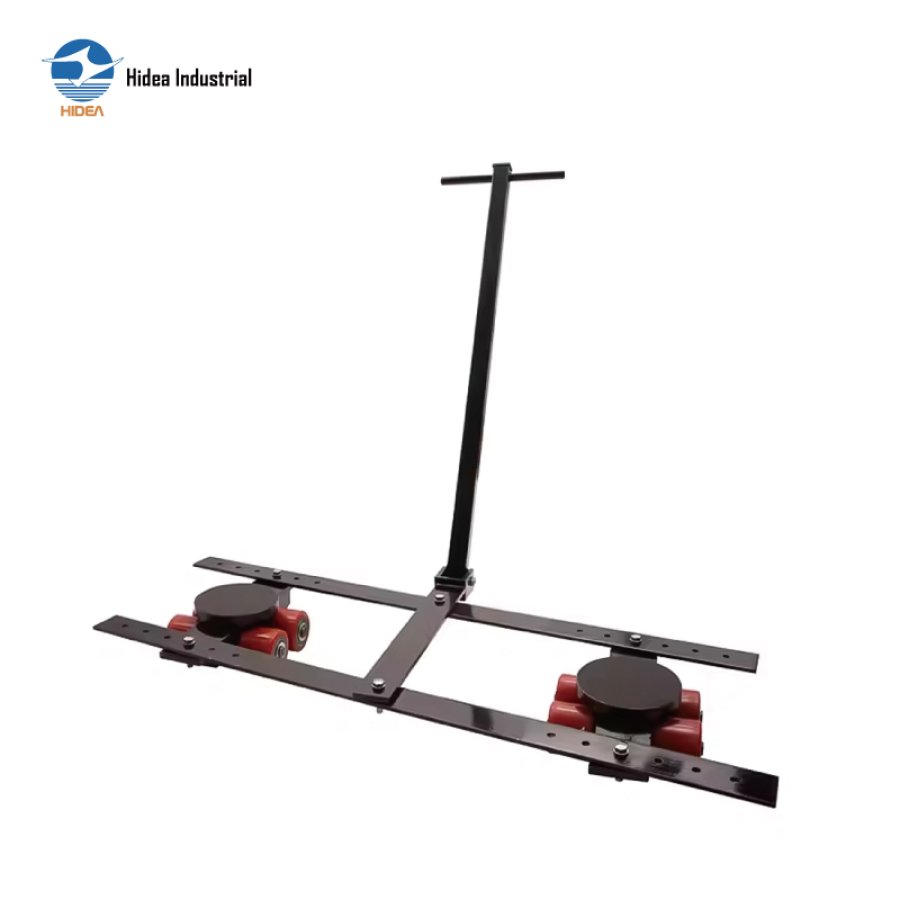

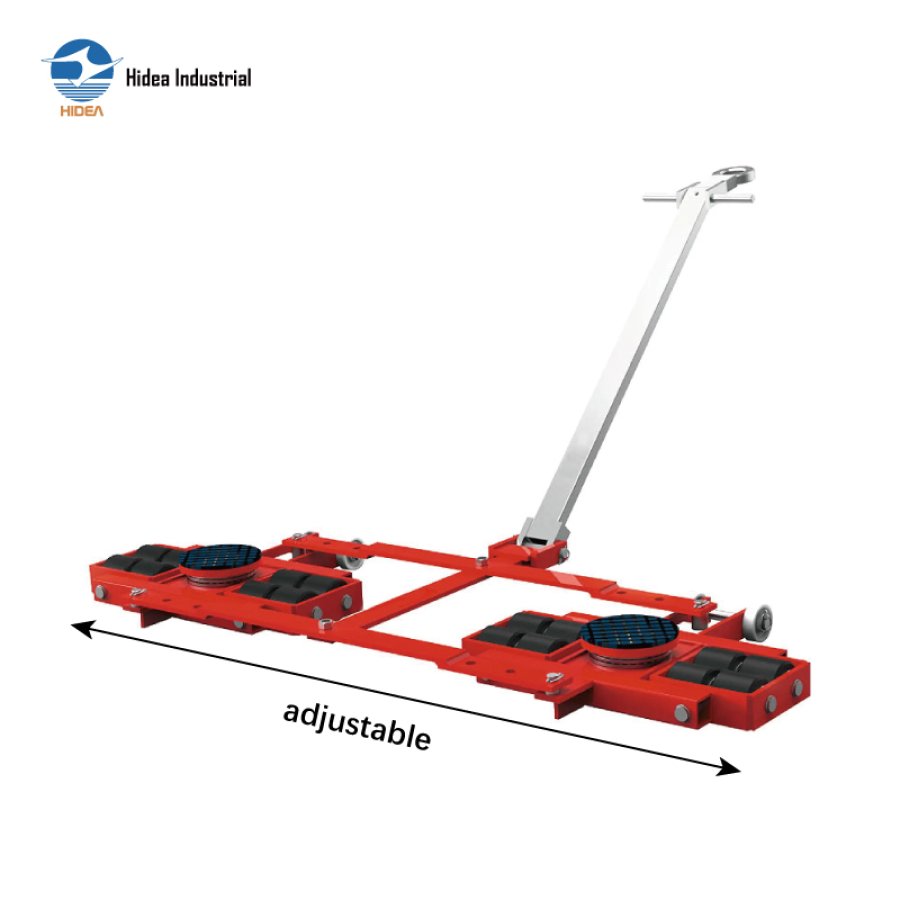

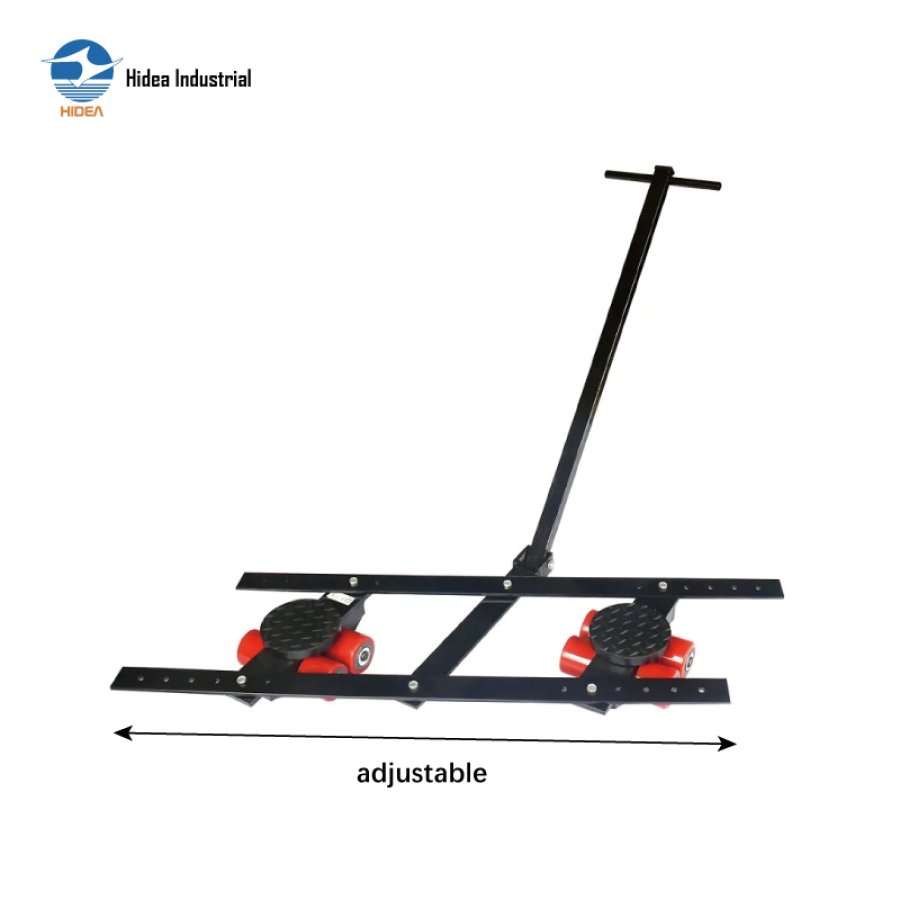

The CRY series dual or tandem floor tank are safe and flexible to transport heavy loads
The CRY series floor tank combines 2 steerable tanks together for cargo loading and movement
The CRY tanks are provided with a second steering handle bar to be used with a single tank when the CRY tank detached and not used as a combination of couple
CRY-8, CRY-16, CRY-24 can be used in combination with the combination Y series floor tanks for free collaboration; while CRY-48 can be combined with BK series of tanks

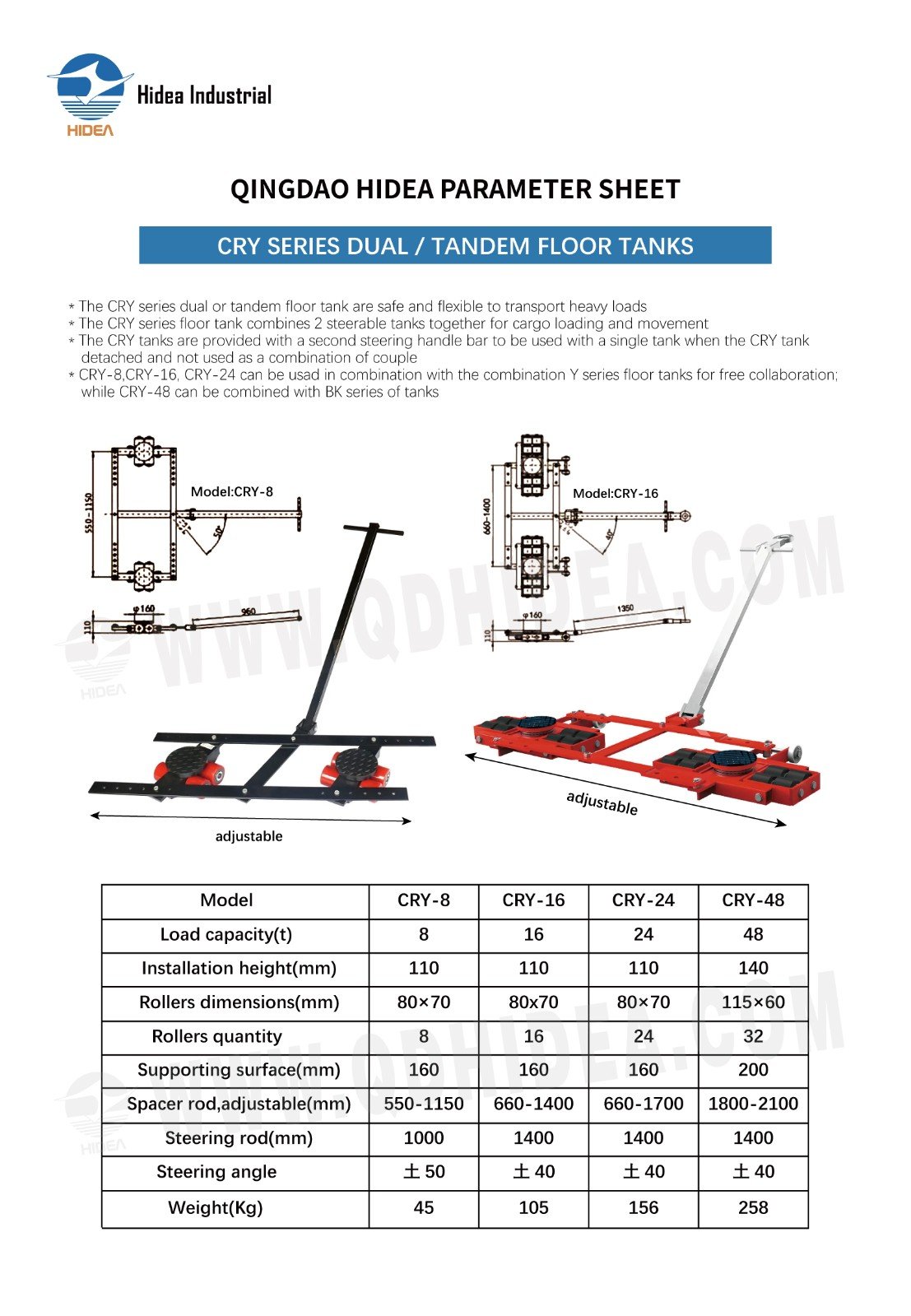

QINGDAO HIDEA PARAMETER SHEET FOR
CRY SERIES DUAL/TANDEM FLOOR TANKS
 Model | CRY-8 | CRY-16 | CRY-24 | CRY-48 | ||||||||
| Load capacity(t) | 8 | 16 | 24 | 48 | ||||||||
| Installation height(mm) | 110 | 110 | 110 | 140 | ||||||||
| Rollers dimensions(mm) | 80×70 | 80x70 | 80×70 | 115×60 | ||||||||
| Rollers quantity | 8 | 16 | 24 | 32 | ||||||||
| Supporting surface(mm) | 160 | 160 | 160 | 200 | ||||||||
| Spacer rod,adjustable(mm) | 550-1150 | 660-1400 | 660-1700 | 1800-2100 | ||||||||
| Steering rod(mm) | 1000 | 1400 | 1400 | 1400 | ||||||||
| Steering angle | 土 5 0 | 土40 | 土 4 0 | 土 4 0 | ||||||||
| Weight(Kg) | 45 | 105 | 156 | 258 | ||||||||
