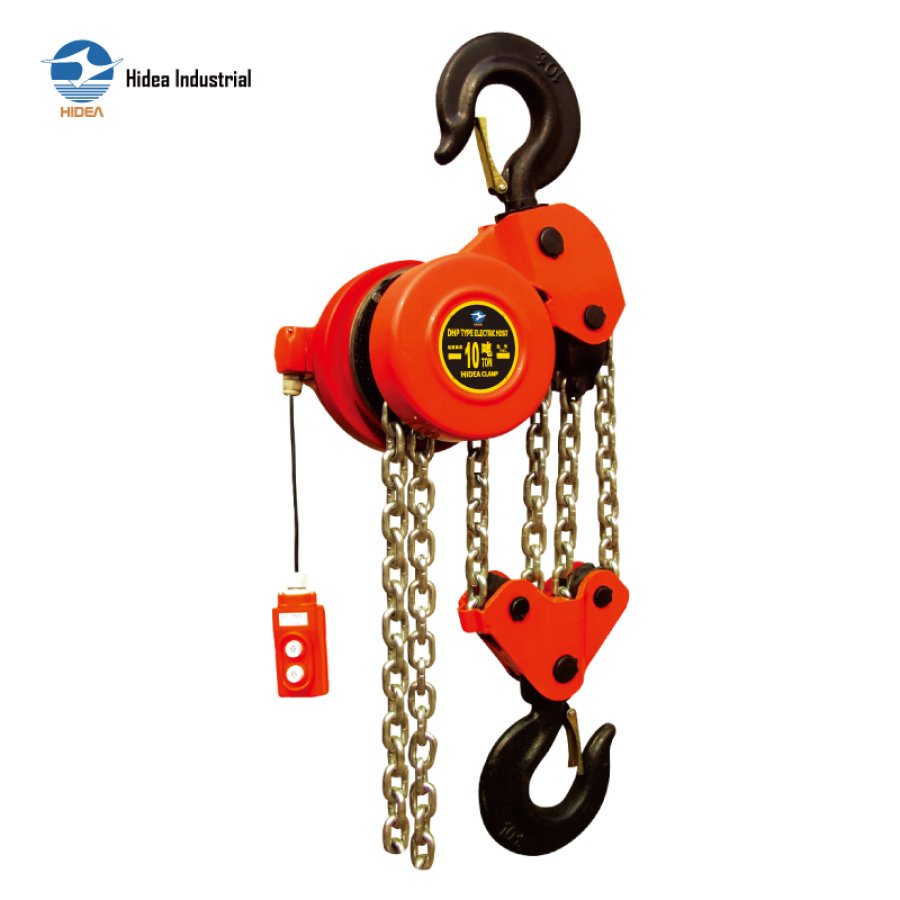

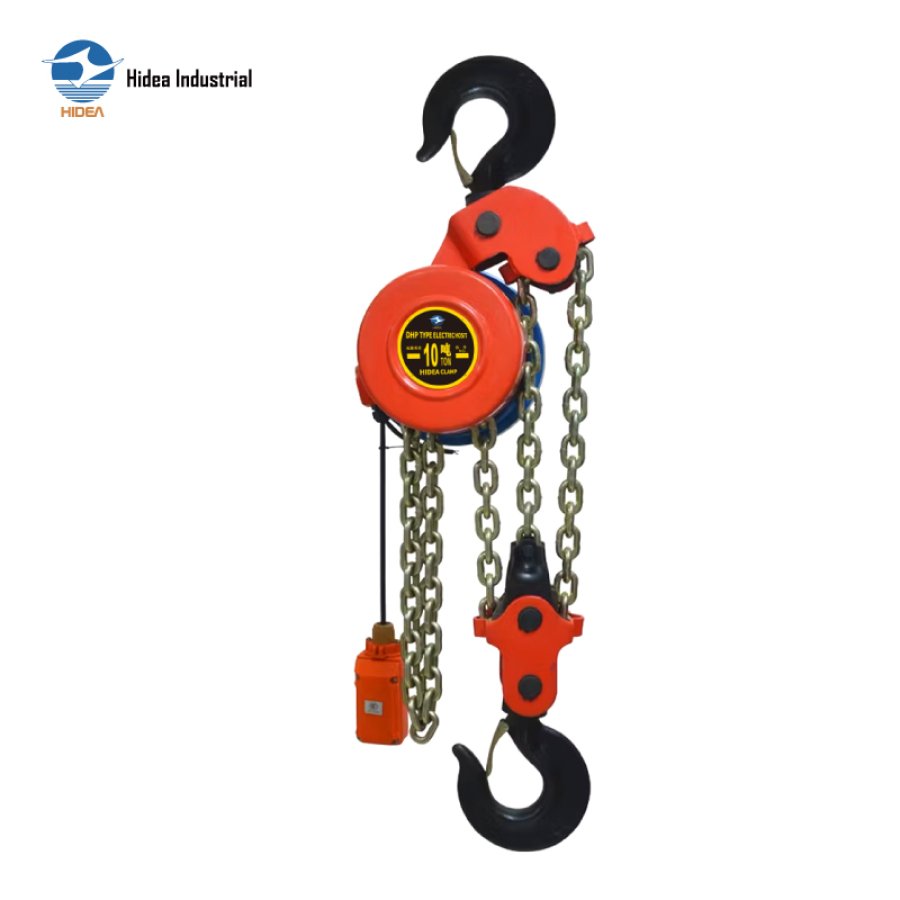

DHP type electric hoists also called group crane electric hoist, several of the hoists can rise and lower simultaneously
The DHP type electric hoists are designed for heavy-duty lifting applications and commonly used in industrial settings such as manufacturing plants, construction sites, and docks etc., for lifting heavy loads with ease and precision
The hoists are typically can be used in building industrial for building frame climbing
The DHP type electric hoists meeting standards of OSHA, ASME B30.16, ANSI/ASME HST-5M, EN14901 & EU Machinery Directives
QINGDAO HIDEA PARAMETER SHEET FOR
DHP TYPE ELECTRIC HOIST
| Model | DHP5 | DHP7.5 | DHP10 | DHP15 | DHP20 | DHP30 | |||||
| Standard Lifting Weight (t) | 5 | 7.5 | 10 | 15 | 20 | 30 | |||||
| Lifting Speed(m/min) | 0.18 | 0.12 | 0.09 | 0.26 | 0.06 | 0.09 | 0.06 | ||||
| Hmin Headroom (hook to hook)Hmin(mm) | 600 | 700 | 850 | 980 | 1200 | 1500 | |||||
| No.of load chain fall lines (n) | 2 | 3 | 4 | 6 | 6 | 12 | |||||
| Diameter of load chain(mm) | 10 | 10 | 10 | 10 | 10 | 10 | |||||
| Lifting Height(m) | 3-9m | 3-9m | 3-9m | 3-9m | 3-9m | 3-9m | |||||
| Motor Power(w) | 500 | 500 | 500 | 750 | 500 | 500*2 | 500*2 | ||||
| Power supply voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |||||
| Net weight (3m)kg | 50 | 67 | 85 | 120 | 180 | 245 | |||||
| Gross Weight 3m(kg) | 61 | 78 | 95 | 135 | 200 | 270 | |||||
