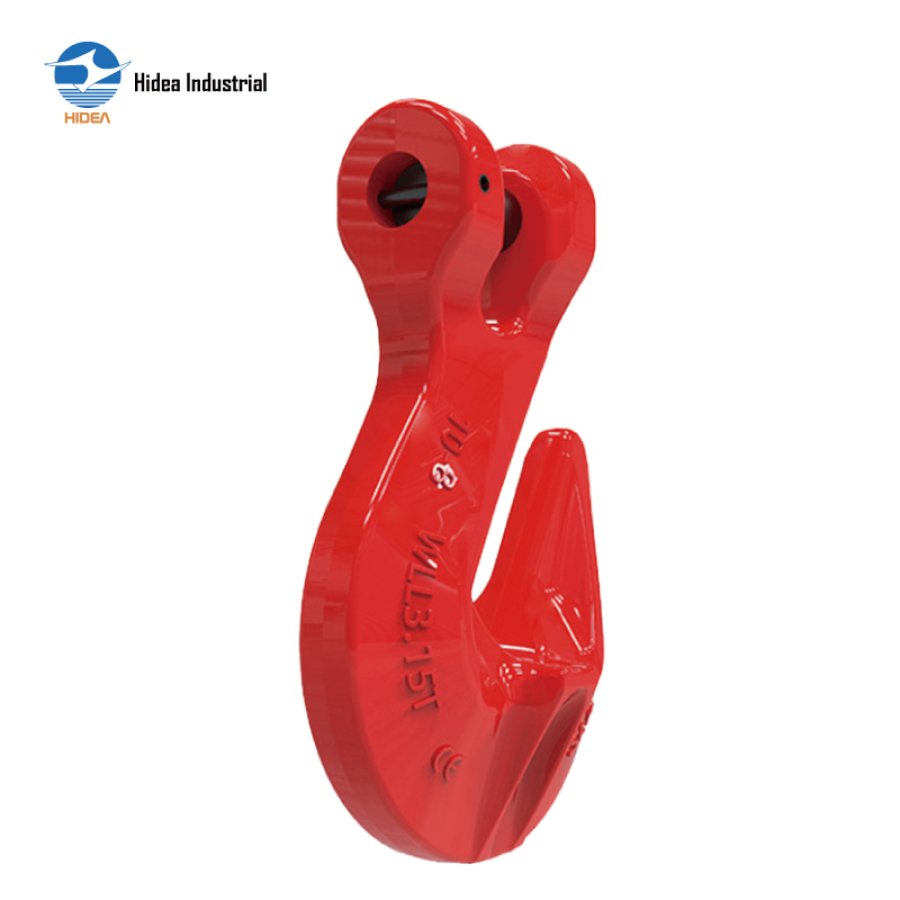

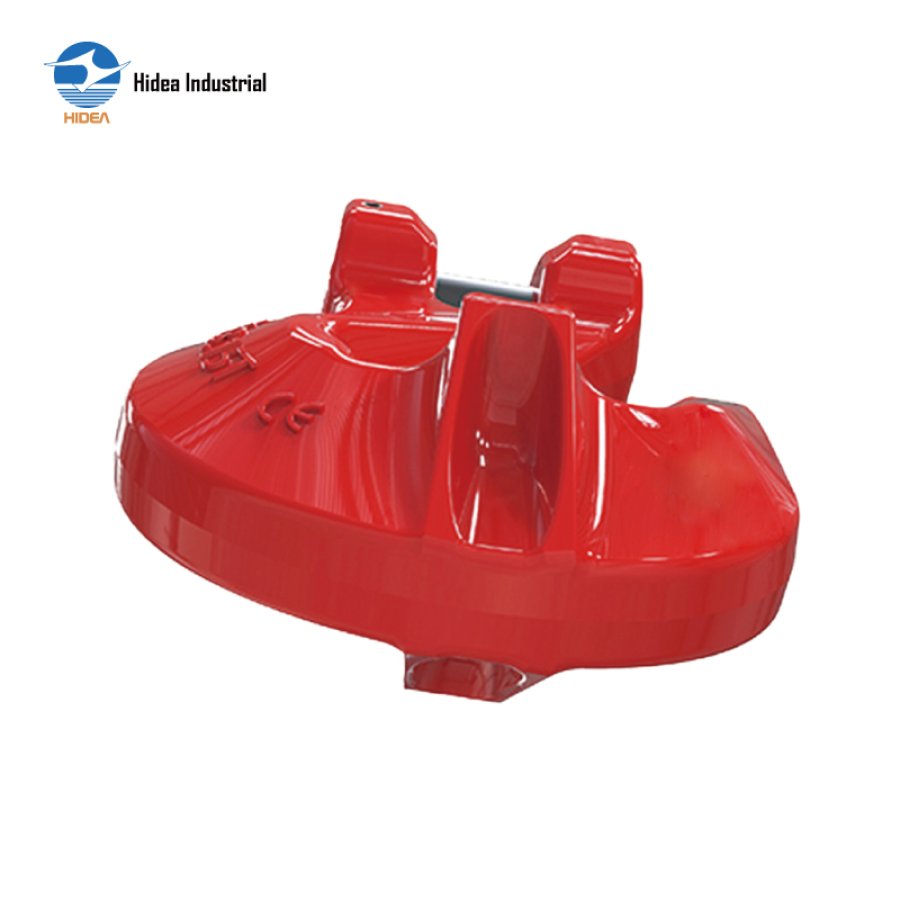

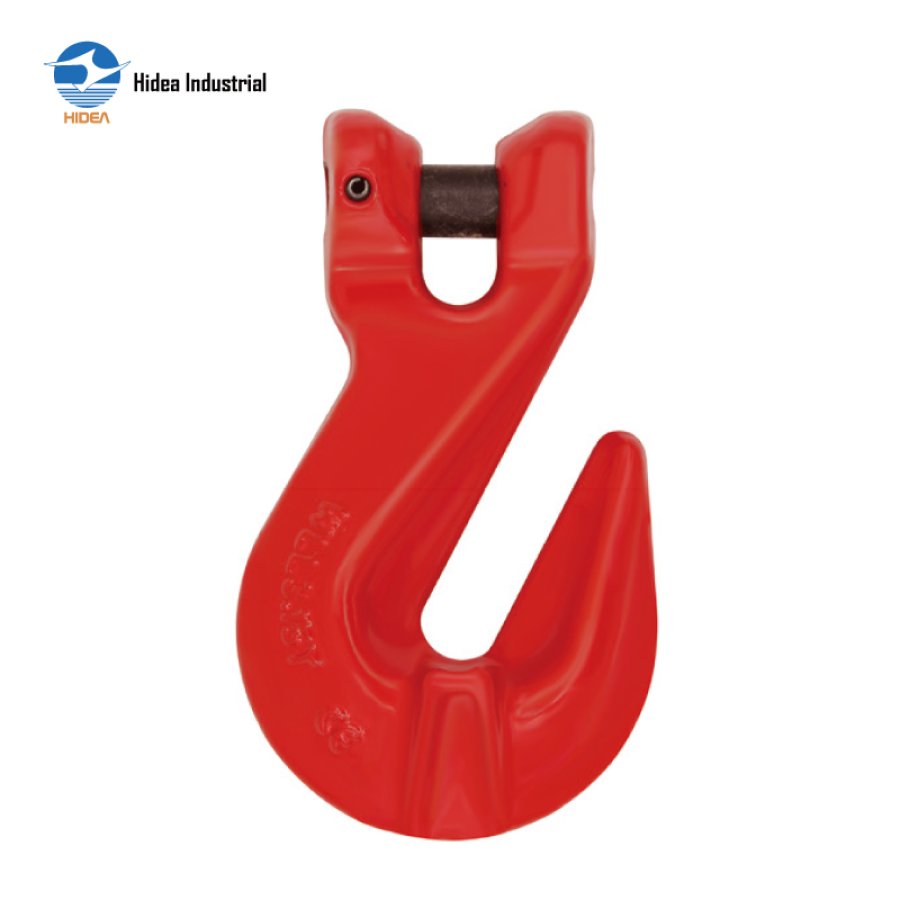

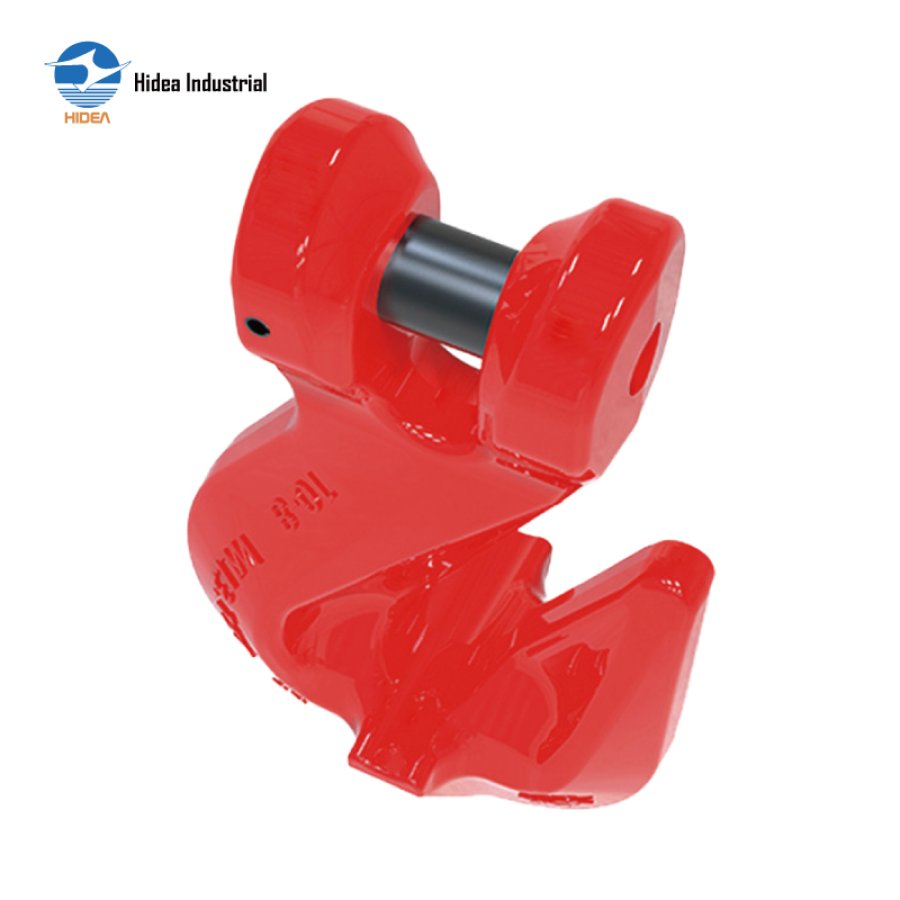

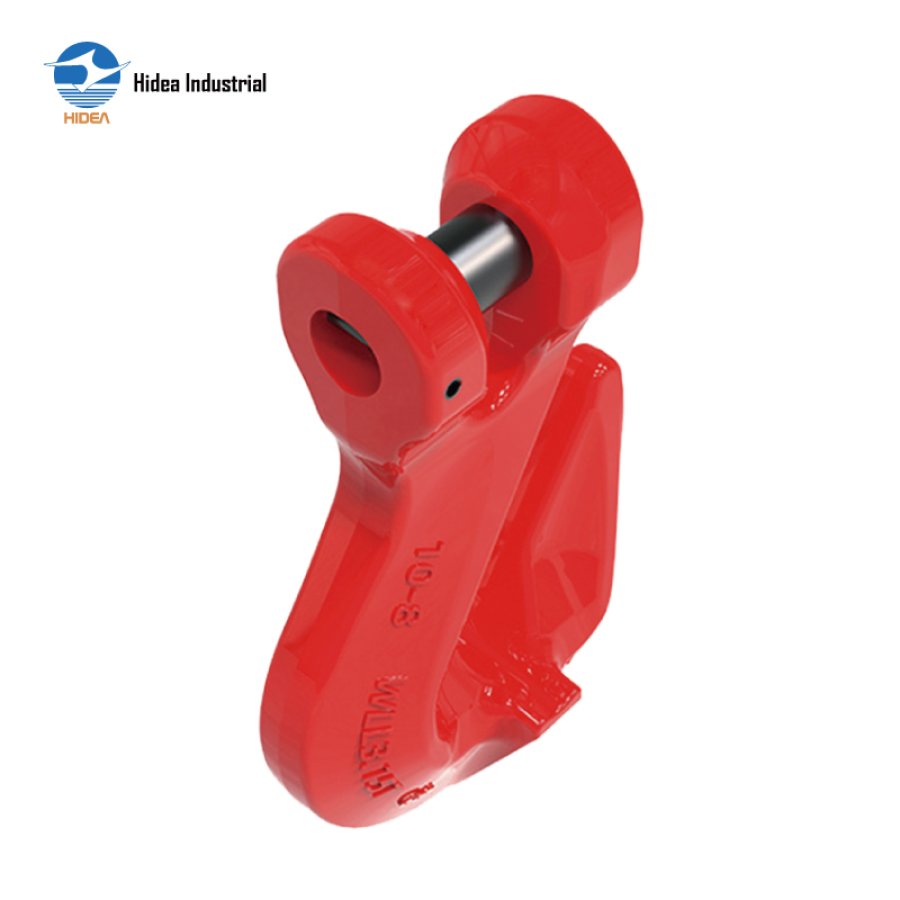

Hidea Grade 80 Clevis Grab Hook for Heavy Duty Applications

G80 CLEVIS GRAB HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

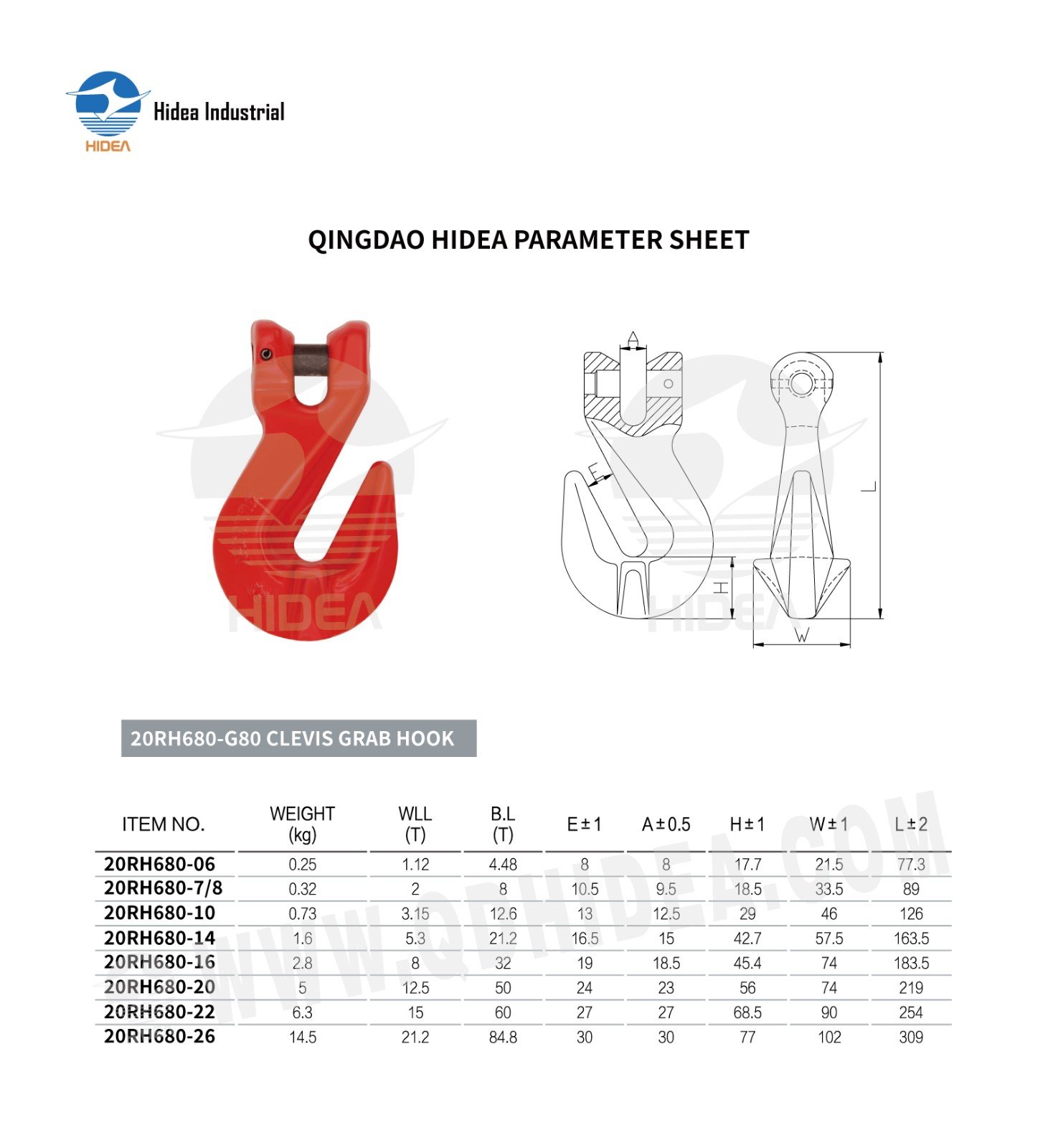

QINGDAO HIDEA PARAMETER SHEET FOR

20RH680-G80 CLEVIS GRAB HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	E±1	A±0.5	H±1	W±1	L±2
20RH680-06	0.25	1.12	4.48	8	8	17.7	21.5	77.3
20RH680-7/8	0.32	2	8	10.5	9.5	18.5	33.5	89
20RH680-10	0.73	3.15	12.6	13	12.5	29	46	126
20RH680-13	1.6	5.3	21.2	16.5	15	42.7	57.5	163.5
20RH680-16	2.8	8	32	19	18.5	45.4	74	183.5
20RH680-20	5	12.5	50	24	23	56	74	219
20RH680-22	6.3	15	60	27	27	68.5	90	254
20RH680-26	14.5	21.2	84.8	30	30	77	102	309
