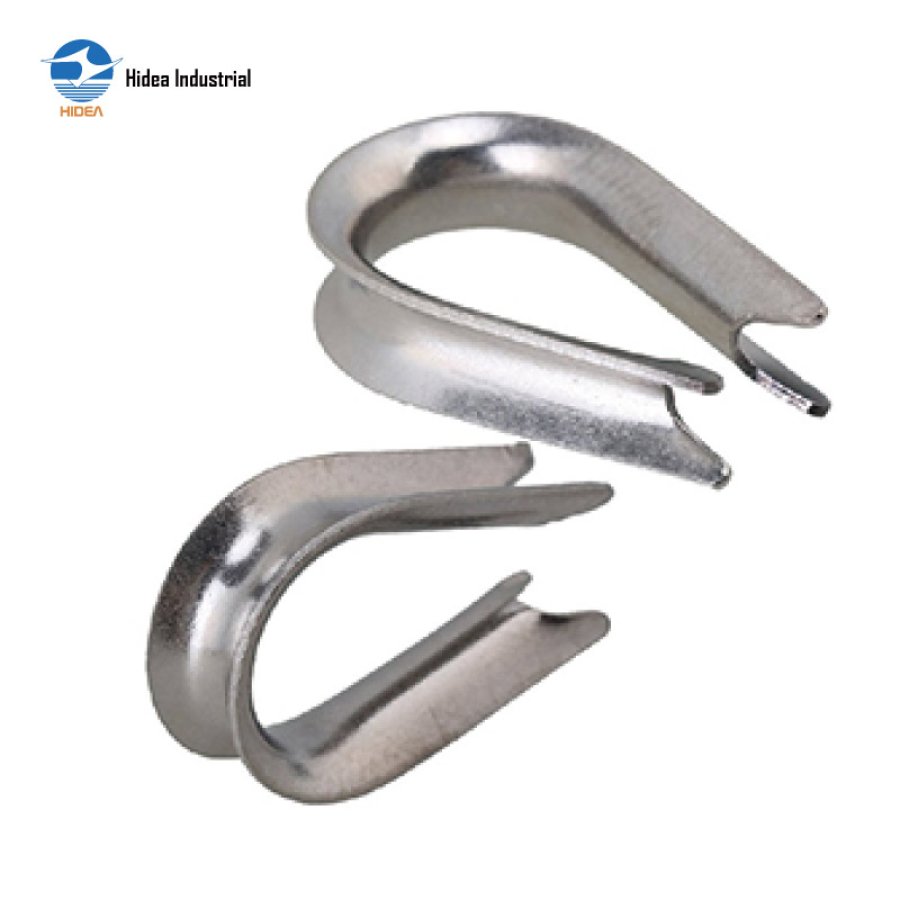

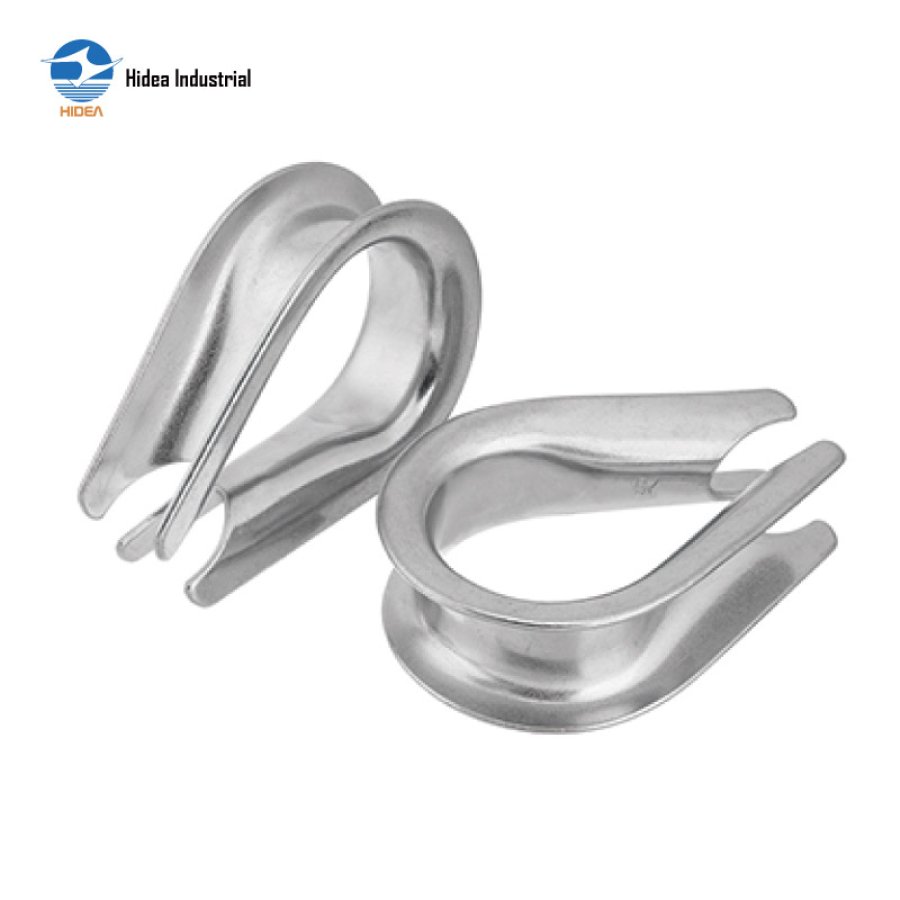

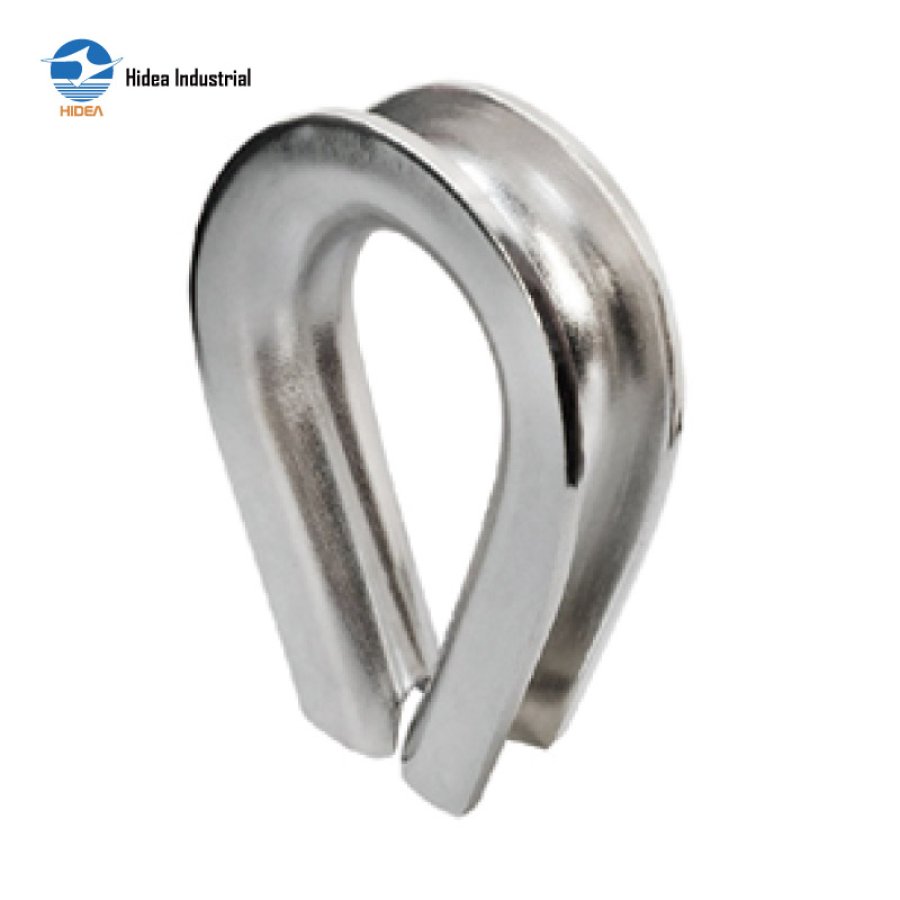

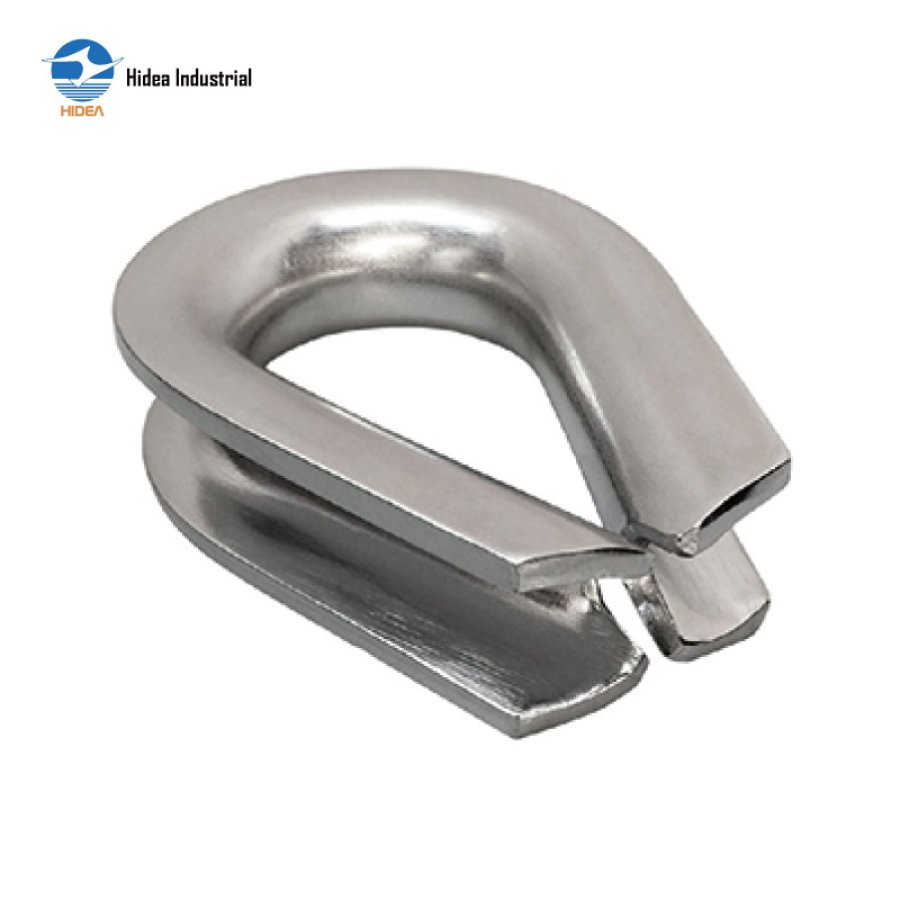

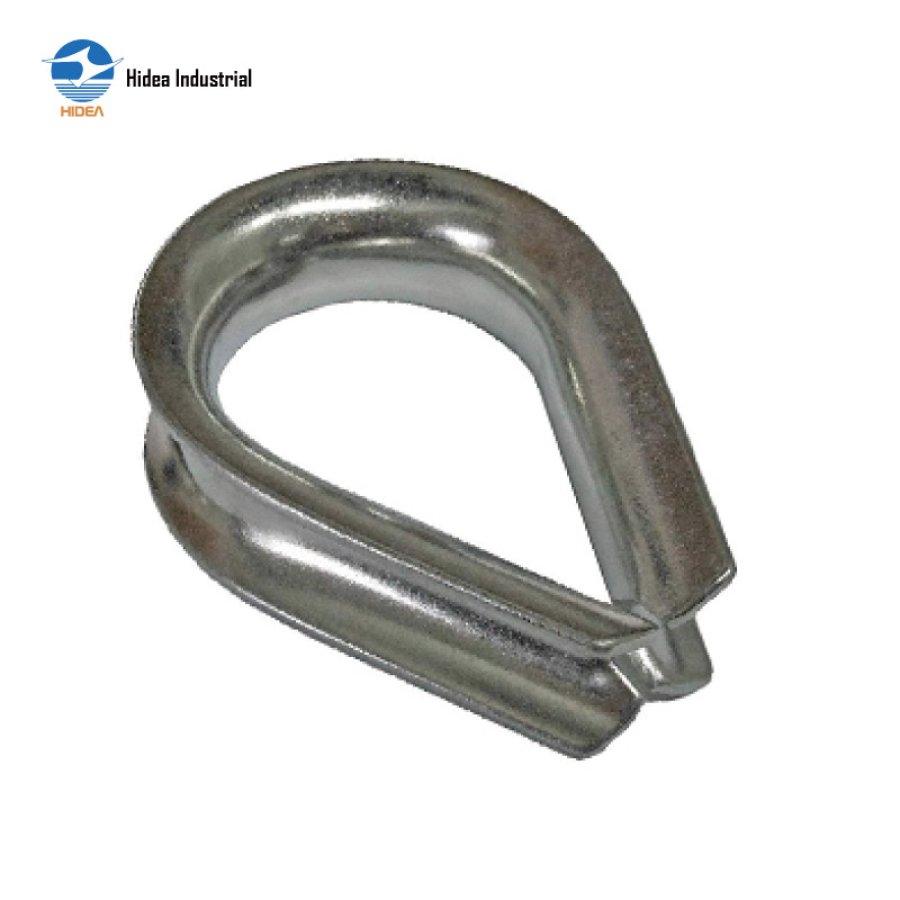

Hidea Stainless Steel Thimbles A-DIN 6899: Perfect for Rigging and Marine Applications

DIN6899A THIMBLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

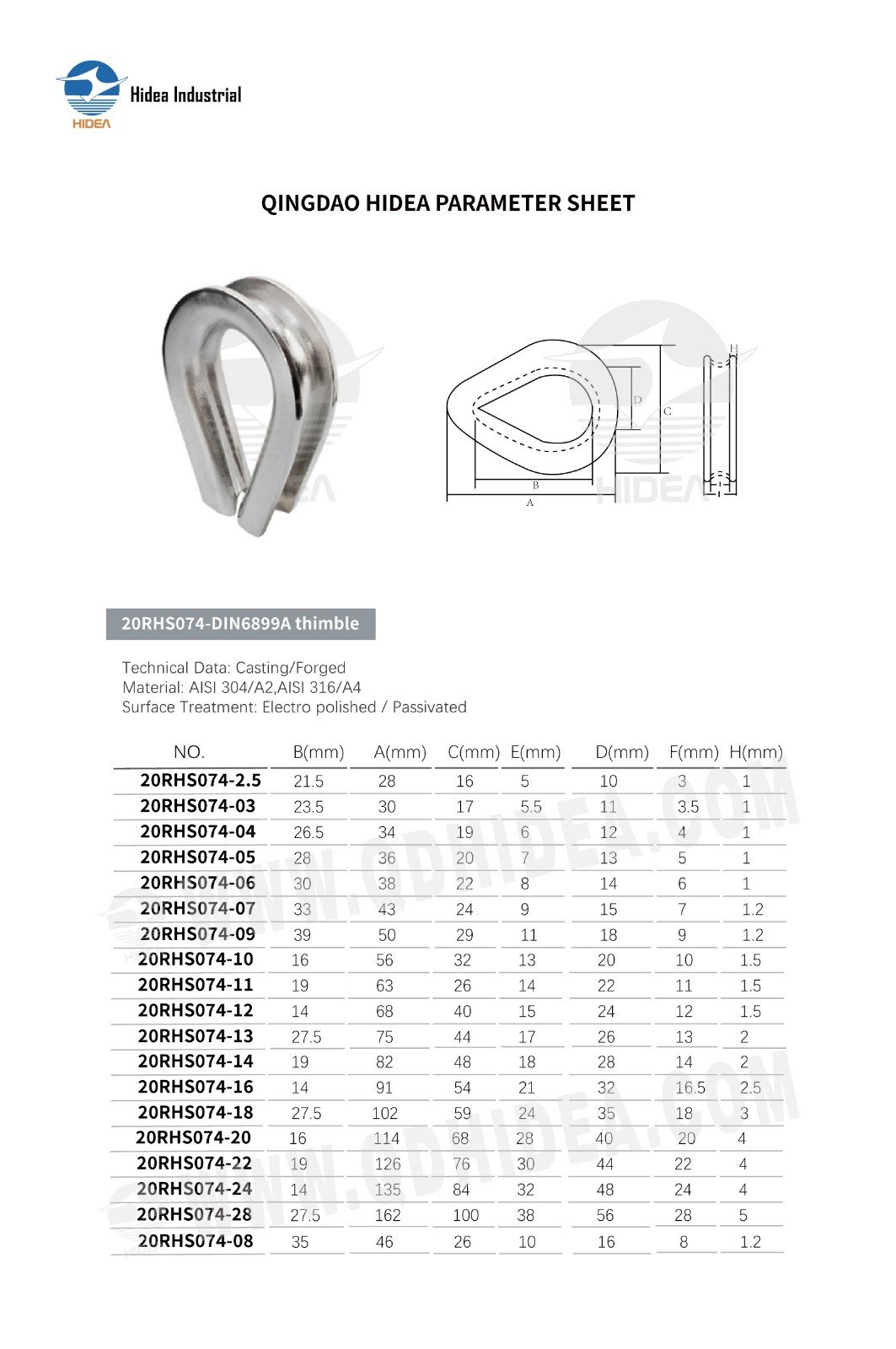

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS074-DIN6899A thimble

NO.	B(mm)	A(mm)	C(mm)	E(mm)	D(mm)	F(mm)	H(mm)
20RHS074-2.5	21.5	28	16	5	10	3	1
20RHS074-03	23.5	30	17	5.5	11	3.5	1
20RHS074-04	26.5	34	19	6	12	4	1
20RHS074-05	28	36	20	7	13	5	1
20RHS074-06	30	38	22	8	14	6	1
20RHS074-07	33	43	24	9	15	7	1.2
20RHS074-09	39	50	29	11	18	9	1.2
20RHS074-10	16	56	32	13	20	10	1.5
20RHS074-11	19	63	26	14	22	11	1.5
20RHS074-12	14	68	40	15	24	12	1.5
20RHS074-13	27.5	75	44	17	26	13	2
20RHS074-14	19	82	48	18	28	14	2
20RHS074-16	14	91	54	21	32	16.5	2.5
20RHS074-18	27.5	102	59	24	35	18	3
20RHS074-20	16	114	68	28	40	20	4
20RHS074-22	19	126	76	30	44	22	4
20RHS074-24	14	135	84	32	48	24	4
20RHS074-28	27.5	162	100	38	56	28	5
20RHS074-08	35	46	26	10	16	8	1.2
