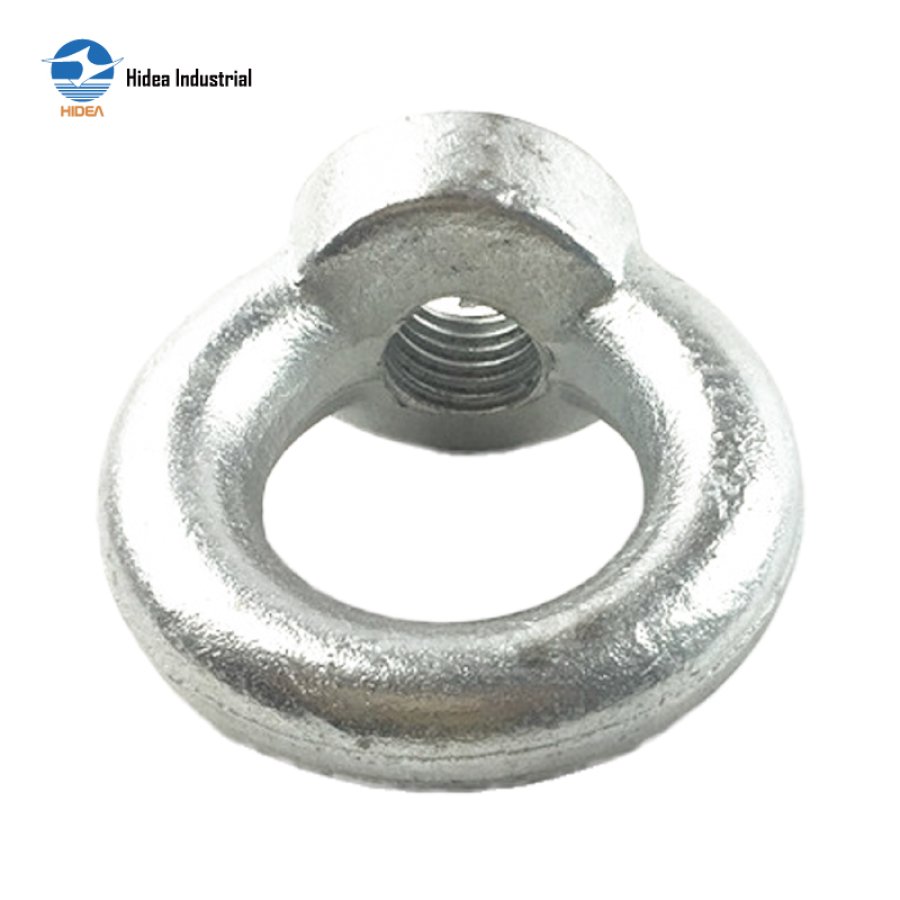

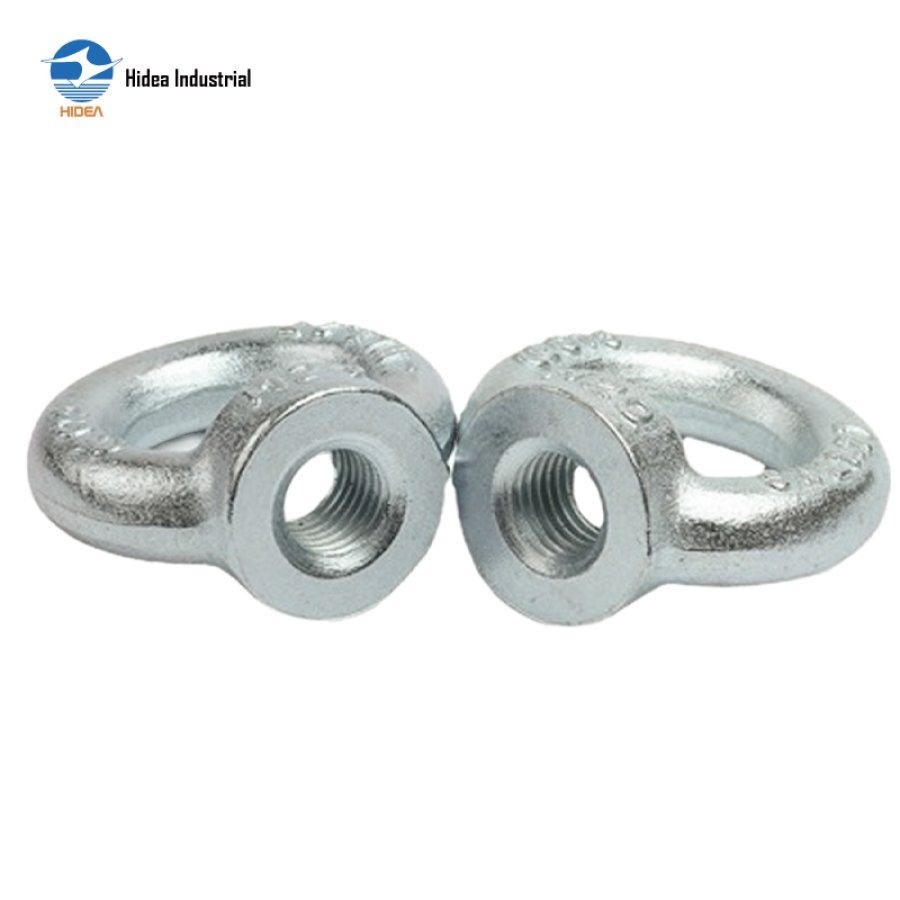

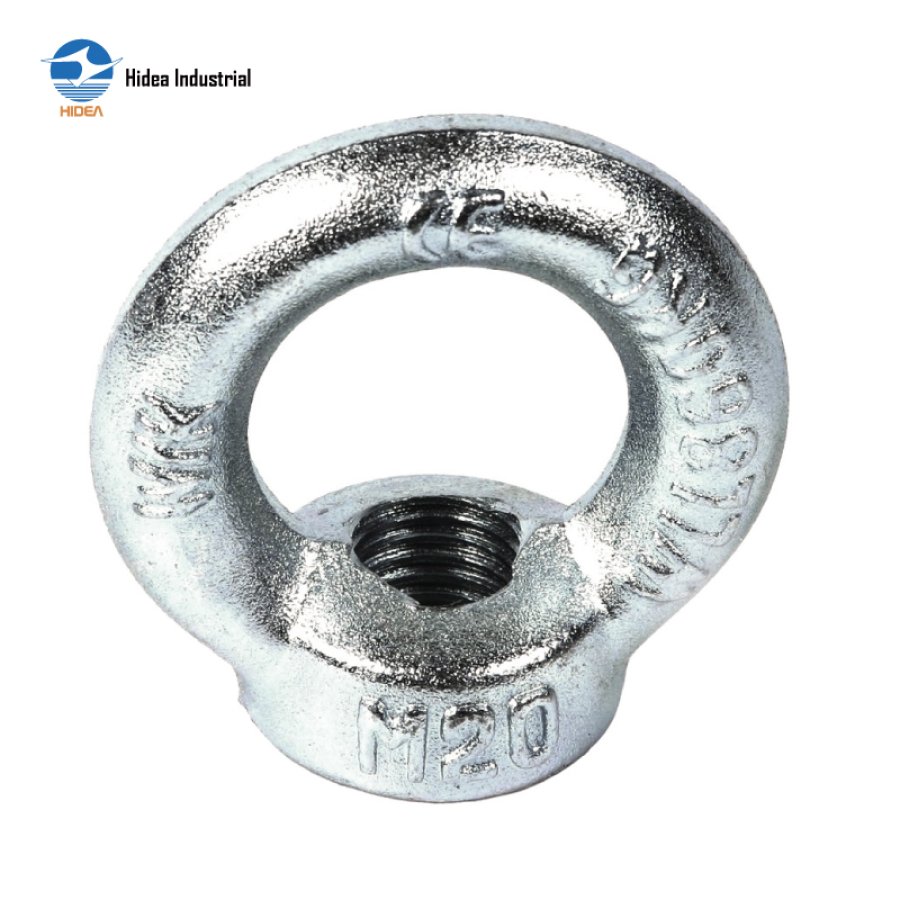

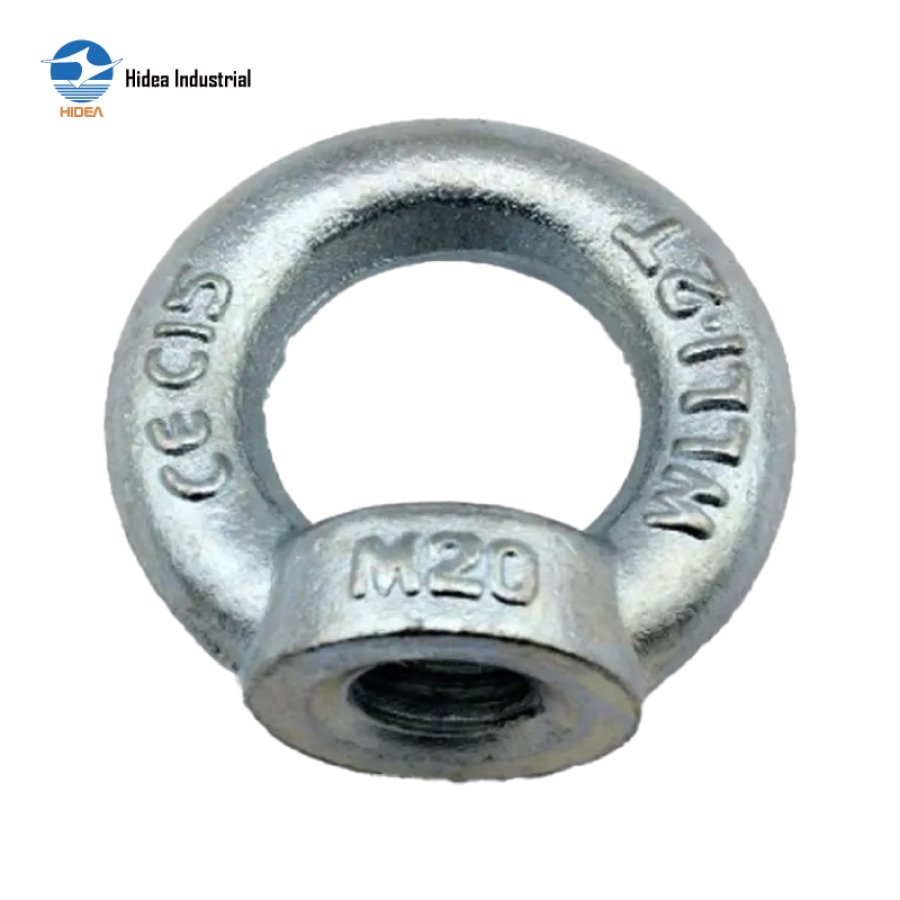

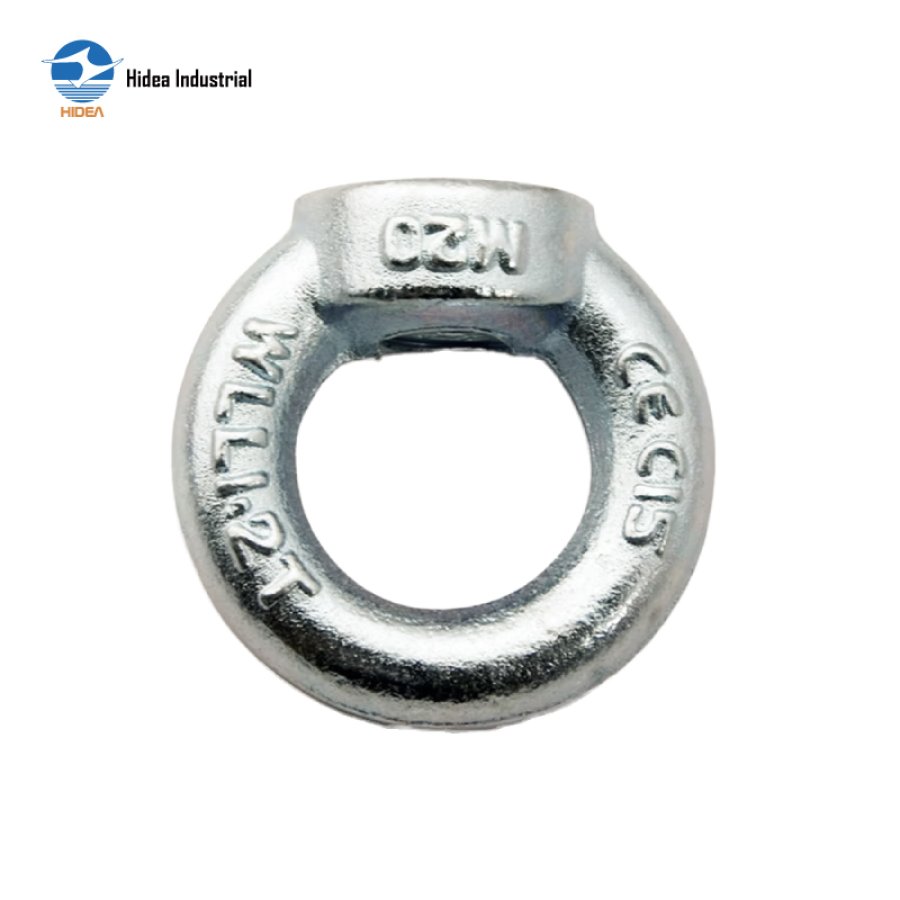

Hidea DIN 582 Forged Lifting Eye Nuts – Long-Lasting and Trusted Lifting Hardware

EYE NUT DIN 582

Fine carbon steel
Drop forged & machined,quenched and tempered
Proof Tested & certificate available
Surface Electro Galv. / zinc plated OR as requested
DIN582 lifting eyenut

Inquire Now

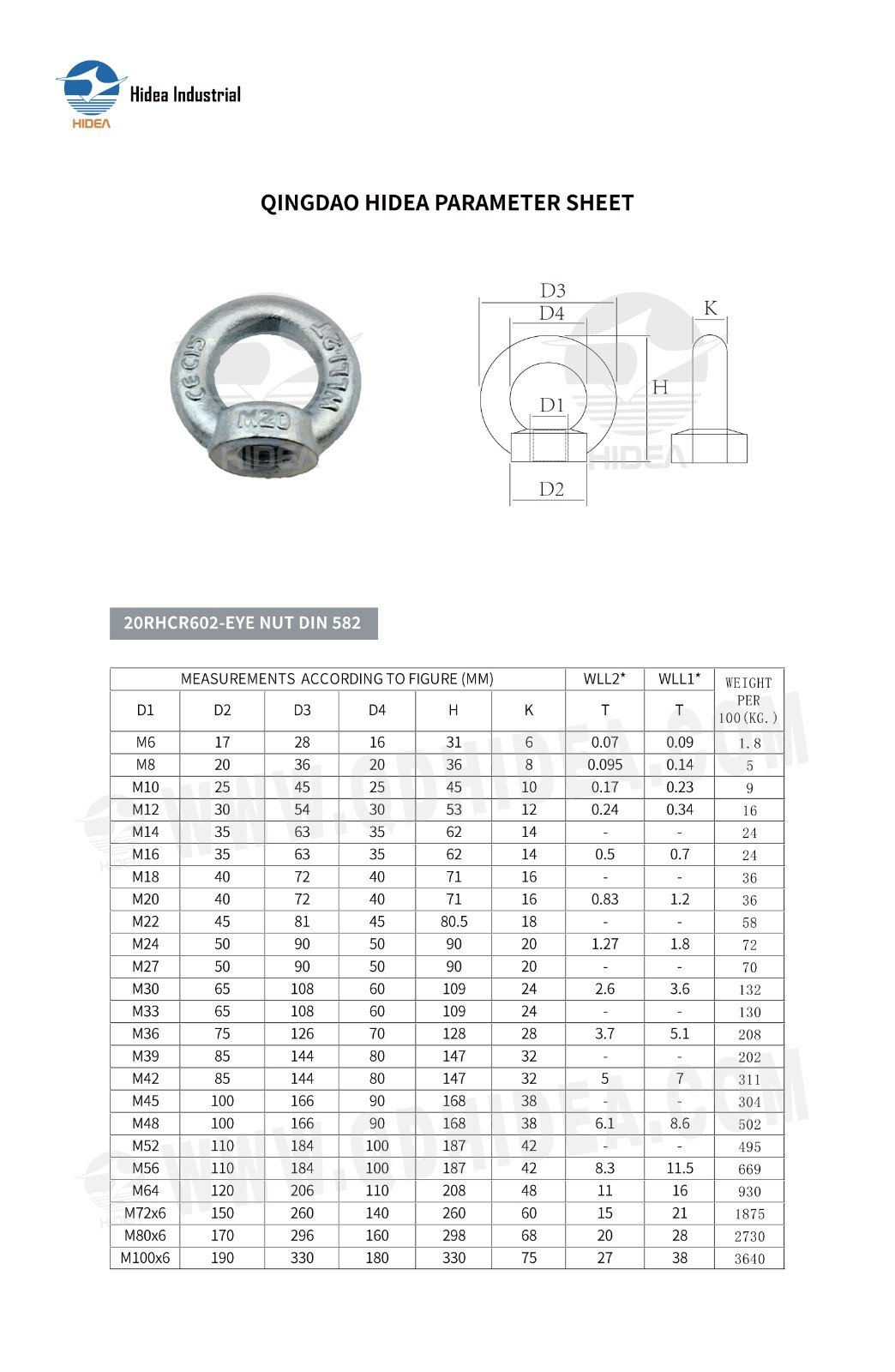

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR602-EYE NUT DIN 582

MEASUREMENTS ACCORDING TO FIGURE(MM)						WLL2*	WLL1*	WEIGHT PER 100(KG.)
D1	D2	D3	D4	H	K	T	T	WEIGHT PER 100(KG.)
M6	17	28	16	31	6	0.07	0.09	1.8
M8	20	36	20	36	8	0.095	0.14	5
M10	25	45	25	45	10	0.17	0.23	9
M12	30	54	30	53	12	0.24	0.34	16
M14	35	63	35	62	14			24
M16	35	63	35	62	14	0.5	0.7	24
M18	40	72	40	71	16			36
M20	40	72	40	71	16	0.83	1.2	36
M22	45	81	45	80.5	18			58
M24	50	90	50	90	20	1.27	1.8	72
M27	50	90	50	90	20		-	70
M30	65	108	60	109	24	2.6	3.6	132
M33	65	108	60	109	24			130
M36	75	126	70	128	28	3.7	5.1	208
M39	85	144	80	147	32			202
M42	85	144	80	147	32	5	7	311
M45	100	166	90	168	38			304
M48	100	166	90	168	38	6.1	8.6	502
M52	110	184	100	187	42	-	-	495
M56	110	184	100	187	42	8.3	11.5	669
M64	120	206	110	208	48	11	16	930
M72x6	150	260	140	260	60	15	21	1875
M80x6	170	296	160	298	68	20	28	2730
M100x6	190	330	180	330	75	27	38	3640
