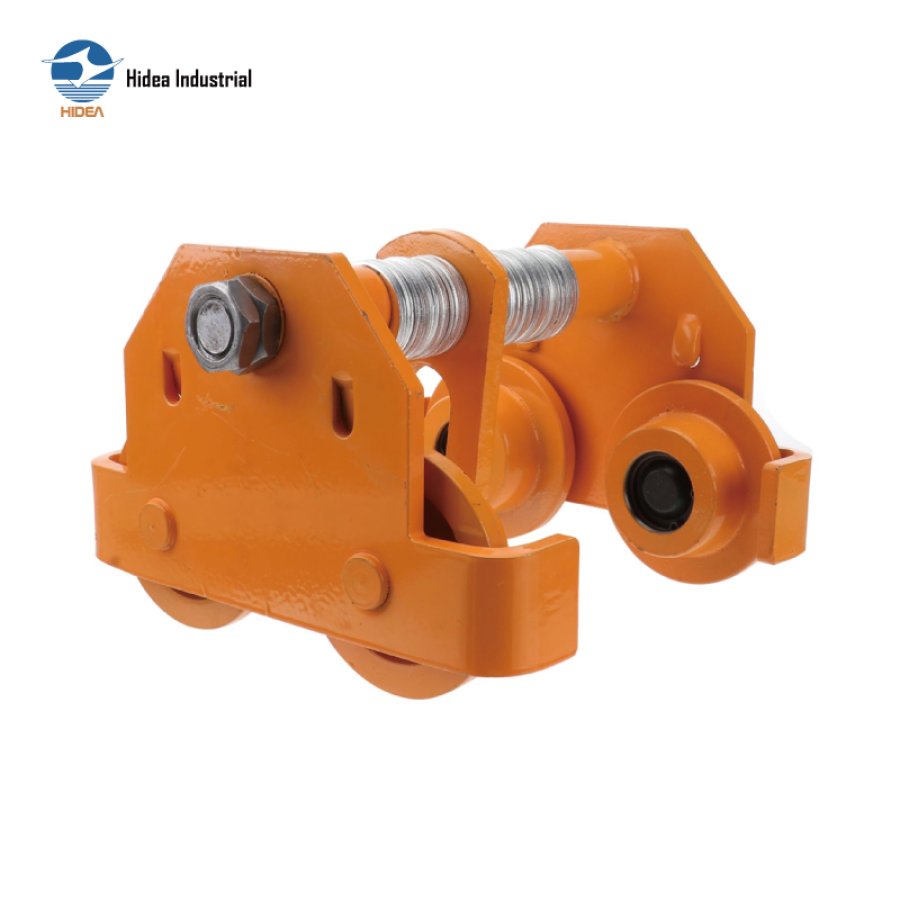

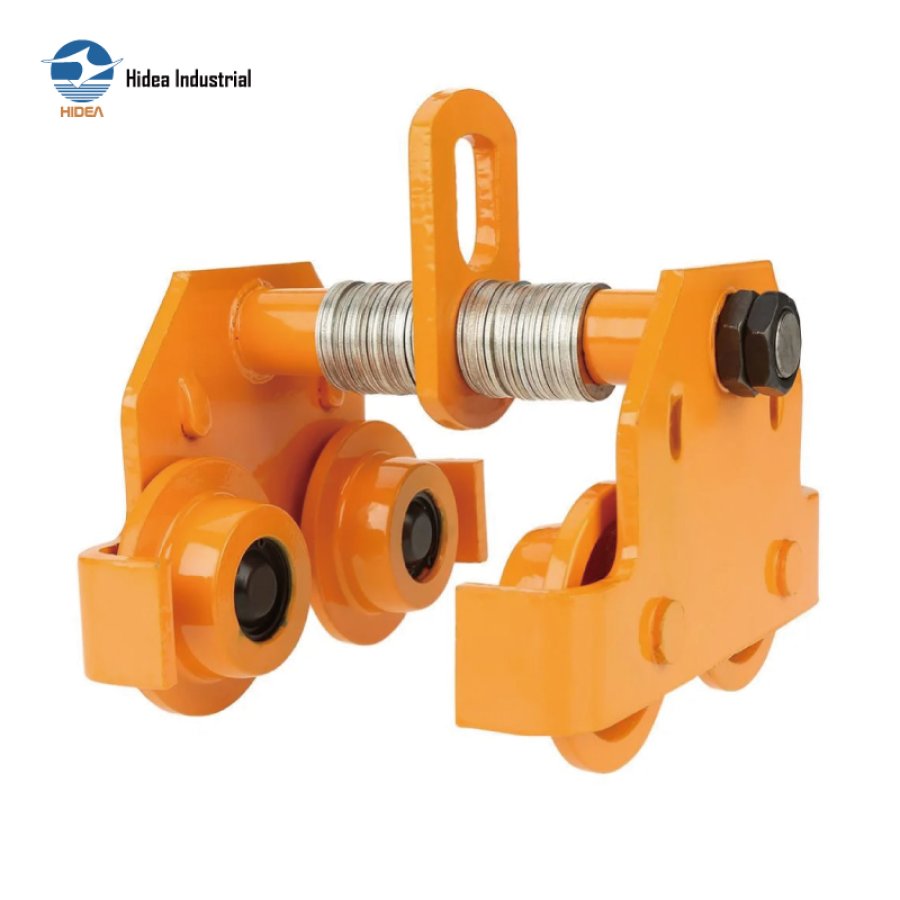

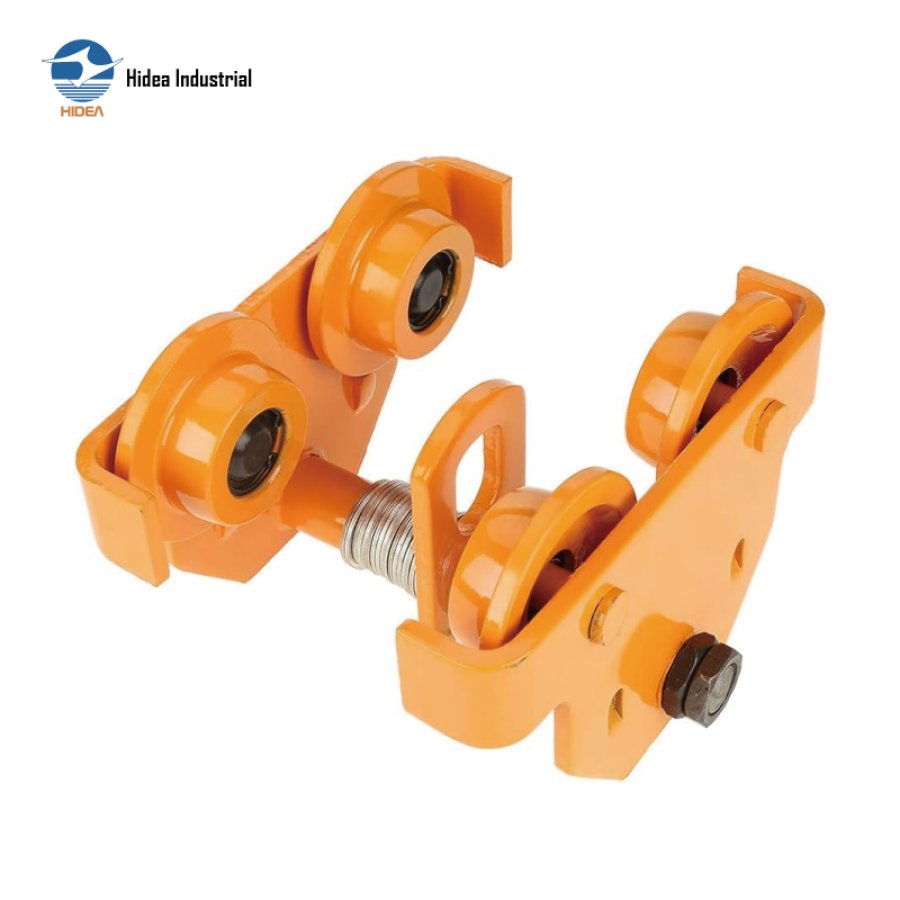

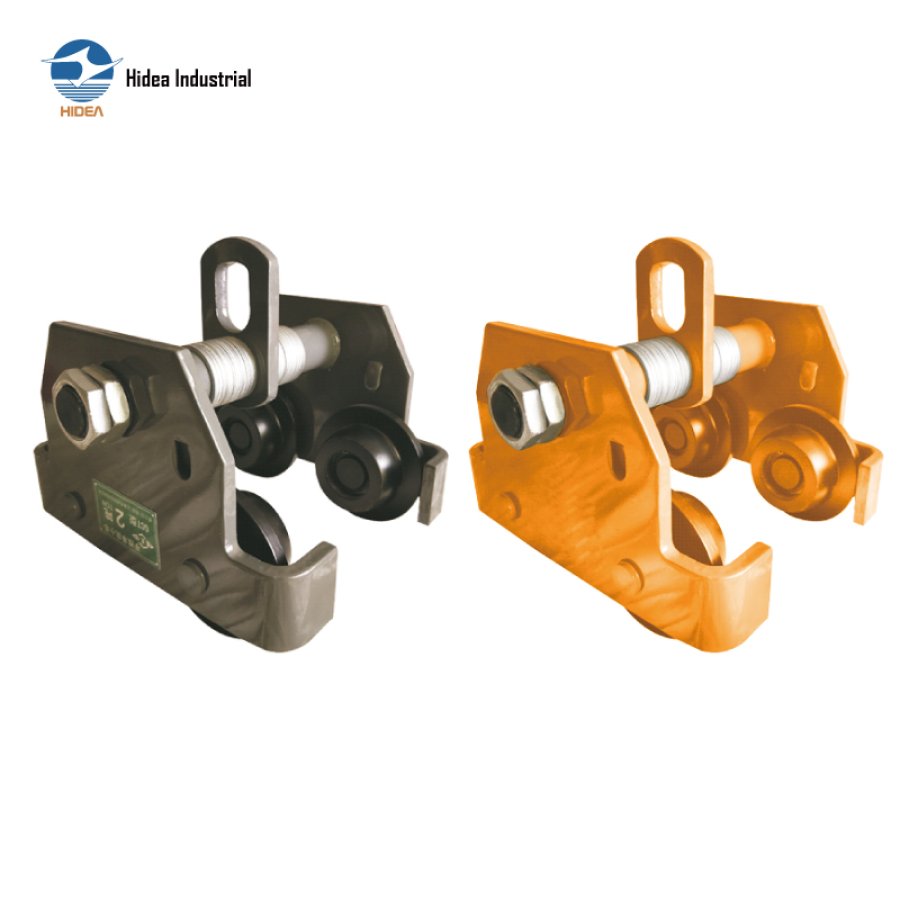

The GCT-B type I beam plain trolleys, featured trapezoid baffleplates at both ends with protectiv jaws, are designed to be used in industrial settings for moving heavy loads horizontally along an I-beam track with hoists equipments
The GCT-B I-beam plain trolleys come in various weight capacities from 0.5T to 10T or more and to fit different beam widths from 68mm to 203mm
The GCT-B I-beam plain trolleys are typically made of high quanlity steel materials and can be manually operated or powered by electric or pneumatic hoists, and used in a wide range of industries such as manufacturing, construction, and transportation
The GCT-B beam trolleys meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

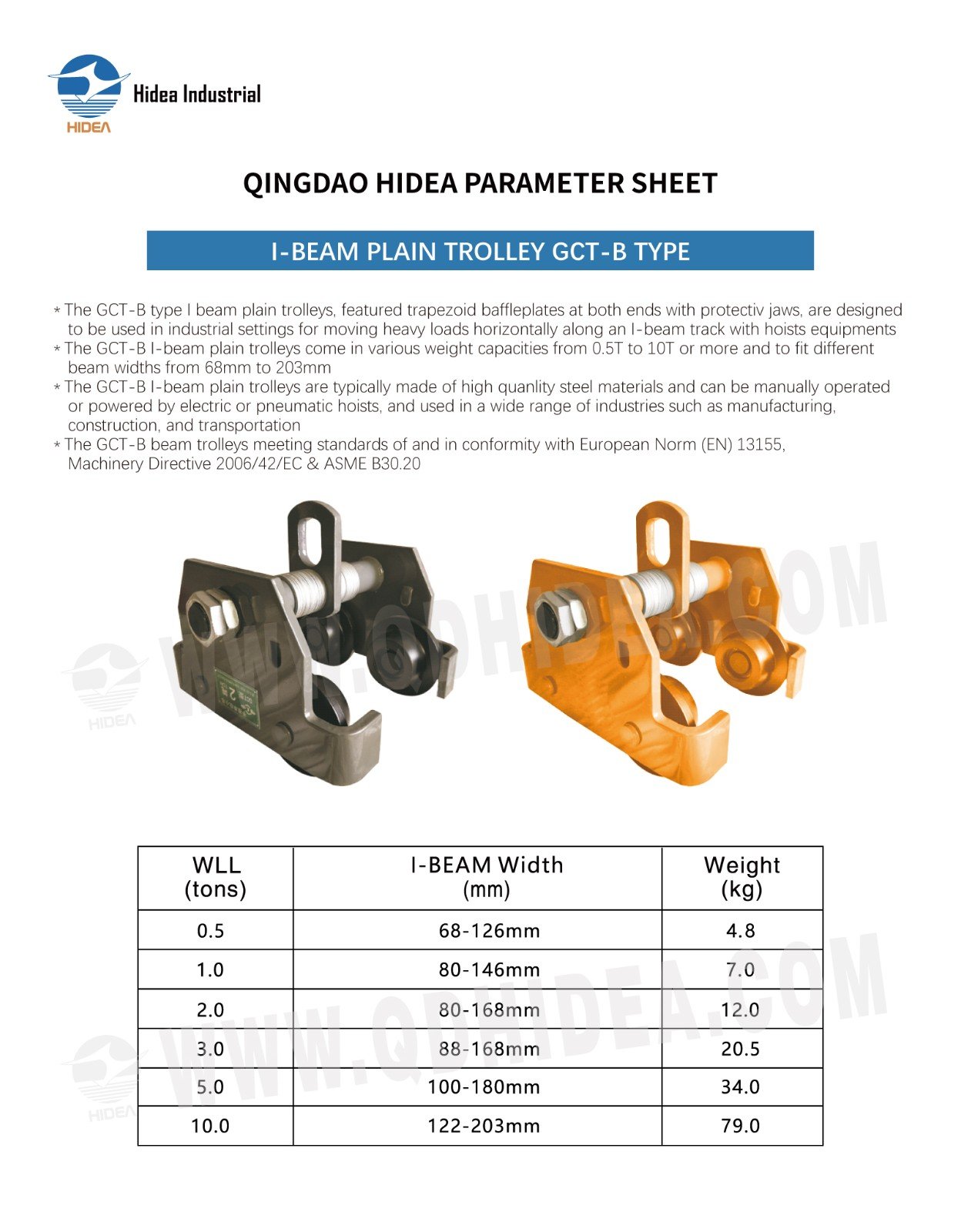

QINGDAO HIDEA PARAMETER SHEET FOR
I-BEAM PLAIN TROLLEY GCT-B TYPE
| WLL (tons) | I-BEAM Width (mm) | Weight (kg) | ||
| 0.5 | 68-126mm | 4.8 | ||
| 1.0 | 80-146mm | 7.0 | ||
| 2.0 | 80-168mm | 12.0 | ||
| 3.0 | 88-168mm | 20.5 | ||
| 5.0 | 100-180mm | 34.0 | ||
| 10.0 | 122-203mm | 79.0 | ||
