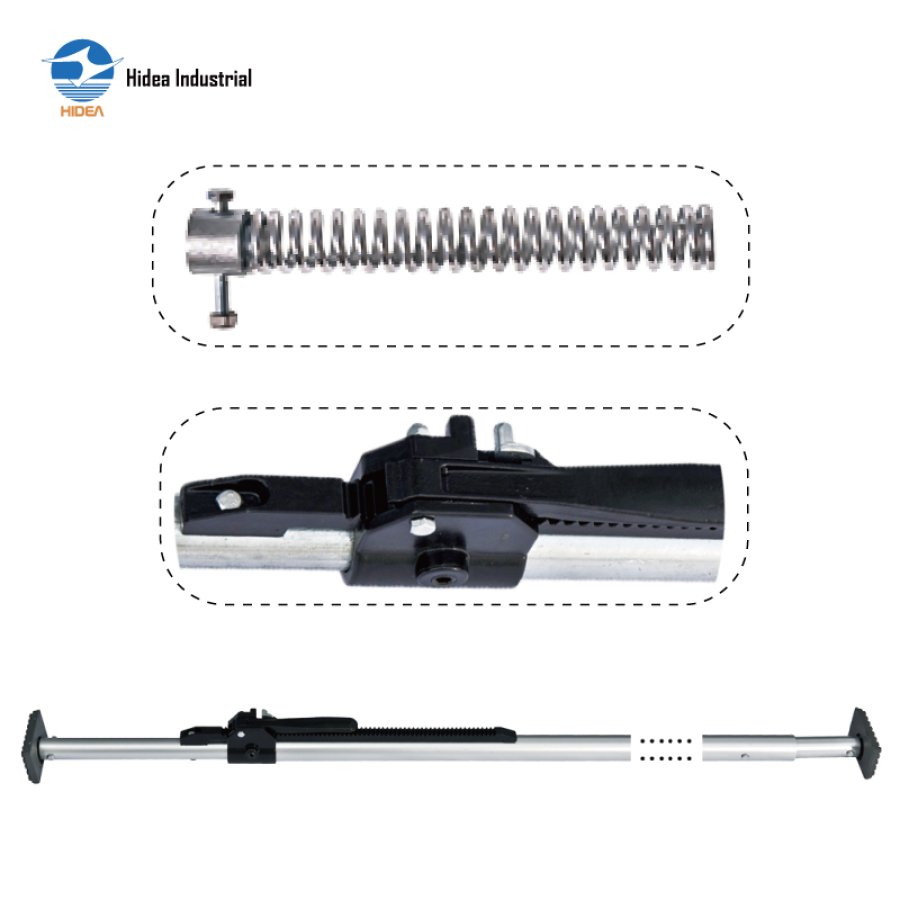

Aluminum tube cargo bar with spring of excellent anti-corrosive & antirust properties, and in particular it contains a compression spring for cushioning, braking, flexibility and providing buffering effects to prevent excessive impact under bumpy road conditions for safer transport
The Cargo Bar consists of adjustable high quality aluminum alloy tubes either round or square cross section, designed to fit between the walls of trucks, trailers or containers and can be adjusted & extended to a certain length to create tension against the cargo for securing cargo during transit
The cargo bar locking mechanism as it in a standard cargo bar without spring, aims to keep the bar remaining in place with a wide range of adjustable lengths for securement of cargo,, sturdy enough to secure the loads; While the rubber pads at both ends make the bars to support more firmly
Aluminum cargo bars with springs can also be customized in various sizes and weight capacities to accommodate different types of cargo and vehicles as OEM orders
Aluminum cargo bars with spring meeting & rules of FMCSA Cargo Securement Rules, DOT, and European Cargo Securing for Road Transport
QINGDAO HIDEA PARAMETER SHEET FOR
ALUMINUM TUBE CARGO BARS WITH SPING 38MM&42MM
38mm/1.5"Aluminum Tube Cargo Bar with Spring
| Item No. | Dia(in/mm) | Length(mm) | Weight(kgs) | Foot Pads |
| 50ACB383B | 1.5"/38mm | 2100-2470 | 4.10 | 2"×4"plastic |
| 50ACB384B | 1.5"/38mm | 2260-2630 | 4.25 | 2"×4 plastic |
| 50ACB385B | 1.5"/38mm | 2350-2720 | 4.35 | 2"×4 plastic |
| 50ACB386B | 1.5"/38mm | 2565-2935 | 4.50 | 2"×4"plastic |
42mm/1.65"Aluminum Tube Cargo Bar with Spring
| Item No. | Dia(in/mm) | Length(mm) | Weight(kgs) | Foot Pads |
| 50ACB423B | 1.65"/42mm | 2100-2470 | 4.25 | 2"×4"plastic |
| 50ACB424B | 1.65"/42mm | 2260-2630 | 4.40 | 2"×4"plastic |
| 50ACB425B | 1.65"/42mm | 2350-2720 | 4.50 | 2"×4"plastic |
| 50ACB426B | 1.65"/42mm | 2565-2935 | 4.65 | 2"×4"plastic |
| 50ACB427B | 1.65"/42mm | 2620-3000 | 4.75 | 2"×4"plastic |
