Reliable and Strong Hidea US Type Weldless Link Chain for General Utility Applications

US TYPE KNOTTED DOUBLE LOOP CHAIN WELDLESS

Material: Low Carbon Steel Steel OR Stainless Steel
Surface Treatment: Electro or as requested
US Type Knotted Double Loop Chain Weldless Chain
Standard ASTM A466/A466M-98 Class 1.2.2 DL—Double-loop chain

Inquire Now

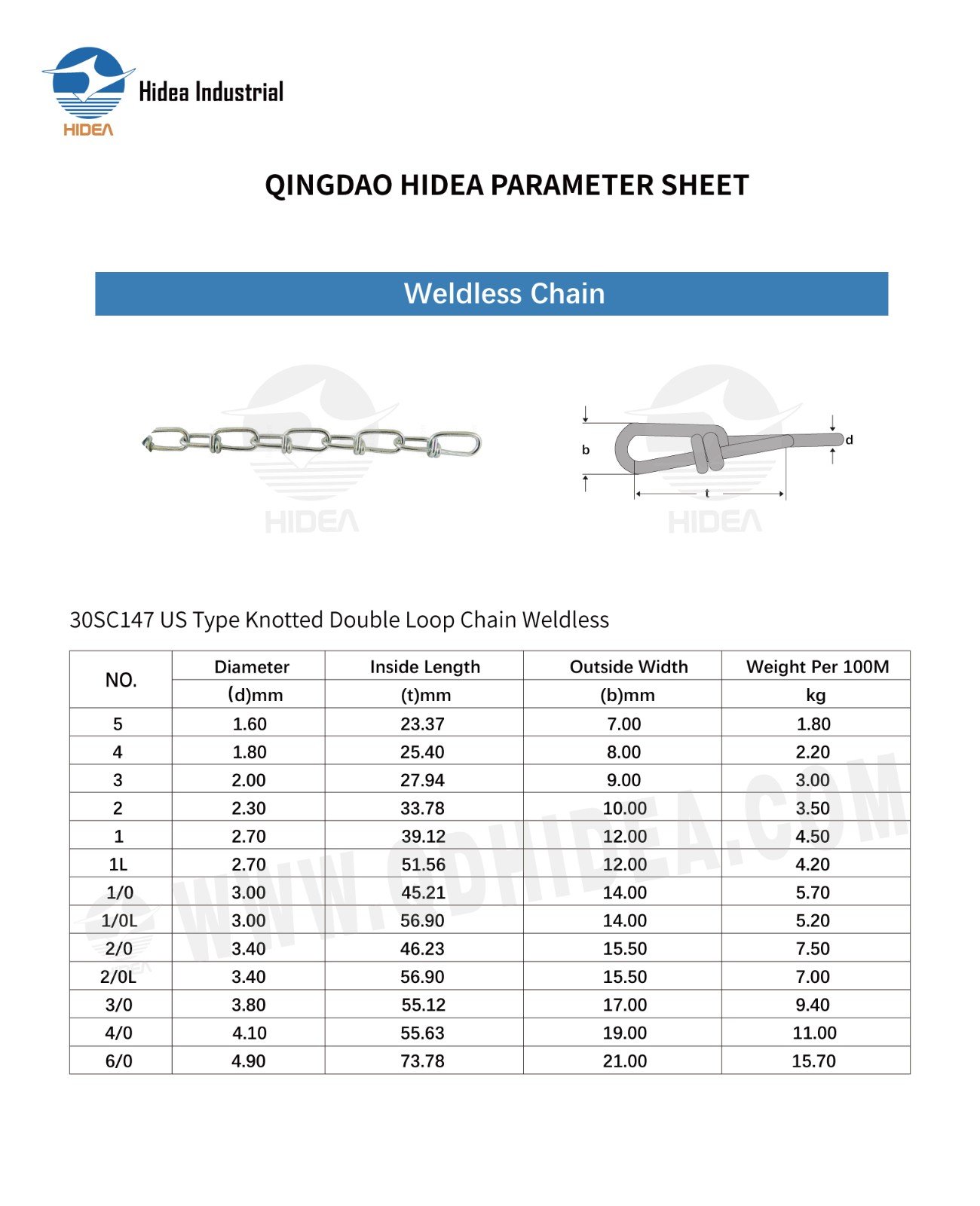

QINGDAO HIDEA PARAMETER SHEET FOR

30SC147 US Type Knotted Double Loop Chain Weldless

NO.	Diameter	Inside Length	Outside Width	Weight Per 100M
NO.	(d)mm	(t)mm	(b)mm	kg
5	1.60	23.37	7.00	1.80
4	1.80	25.40	8.00	2.20
3	2.00	27.94	9.00	3.00
2	2.30	33.78	10.00	3.50
1	2.70	39.12	12.00	4.50
1L	2.70	51.56	12.00	4.20
1/00	3.00	45.21	14.00	5.70
1/0L	3.00	56.90	14.00	5.20
2/00	3.40	46.23	15.50	7.50
2/0L	3.40	56.90	15.50	7.00
3/00	3.80	55.12	17.00	9.40
4/00	4.10	55.63	19.00	11.00
6/00	4.90	73.78	21.00	15.70
