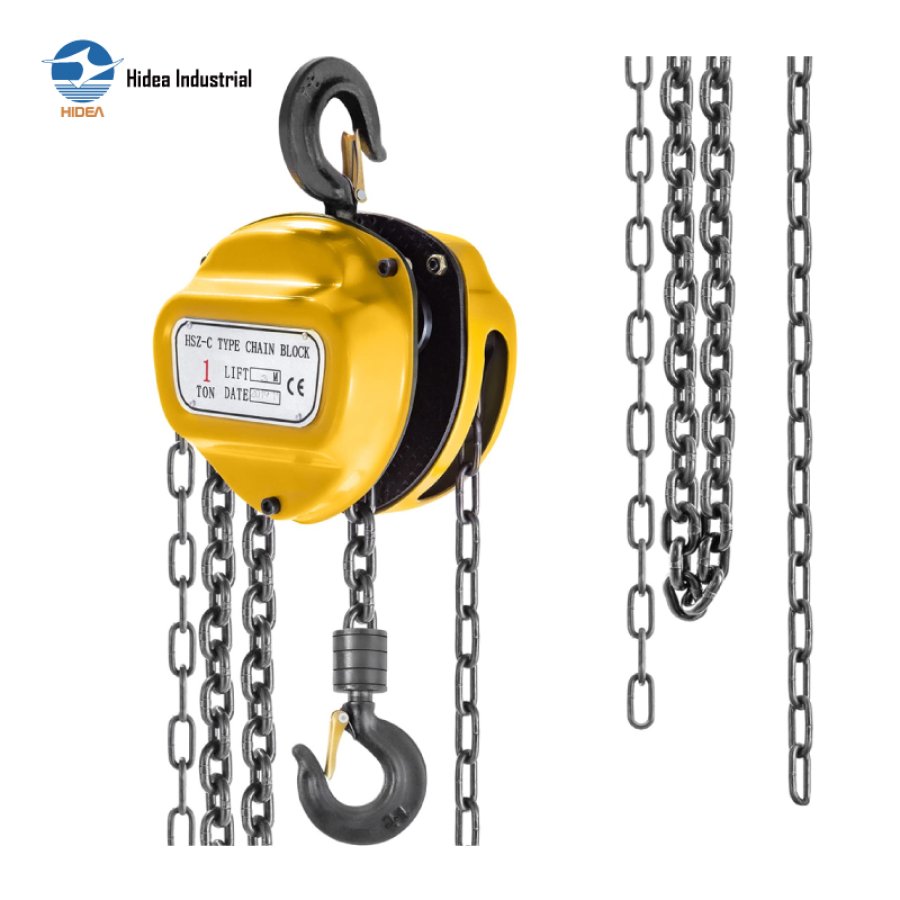

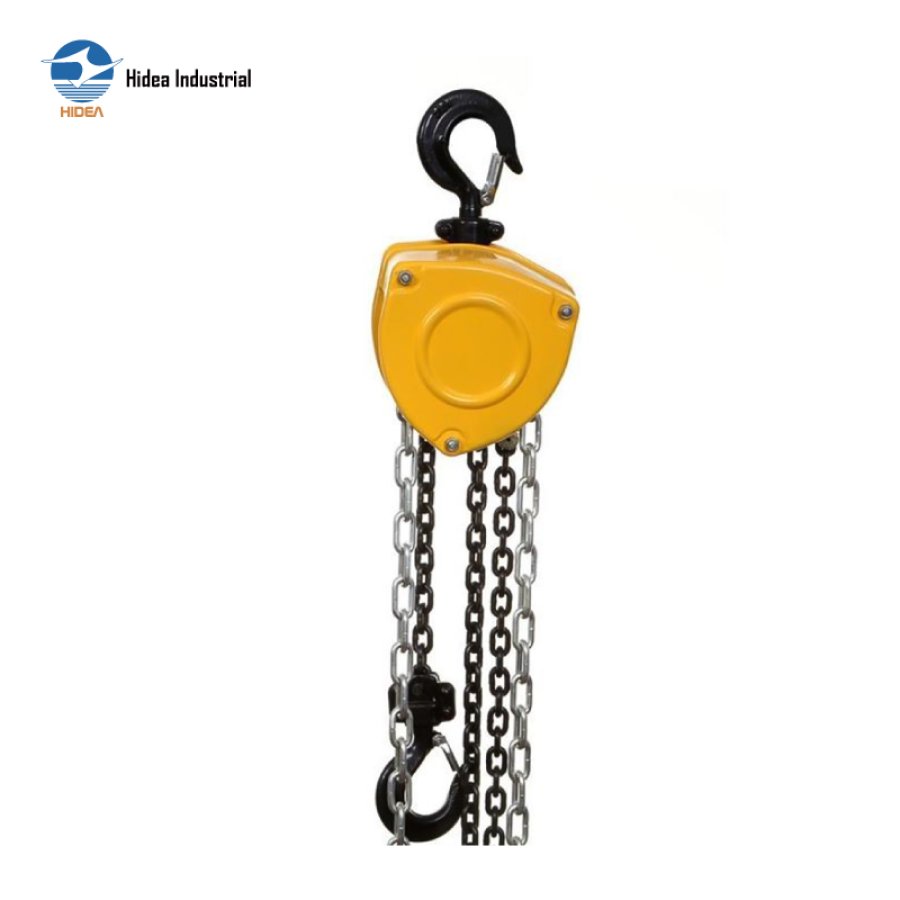

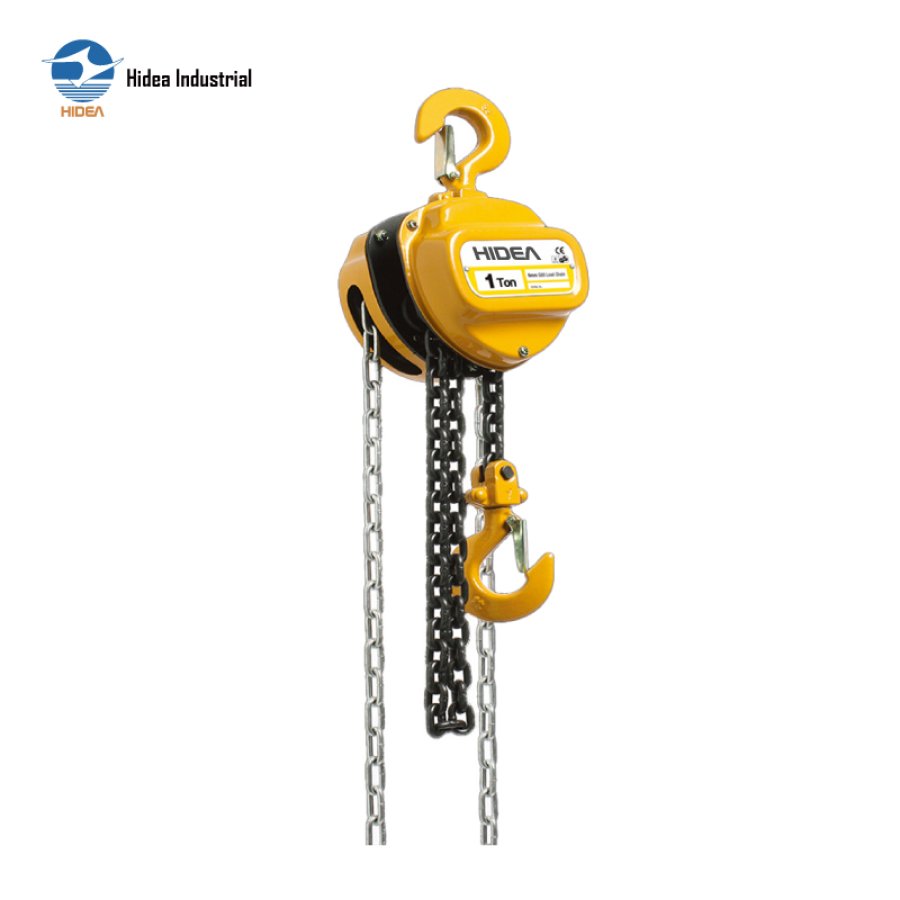

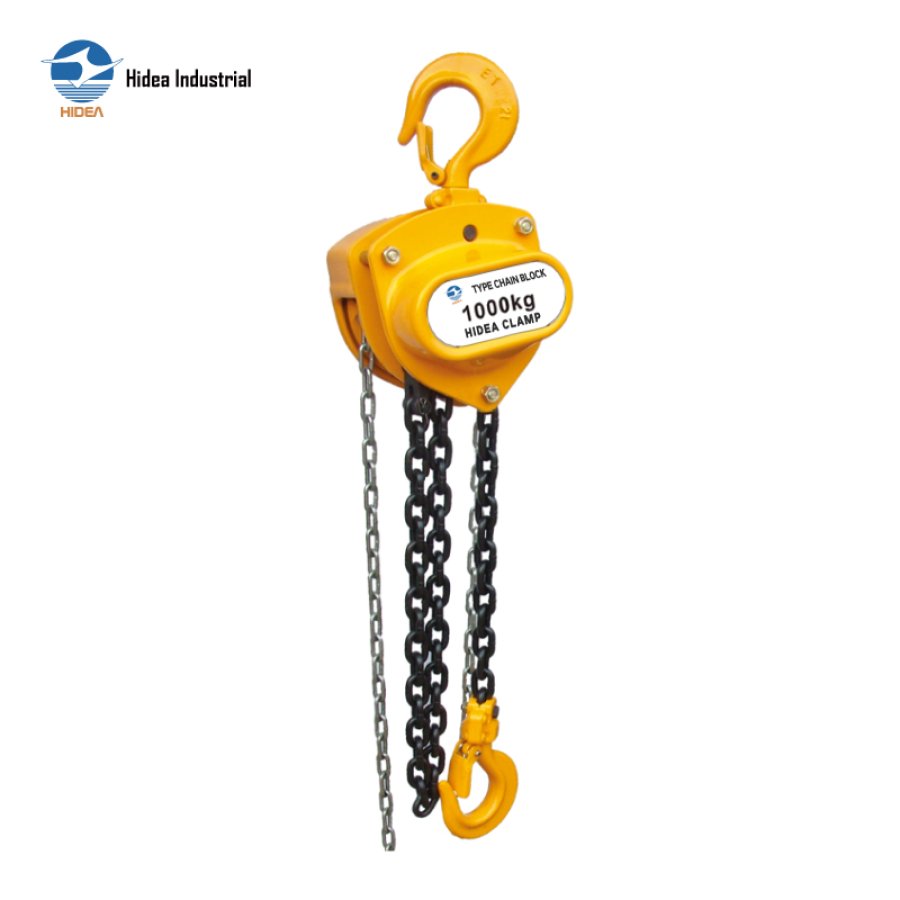

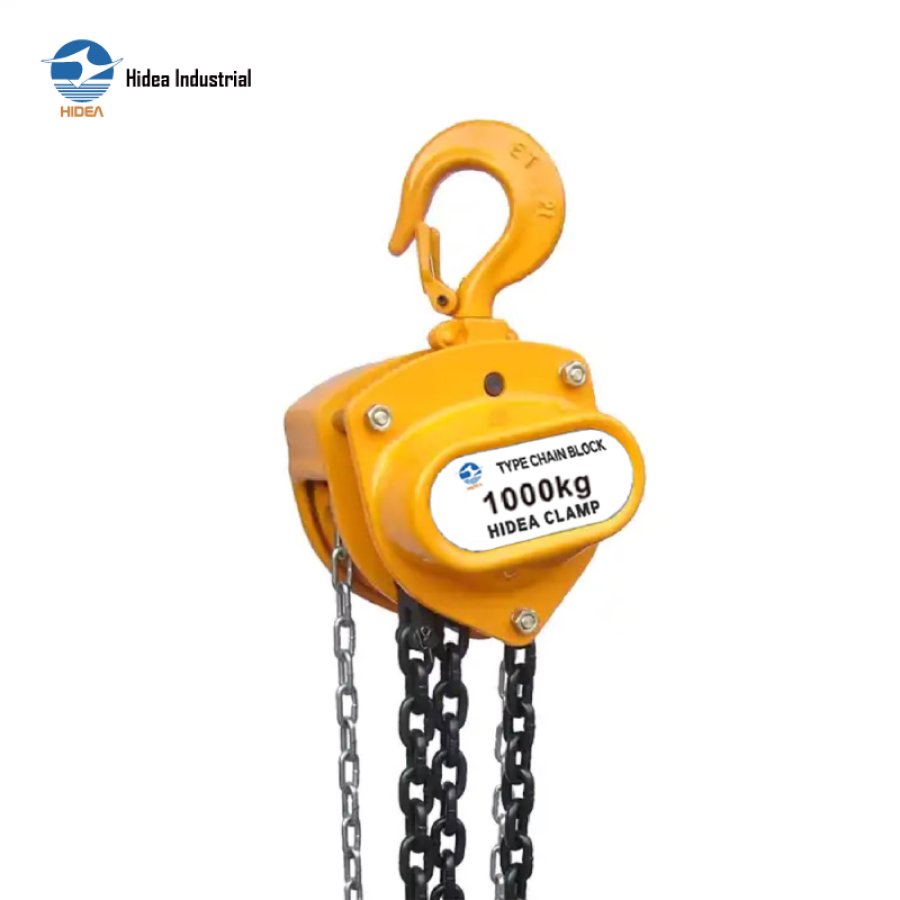

HS-CB type chain block hoist is constructed with patent design of the driving shaft mechanism to optimize transmission ratio & improve operation experience
The chain block hoist can be used in a variety of settings where heavy loads need to be lifted and moved with precision and control, and typically to be used in the open air and where without power supply
High quality alloy steel body & forged alloy hooks, supper G80 lifting chains and hand chains make it durable to withstand heavy duty
The HS-CB chain hoists meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

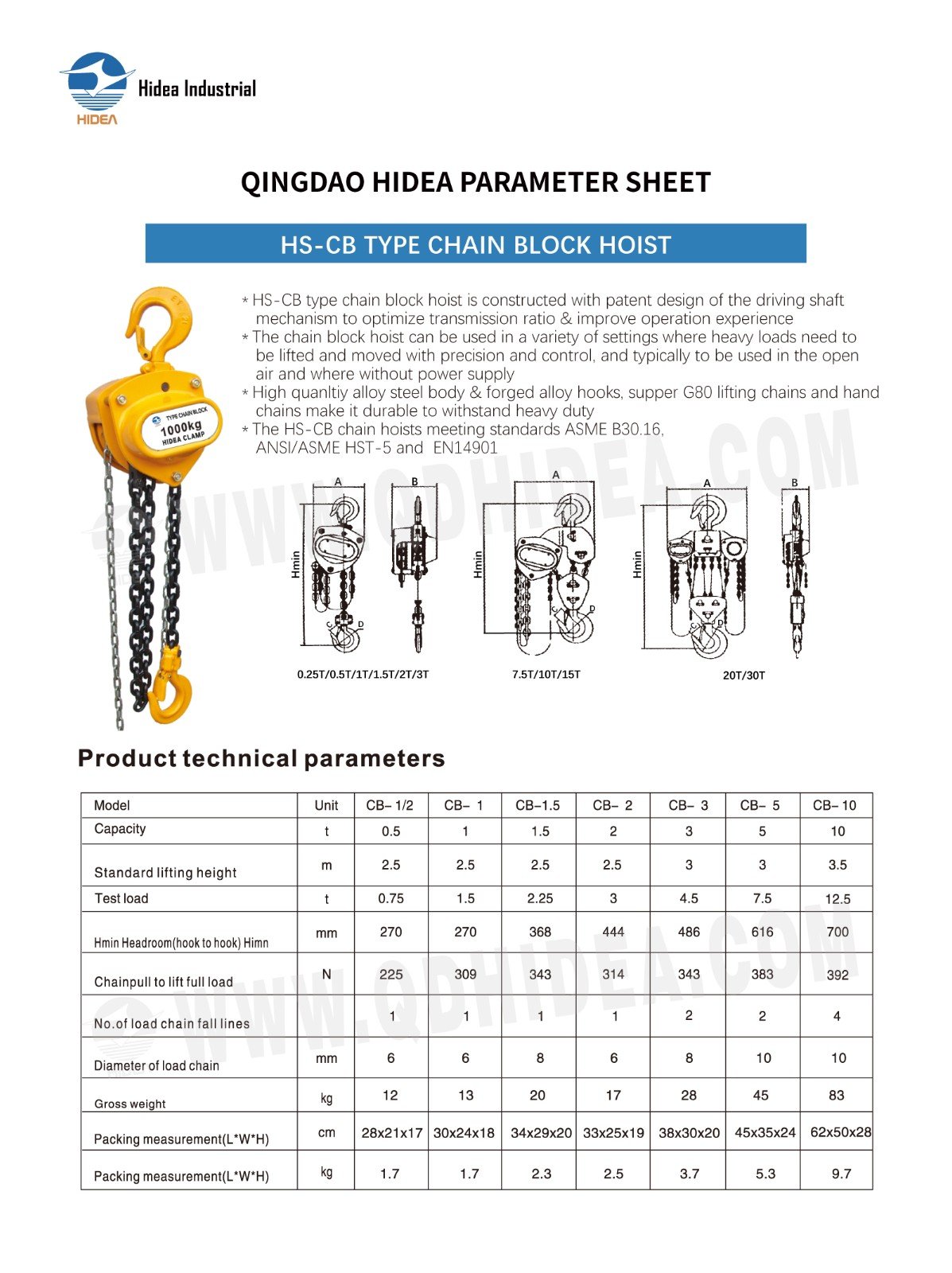

QINGDAO HIDEA PARAMETER SHEET FOR
HS-CB TYPE CHAIN BLOCK HOIST
| Model | Unit | CB-1/2 | CB-1 | CB-1.5 | CB-2 | CB-3 | CB-5 | CB-10 | |||||
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |||||
| Standard lifting height | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | |||||
| Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | |||||
| Hmin Headroom(hook to hook)Himn | mm | 270 | 270 | 368 | 444 | 486 | 616 | 700 | |||||
| Chainpull to lift fullload | N | 225 | 309 | 343 | 314 | 343 | 383 | 392 | |||||
| No.of load chain fall lines | 1 | 1 | 1 | 1 | 2 | 2 | 4 | ||||||
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | |||||
| Gross weight | kg | 12 | 13 | 20 | 17 | 28 | 45 | 83 | |||||
| Packing measurement(L*W*H) | cm | 28x21x17 | 30x24x18 | 34x29x20 | 33x25x19 | 38x30x20 | 45x35x24 | 62x50x28 | |||||
| Packing measurement(L*W*H) | kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | |||||
