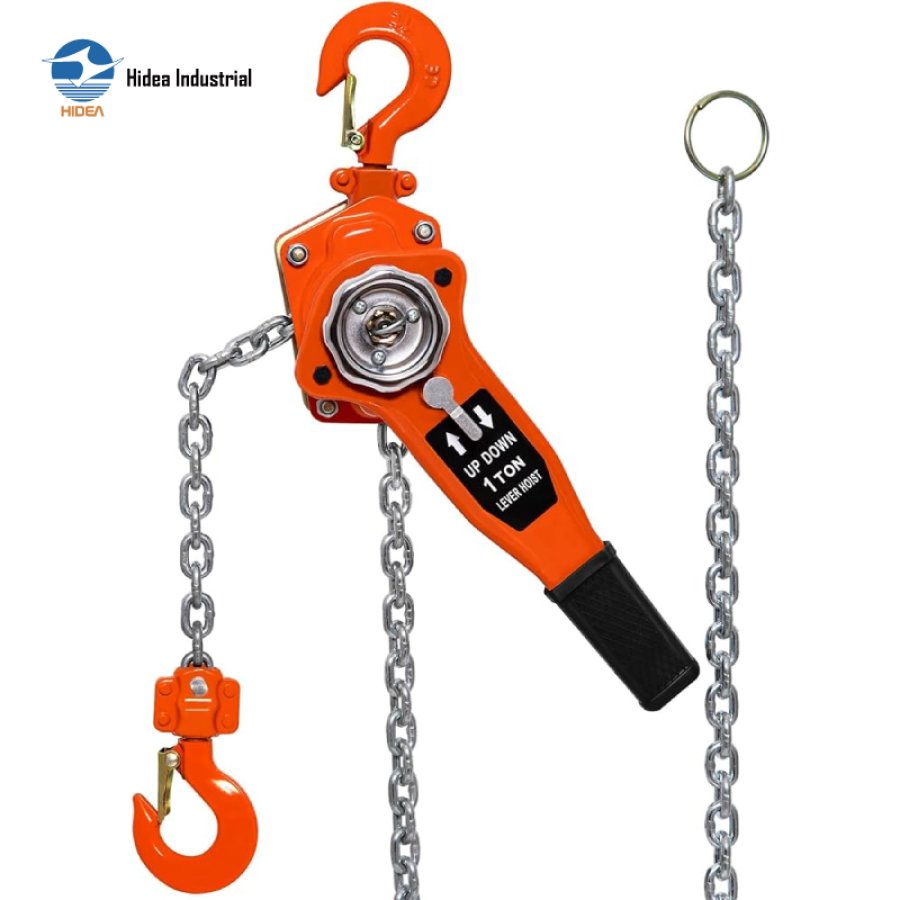

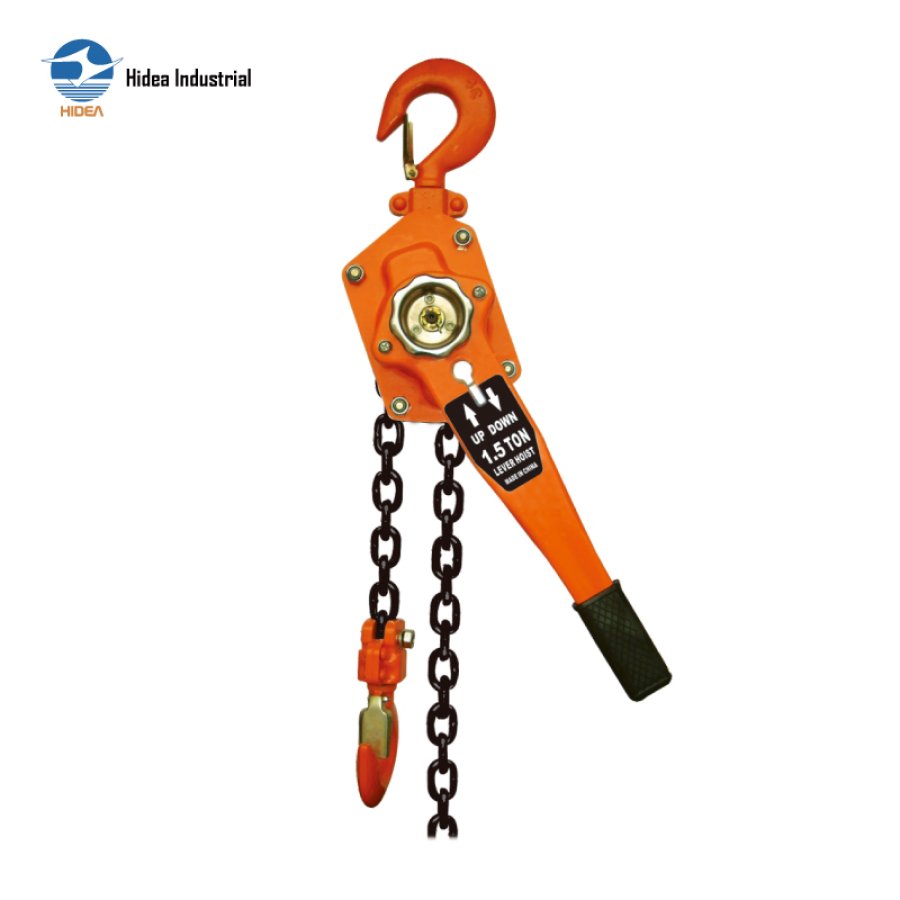

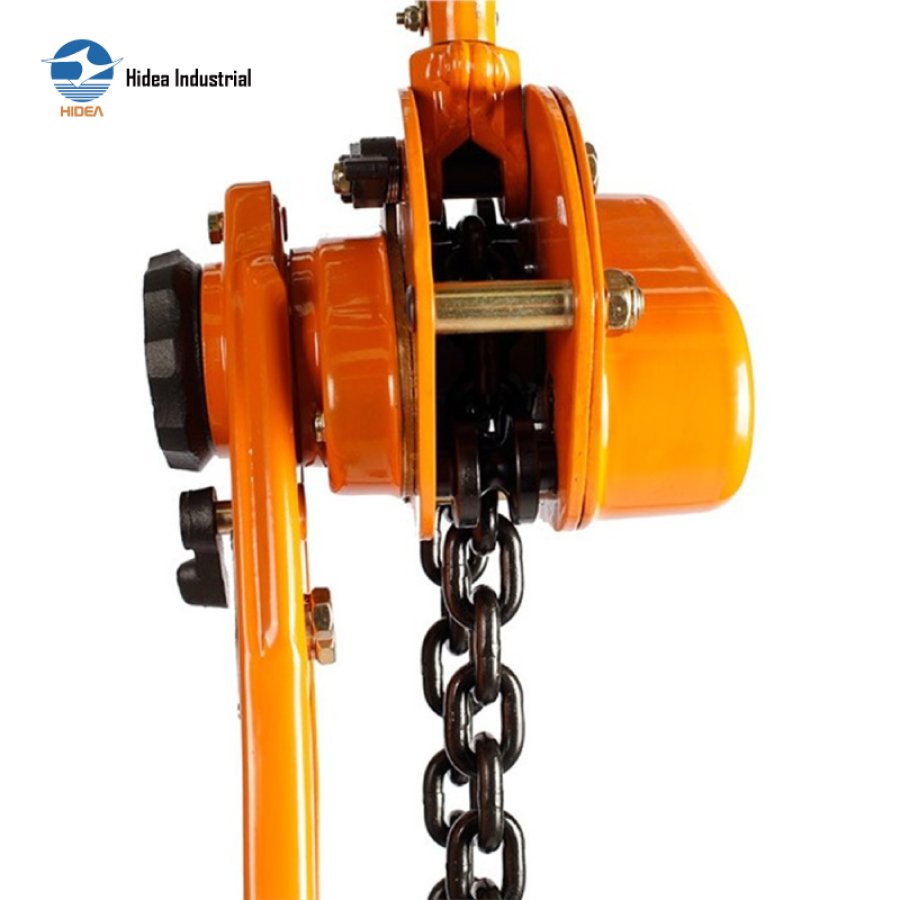

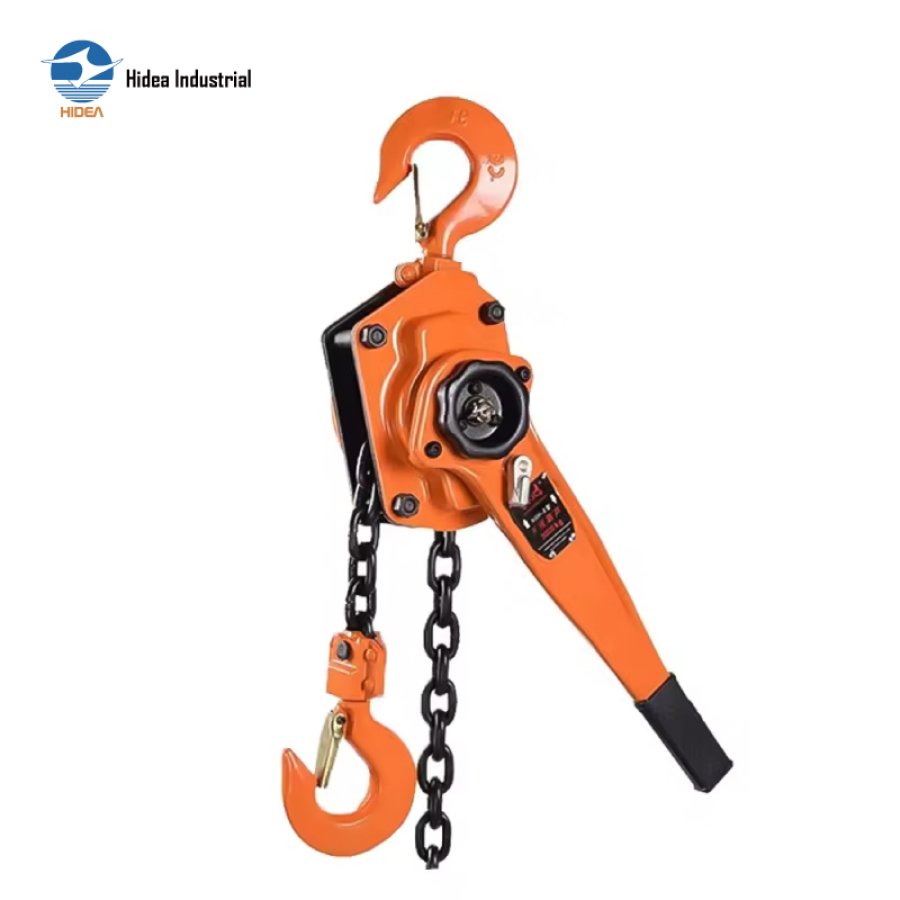

HSH-VA type lever block hoist is a kind of manual hoisting tool with a ratchet and pawl mechanism to lift and transport heavy loads, it features high strength and wear resistance
The HSH-VA type lever block hoist, suitable for high-altitude and narrow space operations and has a rated load range of 0.75 tons to 9 tons, with a safety factor of 4:1, and the lifting height can be up to 3 meters
The HSH-VA type lever block also features high efficiency, low noise, and long service life with wide application scenes & sites
The VL type lever block meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

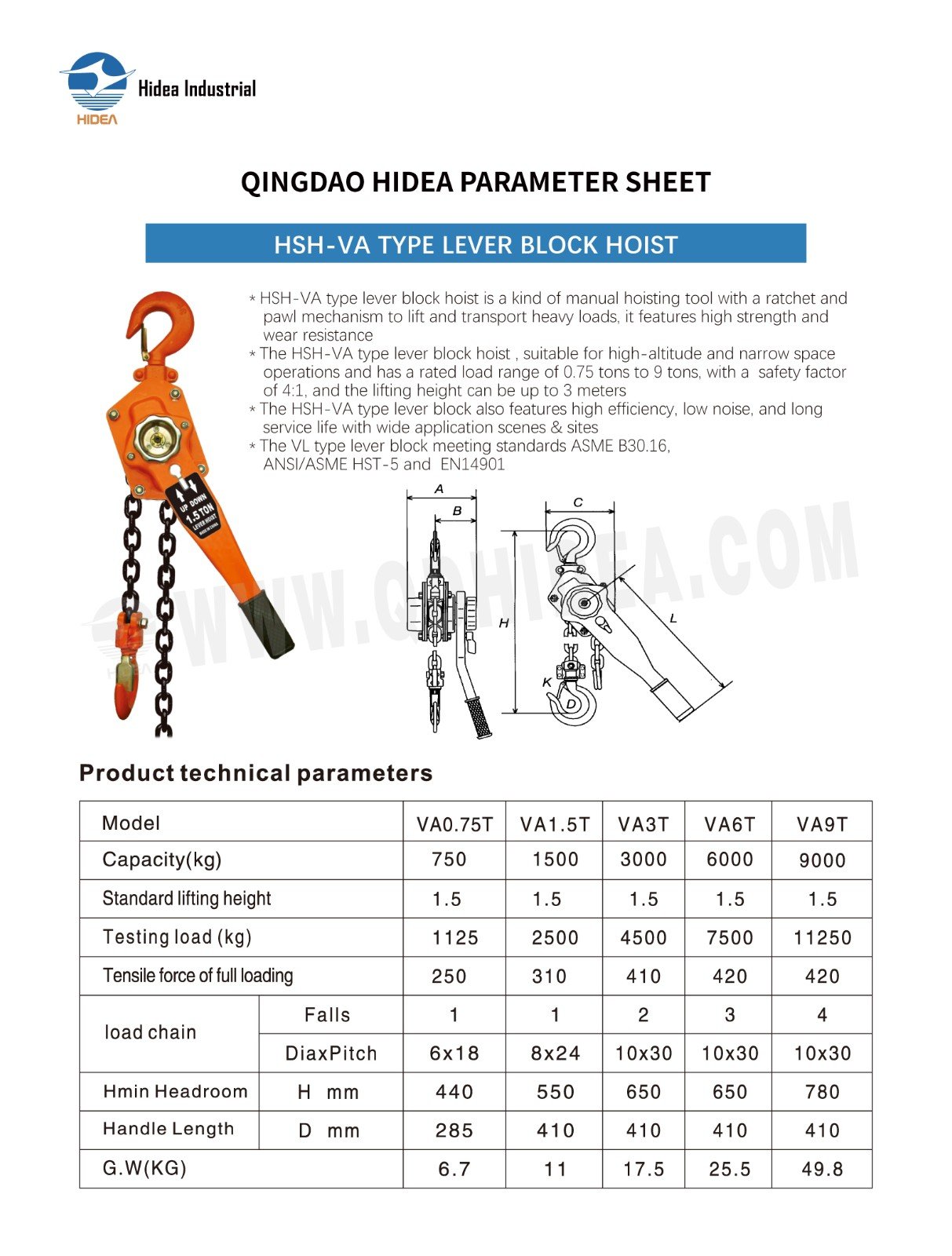

QINGDAO HIDEA PARAMETER SHEET FOR
HSH-VA TYPE LEVER BLOCK HOIST
| Model | VA0.75T | VA1.5T | VA3T | VA6T | VA9T | ||||
| Capacity(kg) | 750 | 1500 | 3000 | 6000 | 9000 | ||||
| Standard lifting height | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| Testing load (kg) | 1125 | 2500 | 4500 | 7500 | 11250 | ||||
| Tensile force of full loading | 250 | 310 | 410 | 420 | 420 | ||||
| load chain | Falls | 1 | 1 | 2 | 3 | 4 | |||
| DiaxPitch | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 | ||||
| Hmin Headroom | H mm | 440 | 550 | 650 | 650 | 780 | |||
| Handle Length | D mm | 285 | 410 | 410 | 410 | 410 | |||
| G.W(KG) | 6.7 | 11 | 17.5 | 25.5 | 49.8 | ||||
