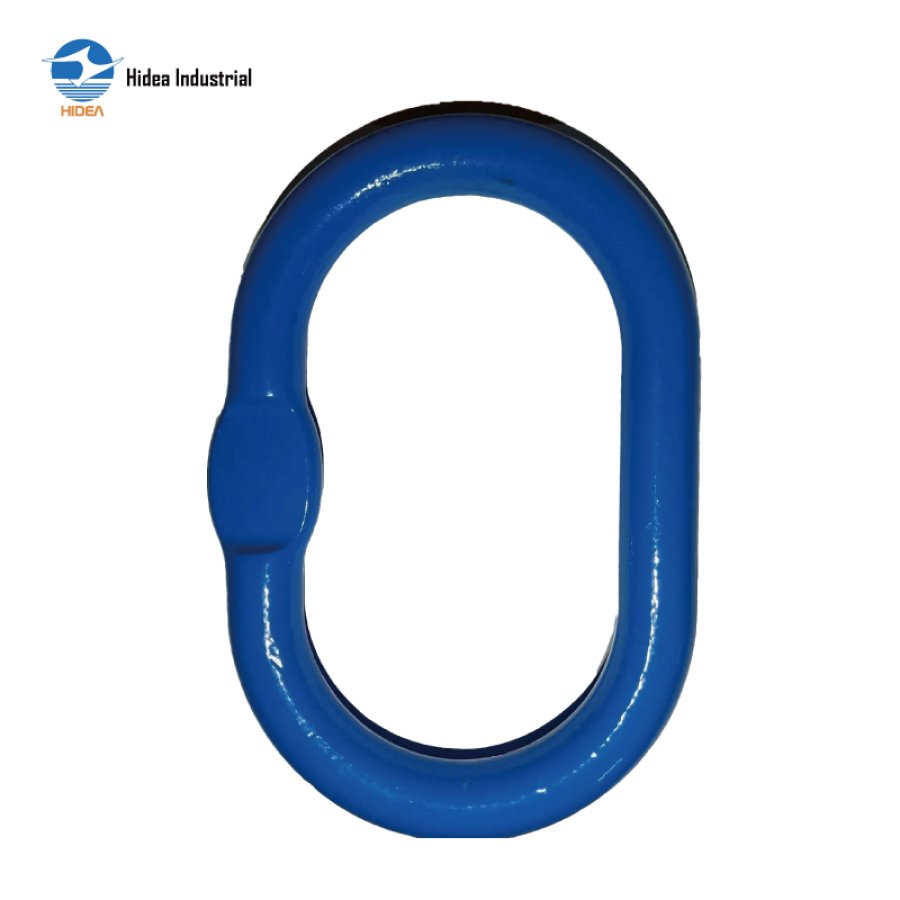

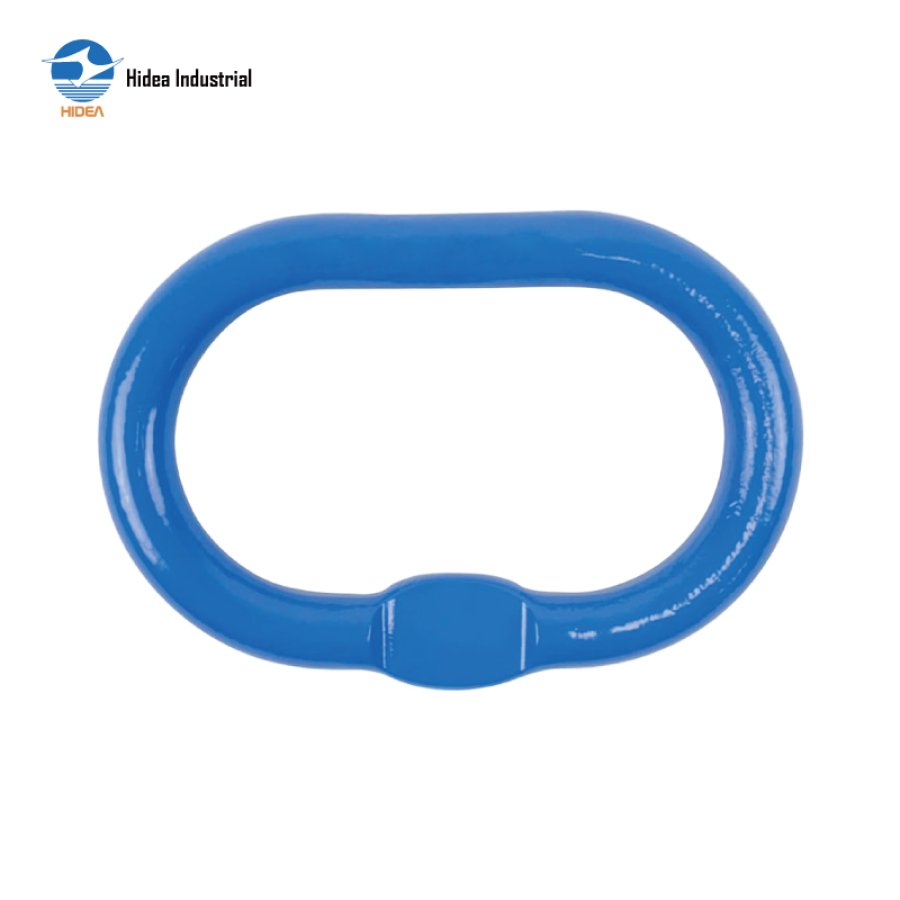

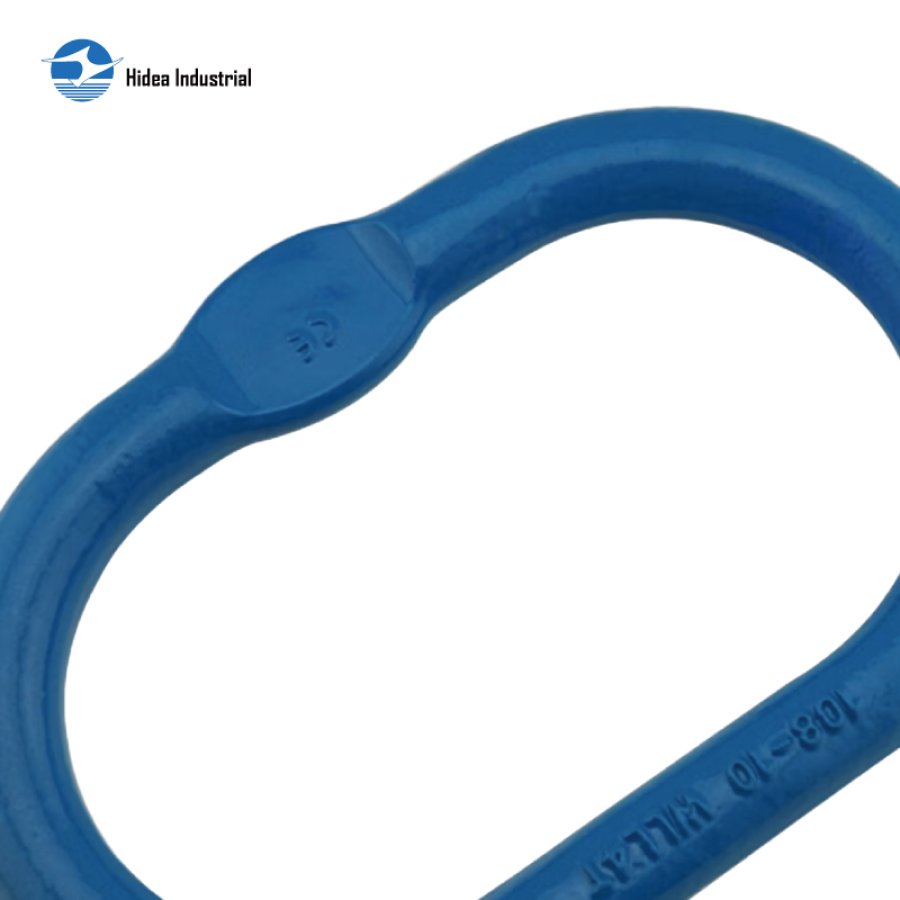

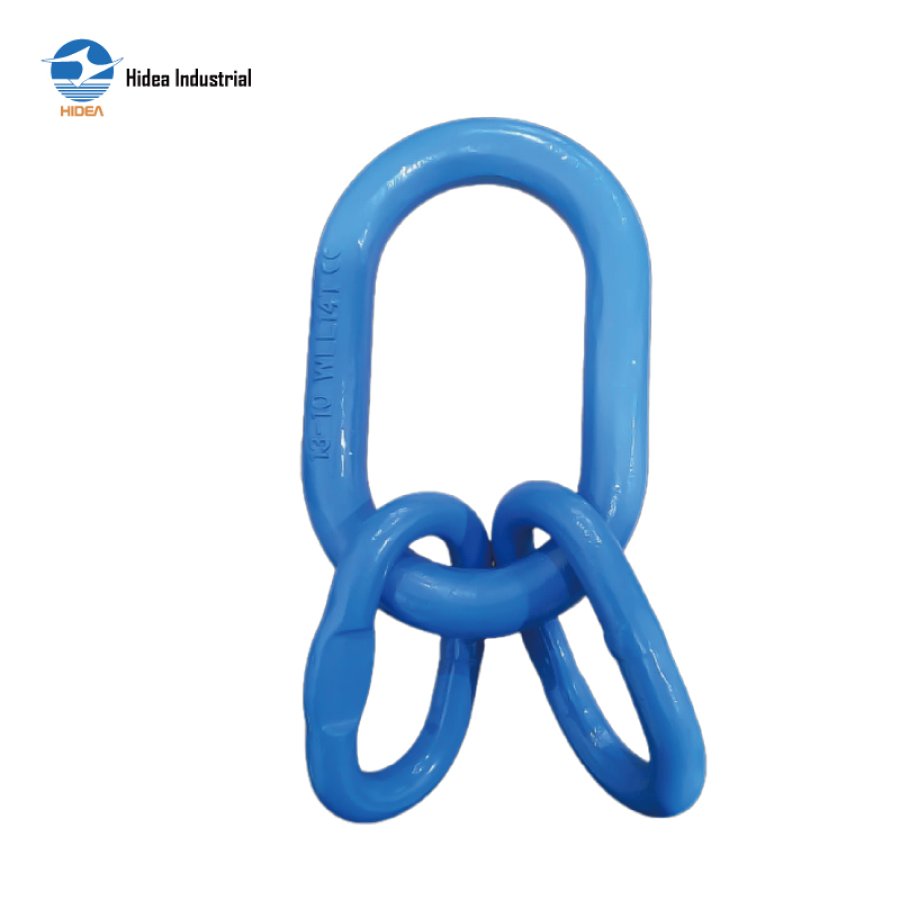

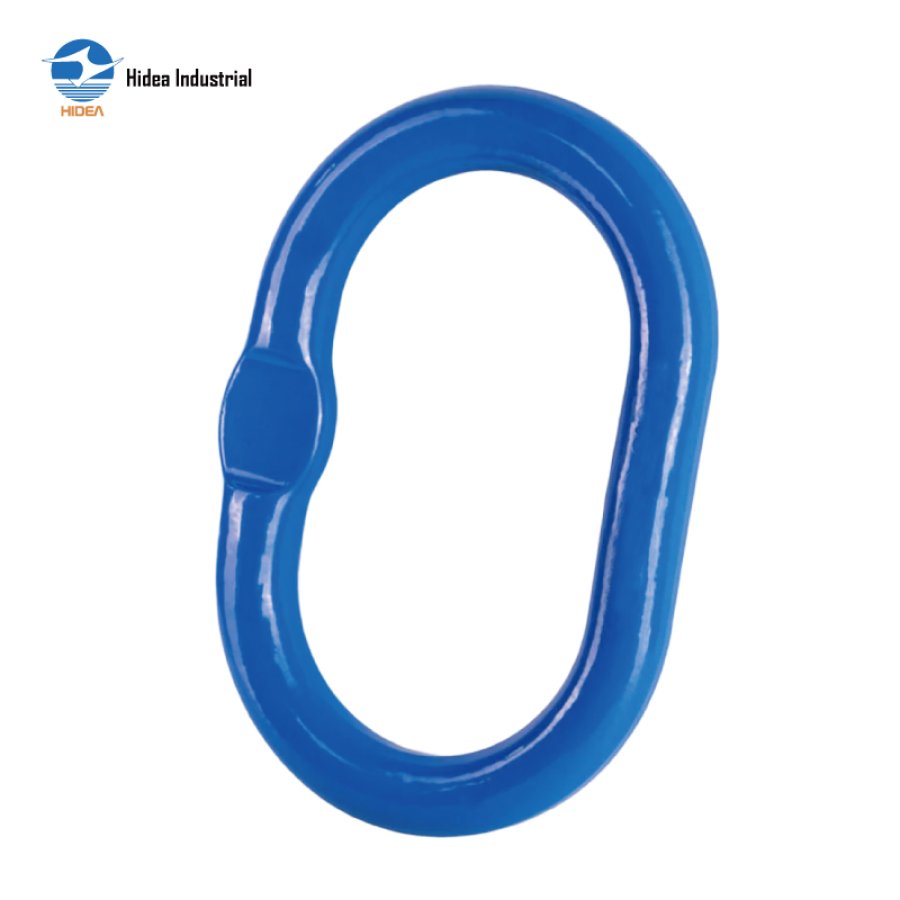

Reliable Hidea Grade 100 US Type Master Link for Heavy Lifting

G100 US TYPE MASTER LINK

Forged super alloy steel-Quenched and Tempered
25% stronger than G80
Breakage test
100% magnafluxcrack detection
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7701-G100 MASTER LINK

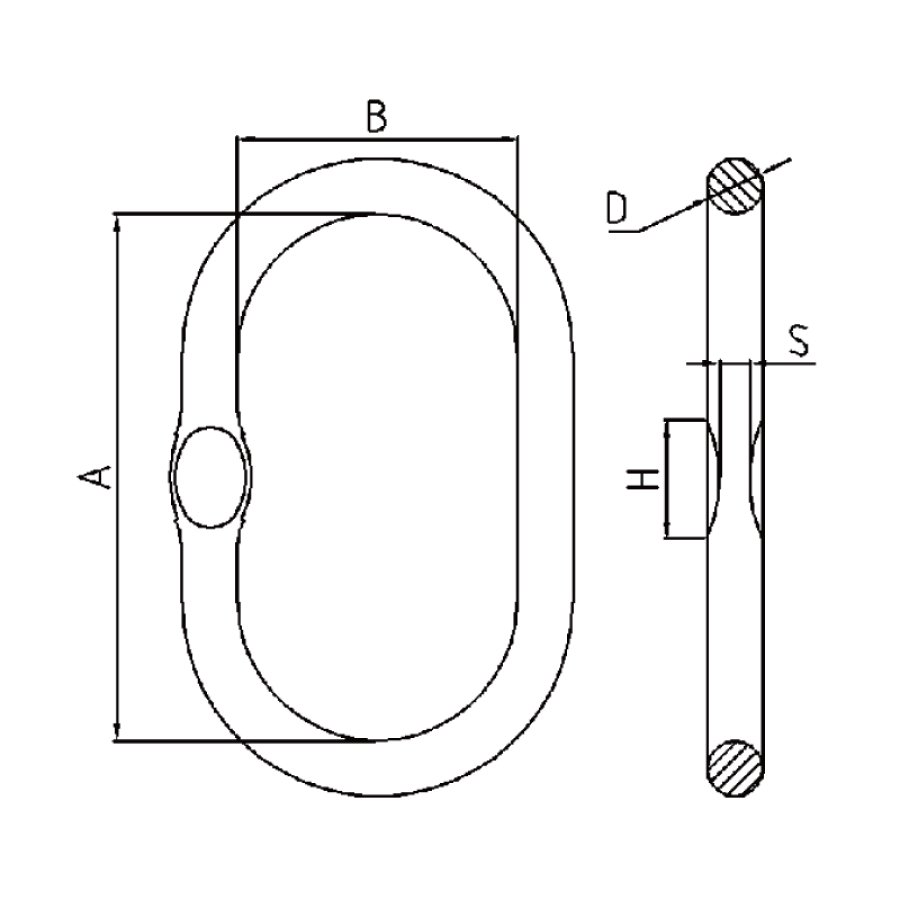

Item No.	weight	Chain	WLL			A	B	D	S×H
	(Kg)		1 leg (T)	2 lef(0-60°） (T)	Rope (T)
20RH7701-1/2-A	0.36	7/32(6mm)	1.22	2.2	2.8	127	63.5	13	7×30
		1/4(7mm)	2	‐
20RH7701-1/2	0.6	1/4(7mm)	2	3.4	3.4	127	70	16	8×35
		5/16	2.6	‐
20RH7701-5/8	0.7	5/16	2.6	‐	4	152	76	16	8×35
20RH7701-3/4	0.9	5/16	2.6	4.5	5.6	152	80	18	8×35
		3/8	4	‐
20RH7701-7/8	1.5	3/8	4	6.9	6.9	160	95	22	11×45
		1/2	6.8	‐
20RH7701-1	2.8	1/2	6.8	11.8	11.8	190	110	27	14×55
		5/8	10.3	‐
20RH7701-1-1/4	5.4	5/8	10.3	17.7	17.7	240	140	33	17×60
		3/4	16	‐
20RH7701-1-1/2	8.2	3/4	16	27.7	27.7	267	150	40	21×70
		7/8	19.4	‐
20RH7701-1-3/4	11.4	7/8	19.4	33.6	38.5	305	152	45	‐
		1	27.1	‐
20RH7701-2	16.8	1	27.1	46.9	46.5	355	178	51	‐
		1 1/4	41	‐
20RH7701-2-1/4	24.5	1 1/4	41	64.9	64.9	406	203	57	‐
20RH7701-2-1/2	31.1	1 1/4	41	71	72.6	406	203	64	‐
