HIDEA DIN 6899B Wire Rope Thimble – Durable & Reliable Thimble for Heavy Duty Application

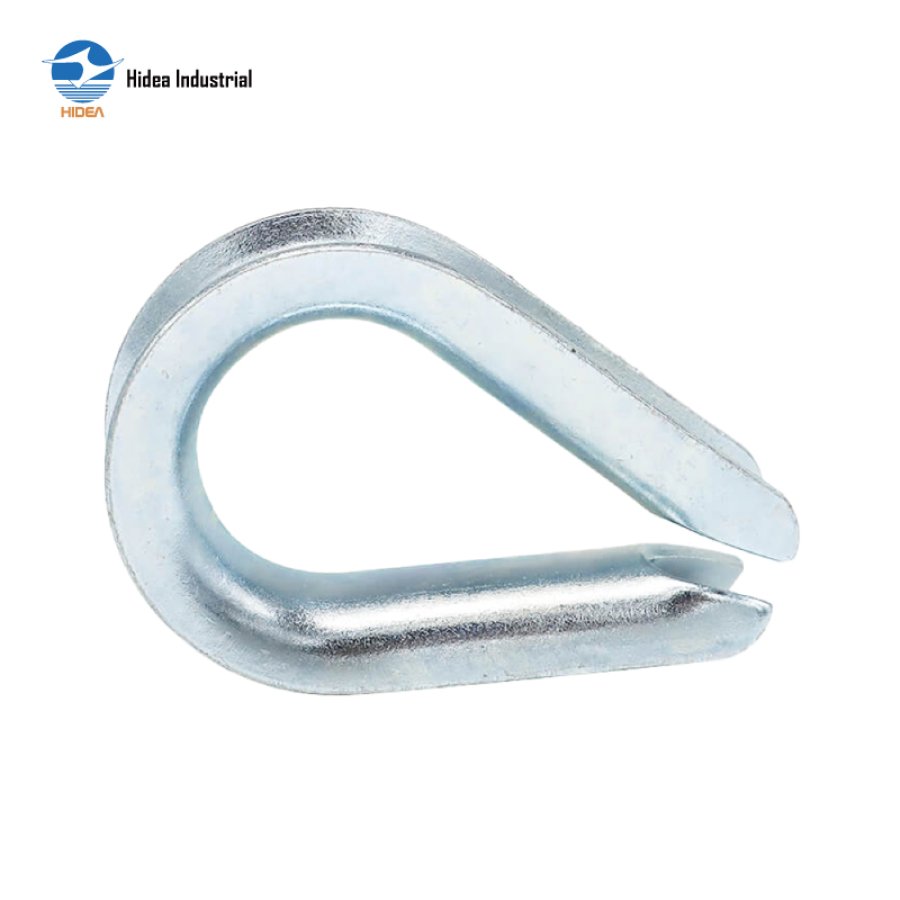

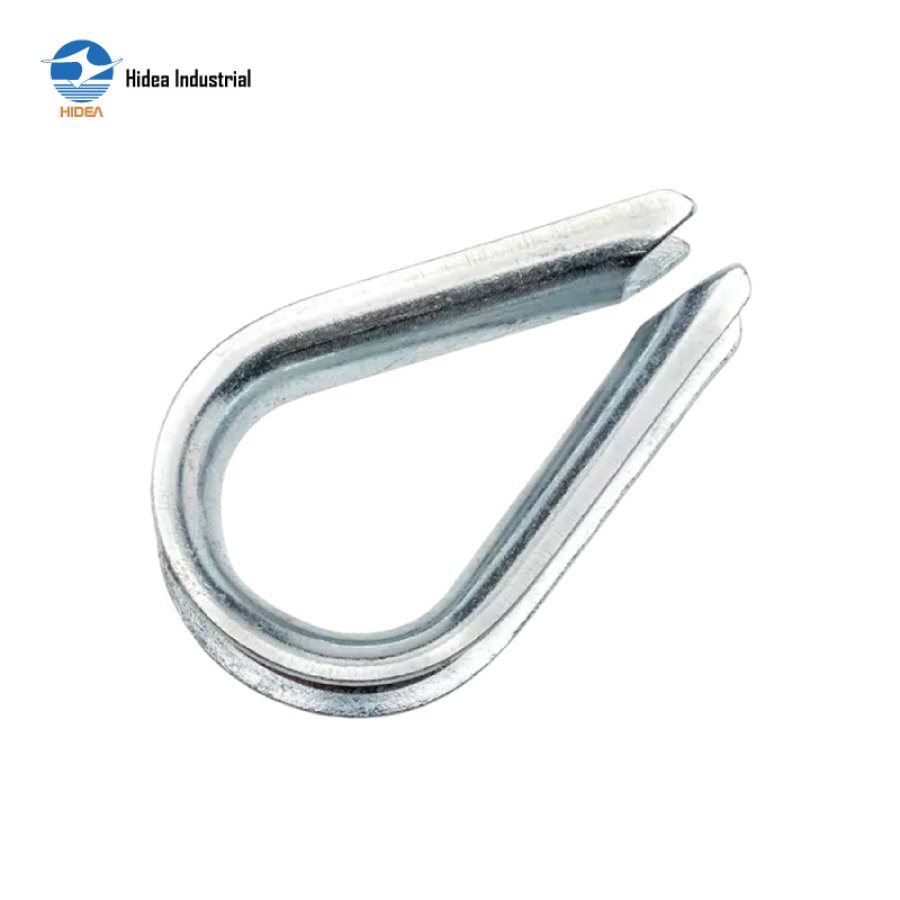

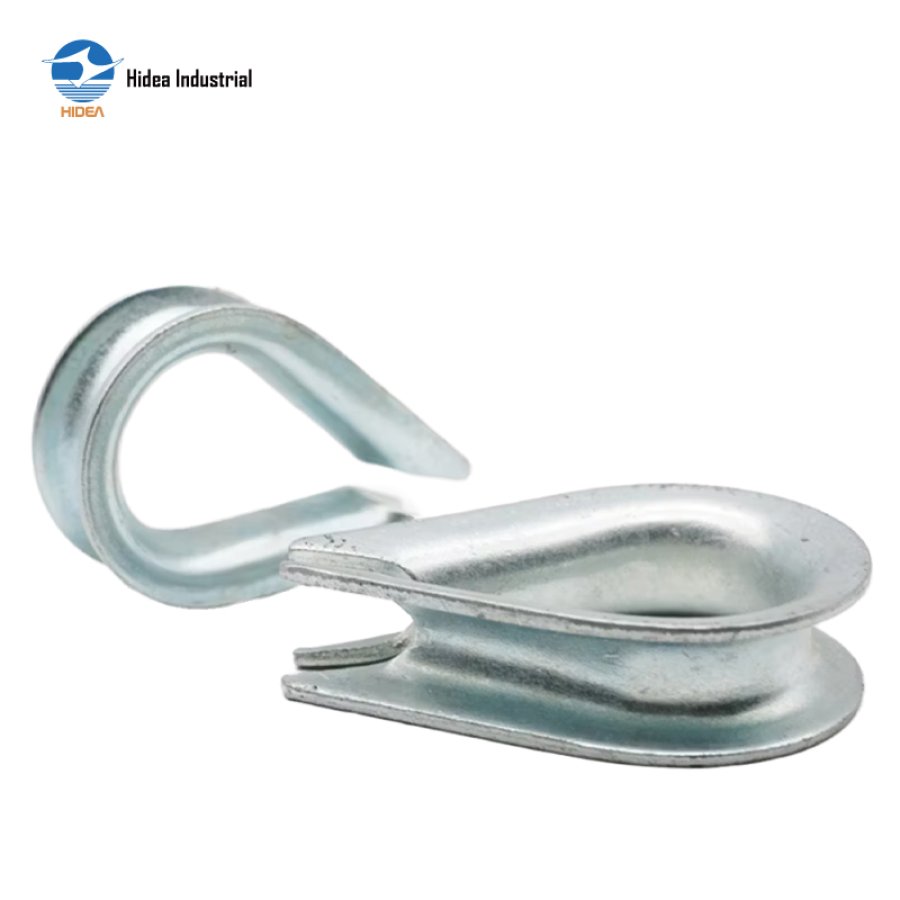

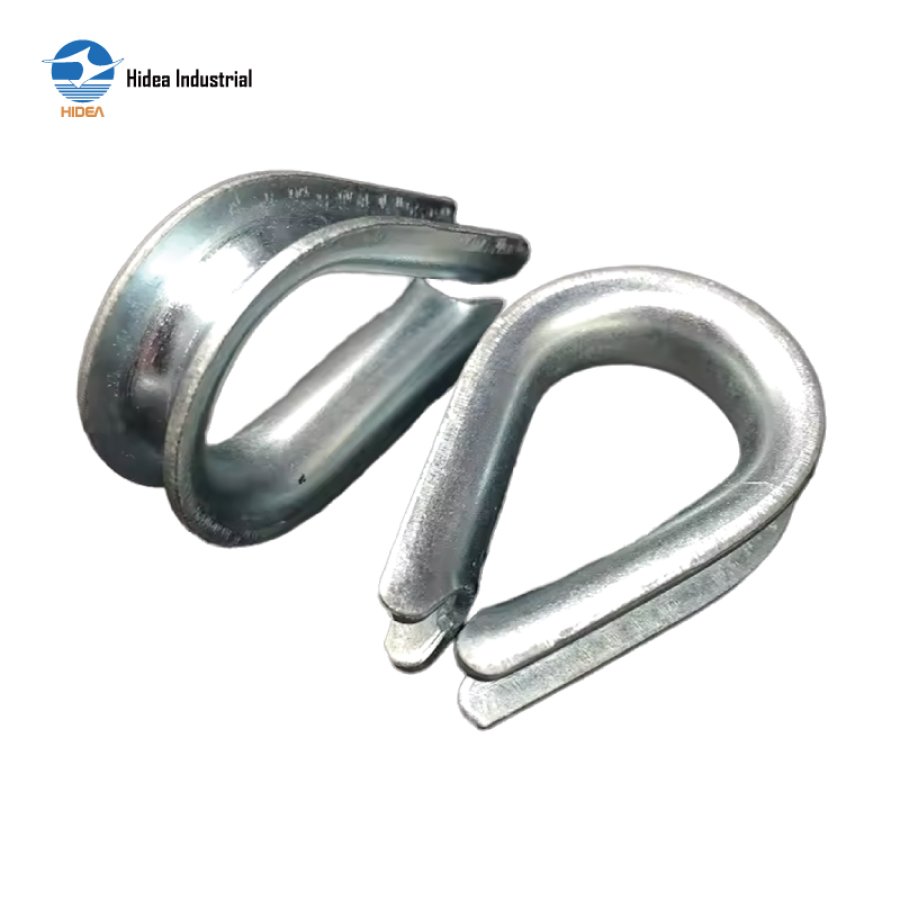

WIRE ROPE THIMBLE DIN6899 B

Material Mild Steel Plate
Stamped & Bent to shape, Machined & polished
Surface Electro Galv. / zinc plated OR as requested
Meets the performance requirements of Federal Specification FF-T-276b Type II
Heavy duty DIN6899B wire rope thimbles European type

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR525 Wire Rope Thimble DIN6899 B

ROPE SIZE	A	B	C	D	E	WEIGHT
MM	MM	MM	MM	MM	MM	KG/100PCS
2.5	3	22	19	12	1.6	0.5
3	4	26	21	13	1.6	0.8
4	5	32	23	14	1.9	1
5	6	38	25	16	2.4	1.6
6	7	44	28	18	2.4	1.9
7	8	51	32	20	2.8	3
9(8)	10	57	38	24	3.1	4.7
11(10)	12	64	45	28	3.3	6.8
12	13	70	48	30	3.3	8
13	14	76	51	32	3.7	10
15(14)	16	83	58	36	3.8	14.5
16(15)	17	89	61	38	4.7	18
17(16)	18	95	64	40	4.7	20
18	20	102	72	45	5.7	29
20	22	114	80	50	5.7	32
22	24	127	90	56	6.5	47
24	26	140	99	62	6.8	59
26	28	152	112	70	8	80
28	30	165	120	75	8	110
30	32	178	128	80	8	123
32	34	203	152	95	8.5	156
34	36	216	160	100	8.5	176
36	38	229	176	110	8.5	192
38	40	241	184	115	10.5	292
40	42	254	192	120	10.5	320
42	45	305	240	150	10.5	364
