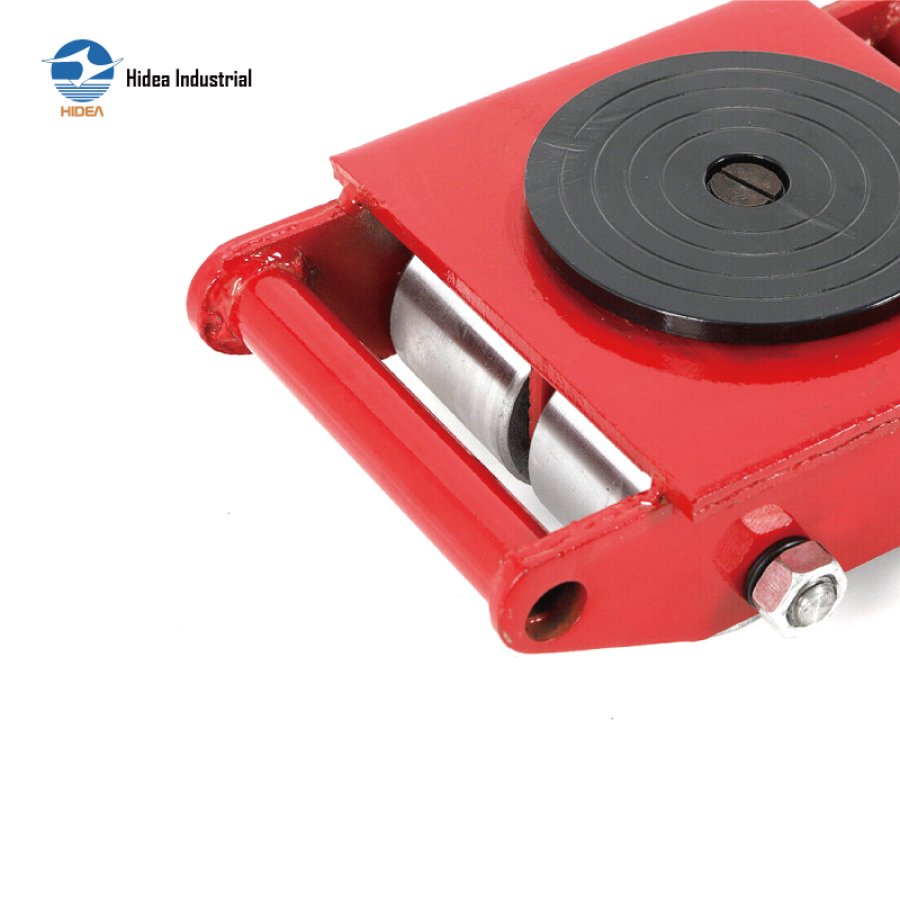

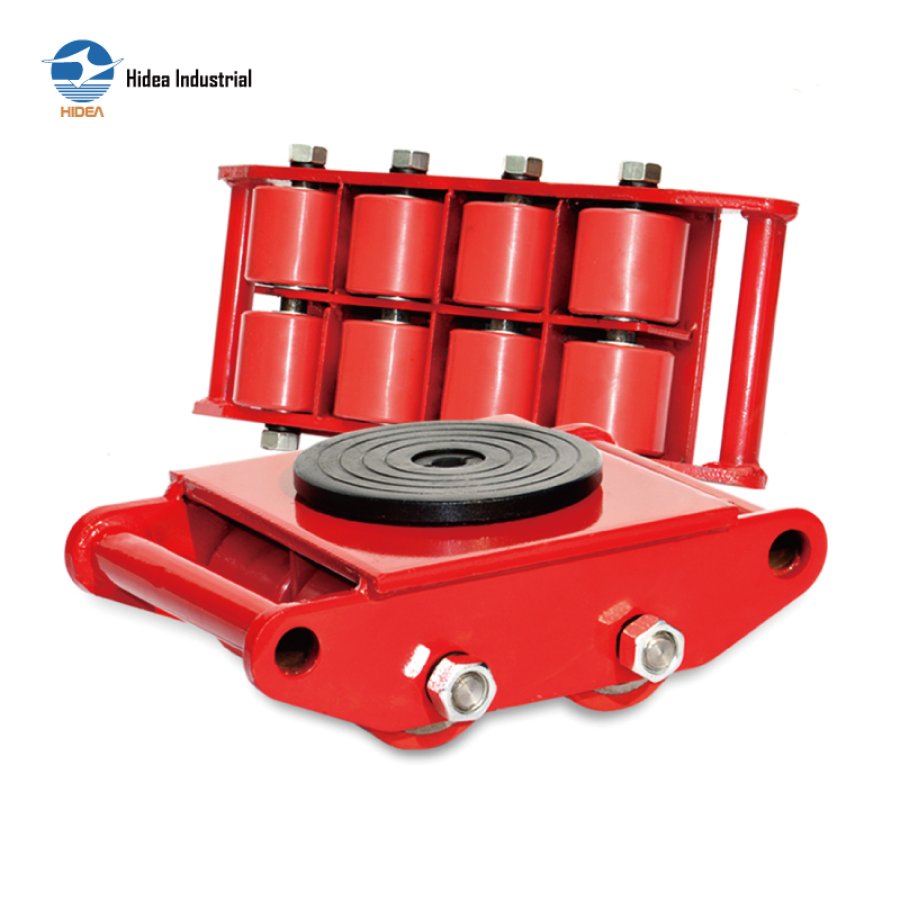

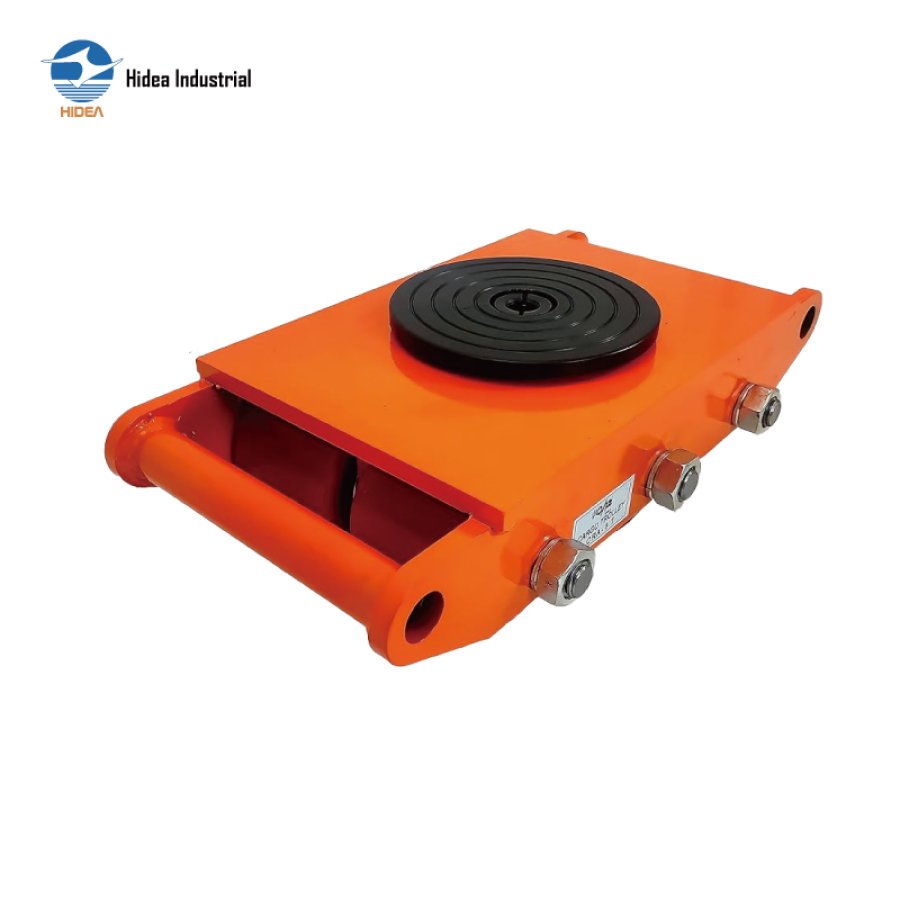

CRA floor tanks straight type are made of high quality steel with top plate, turning balls; the max capacity can be from 4 tons to 36 tons or more

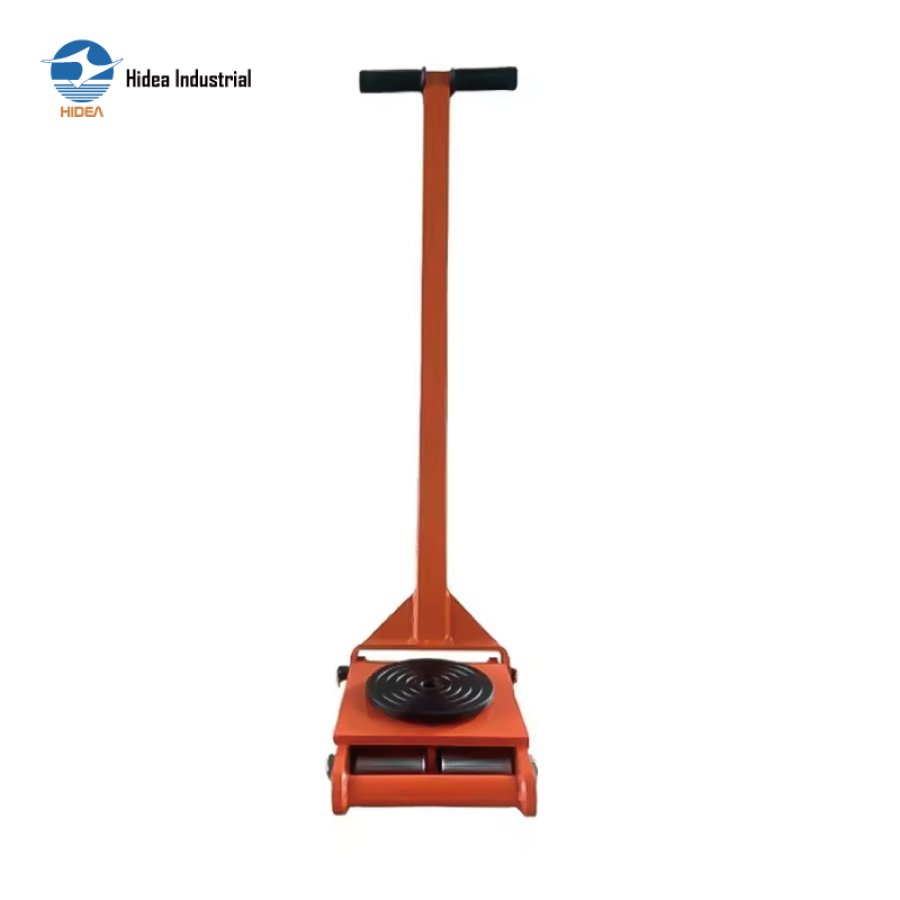

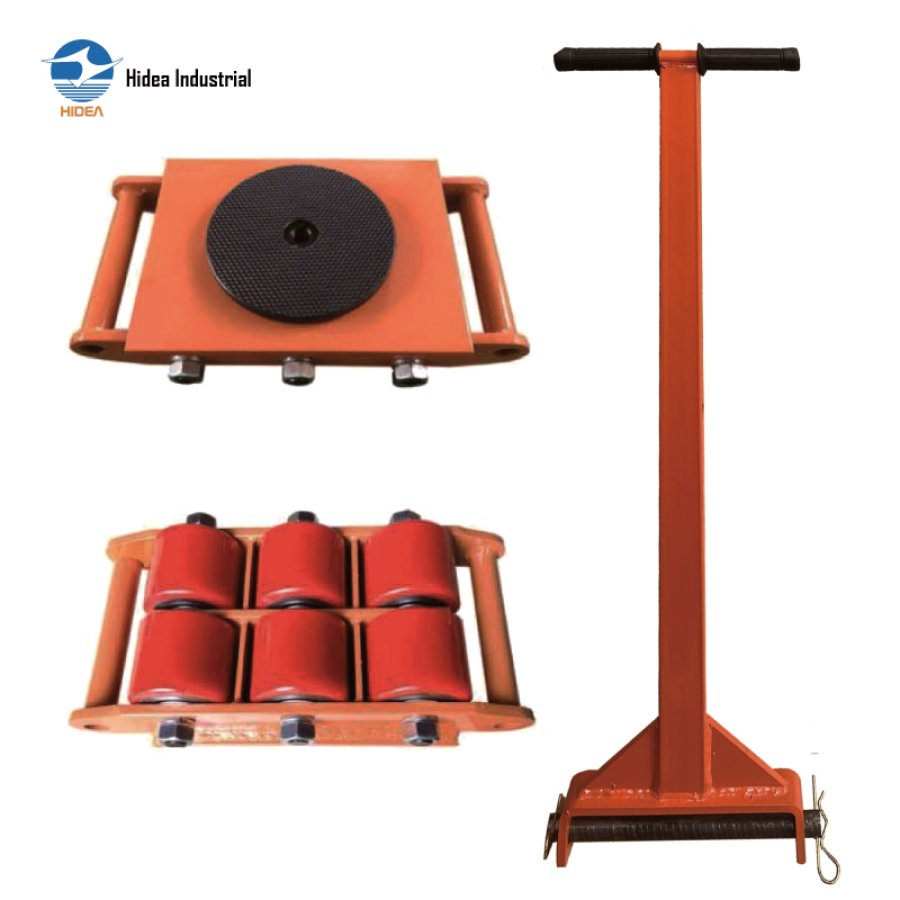

The floor tank is a kind of material handling equipment that is designed for transporting heavy loads in warehouses or construction sites on the floor or flat platform; the compact flat, low-profile design，and detachable hauling handle allows it to work at a comparatively small space area
Floor tanks typically are equipped with wheels to facilitate movement of cargos; different wheels, say steel wheels, nylon wheels, PU anti-broken wheels can be used according to different working environments & conditions, or per client request
The CRA floor tanks is a straight type, it means it can only straight running on the floors, while other turnable & steerable type floor tanks are available
Floor tanks also known as Heavy Duty Dolly, Skate Roller Mover, Cargo Trolley

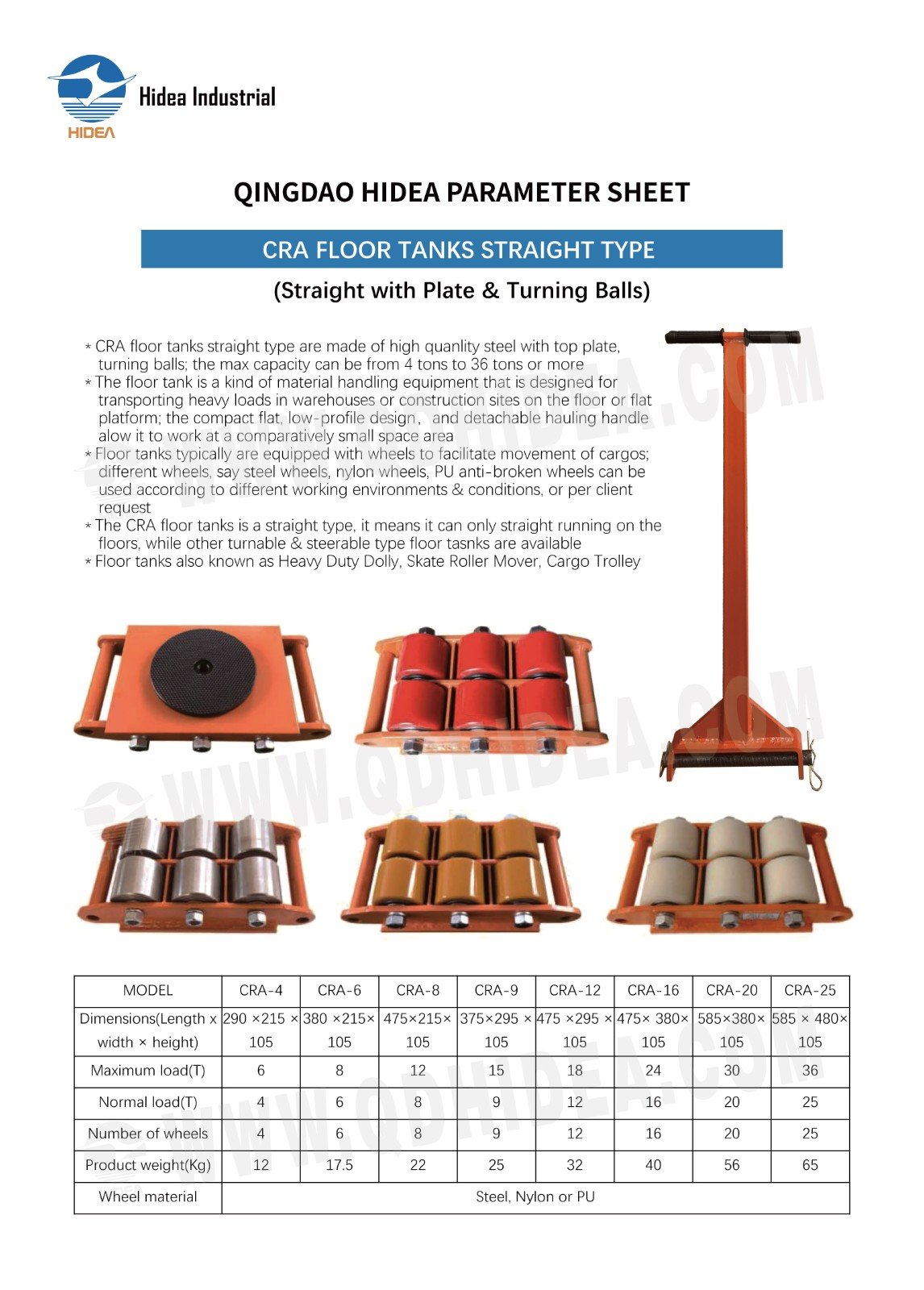

QINGDAO HIDEA PARAMETER SHEET FOR
CRA FLOOR TANKS STRAIGHT TYPE
| MODEL | CRA-4 | CRA-6 | CRA-8 | CRA-9 | CRA-12 | CRA-16 | CRA-20 | CRA-25 | ||
| Dimensions(Length x width×height) | 290×215× 105 | 380×215× 105 | 475×215× 105 | 375×295× 105 | 475×295× 105 | 475×380× 105 | 585×380× 105 | 585×480× 105 | ||
| Maximum load(T) | 6 | 8 | 12 | 15 | 18 | 24 | 30 | 36 | ||
| Norma load(T) | 4 | 6 | 8 | 9 | 12 | 16 | 20 | 25 | ||
| Number of wheels | 4 | 6 | 8 | 9 | 12 | 16 | 20 | 25 | ||
| Product weight(Kg) | 12 | 17.5 | 22 | 25 | 32 | 40 | 56 | 65 | ||
| Wheel material | Steel,Nylon or PU | |||||||||
