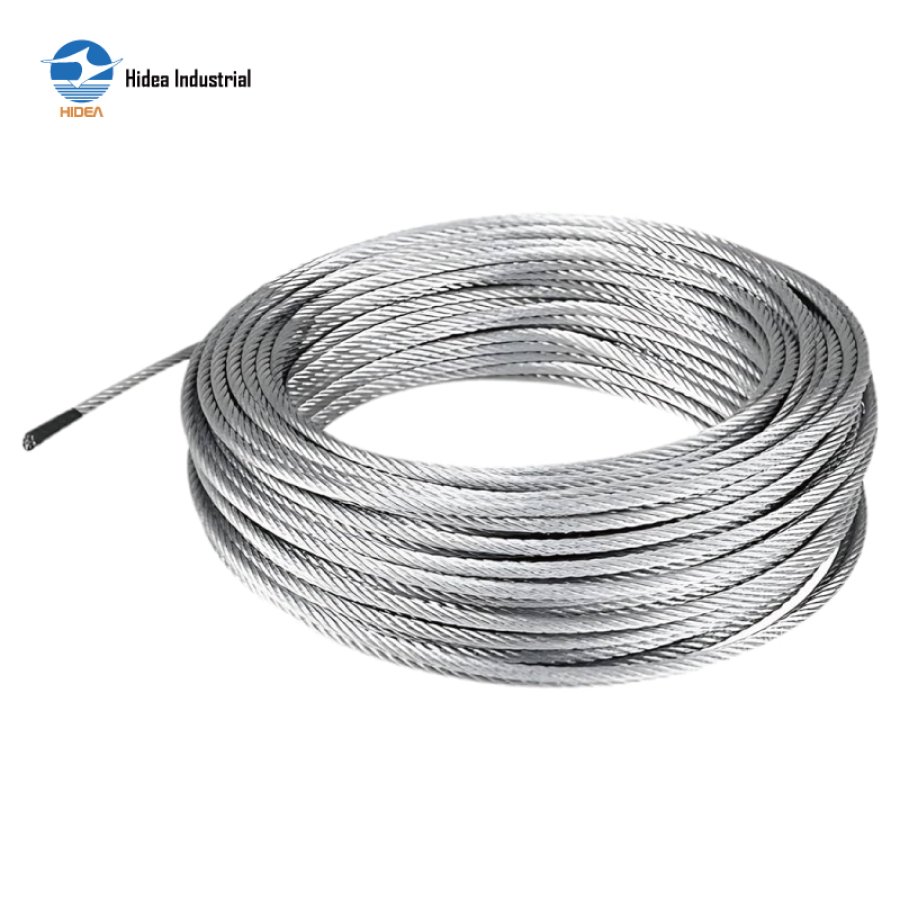

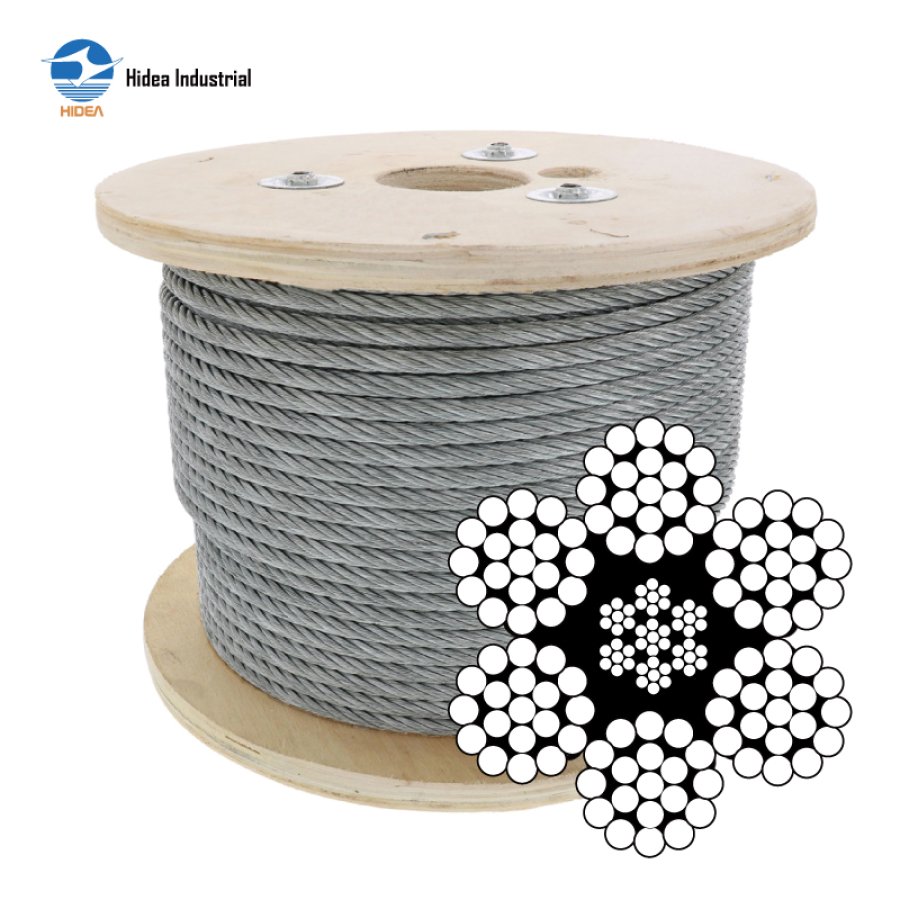

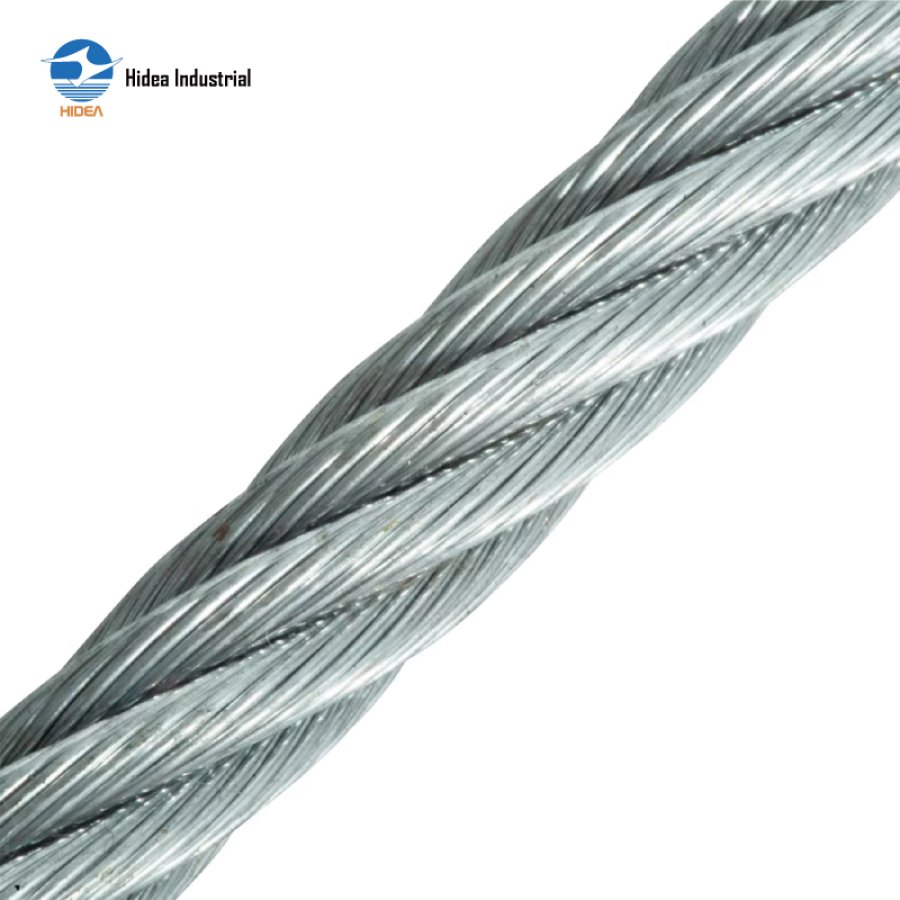

6x19 Galvanized Steel Wire Rope (FC/IWS/IWRC)

GENERAL PURPOSE WIRE ROPES 6x19

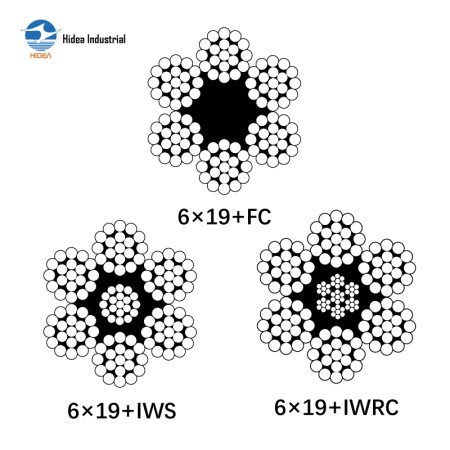

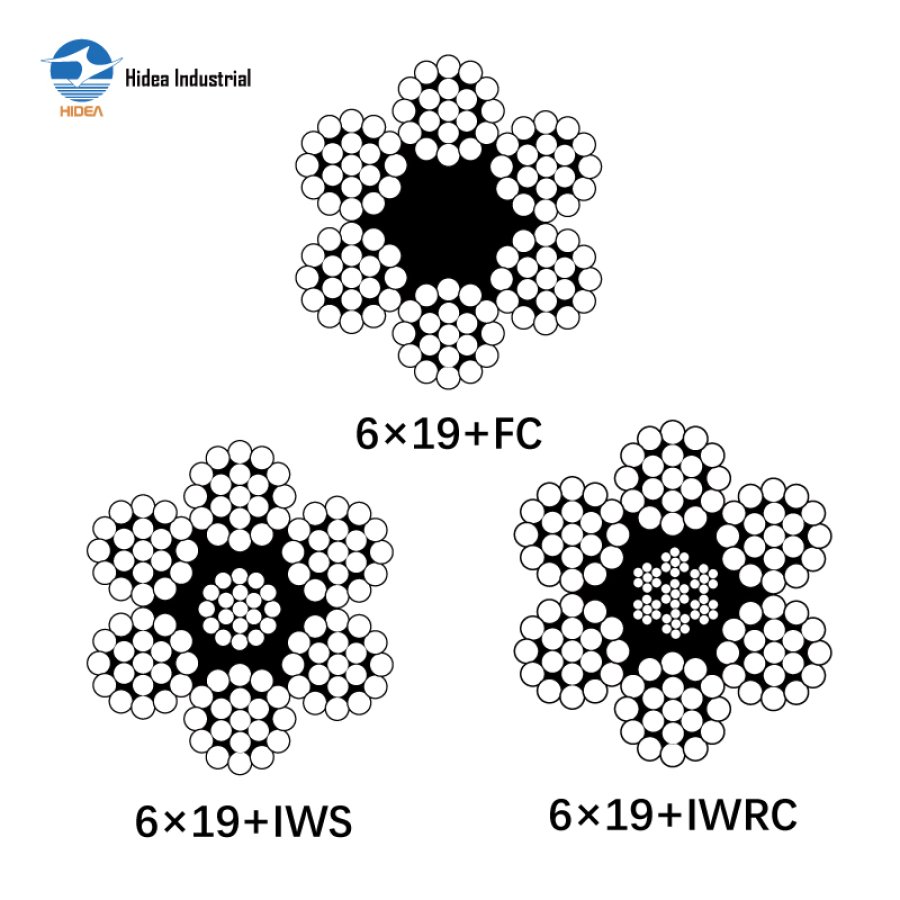

General Purpose Wire Rope 6x19+FC & 6x19+IWS/IWRC
Surface Electro Galv. / zinc plated OR as requested
Standard GB/T 20118-2006/GB 8918-2006 / BS EN 12385-4
Application / Usage: Hoist, Marine, Tramway, General, Industry, Crane

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

GENERAL PURPOSE WIRE ROPES 6x19

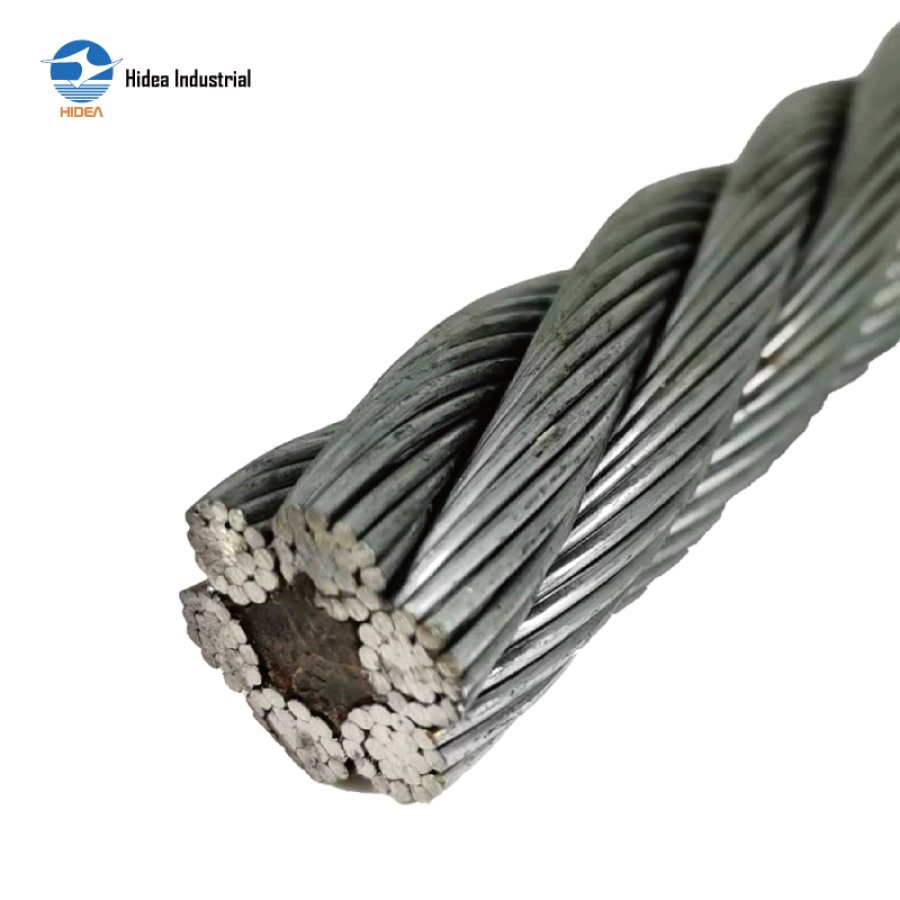

6×19+FC
	Diameter mm	GB/T 20118-2006/GB 8918-2006			EN 12385-4
		Min.Breaking Load(Kg)		Approx. Weight (Kg/100m)	Min.Breaking Load(Kg)		Approx. Weight (Kg/100m)
		1670N/Mmm	1770N/Mmm	Approx. Weight (Kg/100m)	1770N/Mmm	1960 N/Mmm	Approx. Weight (Kg/100m)
	3	4.61	4.89	3.16	4.89	5.42	3.11
	4	8.20	8.69	5.62	8.69	9.63	5.54
	5	12.80	13.60	8.78	13.60	15.00	8.65
	6	18.50	19.60	12.60	19.60	21.70	12.50
	7	25.10	26.60	17.20	26.60	29.50	17.00
	8	32.80	34.80	22.50	34.78	38.51	22.14
	9	41.60	44.00	28.40	44.01	48.74	28.03
	10	51.30	54.40	35.10	54.34	60.17	34.60
Usage:	11	62.00	65.80	42.50	65.75	72.81	41.87
Hoist,Marine,	12	73.80	78.20	50.50	78.25	86.65	49.82
Tramway,General	13	86.60	91.80	59.30	91.83	102.00	58.47
Tramway,General	14	100.00	107.00	68.80	106.00	118.00	67.82
Industry,Crane	16	131.00	139.00	89.90	139.00	154.00	88.58
	18	166.00	176.00	114.00	176.00	195.00	112.00
	20	205.00	217.00	140.00	217.00	241.00	138.00
	22	248.00	263.00	170.00	263.00	291.00	167.00
	24	295.00	313.00	202.00	312.00	347.00	199.00
	26	346.00	367.00	237.00	367.00	407.00	234.00
	28	402.00	426.00	275.00	426.00	472.00	271.00
	32	525.00	557.00	359.00	556.00	616.00	354.00
6×19+IWS/IWRC
	Diameter mm	GB/T 20118-2006/GB8918-2006			EN 12385-4
		Min.Breaking Load(Kg)		Approx. Weight (Kg/100m)	Min.Breaking Load(Kg)		Approx Weight (Kg/100m)
		1670N/Mmm	1770N/Mmm	Approx. Weight (Kg/100m)	1770N/Mmm	960N/Mmm	Approx Weight (Kg/100m)
	3	4.99	5.29	3.60	5.77	6.39	3.43
	4	8.87	9.40	6.40	10.30	11.40	6.10
	5	13.90	14.70	10.00	16.00	17.70	9.53
	6	20.00	21.20	14.40	23.10	25.50	13.70
	7	27.20	28.80	19.60	31.40	34.80	18.70
	8	35.50	37.60	25.60	41.01	45.41	24.38
	9	44.90	47.60	32.40	51.90	57.47	30.86
	10	55.40	58.80	40.00	64.07	70.95	38.10
	11	67.10	71.10	48.40	77.53	85.85	46.10
	12	79.80	84.60	57.60	92.27	102.17	54.86
	13	93.70	99.30	67.60	108.29	119.91	64.39
	14	109.00	115.00	78.40	126.00	139.00	74.68
	16	142.00	150.00	102.00	164.00	182.00	97.54
	18	180.00	190.00	130.00	208.00	230.00	123.00
	20	222.00	235.00	160.00	256.00	284.00	152.00
Usage:	22	268.00	284.00	194.00	310.00	343.00	184.00
Usage:	24	319.00	338.00	230.00	369.00	409.00	219.00
Hoist,Marine,	26	375.00	397.00	270.00	433.00	480.00	258.00
Tramway,General	28	435.00	461.00	314.00	502.00	556.00	299.00
Industry,Crane	32	568.00	602.00	410.00	656.00	727.00	390.00
