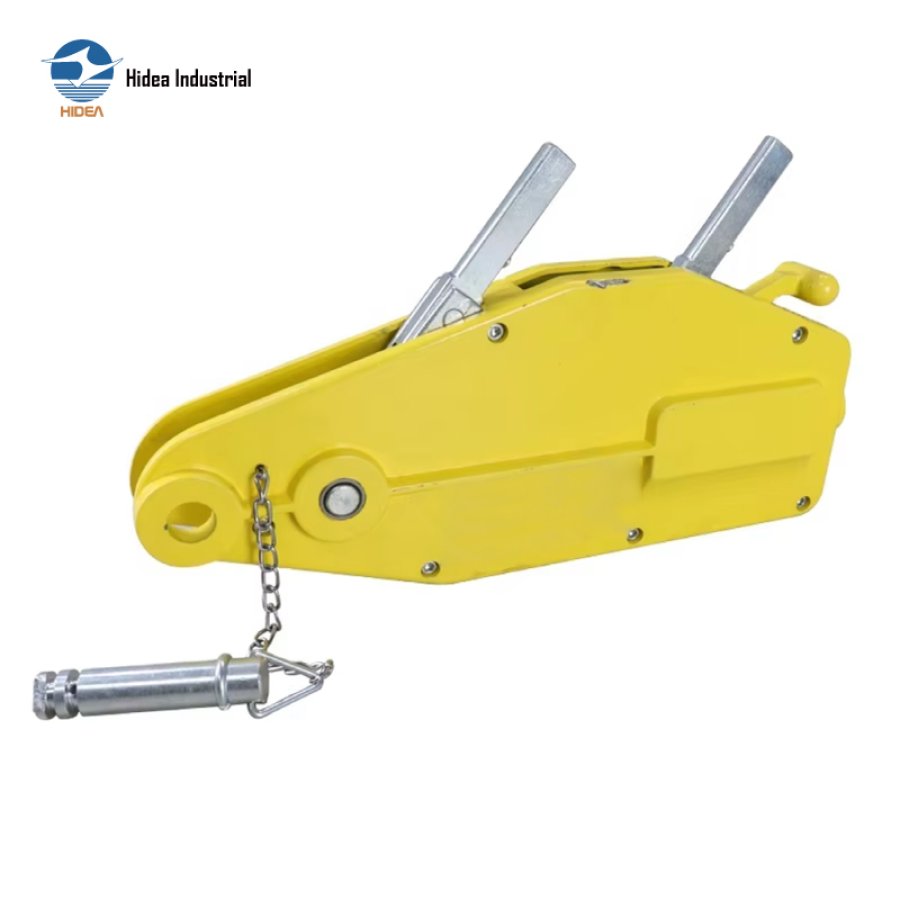

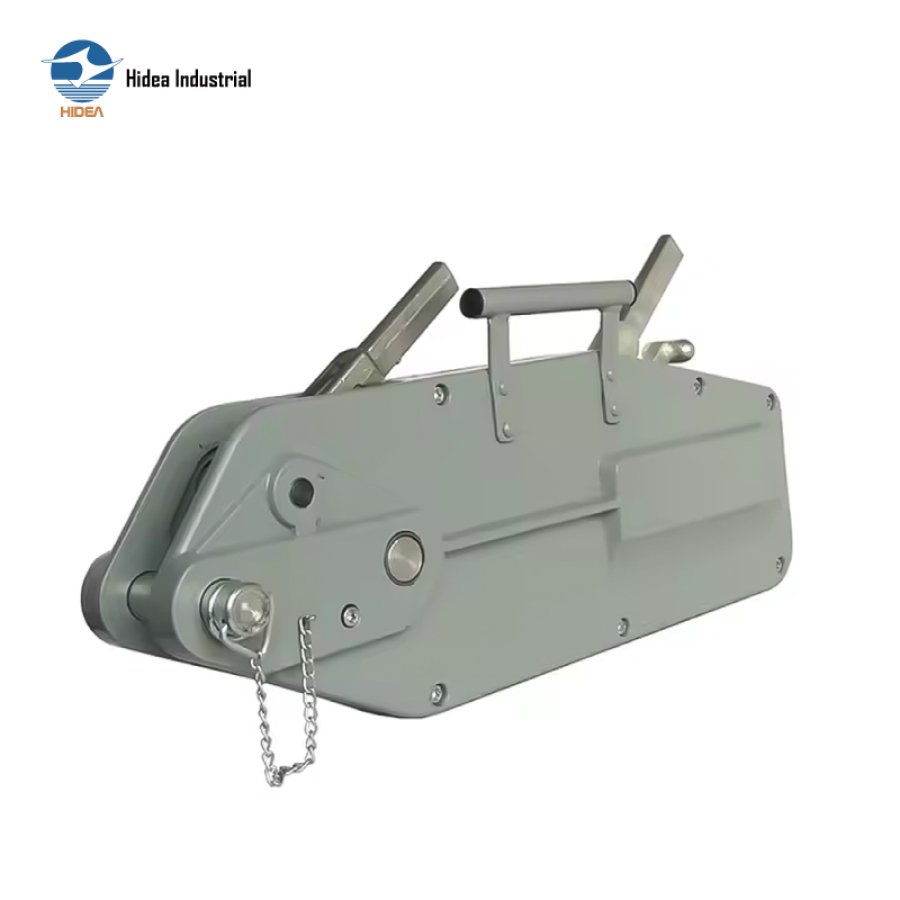

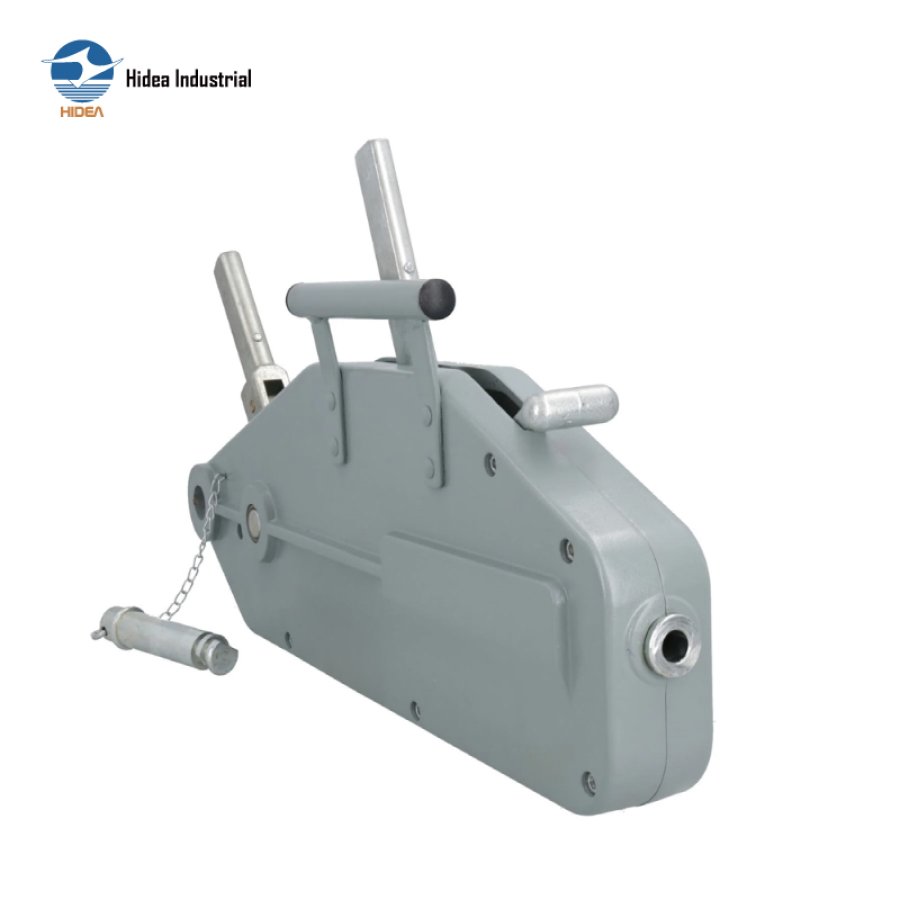

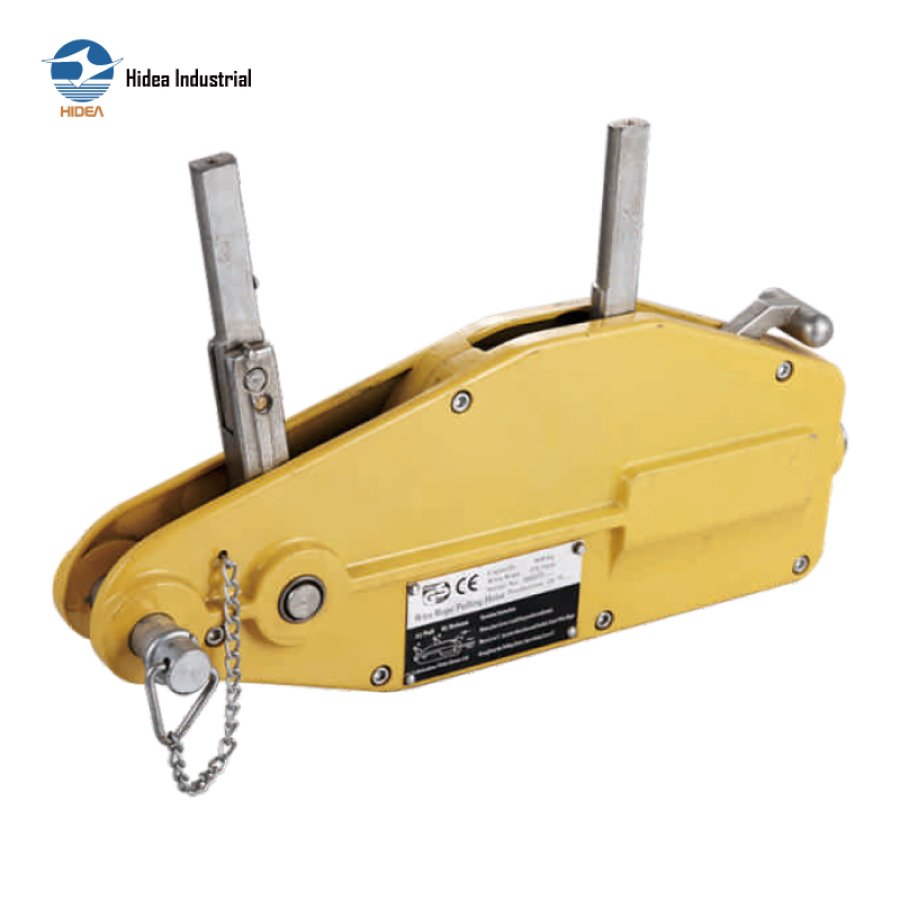

The Tirfor hand winch with a built in brake system, also known as wire rope winch or hoist, typically with casted aluminum alloy body & long lever handle for more durable and powerful lifting or pulling, and widely used in construction, rescue operations, forestry, transportation and marine activities, rated from 800Kgs to 5,400Kgs

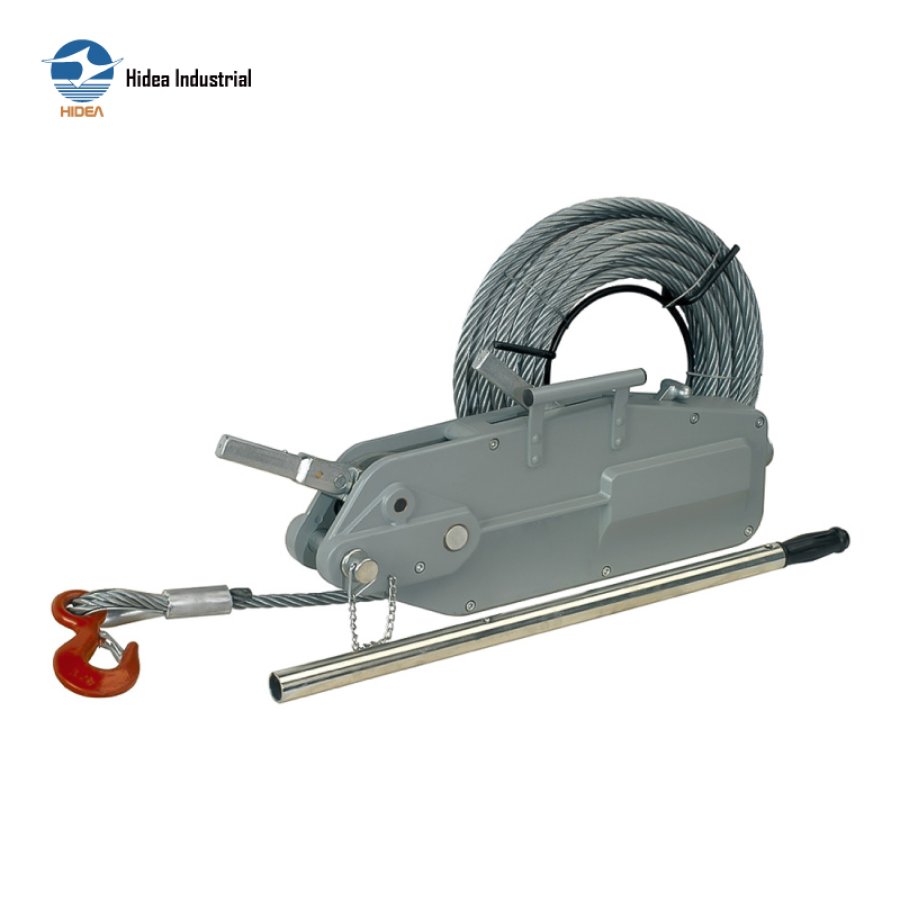

The Tirfor hand winch equipped with thick and extra-long wire ropes up to 20 meters or more, portable and light weight, simple to operate with smooth outline and compact design, the large & flat bottom surface for increased stability in horizontal as well vertical working position
The Tirfor hand winch is versatile to be used in numerous sites & scenes, to be operated in any direction, horizontally, vertically, or at any other angle, as well as at any height or distance with the long ropes equipped
The Tirfor hand winch meeting standards of and in conformity with European Machinery Directive 2006/42/EC, OSHA 29 CFR 1910.147 and EN 13157

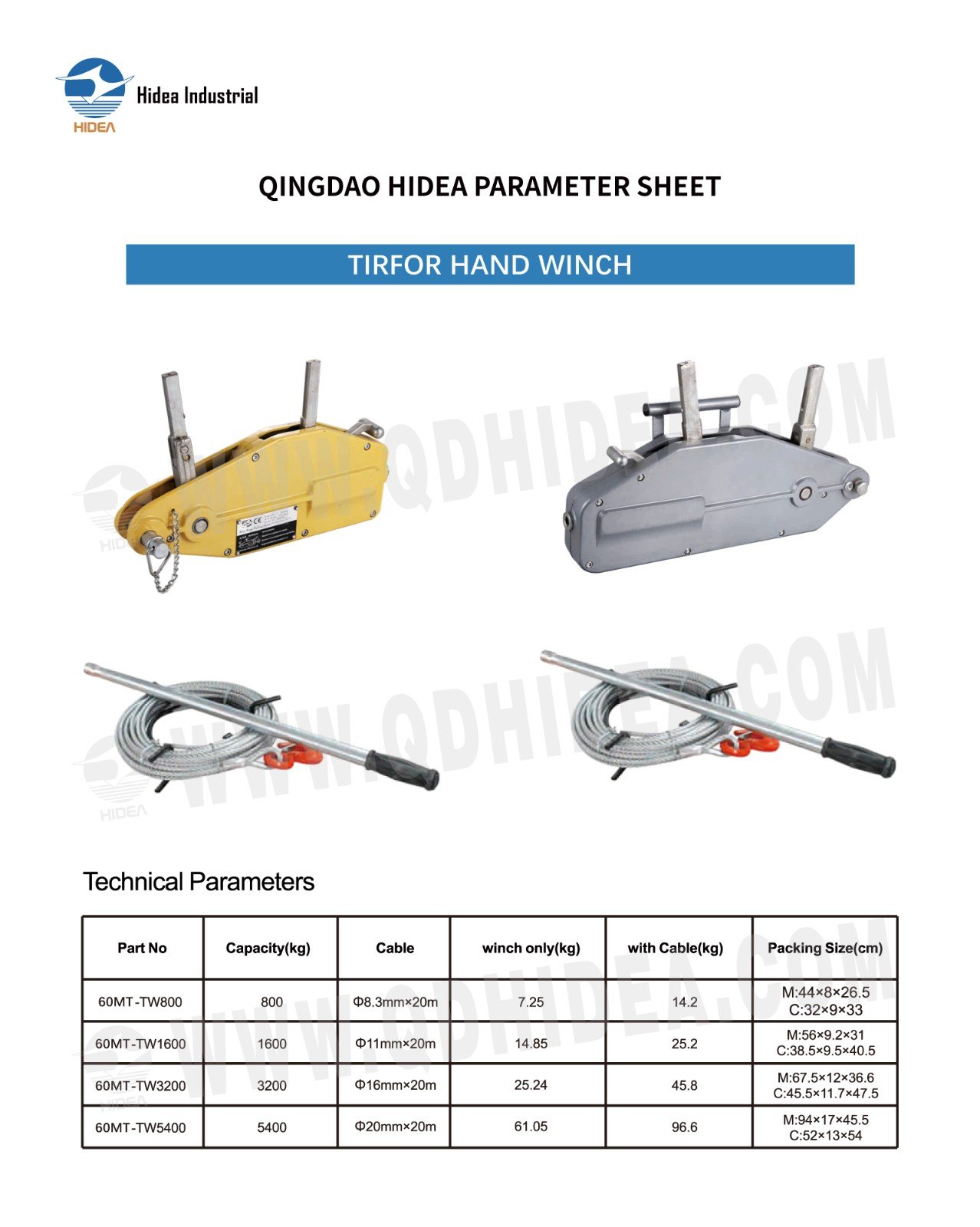

QINGDAO HIDEA PARAMETER SHEET FOR
TIRFOR HAND WINCH
| Part No | Capacity(kg) | Cable | winch only(kg) | with Cable(kg) | Packing Size(cm) | |||
| 60MT-TW800 | 800 | Φ8.3mm×20m | 7.25 | 14.2 | M:44×8×26.5 C:32×9×33 | |||
| 60MT-TW1600 | 1600 | Φ11mm×20m | 14.85 | 25.2 | M:56×9.2×31 C:38.5×9.5×40.5 | |||
| 60MT-TW3200 | 3200 | φ16mm×20m | 25.24 | 45.8 | M:67.5×12×36.6 C:45.5×11.7×47.5 | |||
| 60MT-TW5400 | 5400 | φ20mm×20m | 61.05 | 96.6 | M:94×17×45.5 C:52×13×54 | |||
