Forged super alloy steel-Quenched and Tempered
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Color code: Blue RAL5015
Positive lock latch is self-locking when hook is loaded
QINGDAO HIDEA PARAMETER SHEET FOR

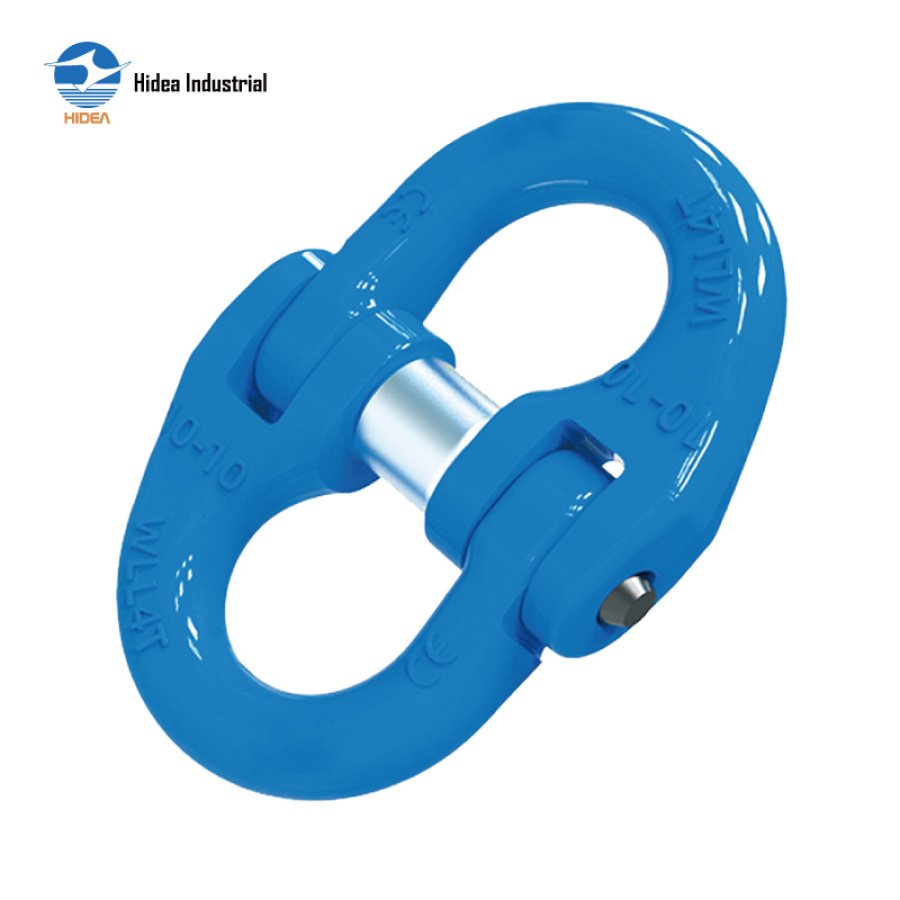

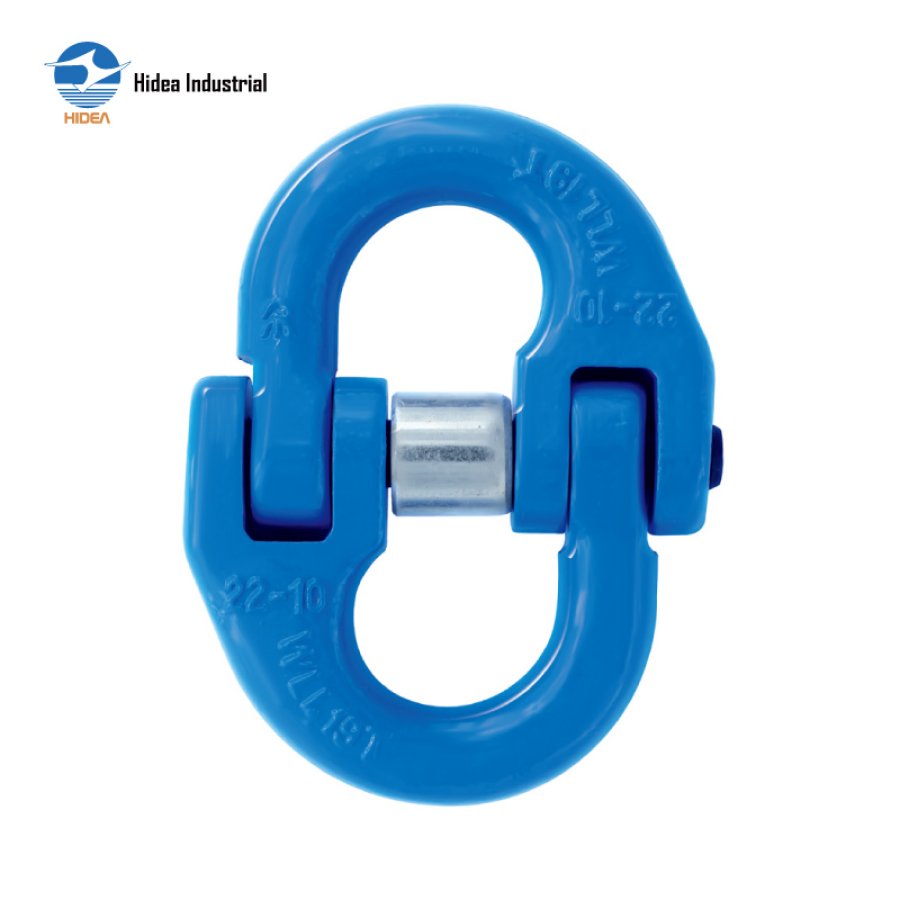

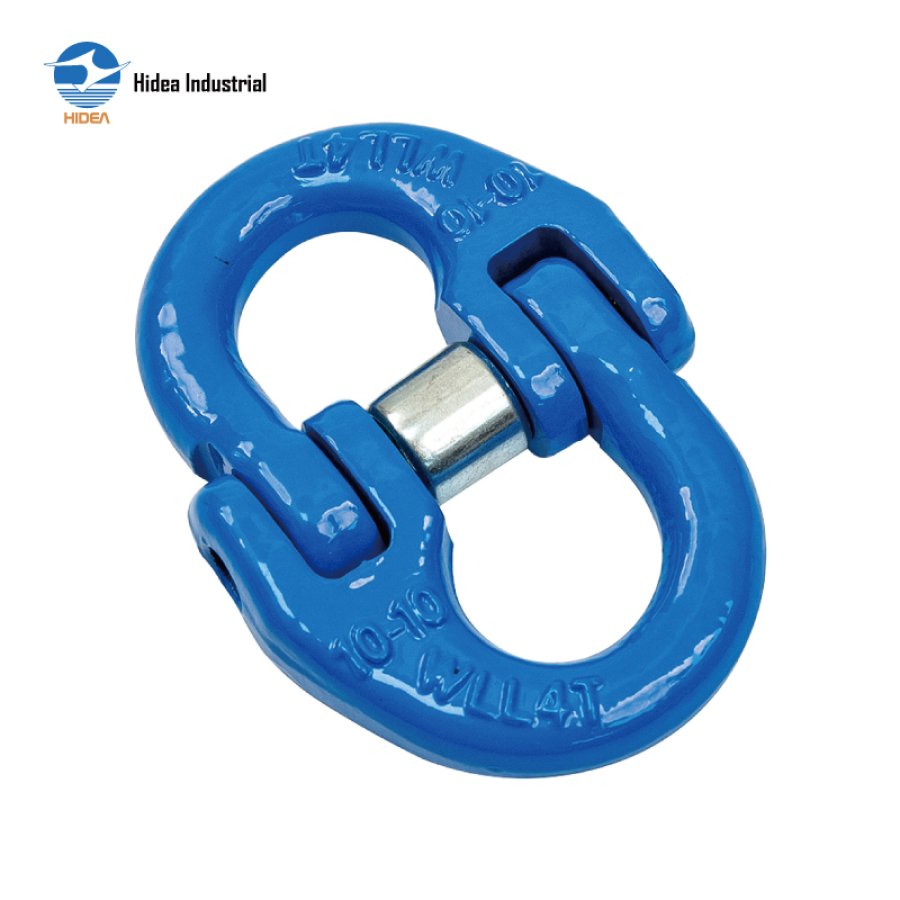

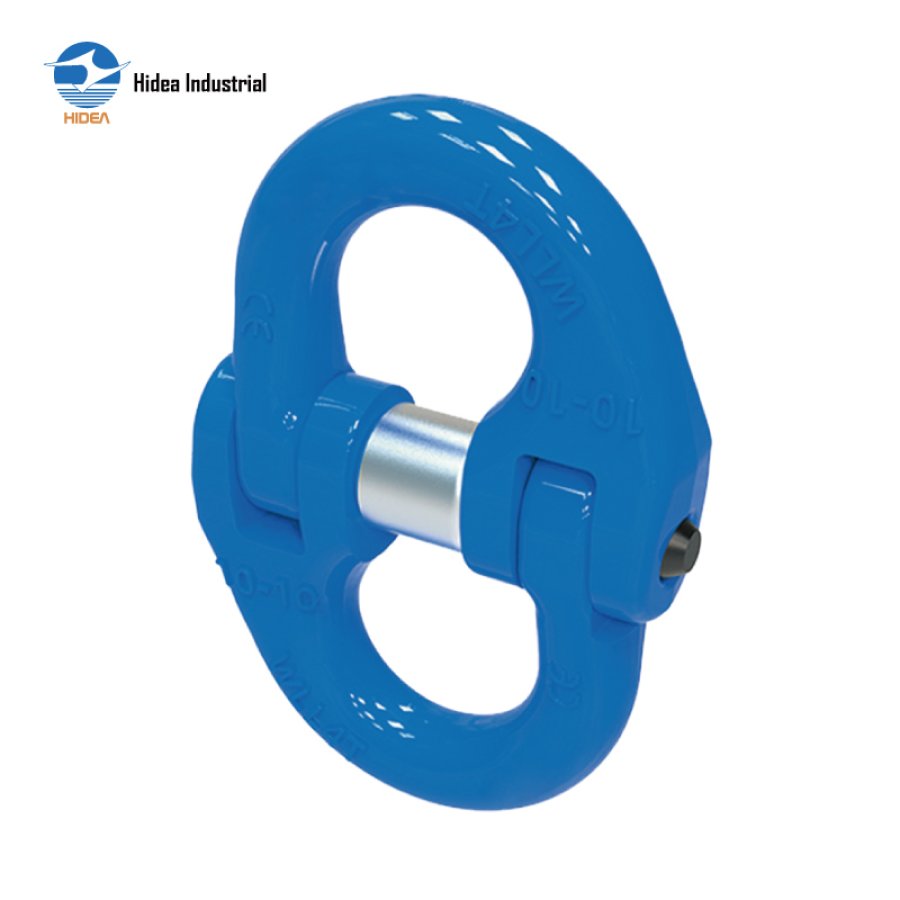

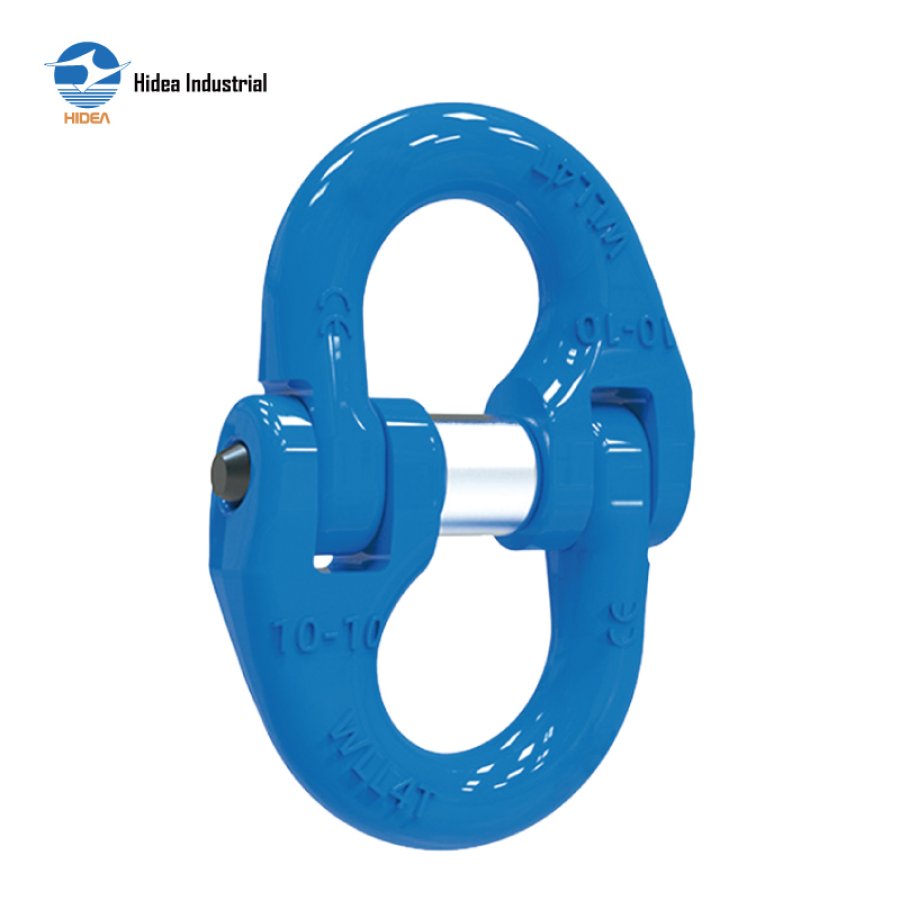

20RH1001-G100 European Type Connecting Link

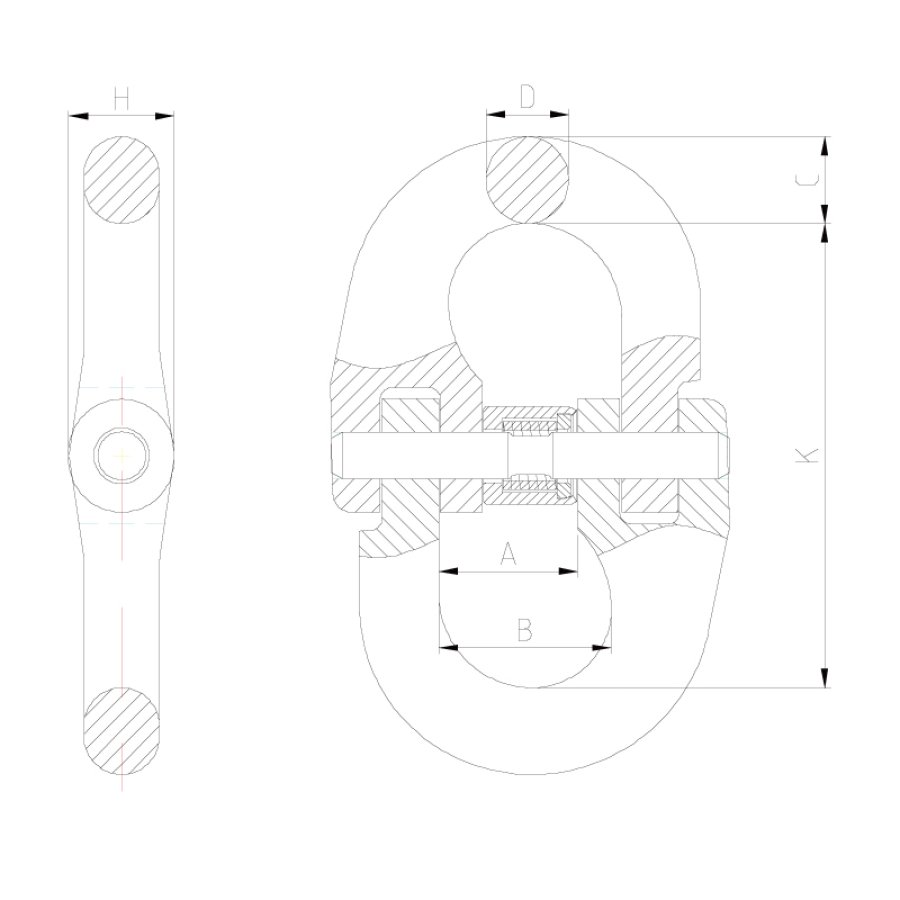

| ITEM NO. | WEIGHT | WLL | B.L | A | B | C | D | K | H |
| (kg) | (T) | (T) | |||||||
| 20RH1001-06 | 0.08 | 1.4 | 5.6 | 14 | 16.9 | 8.5 | 7 | 44.5 | 11 |
| 20RH1001-07 | 0.16 | 1.9 | 7.6 | 18.5 | 22.5 | 10 | 8.2 | 59 | 12.5 |
| 20RH1001-7/8 | 0.17 | 2.5 | 10 | 18.5 | 22 | 11 | 8.5 | 59 | 13 |
| 20RH1001-08 | 0.18 | 2.5 | 10 | 18.5 | 22.7 | 10.5 | 10 | 63 | 14 |
| 20RH1001-10 | 0.34 | 4 | 16 | 23 | 27.7 | 12.6 | 12.6 | 71 | 18 |
| 20RH1001-13 | 0.68 | 6.7 | 26.8 | 28 | 33.2 | 16.5 | 16.5 | 92.5 | 23 |
| 20RH1001-16 | 1.22 | 10 | 40 | 33.5 | 39 | 20 | 20 | 106.5 | 29.5 |
| 20RH1001-20 | 2.13 | 16 | 64 | 42 | 47.3 | 25 | 25 | 123 | 35.5 |
| 20RH1001-22 | 3 | 19 | 76 | 48 | 55 | 27 | 27 | 137.5 | 39 |
| 20RH1001-26 | 5.22 | 26.5 | 106 | 61 | 68 | 32 | 32 | 163 | 45 |
| 20RH1001-32 | 9.55 | 39.3 | 157.2 | 80 | 87 | 40 | 40 | 197 | 54 |
