Enhance Cargo Securing with Hidea Grade 80 High Tensile Lashing Hook

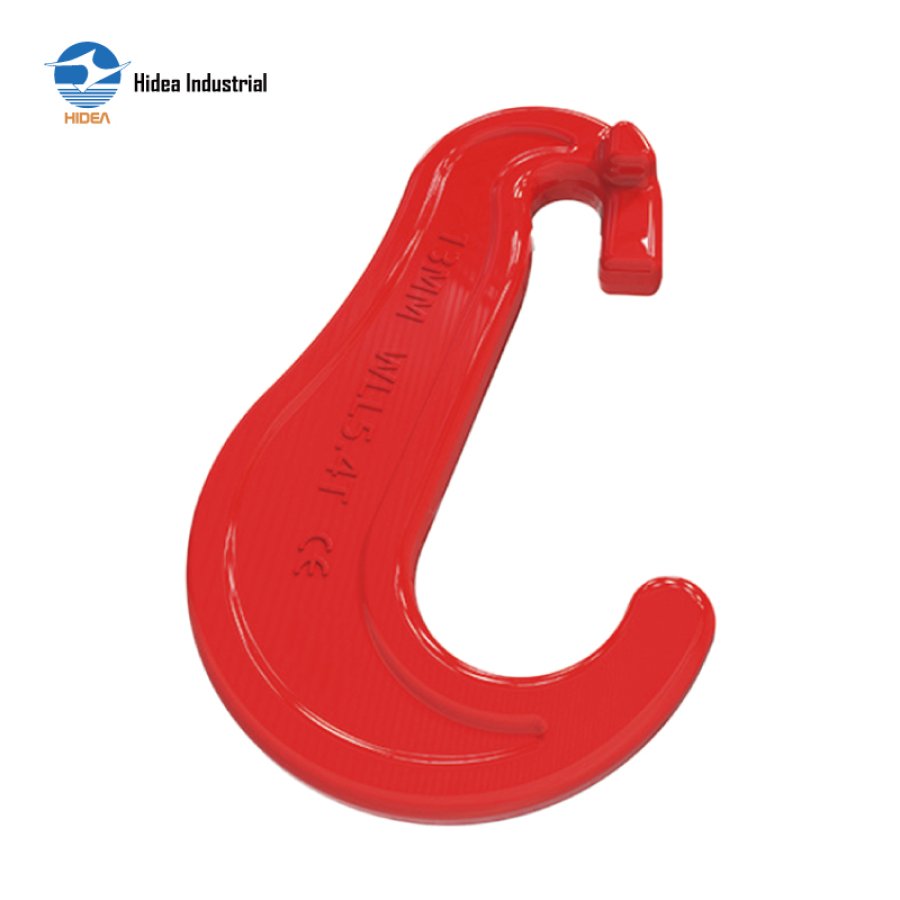

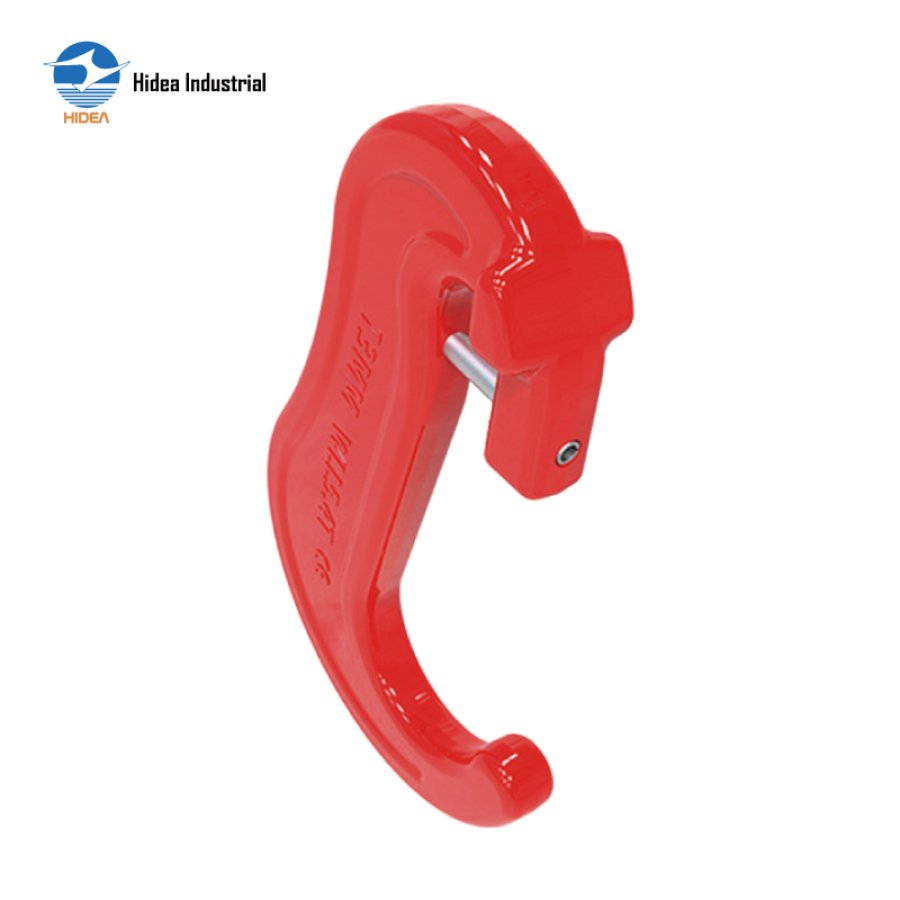

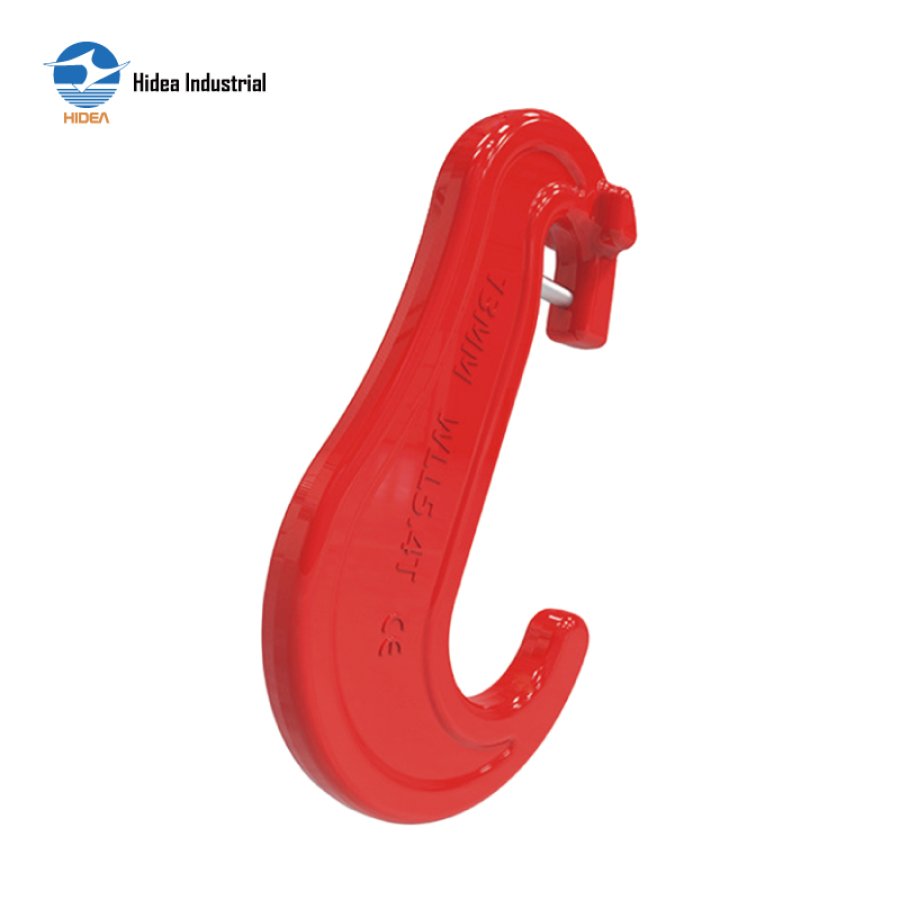

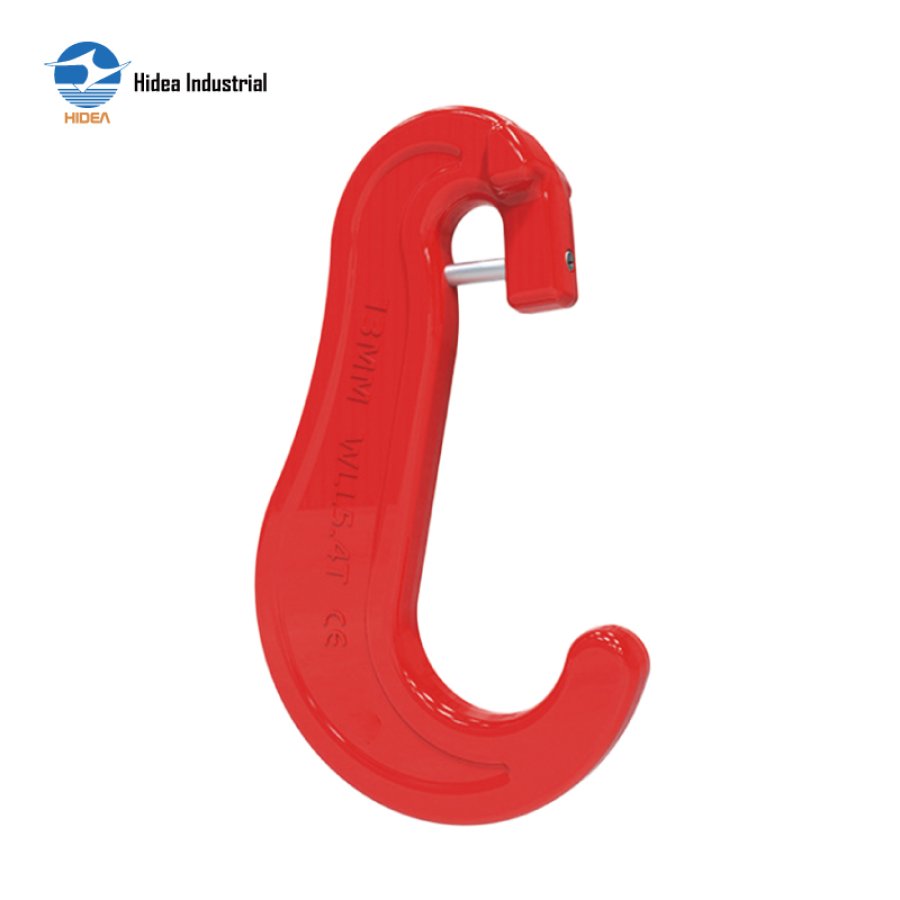

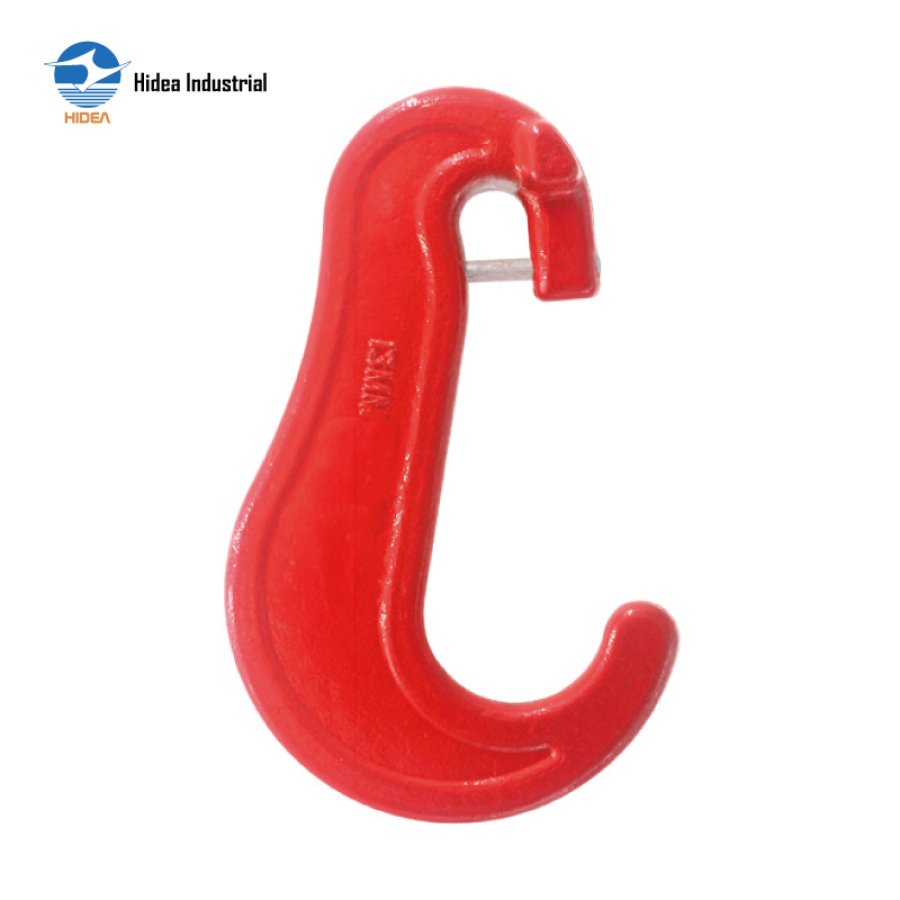

G80 HIGH TENSILE LASHING HOOK

Suitable for G80 lashing chain
Forged alloy steel
Features quick and easy assembly
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003
With spring pin

Inquire Now

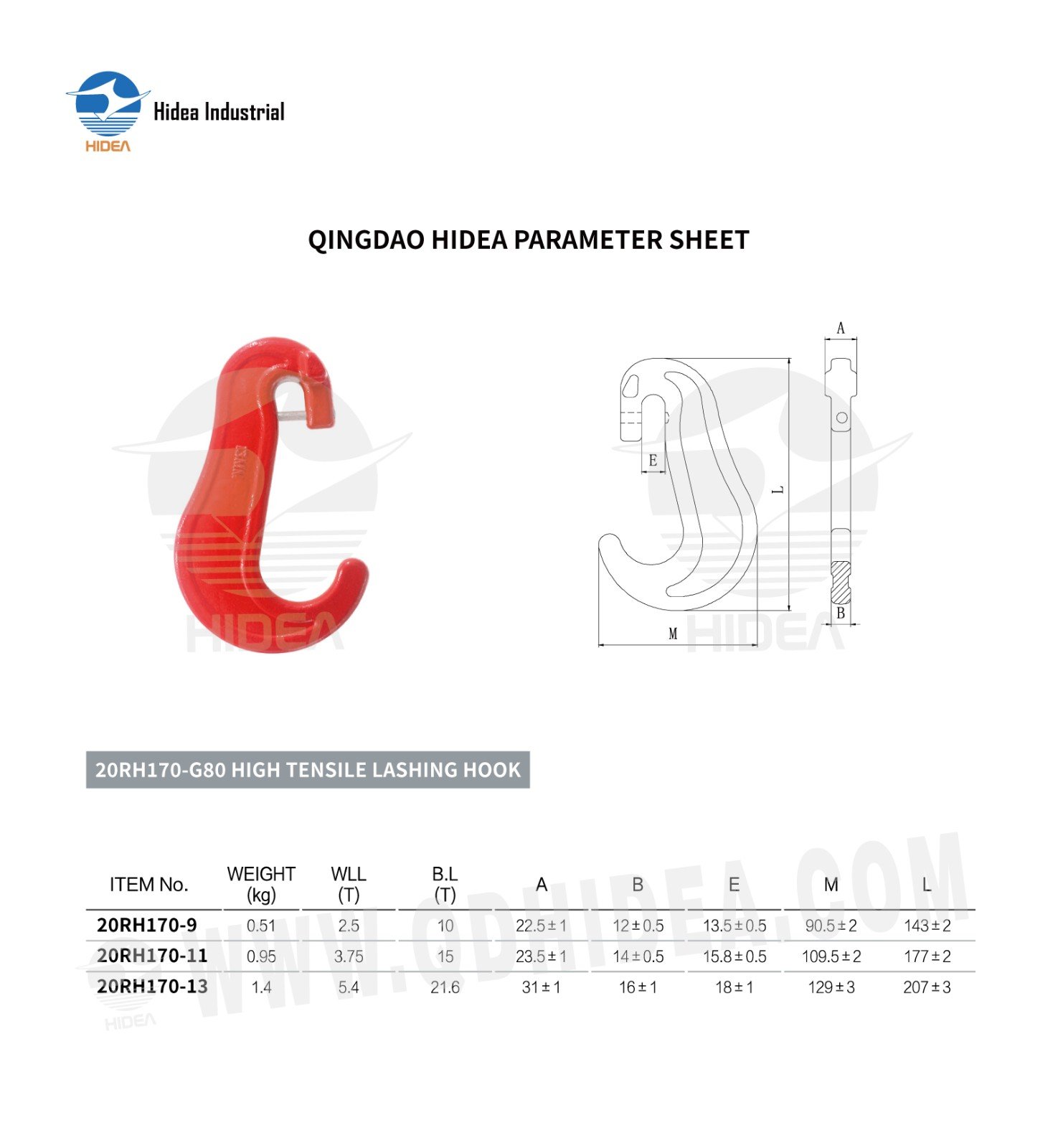

QINGDAO HIDEA PARAMETER SHEET FOR

20RH170-G80 HIGH TENSIL LASHING HOOK

ITEM No.	WEIGHT (kg)	WLL (T)	B.L (T)	A	B	E	M	L
20RH170-9	0.51	2.5	10	22.5±1	12±0.5	13.5±0.5	90.5±2	143±2
20RH170-11	0.95	3.75	15	23.5±1	14±0.5	15.8±0.5	109.5±2	177±2
20RH170-13	1.4	5.4	21.6	31±1	16±1	18±1	129±3	207±3
