Hidea Grade 70 Indirect Load Binder for Industrial Load Management

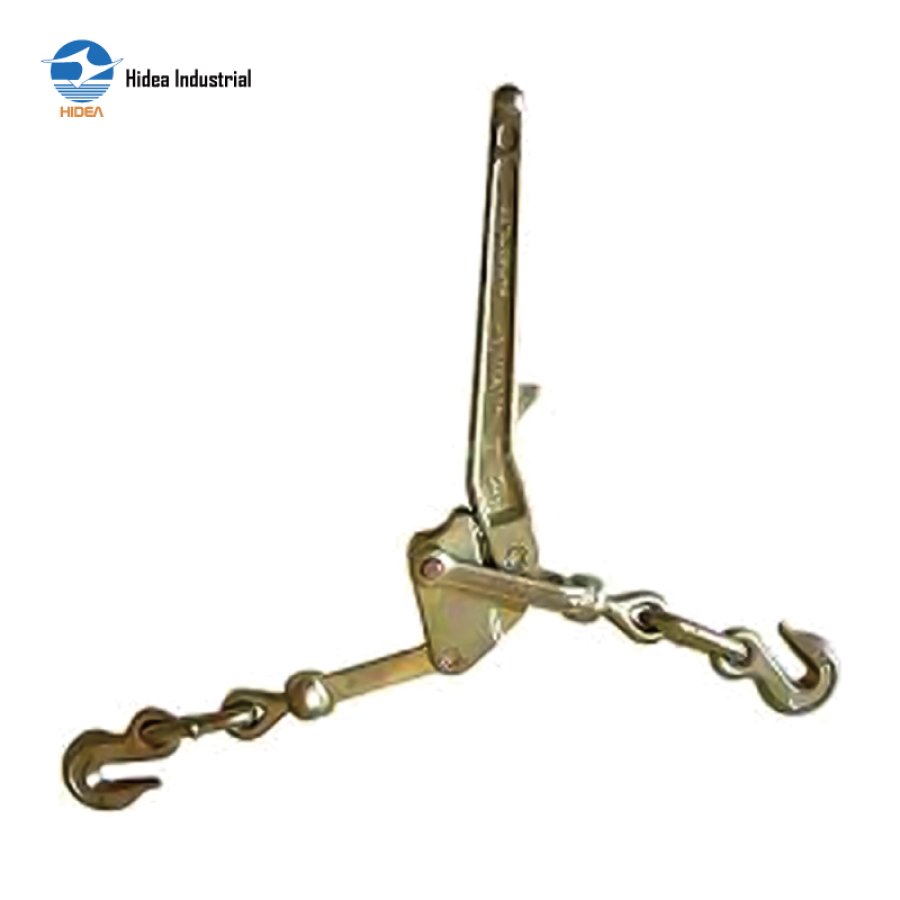

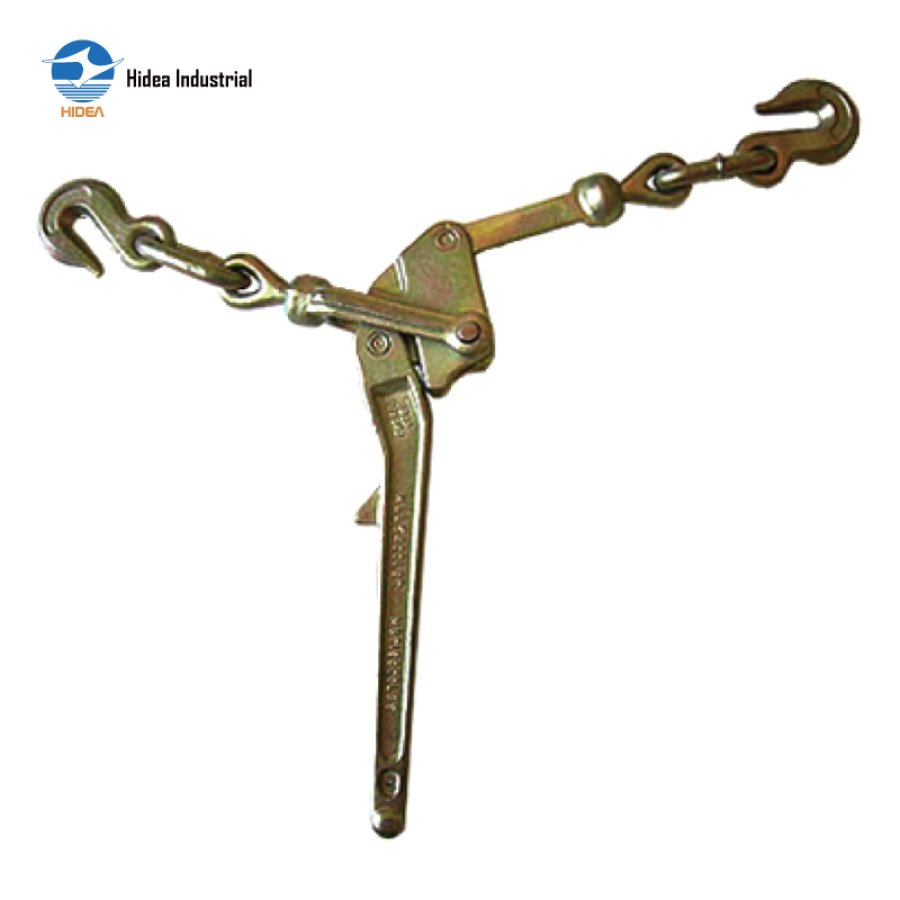

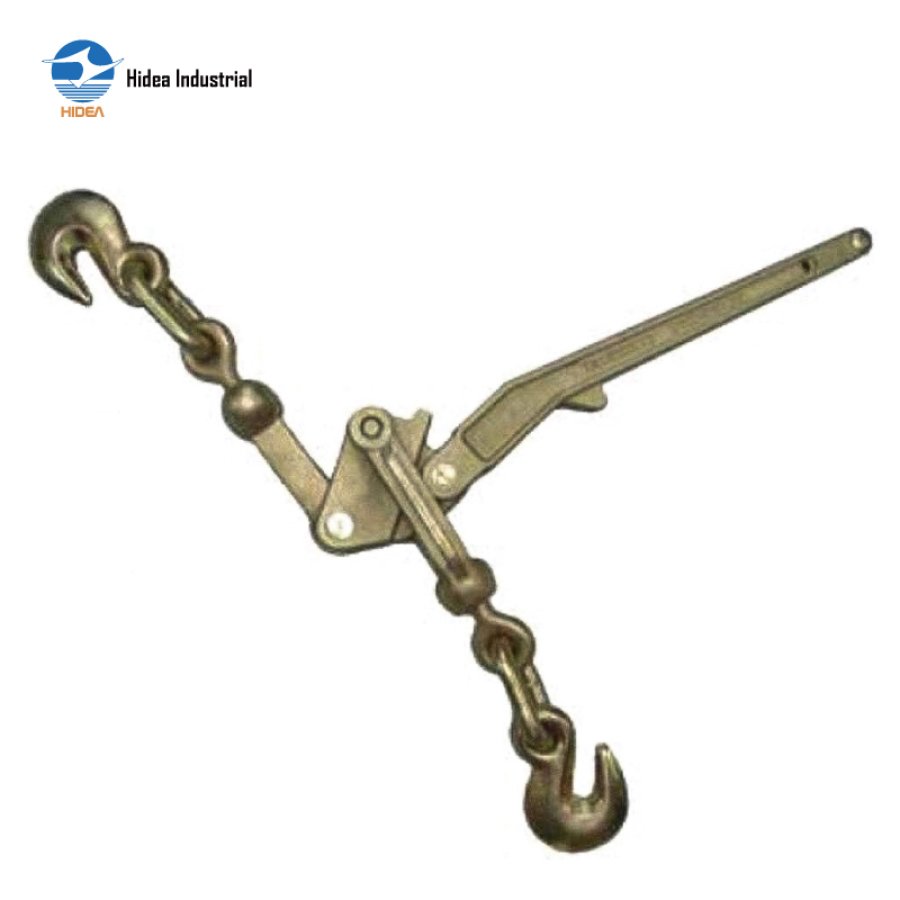

FORGED HANDLE INDIRECT LOAD BINDER

High tensile steel rated G70+
Drop forged, quenched & tempered
Proof tested individually
Surface: Powder coated OR as requested
Meets or exceeds requirements of US DOT FMGSA Part 393 Subpart I

Inquire Now

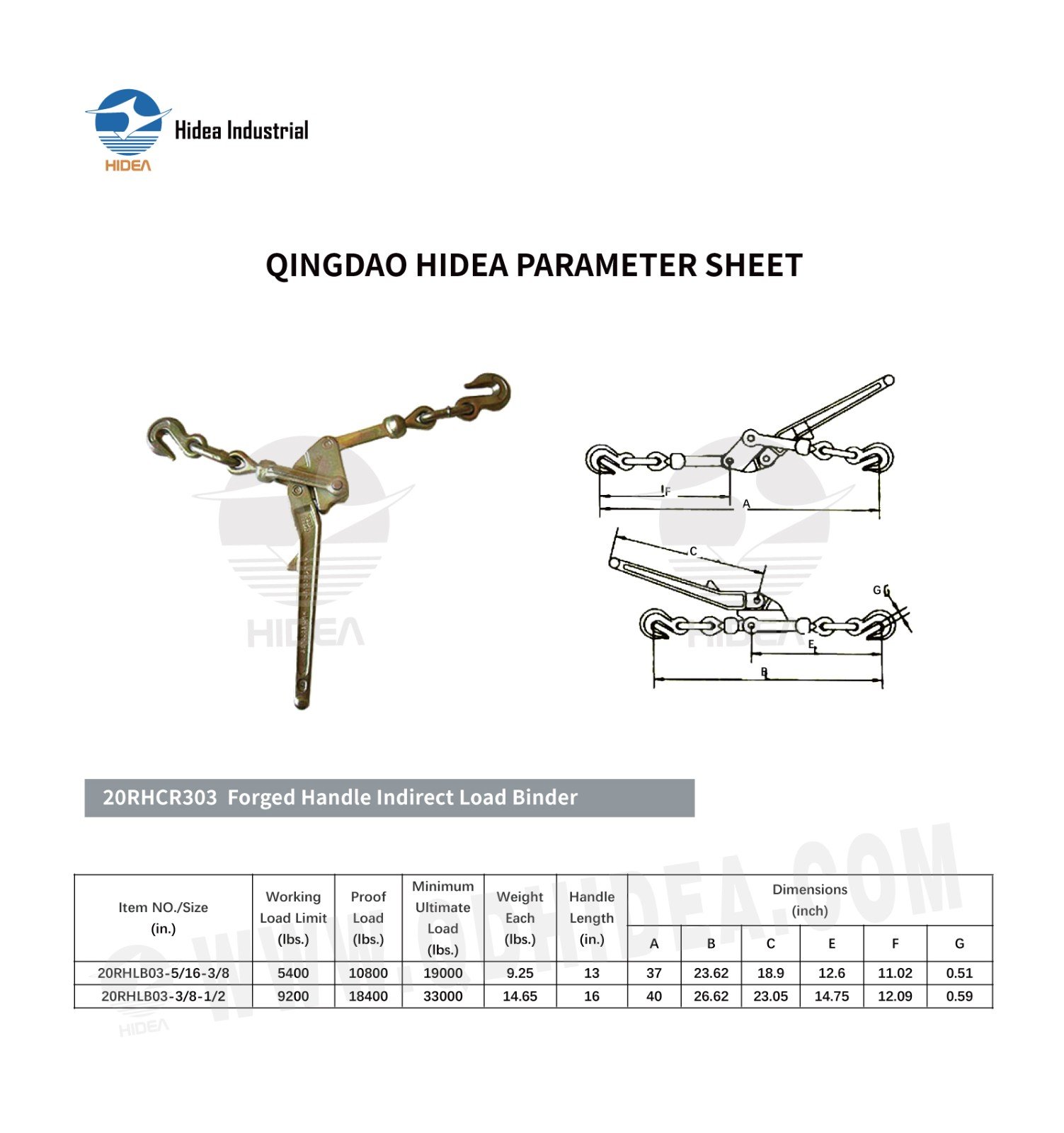

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR303 Forged Handle Indirect Load Binder

Item NO./Size
(in.)

Working
Load Limit
(Ibs.)

Proof
Load
(Ibs.)

Minimum
Ultimate
Load
(Ibs.)

Weight
Each
(lbs.)

Handle
Length
(in.)

Dimensions
(inch)

A

B

C

E

F

G

20RHLB03-5/16-3/8

5400

10800

19000

9.25

13

37

23.62

18.9

12.6

11.02

0.51

20RHLB03-3/8-1/2

9200

18400

33000

14.65

16

40

26.62

23.05

14.75

12.09

0.59
