High-Strength Hidea Grade 80 Container Hook for Safe and Efficient Lifting

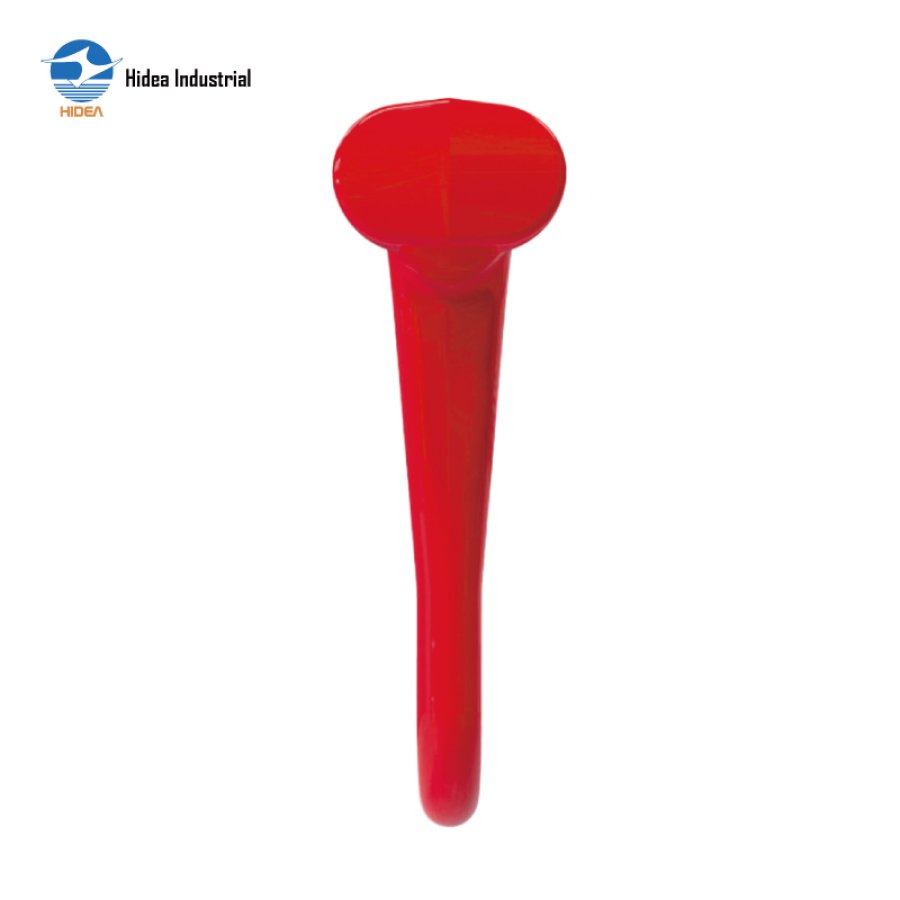

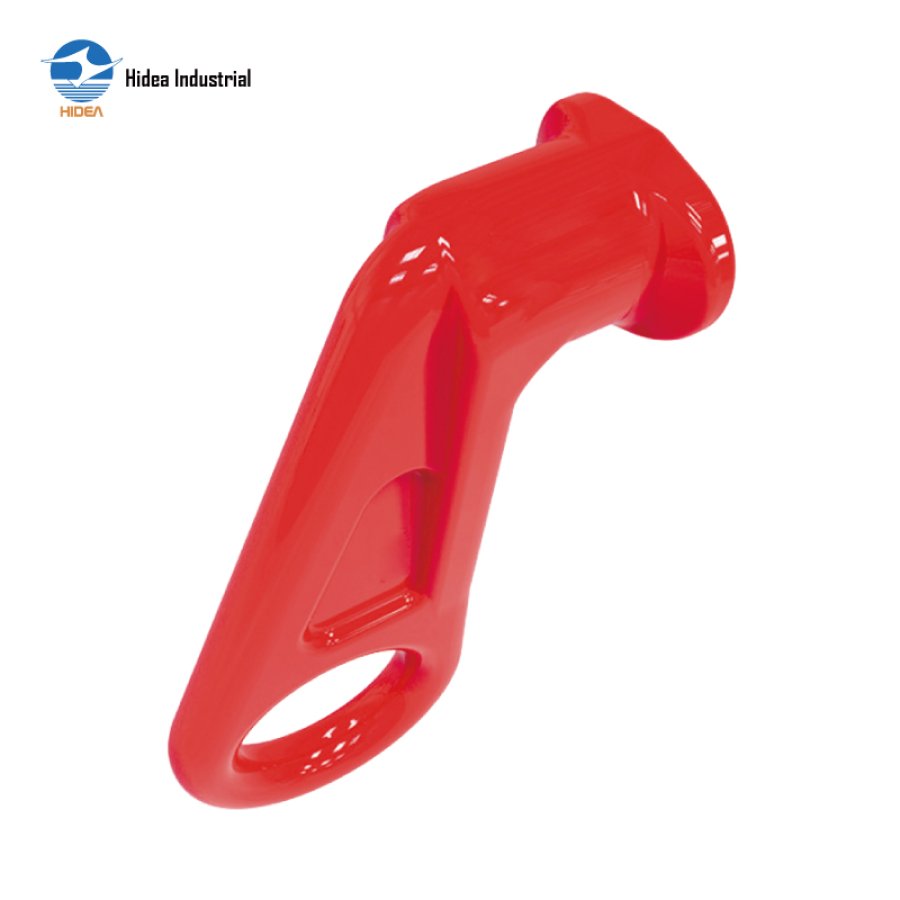

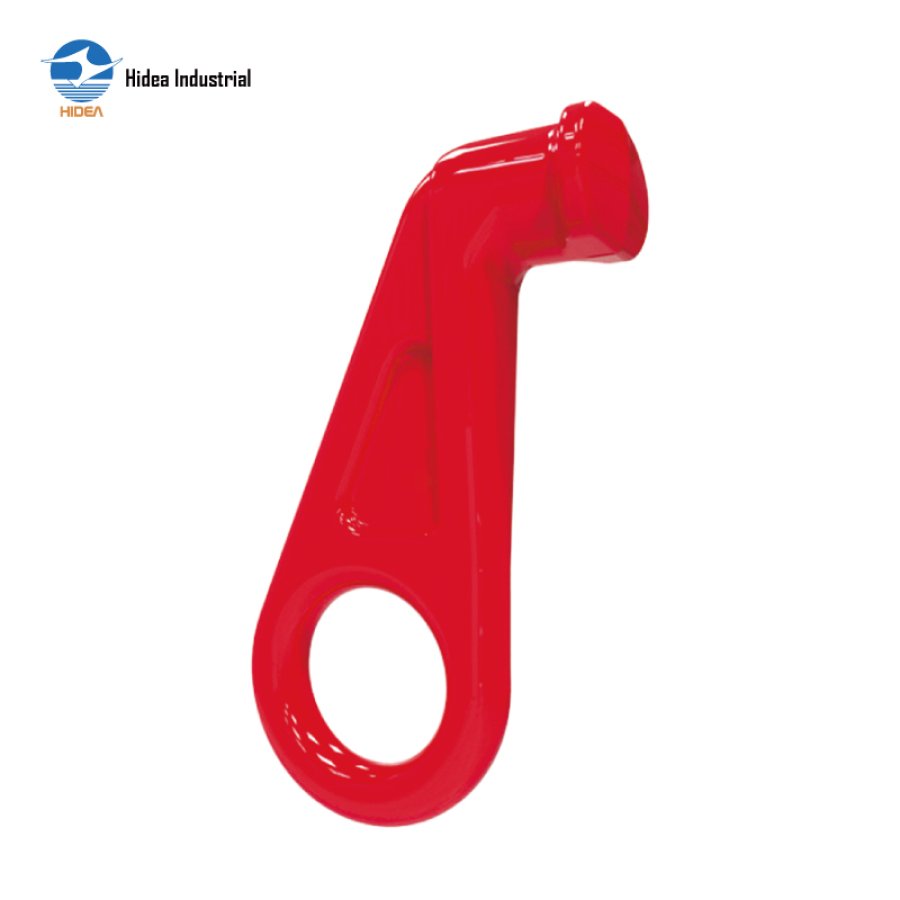

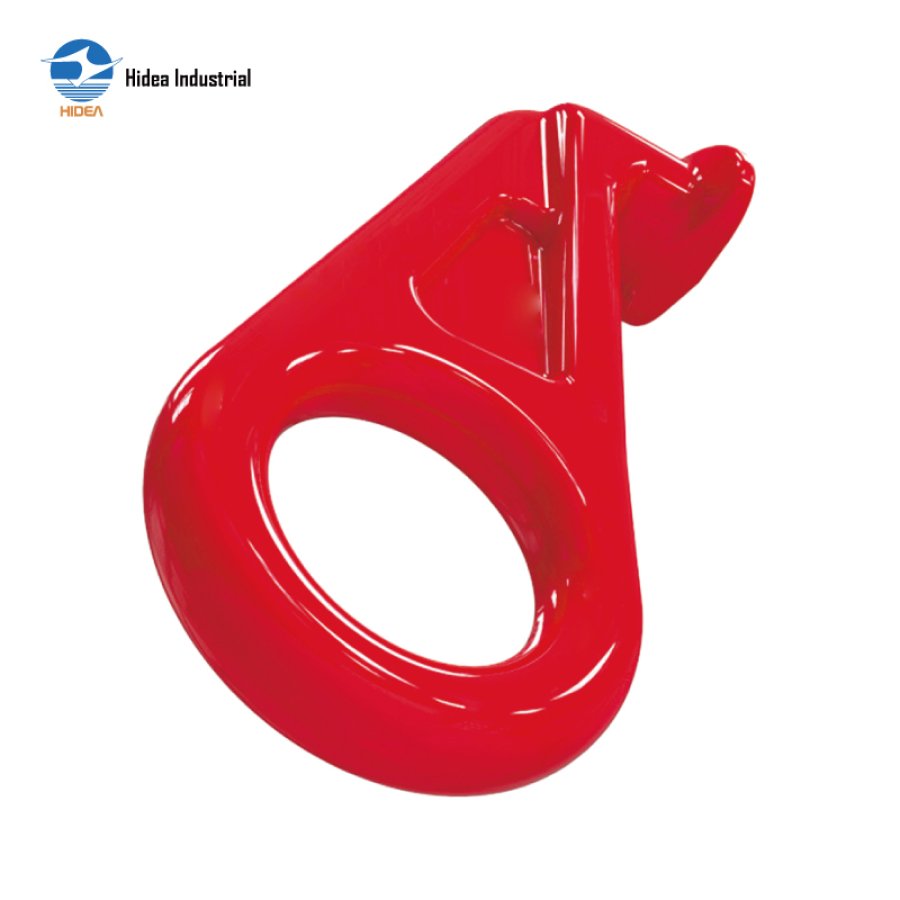

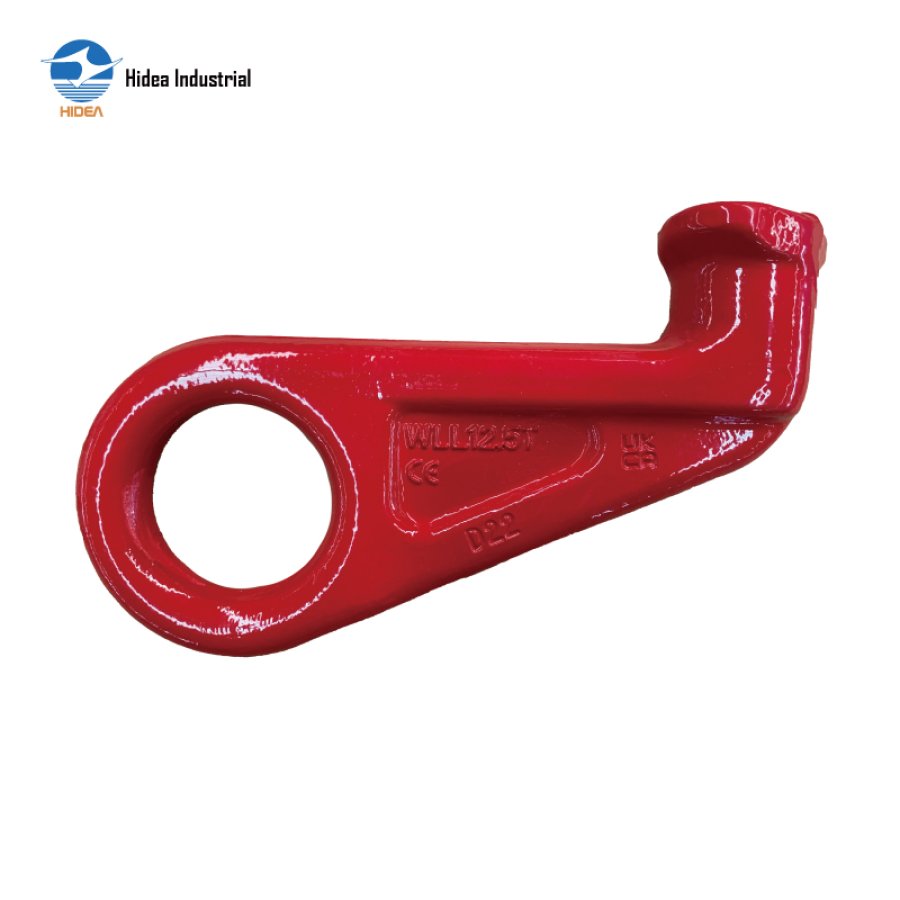

G80 CONTAINER HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003
There is left and right hand configurations and a straight configuration available
The large diameter eye allows most compatible hooks to fit

Inquire Now

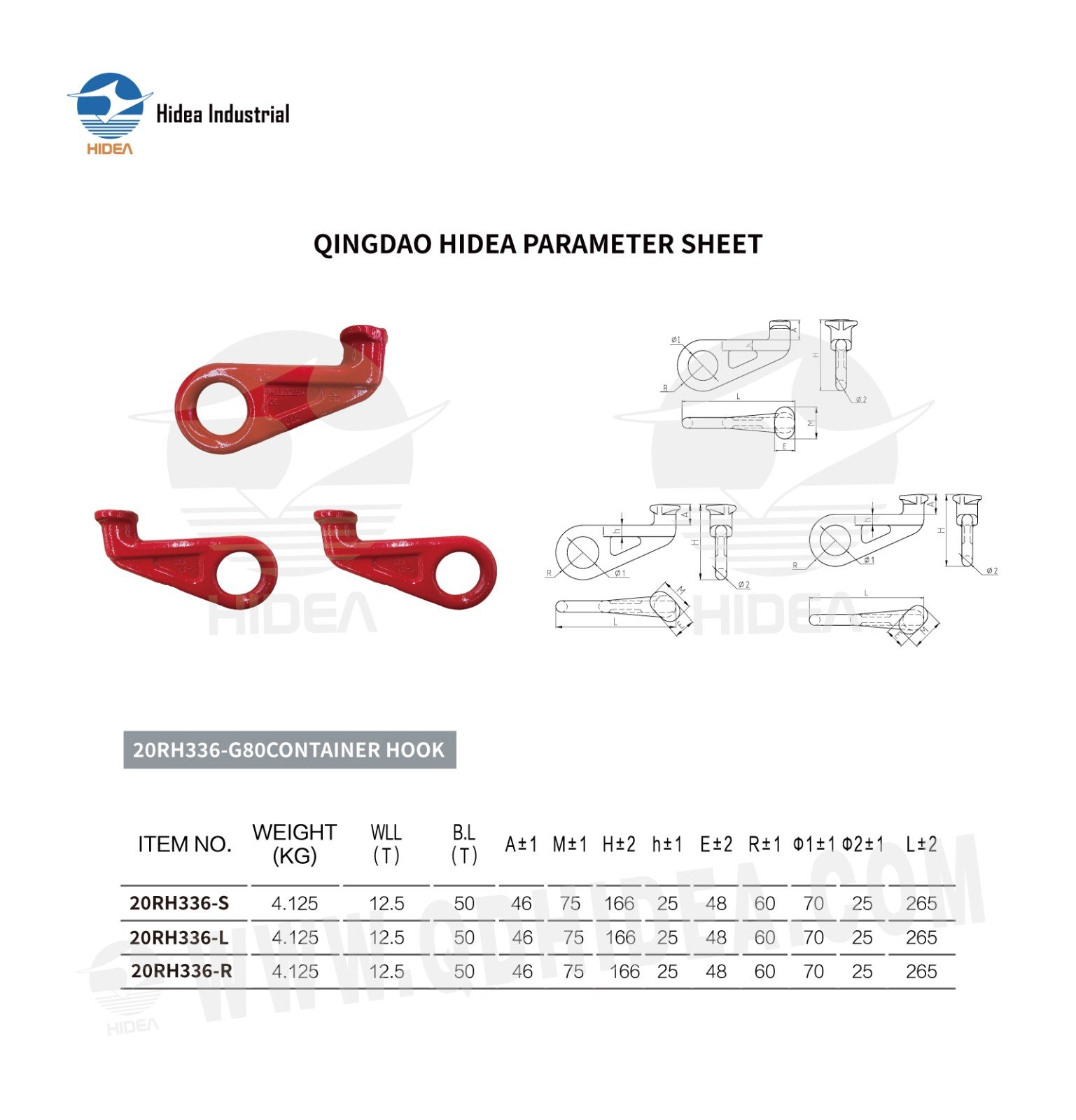

QINGDAO HIDEA PARAMETER SHEET FOR

20RH336-G80CONTAINER HOOK

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1	M±1	H±2	h±1	E±2	R±1	Ф1±1	Ф2±1	L±2

20RH336-S	4.125	12.5	50	46	75	166	25	48	60	70	25	265
20RH336-L	4.125	12.5	50	46	75	166	25	48	60	70	25	265
20RH336-R	4.125	12.5	50	46	75	166	25	48	60	70	25	265
