Stainless Steel Wire Rope | 6x19 + FC/WSC/ IWRC

STAINLESS STEEL WIRE ROPE 6×19 + FC/WSC/ IWRC

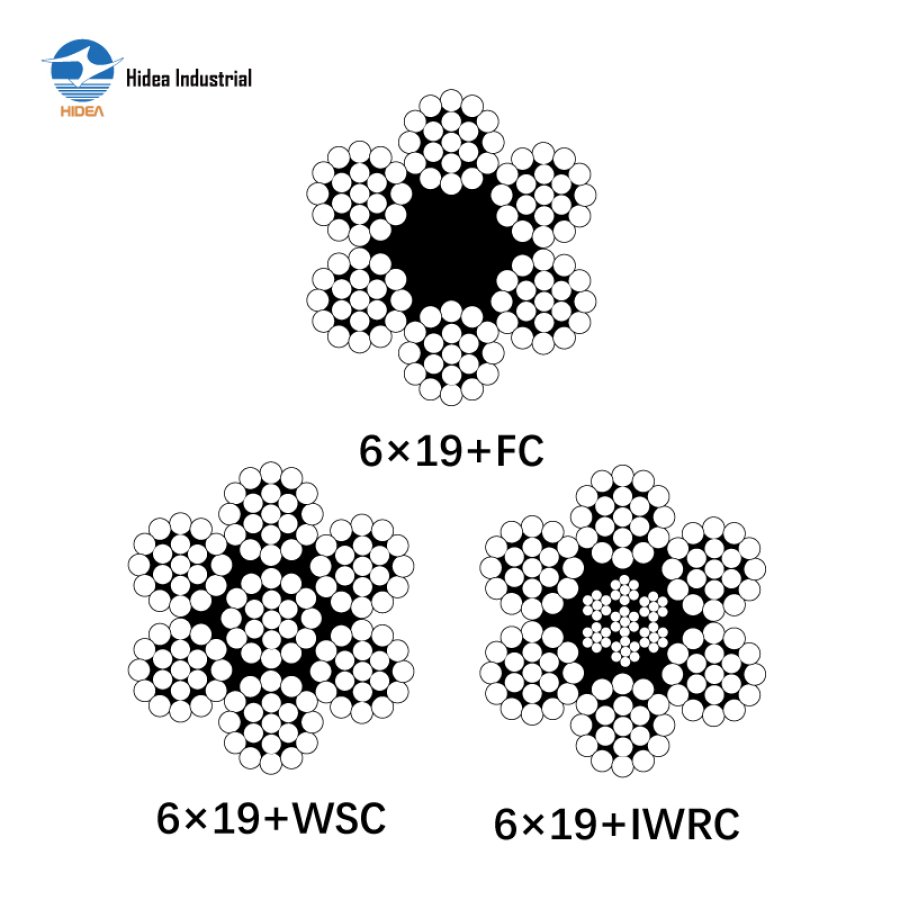

Stainless Steel Wire Rope 6x19+FC / 6x19+WSC / 6x19+IWRC
Materail AISI 304 / AISI 316 or AISI 316L
Excellent corrosion,heat and cold resistance features in various application cases of chemistry, fishing boat, automobile, aircraft & daily life etc.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

STAINLESS STEEL WIRE ROPE 6×19+FC/WSC/IWRC

Materail AISI 304/AISI 316 or AISI 316L

6×19+FC				6×19+WSC				6×19+IWRC
Diameter mm	Approx.Weight		Nominal Tensile Strength
	kg/100m		1570N/mm			1770N/mm			1960N/mm
			Minimum Breaking Load (KN)
MM	FC	WSC/IWRC	FC		WSC/IWRC	FC	WSC/IWRC		FC	WSC/IWRC
2	1.38	1.54	1.93		2.08	2.17	2.35		2.41	2.60
2.5	2.16	2.40	3.01		3.26	3.40	3.67		3.76	4.07
3	3.11	3.46	4.34		4.69	4.89	5.29		5.42	5.86
4	5.54	6.14	7.71		8.34	8.69	9.40		9.63	10.41
5	8.65	9.60	12.05		13.03	13.58	14.69		15.04	16.27
6	12.46	13.82	17.35		18.76	19.56	21.16		21.66	23.43
7	16.95	18.82	23.62		25.54	26.63	28.79		29.48	31.89
8	22.14	24.58	30.85		33.36	34.78	37.61		38.51	41.65
9	28.03	31.10	39.04		42.22	44.01	47.60		48.74	52.71
10	34.60	38.40	48.20		52.12	54.34	58.76		60.17	65.07
11	41.87	46.46	58.32		63.07	65.75	71.10		72.81	78.74
12	49.82	55.30	69.41		75.06	78.25	84.62		86.65	93.70
13	58.47	64.90	81.46		88.09	91.83	99.31		—	—
14	67.82	75.26	94.47		102.16	106.50	115.18		—	—
16	88.58	98.30	123.39		133.44	139.11	150.44		—	—
18	112.10	124.42	156.16		168.88	176.06	190.40		—	—
20	138.40	153.60	192.80		208.50	217.36	235.06		一	一
22	167.46	185.86	233.28		252.28	263.00	284.42		-	一
24	199.30	221.18	277.63		300.23	312.99	338.48		一	—
26	233.90	259.58	325.83		352.36	367.33	397.24		—	—
28	271.26	301.06	377.88		408.65	426.02	460.71		—	—
30	311.40	345.60	433.79		469.12	489.05	528.88		—	—
32	354.30	393.22	493.56		533.75	556.43	601.74		—	—
