Hidea Grade S6 Screw Pin Dee Shackle AS2741 - Certified for Maximum Load Security

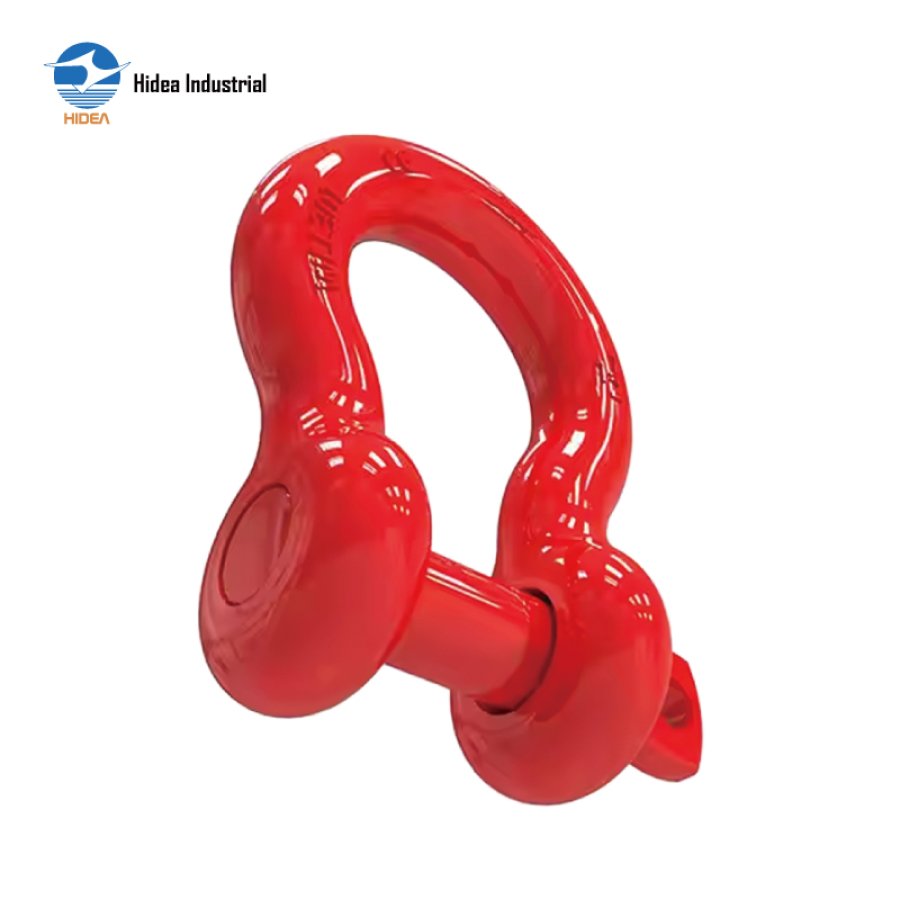

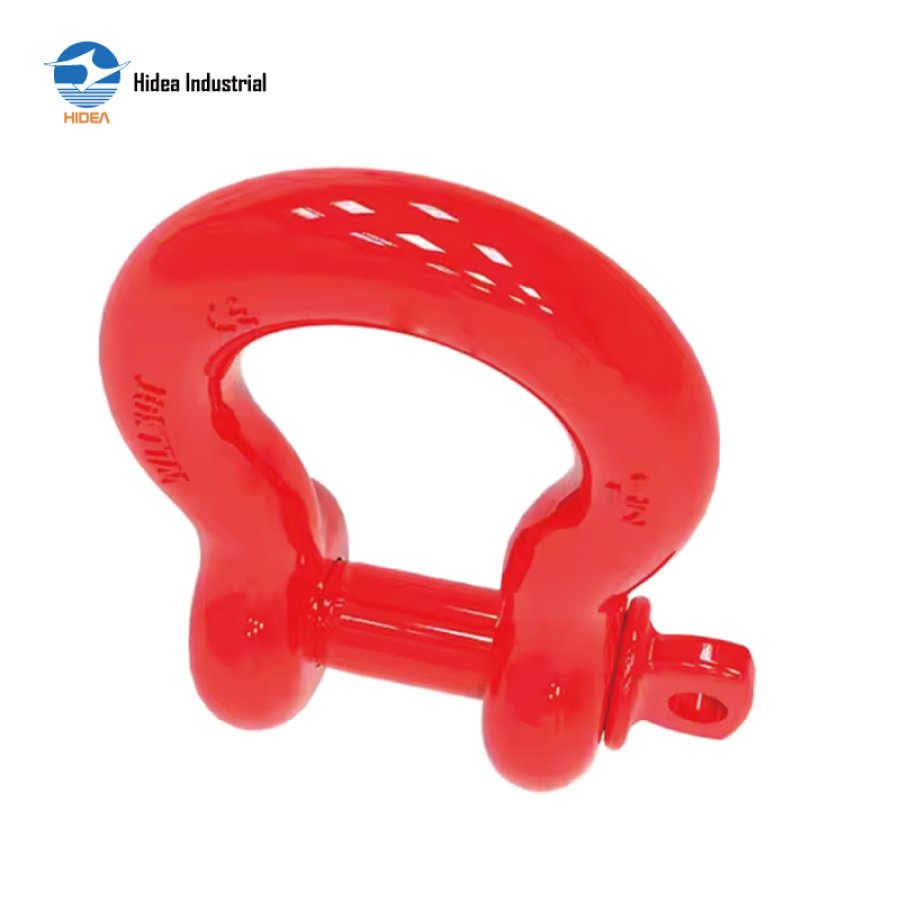

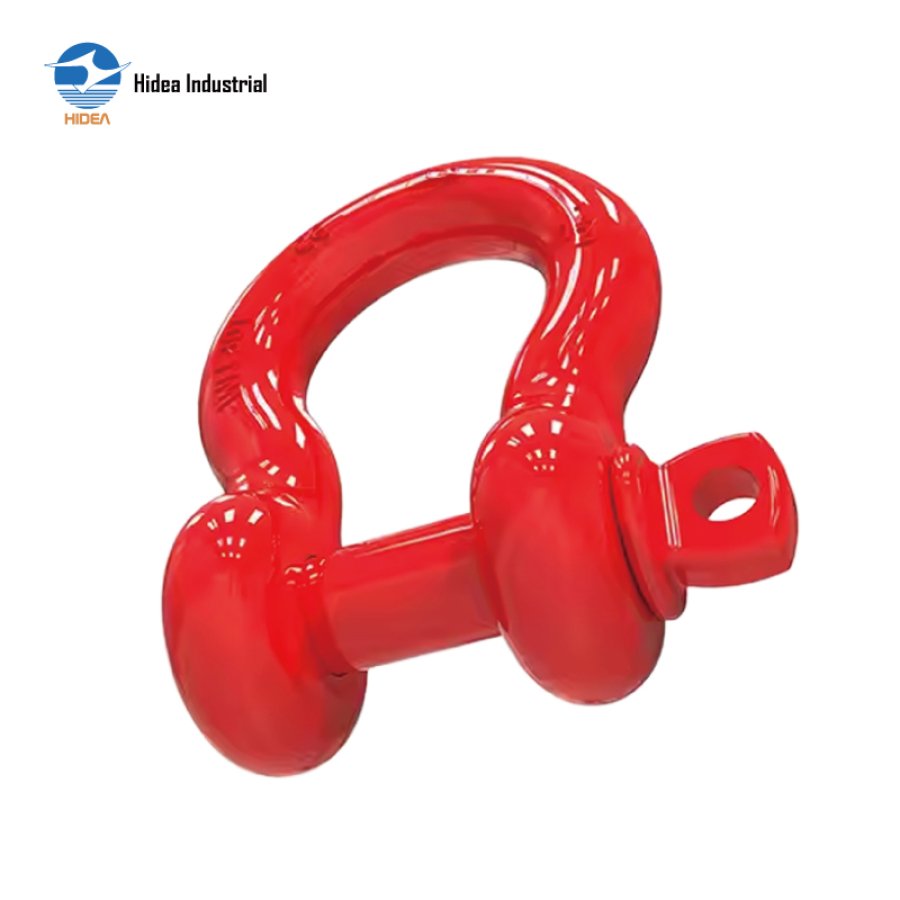

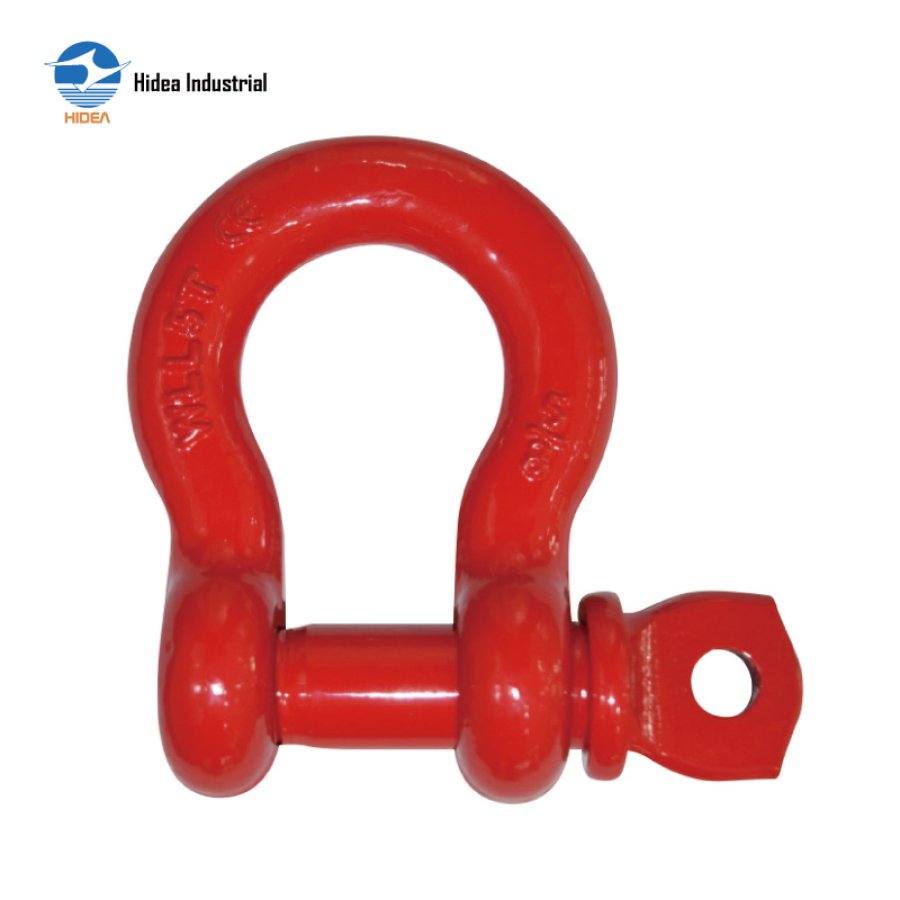

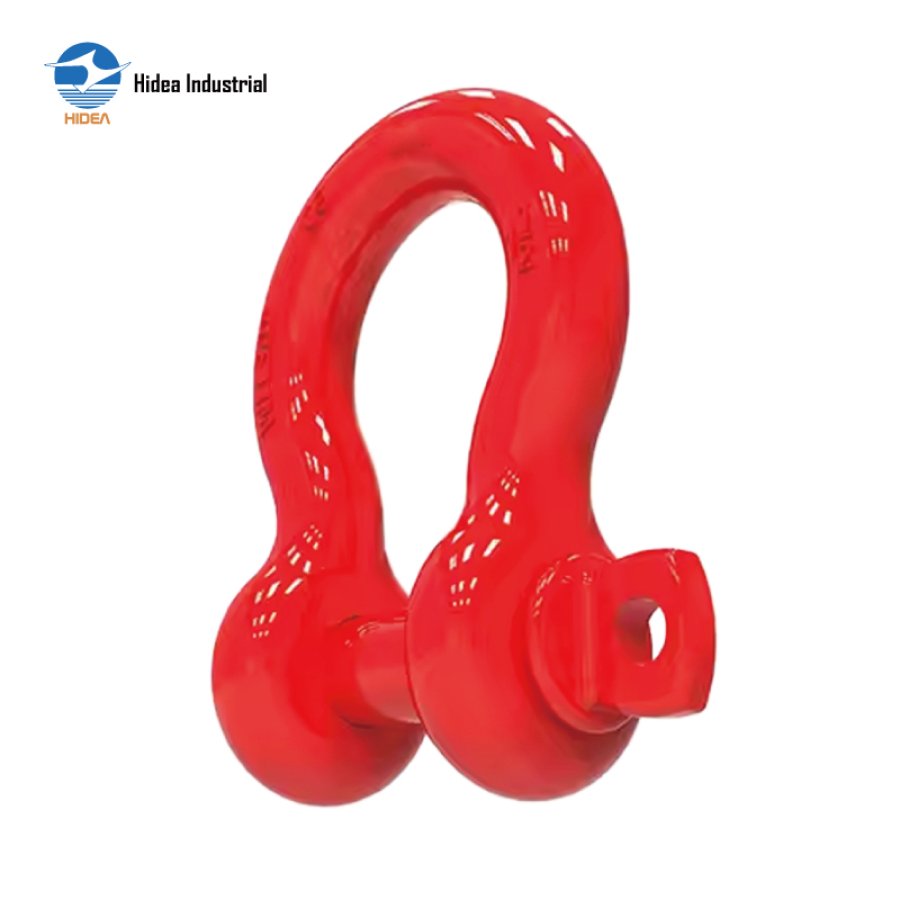

G80/G8 SCREW PIN ANCHOR SHACKLE

Material: body AND pin super alloy steel
Drop forged, quenched &tempered
Magnaflux crack detection
Safety factor 5:1 & certificates available
Surface hot dip galvanized (H.D.G) OR electro galvanized (EG) OR powder coated
Standard US Federal Specification RR-C-271D, Type IVA, Class3,Grade B/EN 1677-1:2000+A1:2008
Temperature range -20 to 200 centigrade degrees

Inquire Now

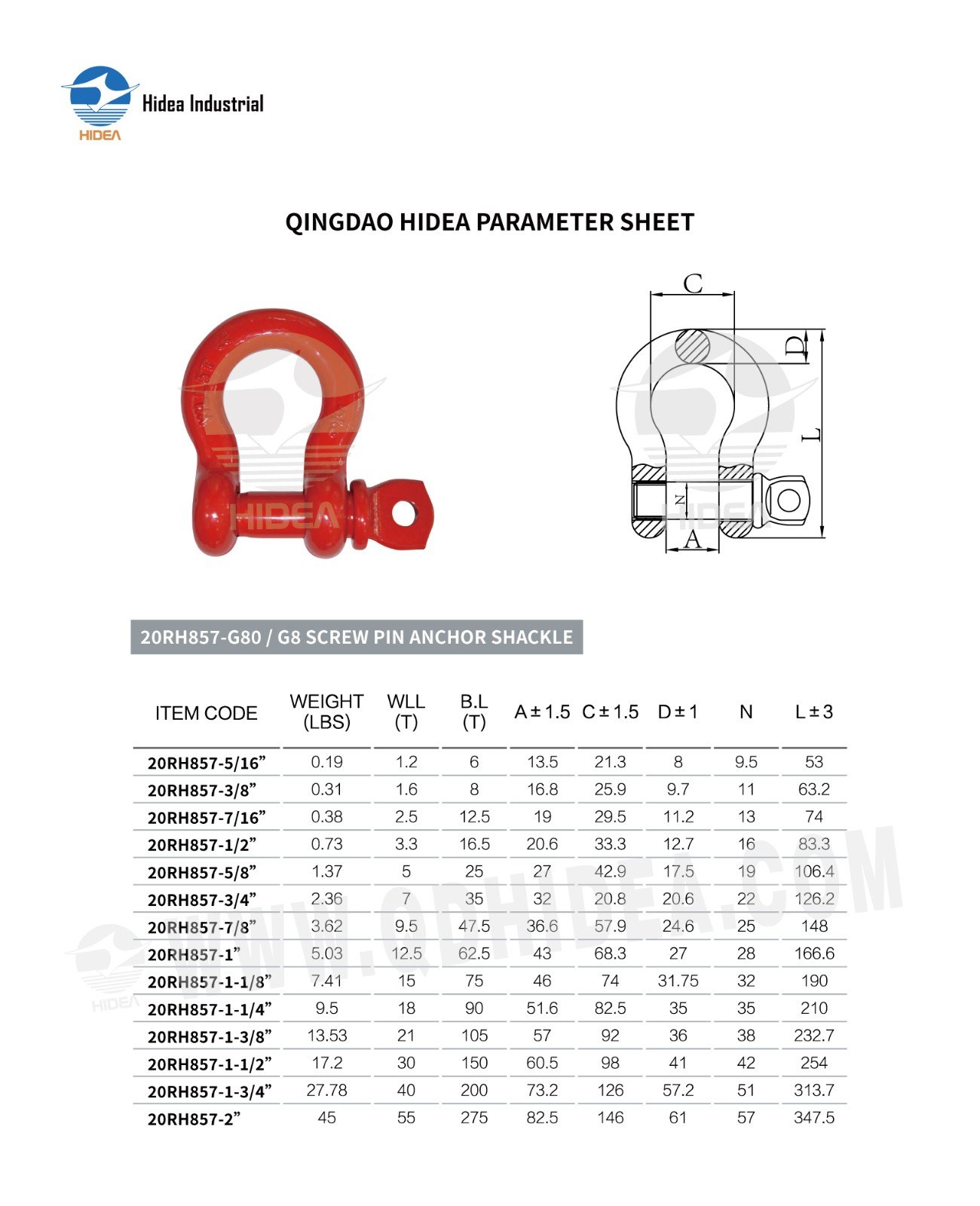

QINGDAO HIDEA PARAMETER SHEET FOR

20RH857-G80/G8 SCREW PIN ANCHOR SHACKLE

ITEM CODE	WEIGHT (LBS)	WLL (T)	B.L (T)	A±1.5	C±1.5		D±1	N	L±3
20RH857-5/16"	0.19	1.2	6	13.5	21.3		8	9.5	53
20RH857-3/8"	0.31	1.6	8	16.8	25.9		9.7	11	63.2
20RH857-7/16”	0.38	2.5	12.5	19	29.5		11.2	13	74
20RH857-1/2”	0.73	3.3	16.5	20.6	33.3		12.7	16	83.3
20RH857-5/8”	1.37	5	25	27	42.9		17.5	19	106.4
20RH857-3/4”	2.36	7	35	32	20.8		20.6	22	126.2
20RH857-7/8”	3.62	9.5	47.5	36.6	57.9		24.6	25	148
20RH857-1”	5.03	12.5	62.5	43	68.3		27	28	166.6
20RH857-1-1/8”	7.41	15	75	46	74		31.75	32	190
20RH857-1-1/4”	9.5	18	90	51.6	82.5		35	35	210
20RH857-1-3/8”	13.53	21	105	57	92		36	38	232.7
20RH857-1-1/2”	17.2	30	150	60.5	98		41	42	254
20RH857-1-3/4”	27.78	40	200	73.2	126		57.2	51	313.7
20RH857-2"	45	55	275	82.5	146		61	57	347.5
