Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

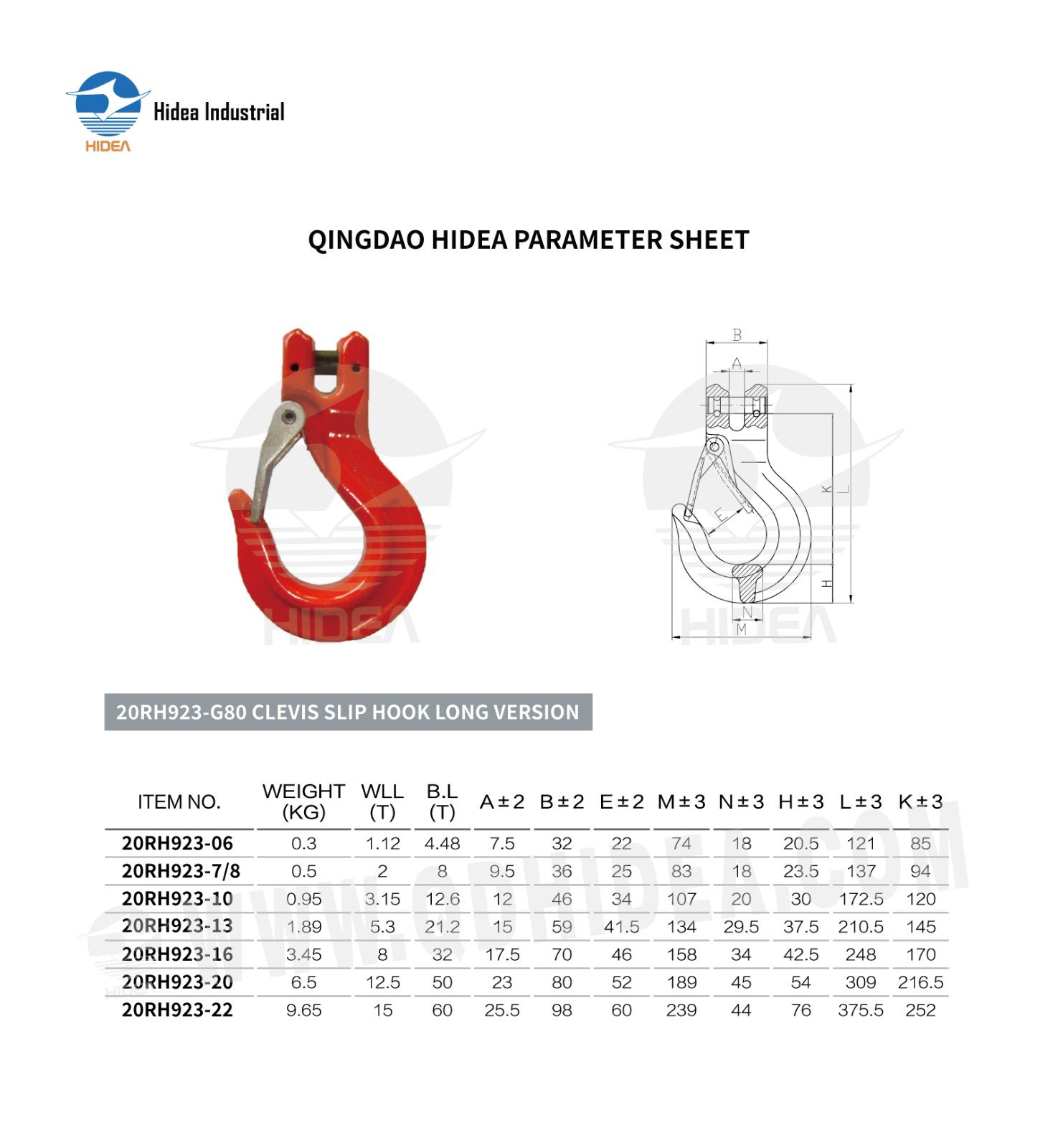

QINGDAO HIDEA PARAMETER SHEET FOR
20RH923-G80 CLEVIS SLIP HOOK LONG VERSION
| ITEM NO. | WEIGHT (KG) | WLL (T) | B.L (T) | A±2 | B±2 | E±2 | M±3 | N±3 | H±3 | L±3 | K±3 |
| 20RH923-06 | 0.3 | 1.12 | 4.48 | 7.5 | 32 | 22 | 74 | 18 | 20.5 | 121 | 85 |
| 20RH923-7/8 | 0.5 | 2 | 8 | 9.5 | 36 | 25 | 83 | 18 | 23.5 | 137 | 94 |
| 20RH923-10 | 0.95 | 3.15 | 12.6 | 12 | 46 | 34 | 107 | 20 | 30 | 172.5 | 120 |
| 20RH923-13 | 1.89 | 5.3 | 21.2 | 15 | 59 | 41.5 | 134 | 29.5 | 37.5 | 210.5 | 145 |
| 20RH923-16 | 3.45 | 8 | 32 | 17.5 | 70 | 46 | 158 | 34 | 42.5 | 248 | 170 |
| 20RH923-20 | 6.5 | 12.5 | 50 | 23 | 80 | 52 | 189 | 45 | 54 | 309 | 216.5 |
| 20RH923-22 | 9.65 | 15 | 60 | 25.5 | 98 | 60 | 239 | 44 | 76 | 375.5 | 252 |
