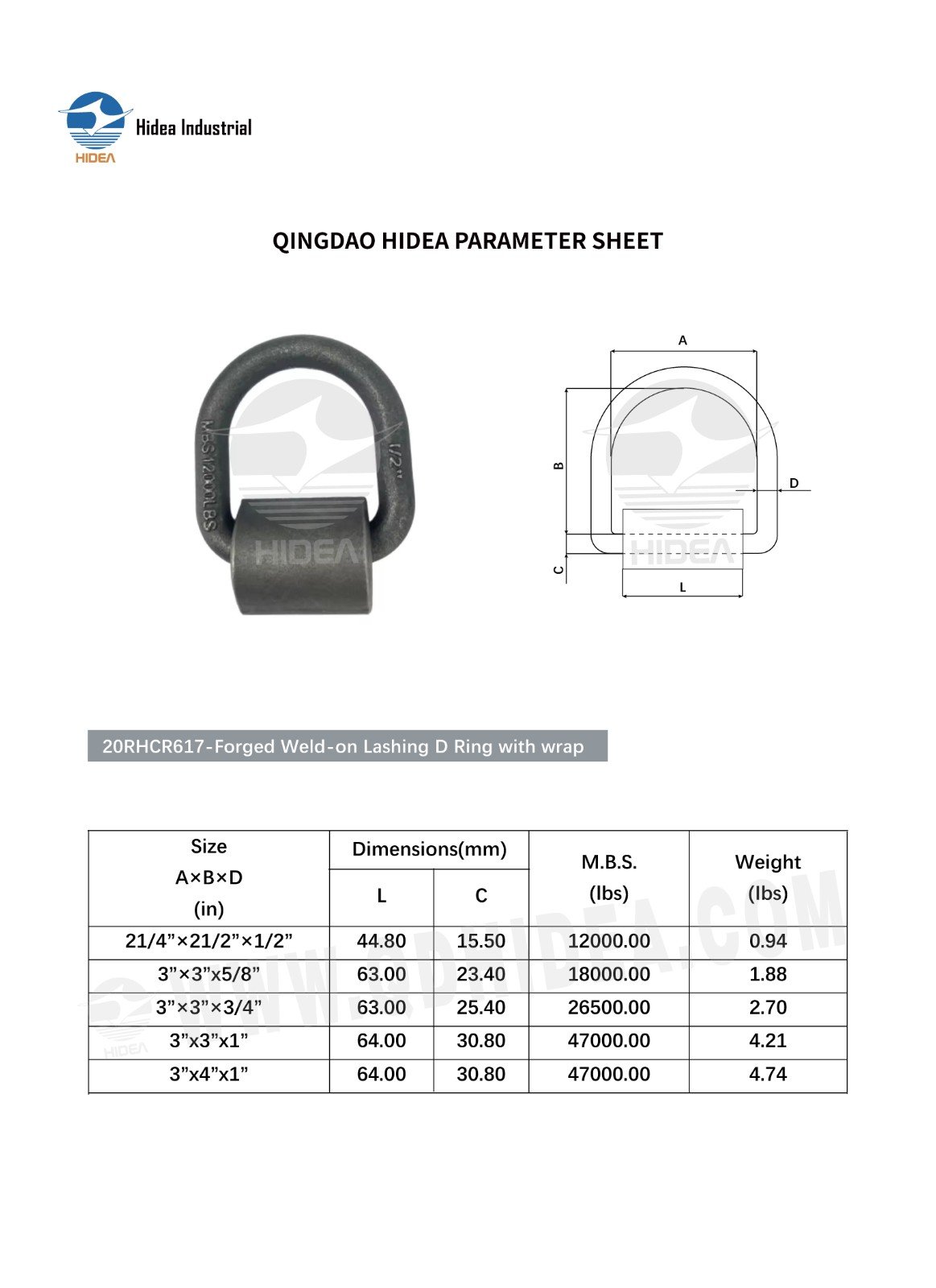

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR617-Forged Weld-on Lashing D Ring with wrap
| Size A×B×D (in) | Dimensions(mm) | M.B.S (Ibs) | Weight (Ibs) | ||
| L | C | ||||
| 21/4”×21/2"×1/2" | 44.80 | 15.50 | 12000.00 | 0.94 | |
| 3"×3"x5/8" | 63.00 | 23.40 | 18000.00 | 1.88 | |
| 3"×3"×3/4” | 63.00 | 25.40 | 26500.00 | 2.70 | |
| 3"x3"x1” | 64.00 | 30.80 | 47000.00 | 4.21 | |
| 3"x4"x1" | 64.00 | 30.80 | 47000.00 | 4.74 | |
