Hidea Malleable U-Bolt Wire Rope Grip – Perfect for Safe and Efficient Rigging Systems

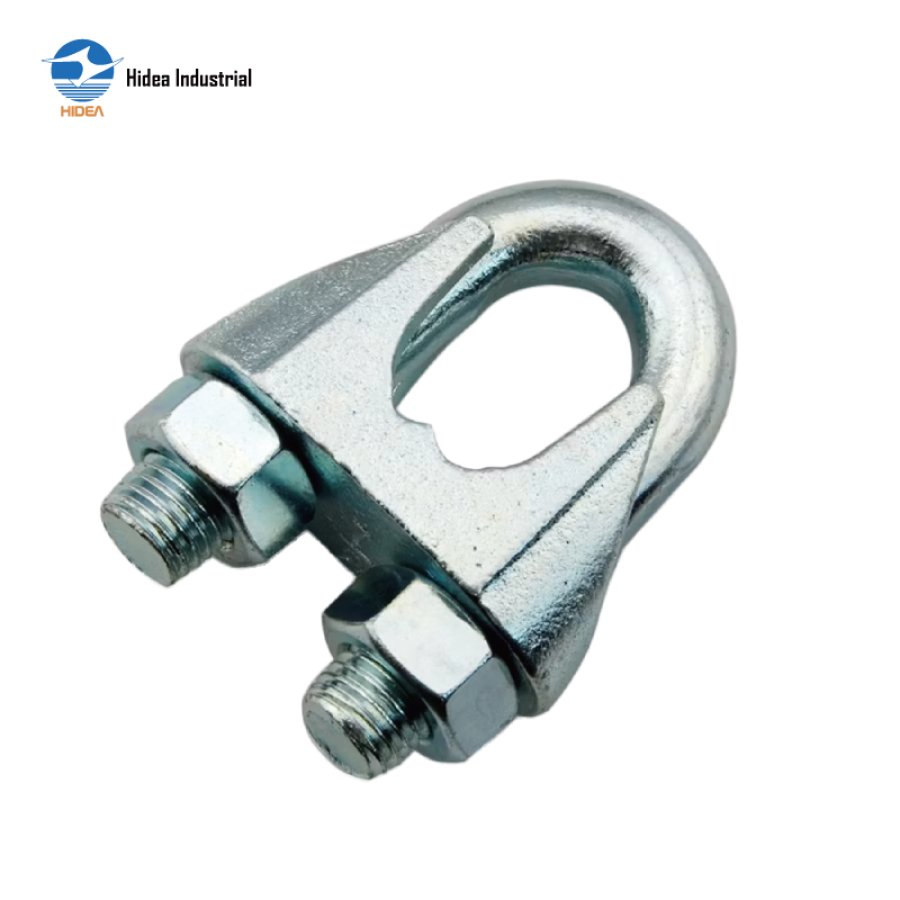

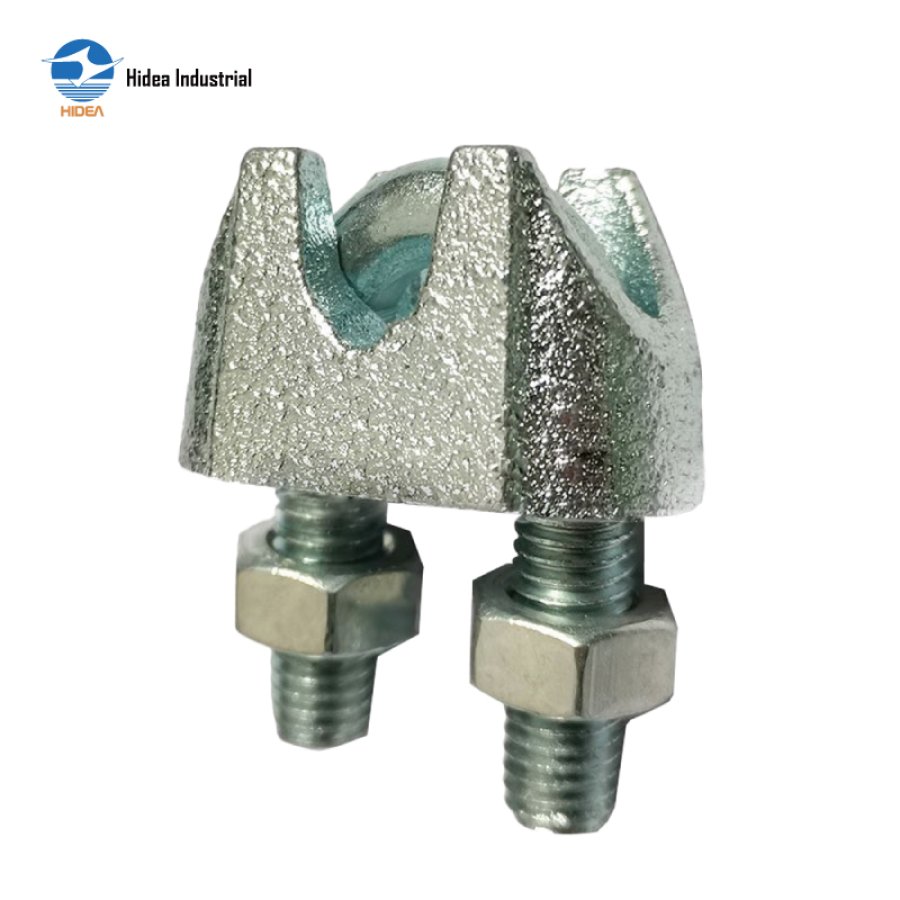

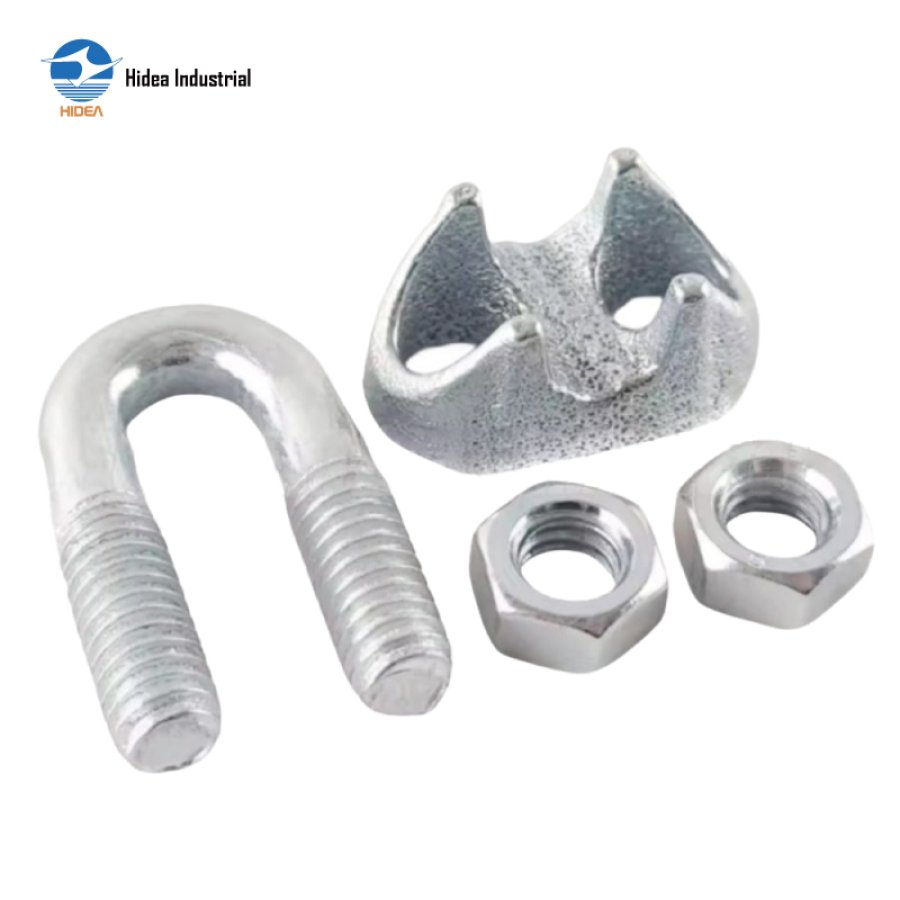

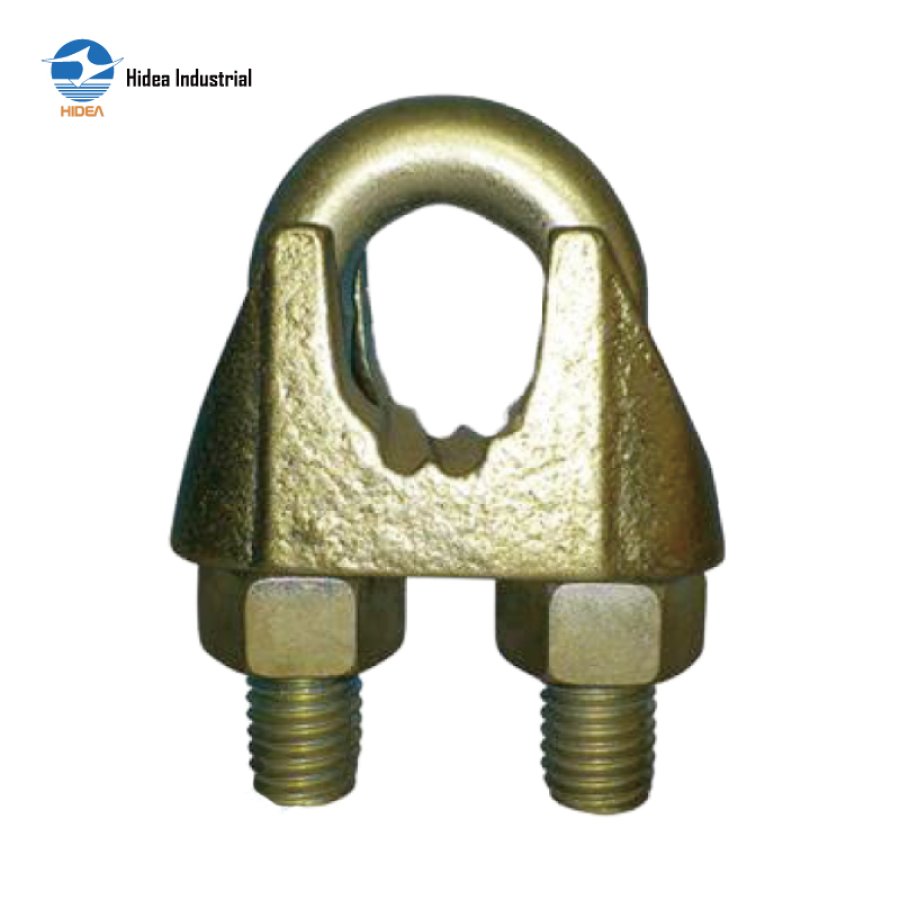

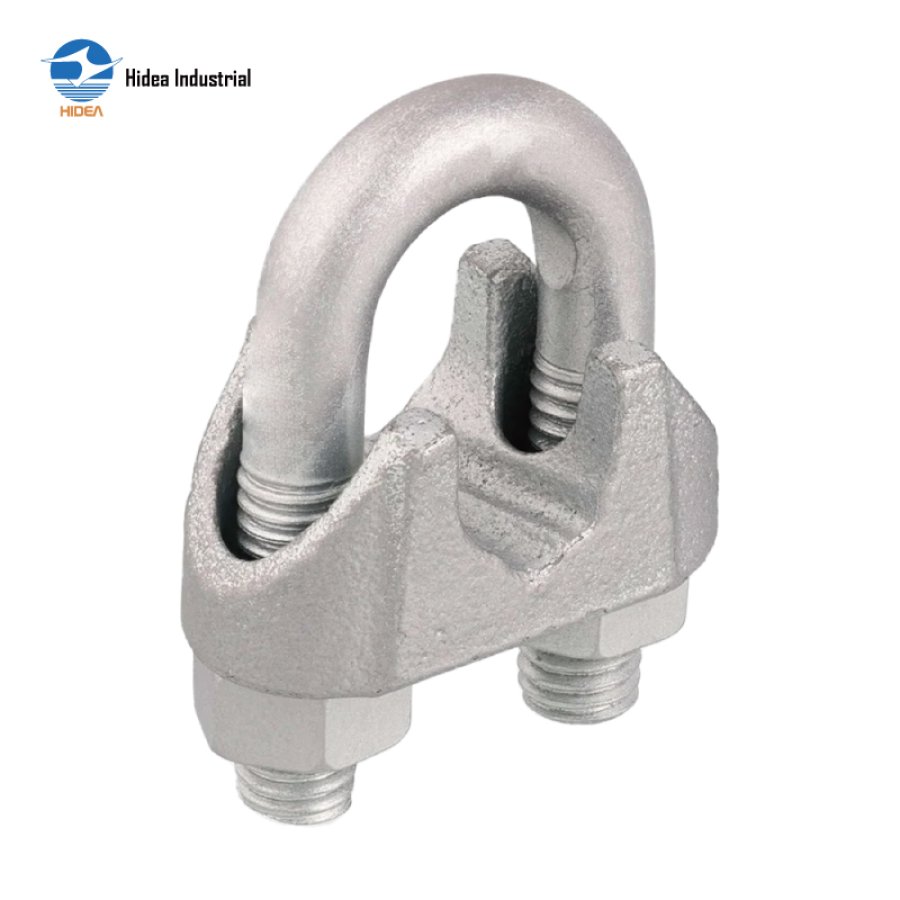

JIS TYPE B GALV. MALLEABLE WIRE ROPE CLIPS

Casted Malleable Steel
Casted,quenched & tempered
Surface Electro Galv. / zinc plated OR as requested
Casted Malleable Wire Rope Clip Type B JIS Type

Inquire Now

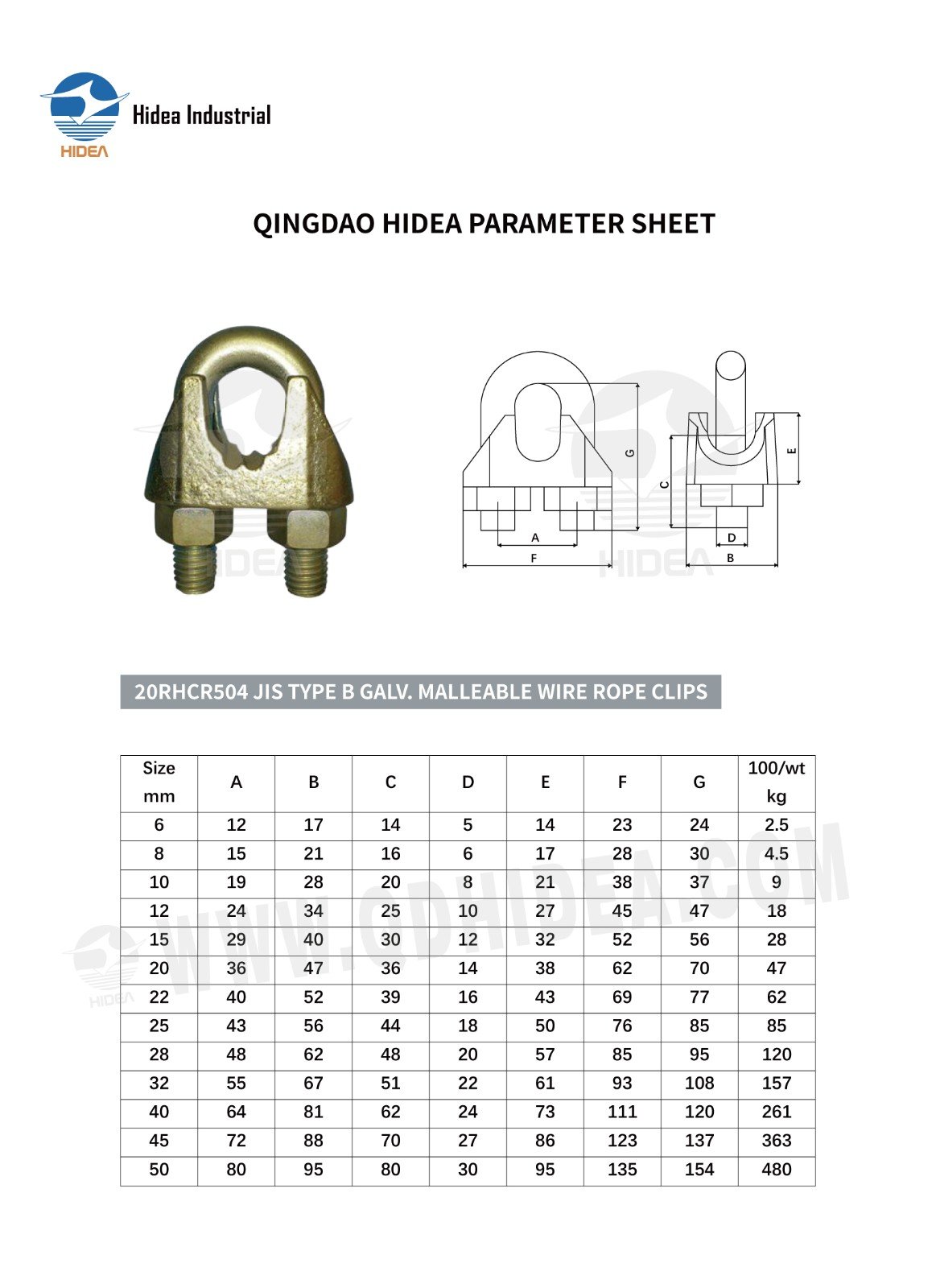

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR504 JIS TYPEB GALV.MALLEABLE WIRE ROPE CLIPS

Size mm	A	B	C	D	E	F	G	100/wt kg
6	12	17	14	5	14	23	24	2.5
8	15	21	16	6	17	28	30	4.5
10	19	28	20	8	21	38	37	9
12	24	34	25	10	27	45	47	18
15	29	40	30	12	32	52	56	28
20	36	47	36	14	38	62	70	47
22	40	52	39	16	43	69	77	62
25	43	56	44	18	50	76	85	85
28	48	62	48	20	57	85	95	120
32	55	67	51	22	61	93	108	157
40	64	81	62	24	73	111	120	261
45	72	88	70	27	86	123	137	363
50	80	95	80	30	95	135	154	480
