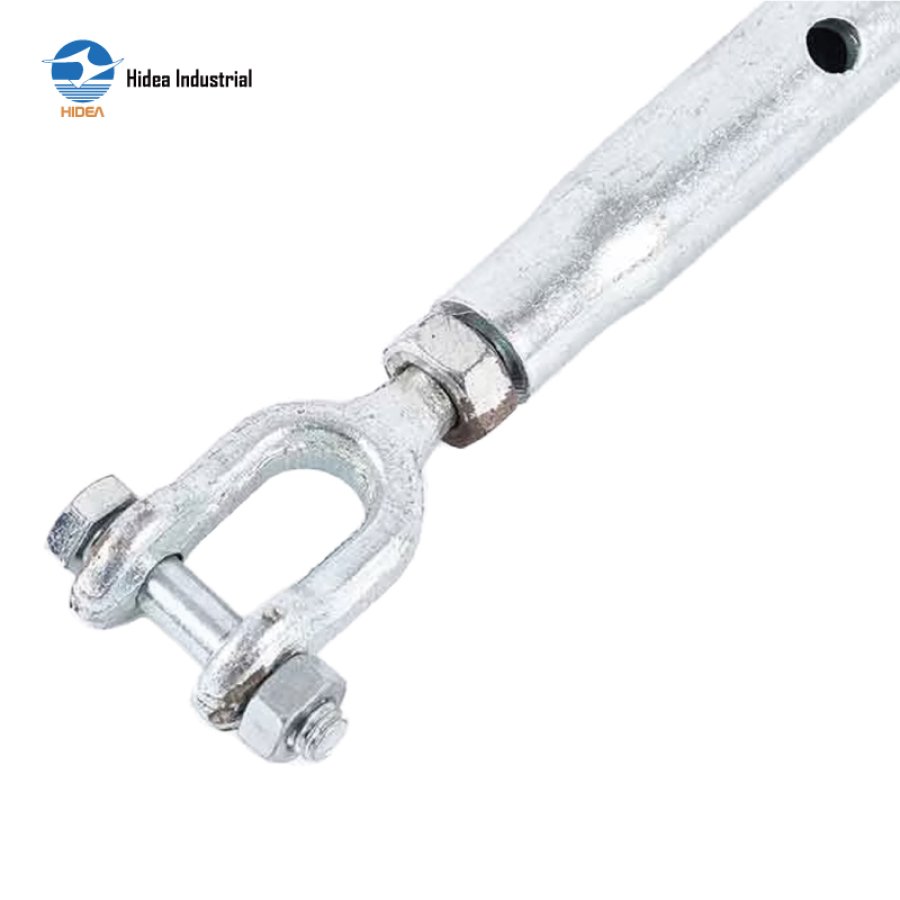

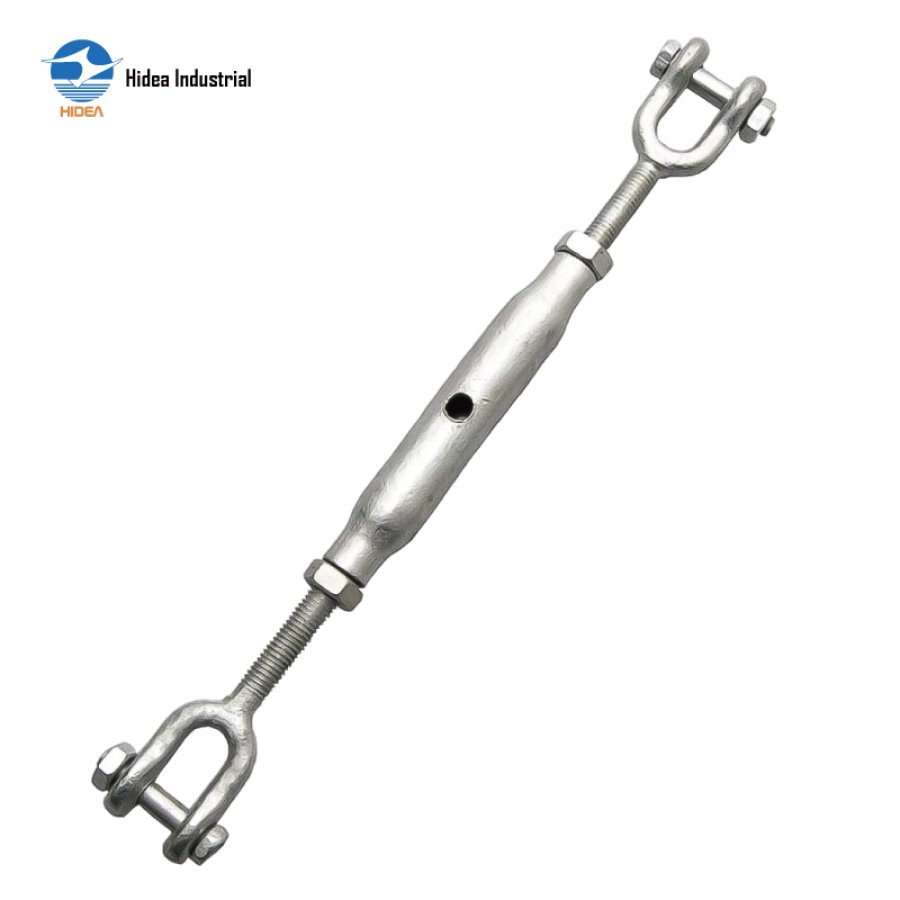

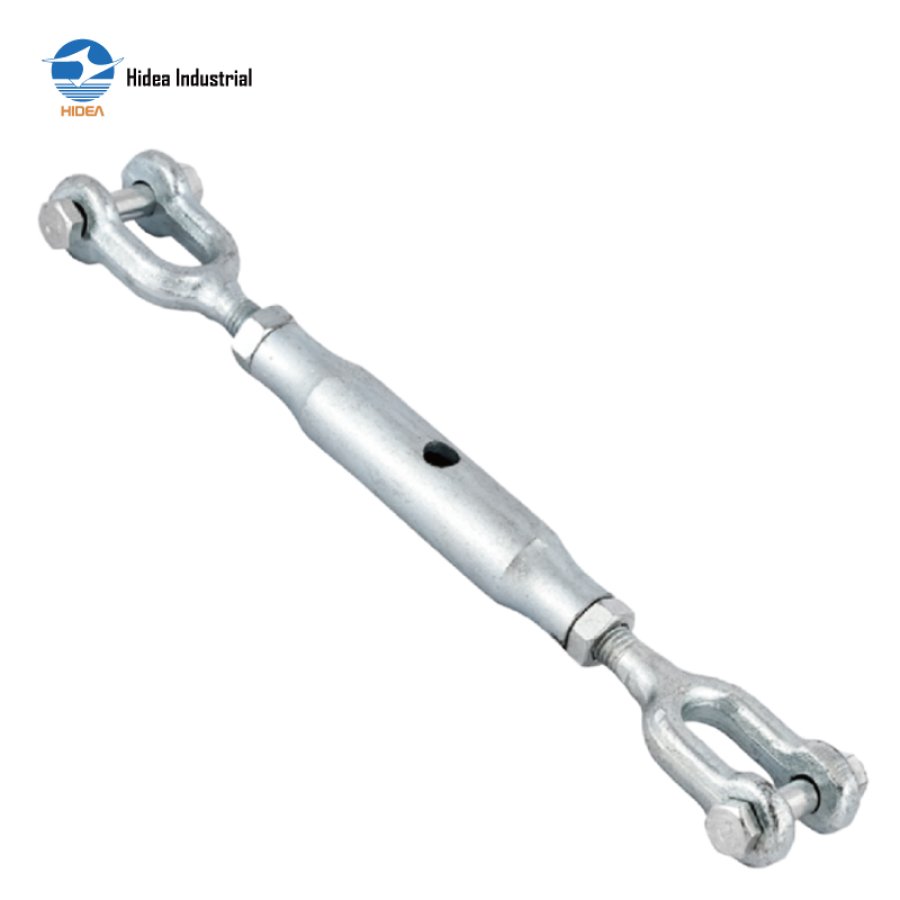

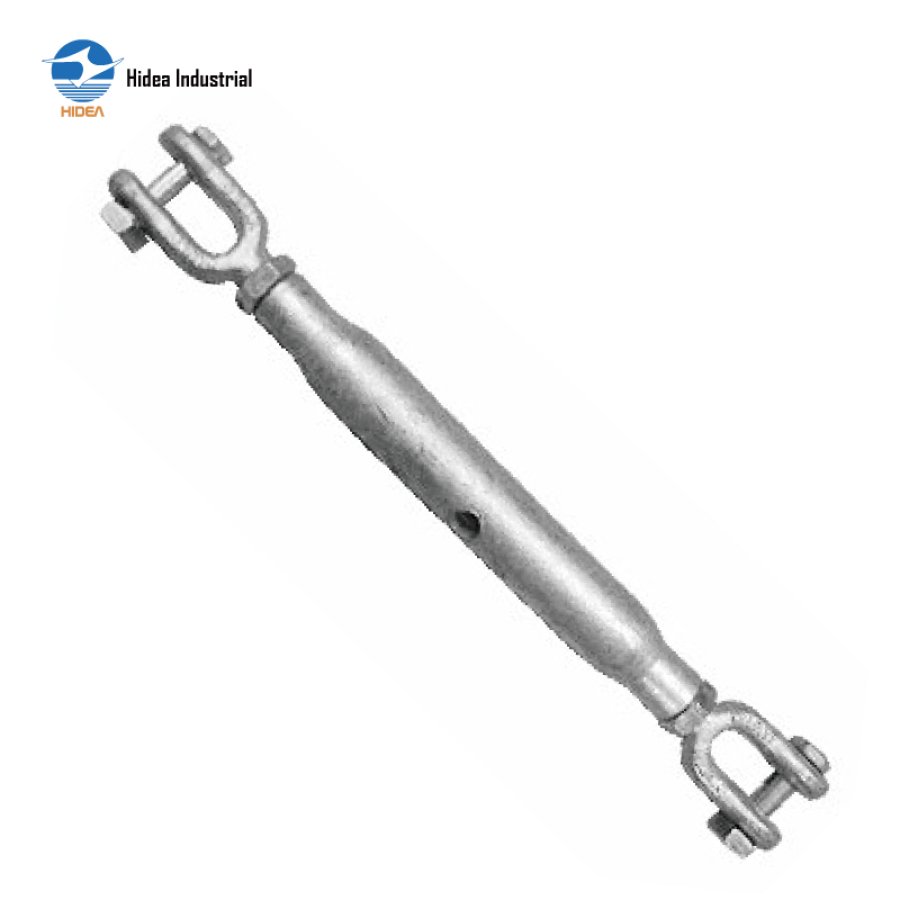

Strong and Flexible Hidea European Type Jaw & Jaw Rigging Screw for Safe Connections

EUROPEAN TYPE CLOSED BODY TUBULAR TURNBUCKLES JAW & JAW

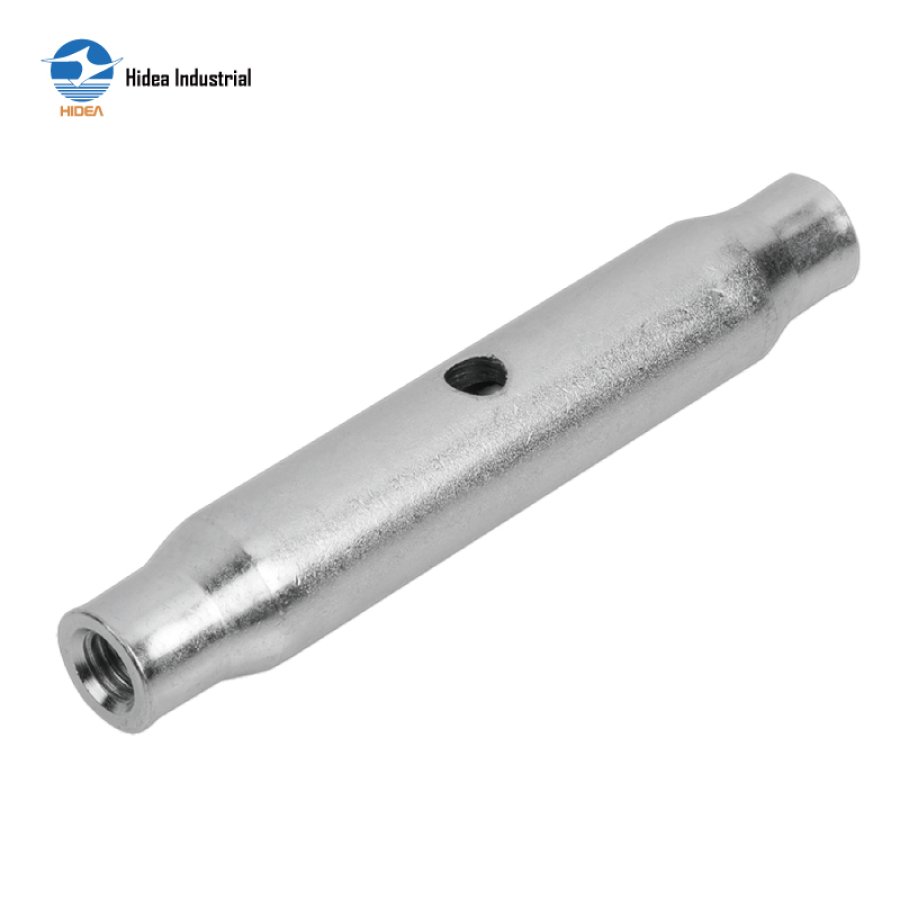

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
European Type tublar rigging screws closed body turnbuckles pipe turnbuckles jaw & jaw SF=5:1

Inquire Now

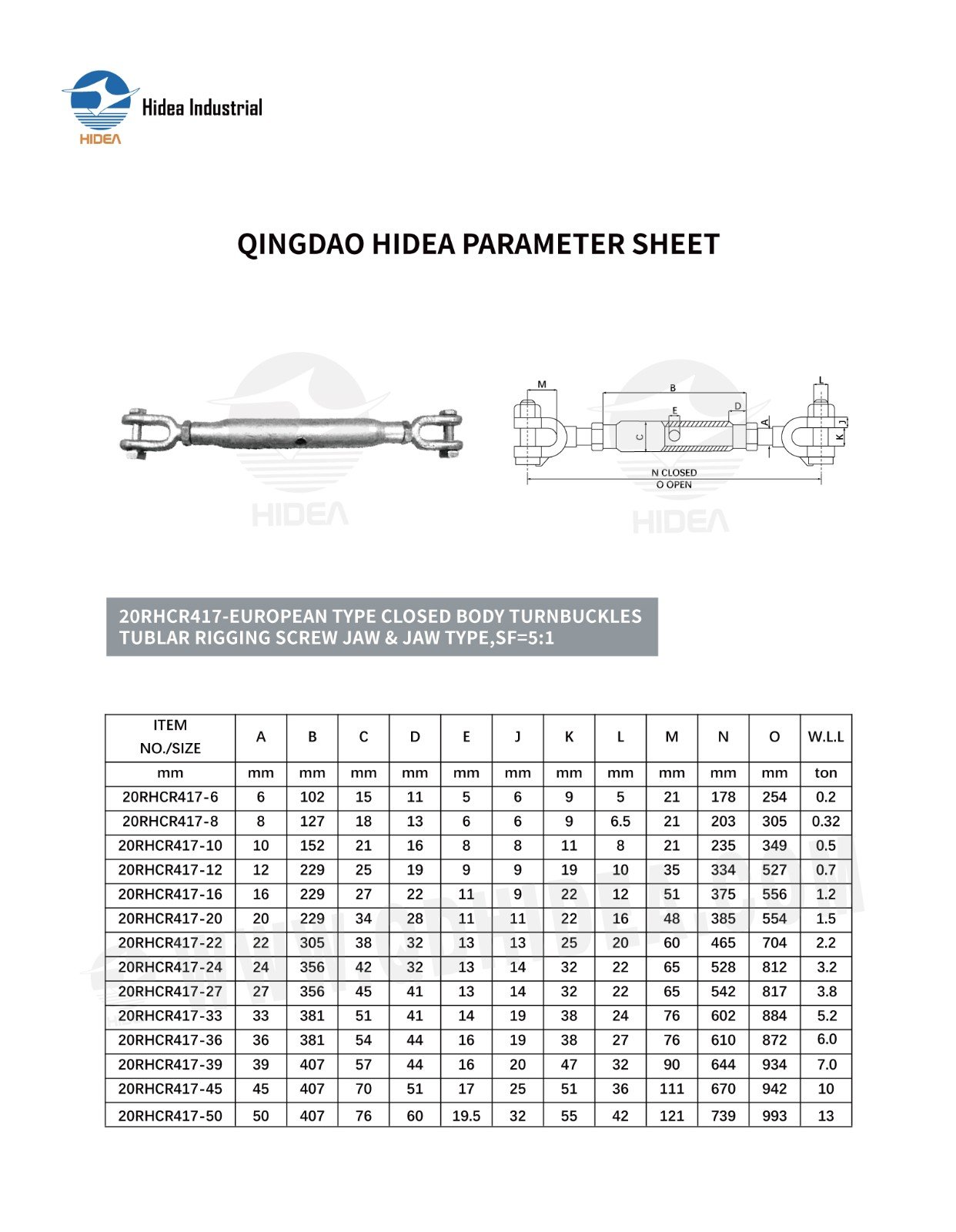

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR417-EUROPEAN TYPE CLOSED BODY TURNBUCKLES

TUBLAR RIGGING SCREW JAW&JAW TYPE,SF=5:1

ITEM NO./SIZE	A	B	C	D	E	J	K	L	M	N	O	W.L.L
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	ton
20RHCR417-6	6	102	15	11	5	6	9	5	21	178	254	0.2
20RHCR417-8	8	127	18	13	6	6	9	6.5	21	203	305	0.32
20RHCR417-10	10	152	21	16	8	8	11	8	21	235	349	0.5
20RHCR417-12	12	229	25	19	9	9	19	10	35	334	527	0.7
20RHCR417-16	16	229	27	22	11	9	22	12	51	375	556	1.2
20RHCR417-20	20	229	34	28	11	11	22	16	48	385	554	1.5
20RHCR417-22	22	305	38	32	13	13	25	20	60	465	704	2.2
20RHCR417-24	24	356	42	32	13	14	32	22	65	528	812	3.2
20RHCR417-27	27	356	45	41	13	14	32	22	65	542	817	3.8
20RHCR417-33	33	381	51	41	14	19	38	24	76	602	884	5.2
20RHCR417-36	36	381	54	44	16	19	38	27	76	610	872	6.0
20RHCR417-39	39	407	57	44	16	20	47	32	90	644	934	7.0
20RHCR417-45	45	407	70	51	17	25	51	36	111	670	942	10
20RHCR417-50	50	407	76	60	19.5	32	55	42	121	739	993	13
