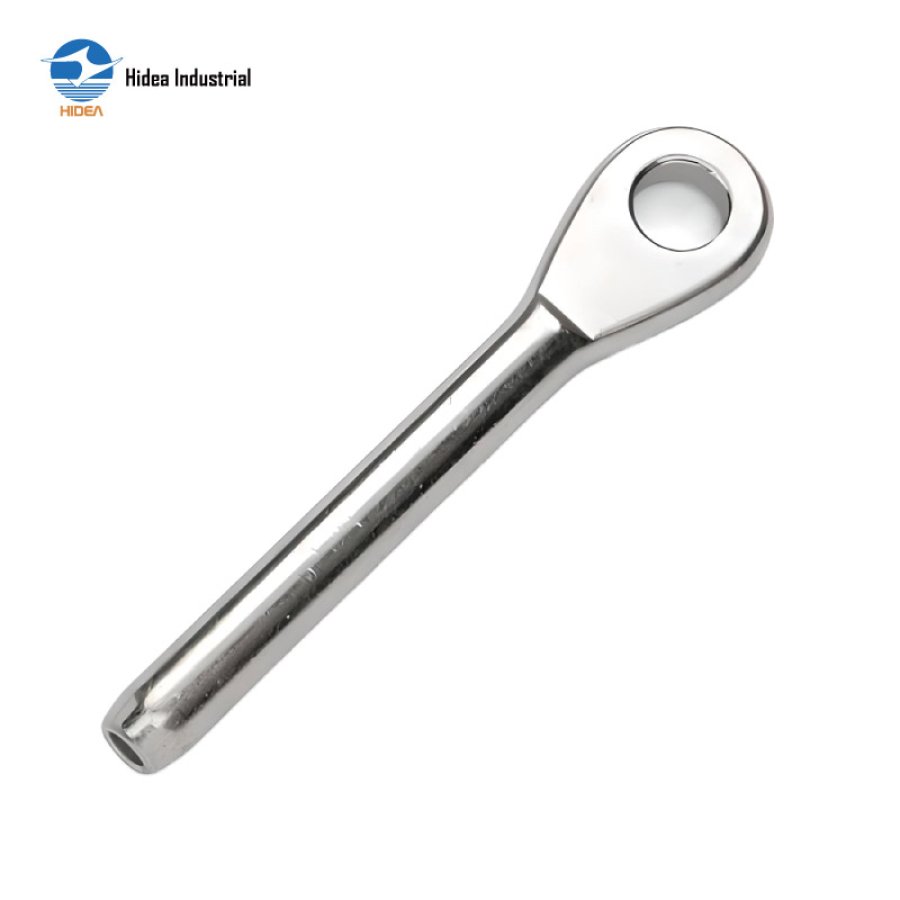

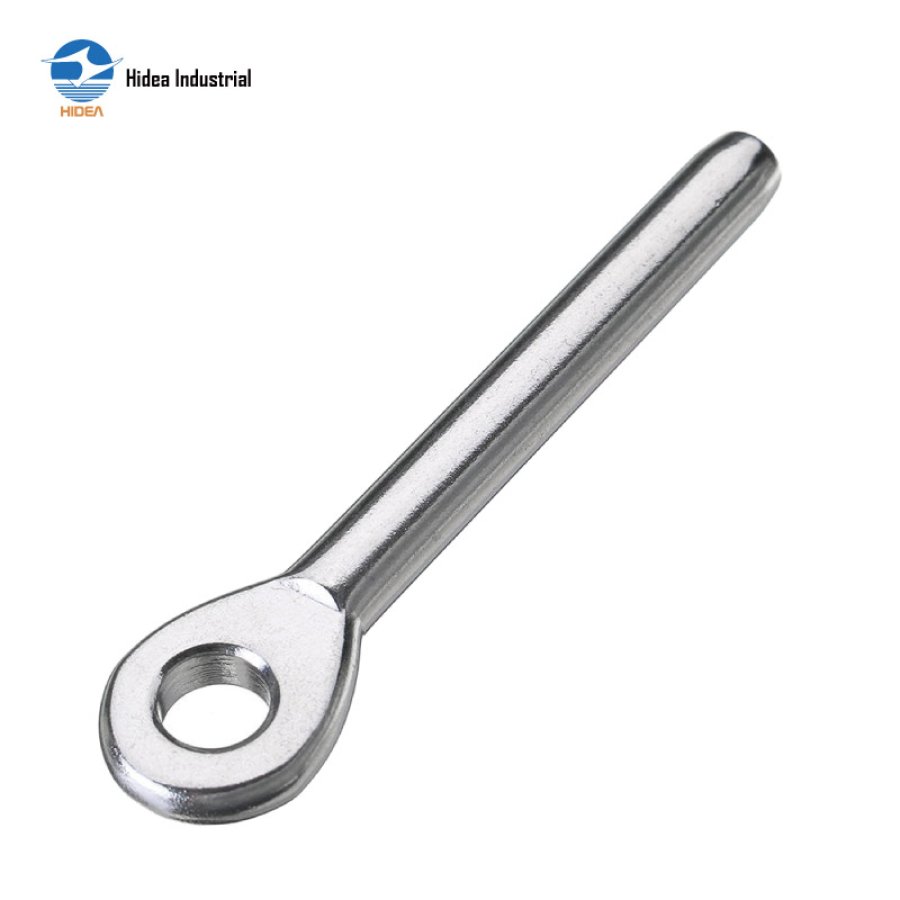

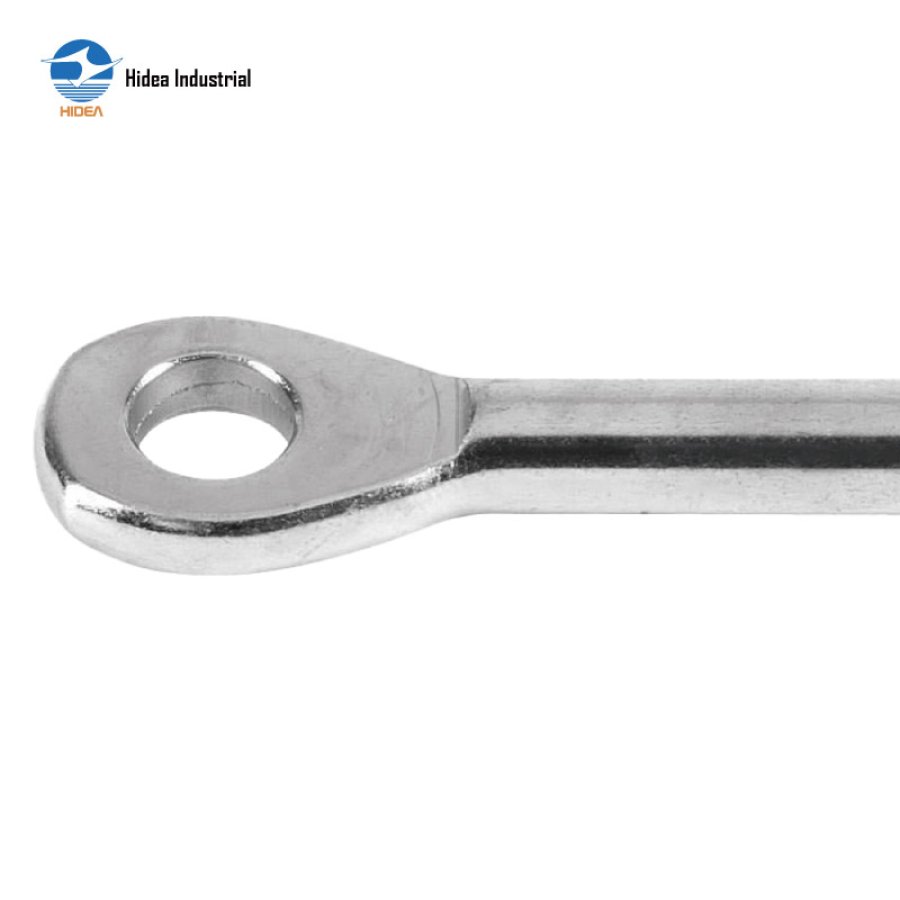

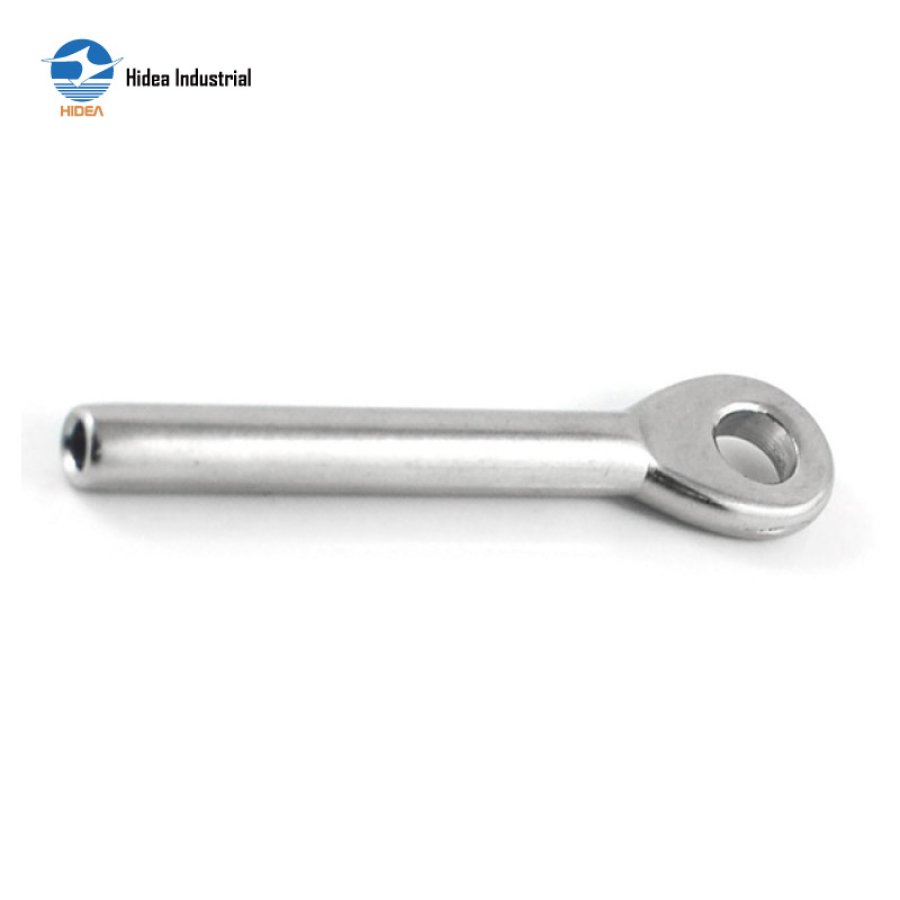

Durable Hidea Stainless Steel Swage Eye Terminal – Perfect for Wire Rope Tensioning

EYE TERMINAL

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

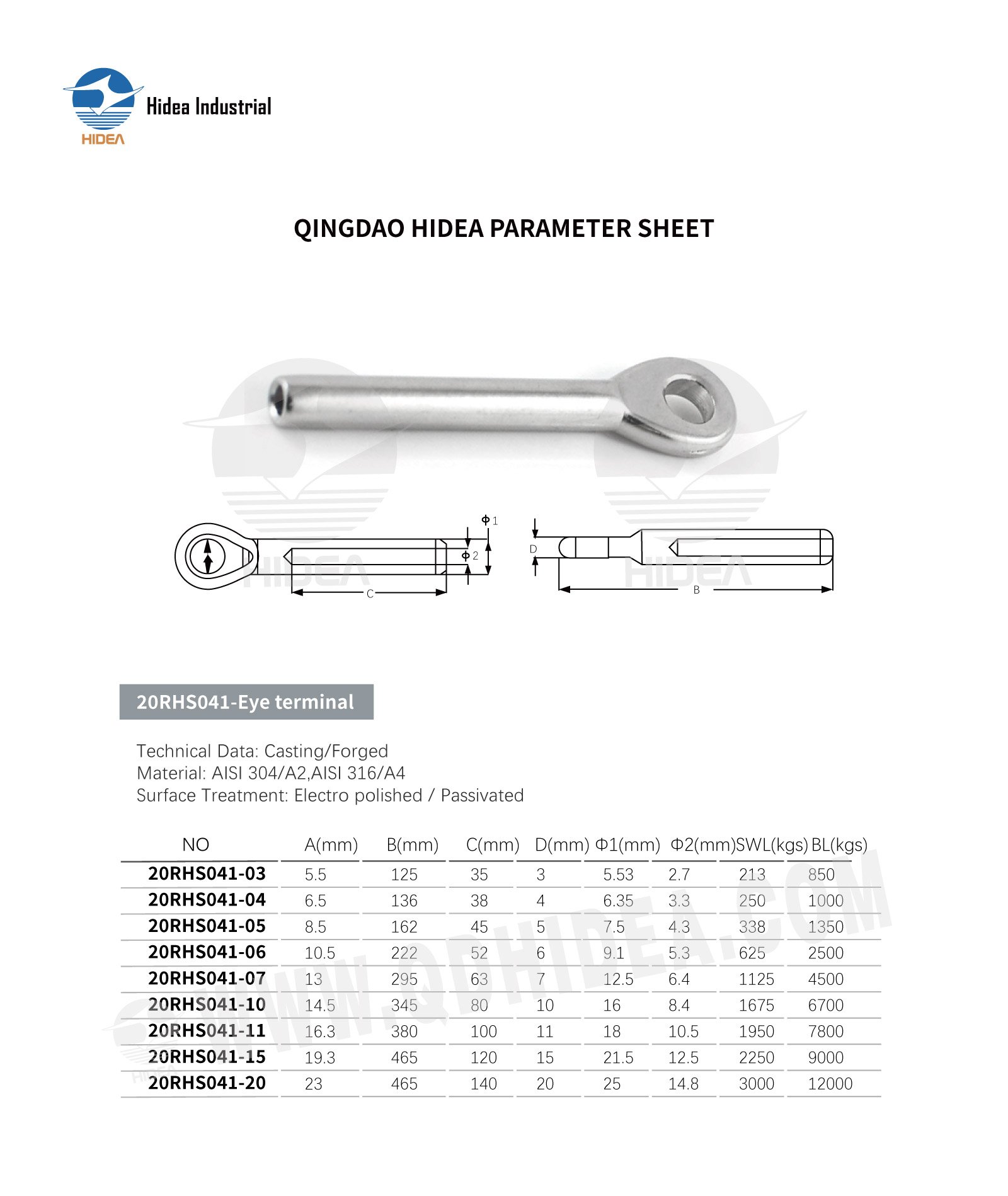

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO41-Eye terminal

NO	A(mm)	B(mm)	C(mm)	D(mm)	Φ1(mm)	Φ2(mm)	SWL(kgs)	BL(kgs)
20RHS041-03	5.5	125	35	3	5.53	2.7	213	850
20RHS041-04	6.5	136	38	4	6.35	3.3	250	1000
20RHS041-05	8.5	162	45	5	7.5	4.3	338	1350
20RHS041-06	10.5	222	52	6	9.1	5.3	625	2500
20RHS041-07	13	295	63	7	12.5	6.4	1125	4500
20RHS041-10	14.5	345	80	10	16	8.4	1675	6700
20RHS041-11	16.3	380	100	11	18	10.5	1950	7800
20RHS041-15	19.3	465	120	15	21.5	12.5	2250	9000
20RHS041-20	23	465	140	20	25	14.8	3000	12000
