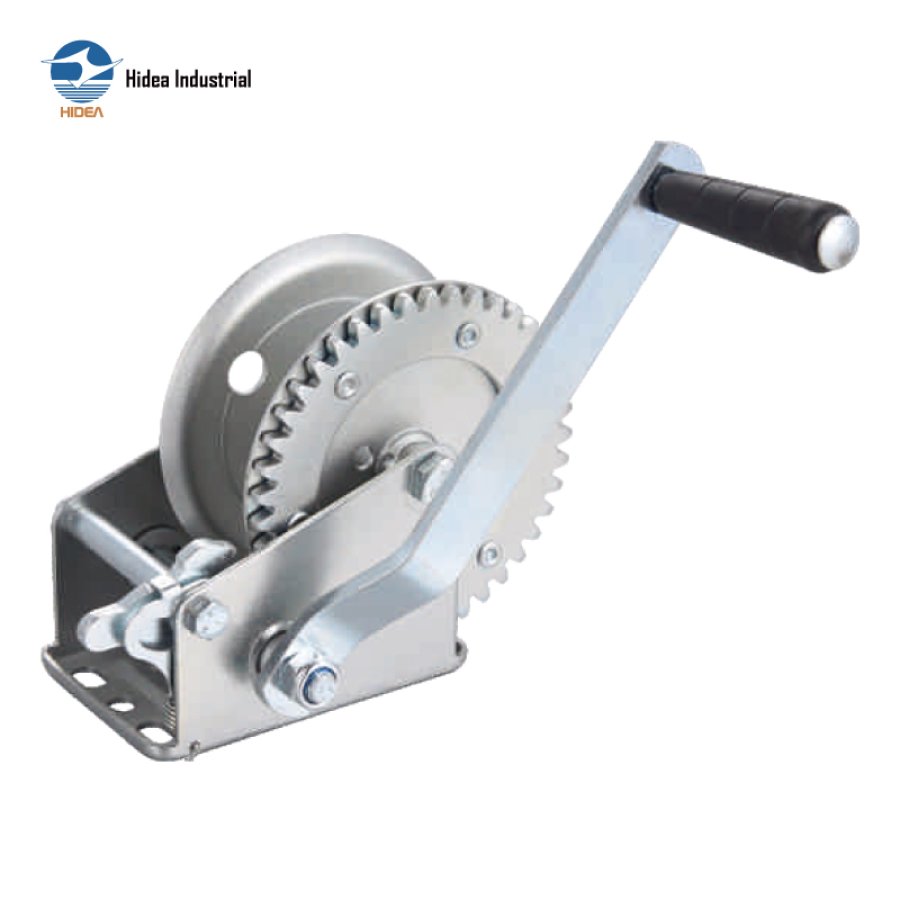

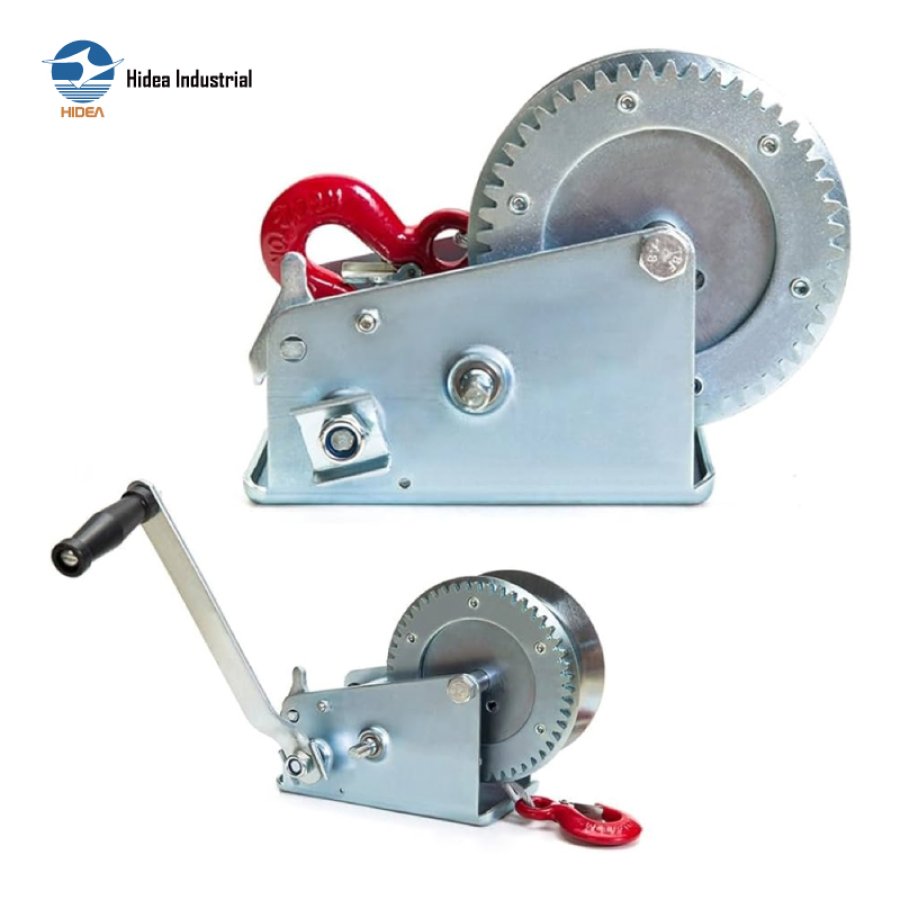

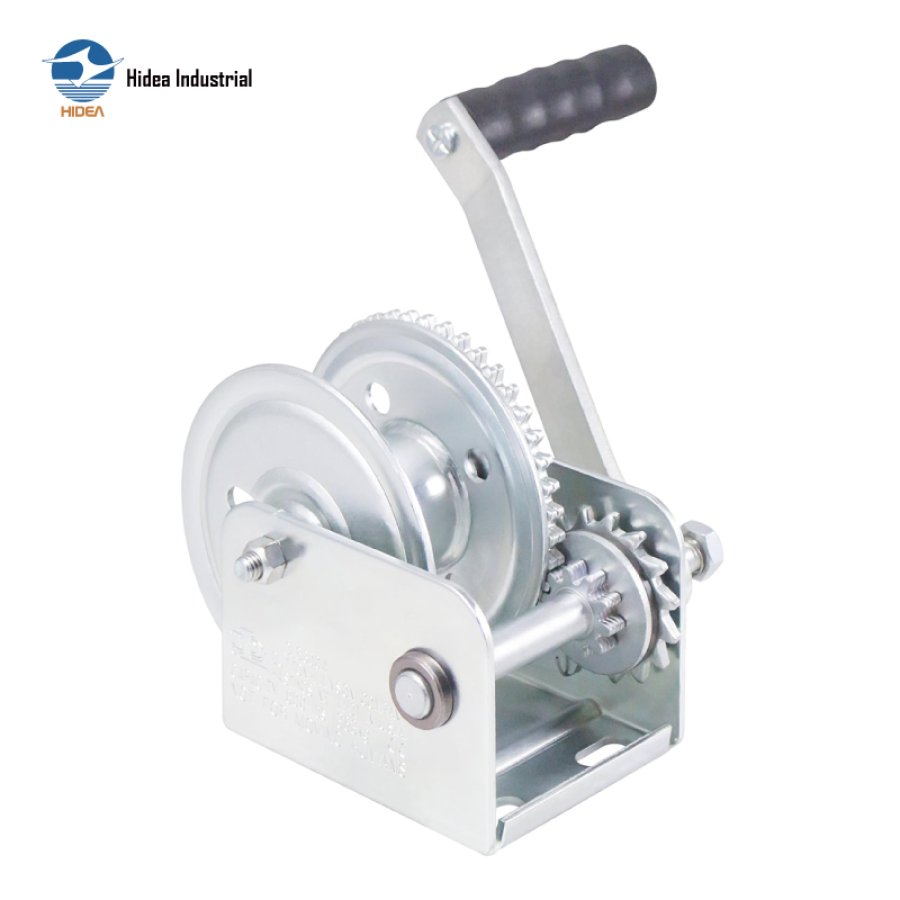

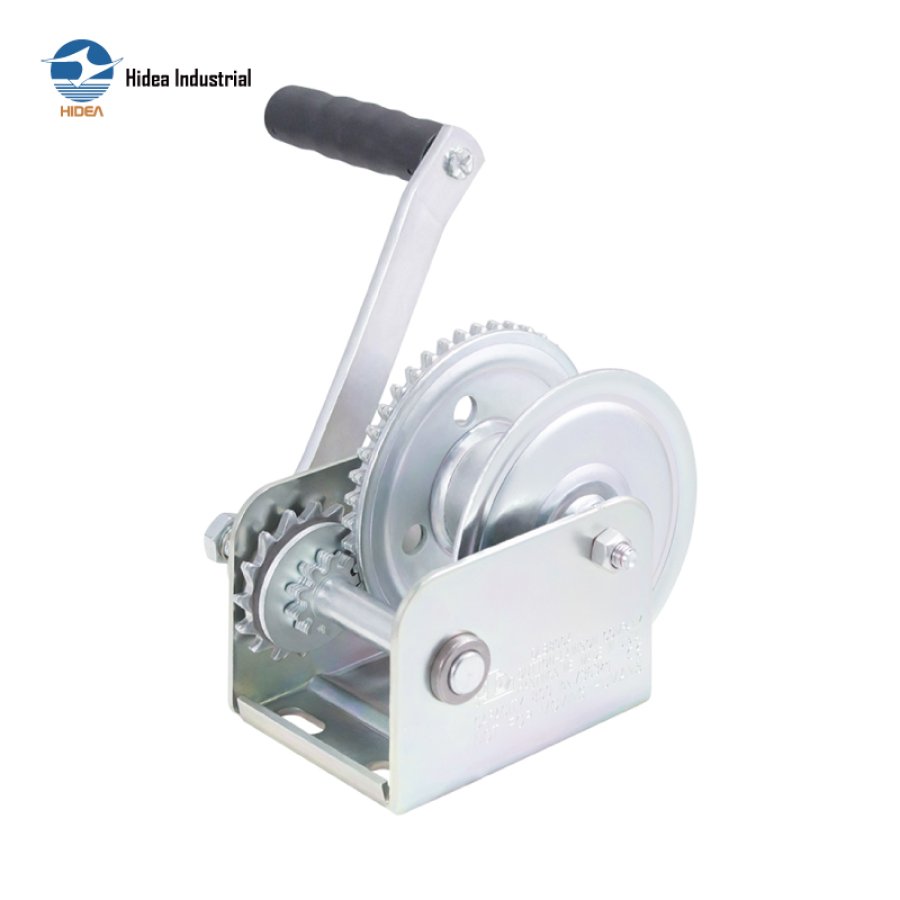

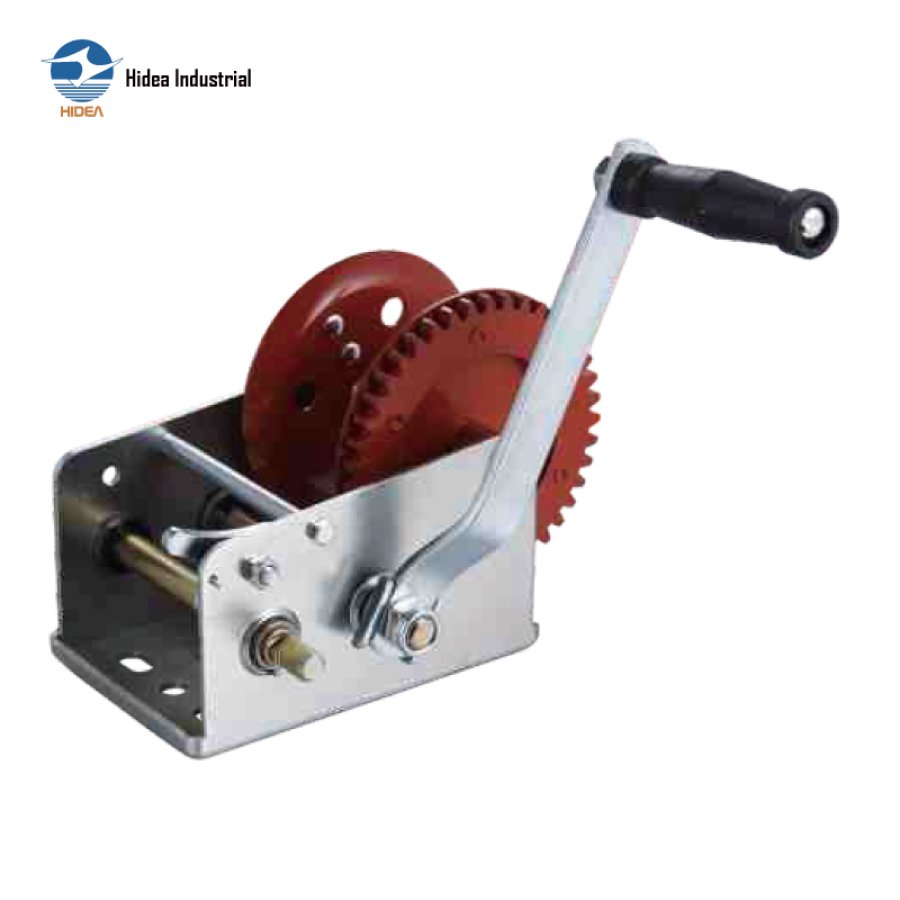

The bare devices without rope or webbing of the hand winch bodies are also provided for users to equipped with preferred puling materials of ropes or webbing or other types of materials
The winch body & drum are made of high tensile steel and properly heat treated to handle heavy loads, and the winch is portable and easy to operate, making it a popular choice in industries such as construction, manufacturing, transportation and marine activities
The hand winch bodies both 1 way or 2 ways available for optionally hoisting loads or pulling objects that only require a one-directional or tow-directional forces; and 1 speed or 2 speeds of winches both available by adjusting the gear ratio of the device, BS capacity from 400Kgs to 2,500Kgs
The wire rope hand winches meeting standards of and in conformity with ASME B30.7, OSHA regulations & EN 13157
QINGDAO HIDEA PARAMETER SHEET FOR
HAND WINCH BODY ONLY
| Part No. | Capacity(kg) | B/S(kg) | Gear Ratio | Way/Speed | N.W. (kg) | |||
| 60MT-HW600 | 272 | 408 | 3.2:1 | 1way or 2way | 1.8 | |||
| 60MT-HW800 | 362 | 544 | 3.2:1 | 1way or2 way | 1.8 | |||
| 60MT-HW1000 | 454 | 675 | 4.1:1 | 2way/1 speed | 2.75 | |||
| 60MT-HW1200 | 544 | 825 | 4.1:1 | 2 way/1 speed | 2.75 | |||
| 60MT-HW1400 | 640 | 900 | 4:1 | 2way/1 speed | 3.35 | |||
| 60MT-HW1600 | 700 | 1080 | 4:1 | 2way/1 speed | 3.35 | |||
| 60MT-HW1800 | 800 | 1200 | 4:1/8:1 | 2way/2 speed | 4.15 | |||
| 60MT-HW2000 | 900 | 1350 | 4:1/8:1 | 2 way/2 speed | 4.25 | |||
| 60MT-HW2500 | 1100 | 1650 | 4:1/8:1 | 2 way/2 speed | 4.25 | |||
| 60MT-HW3000 | 1360 | 2040 | 4.4:1/9.3:1 | 2 way/2 speed | 7.2 | |||
| 60MT-HW3200 | 1455 | 2180 | 4.4:1/9.3:1 | 2 way/2 speed | 7.2 | |||
| 60MT-HW3500 | 1590 | 2385 | 4.4:1/9.3:1 | 2way/2 speed | 7.2 | |||
