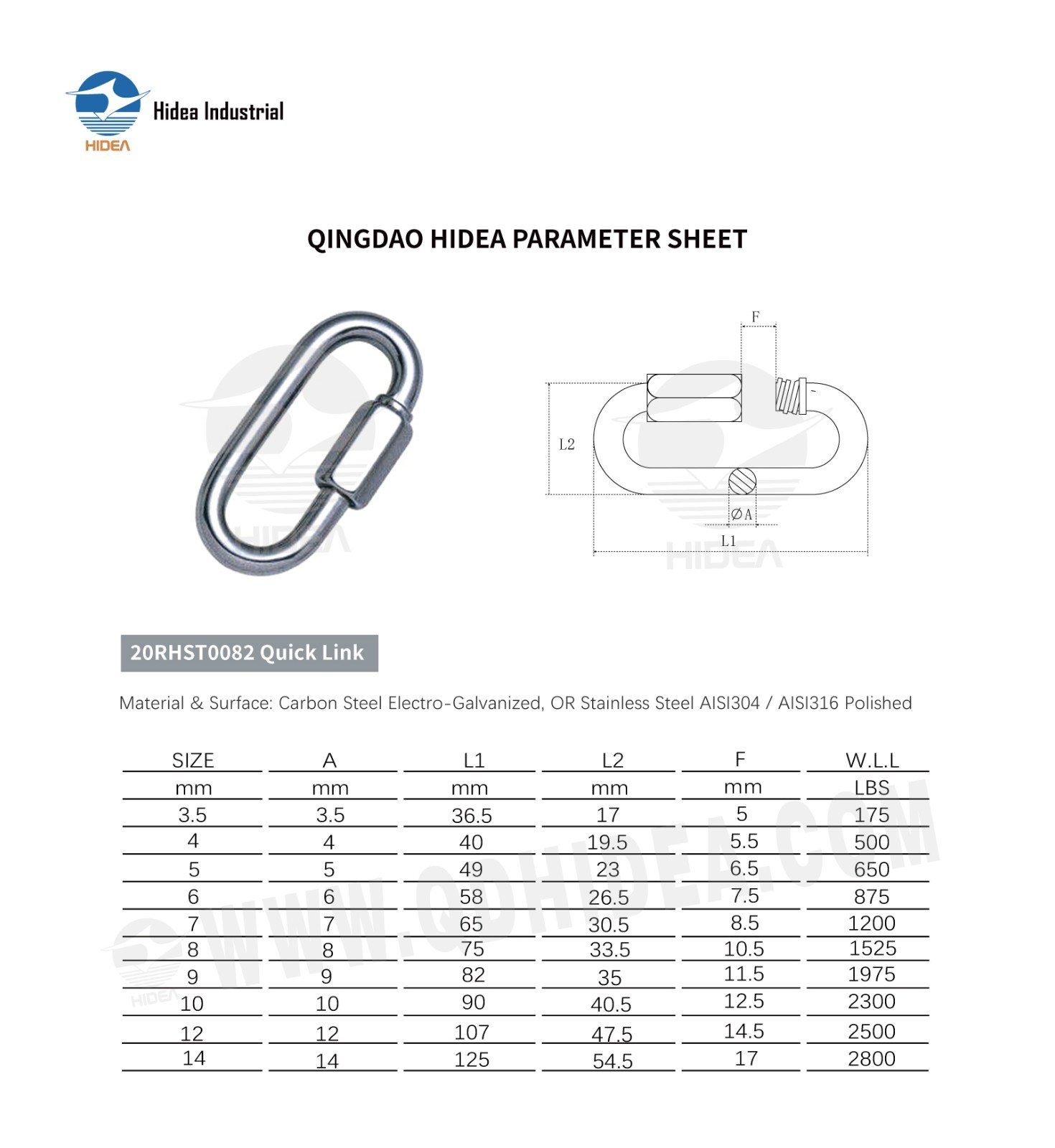

QINGDAO HIDEA PARAMETER SHEET FOR

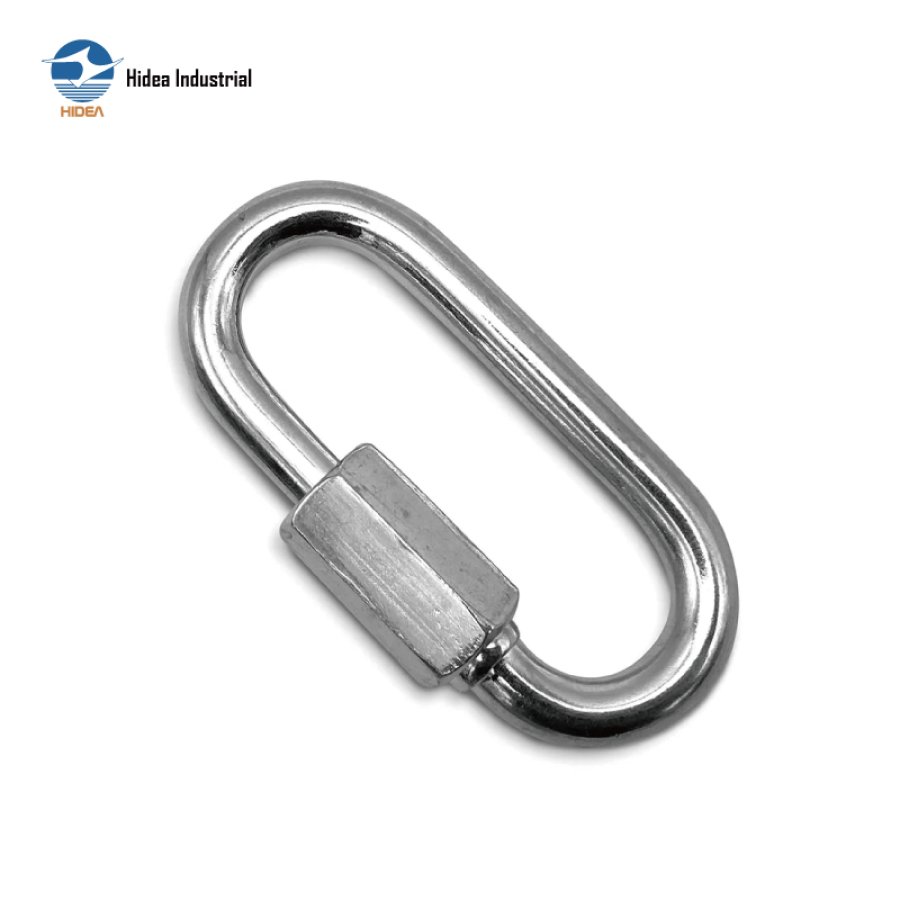

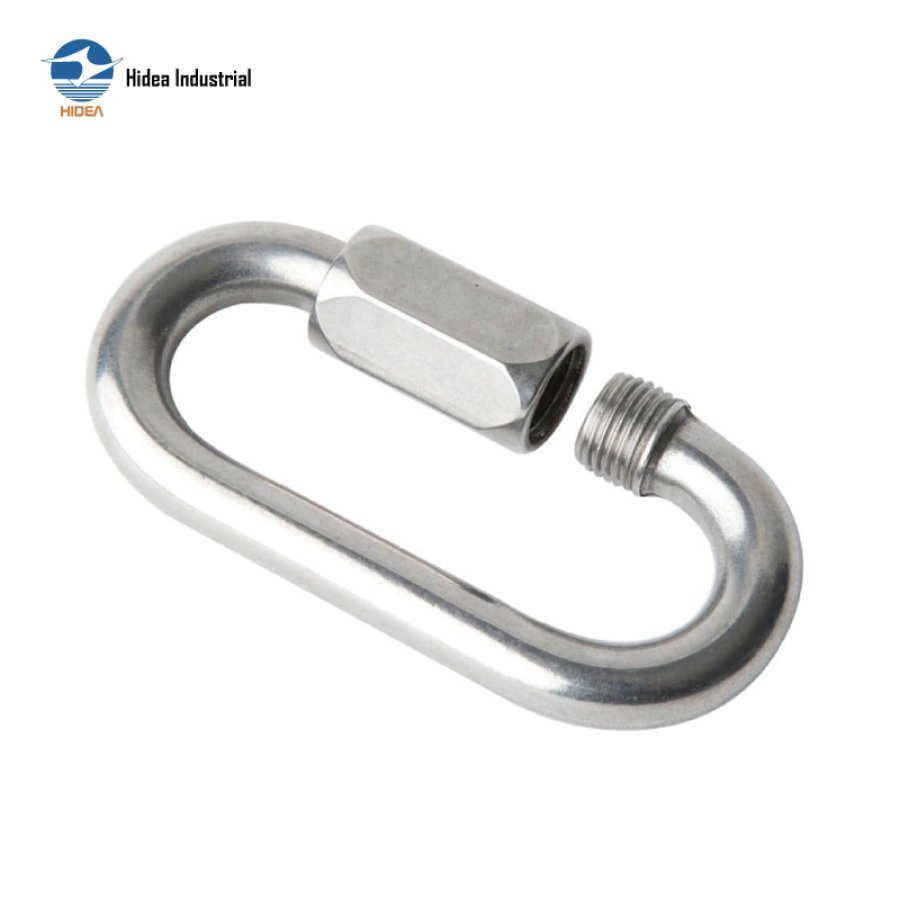

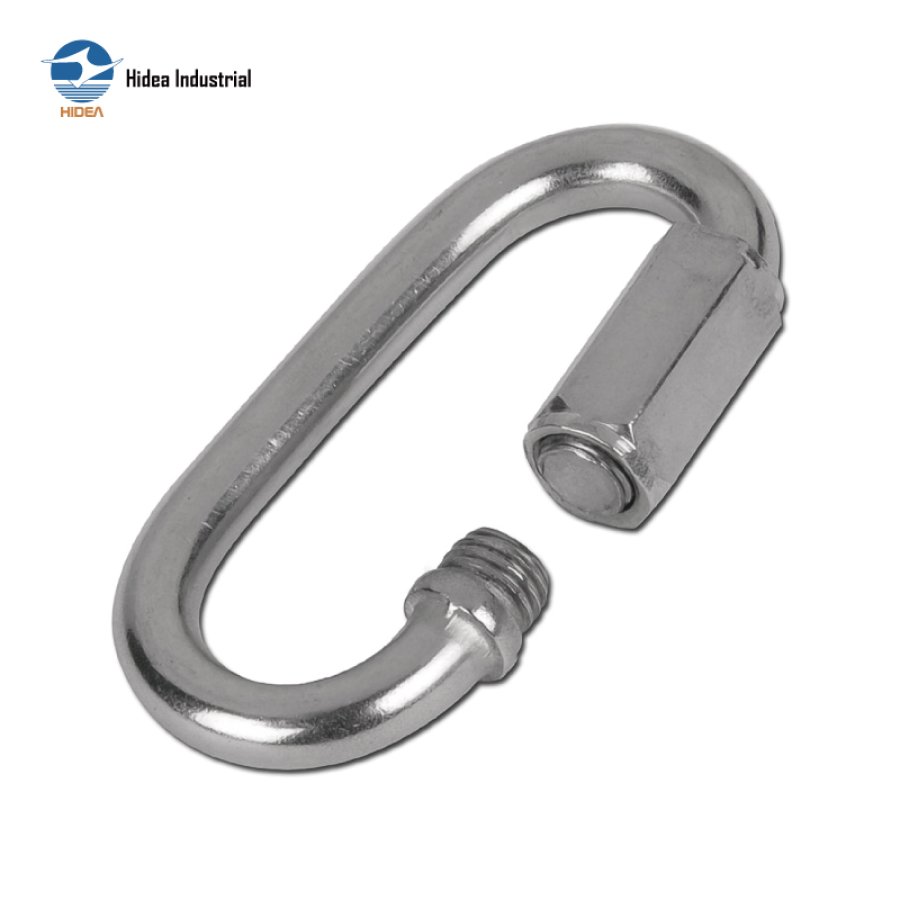

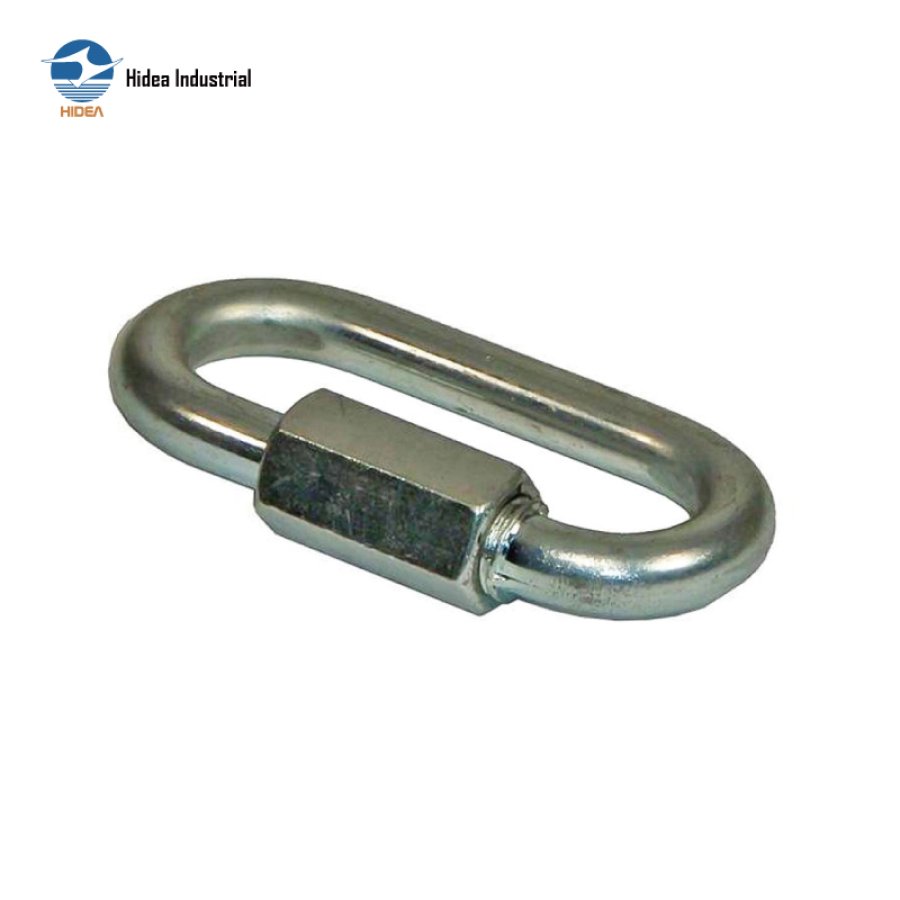

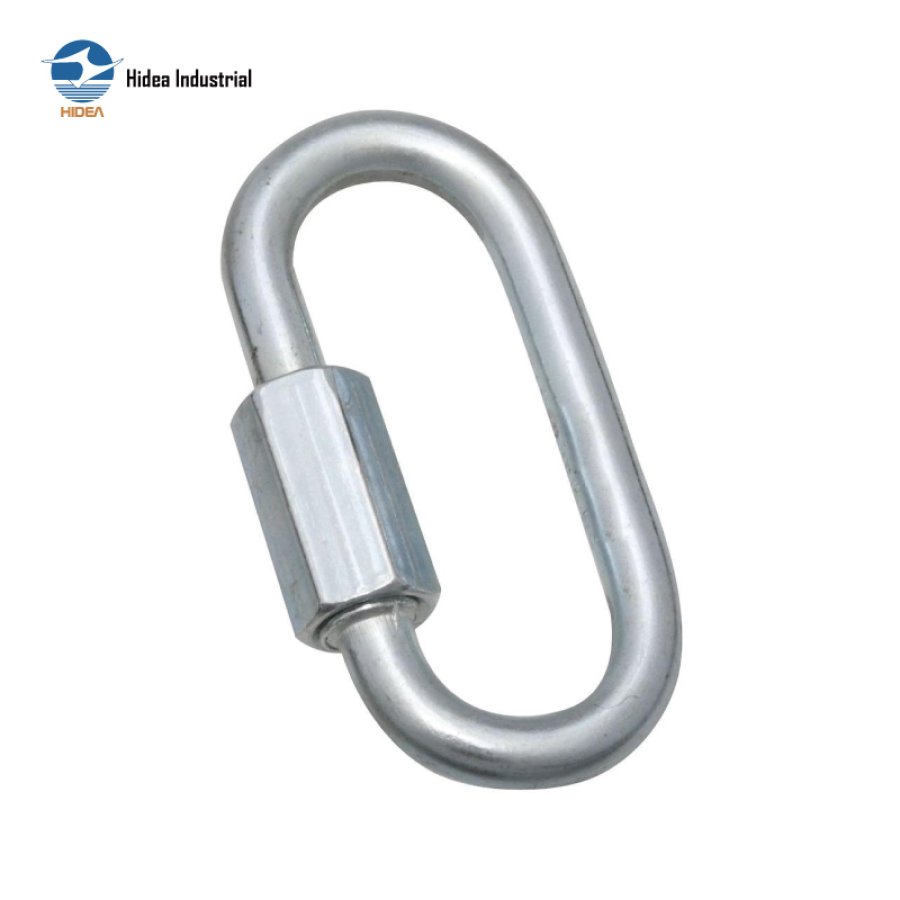

20RHST0082 Quick Link
| SIZE | A | L1 | L2 | F | W.L.L |
| mm | mm | mm | mm | mm | LBS |
| 3.5 | 3.5 | 36.5 | 17 | 5 | 175 |
| 4 | 4 | 40 | 19.5 | 5.5 | 500 |
| 5 | 5 | 49 | 23 | 6.5 | 650 |
| 6 | 6 | 58 | 26.5 | 7.5 | 875 |
| 7 | 7 | 65 | 30.5 | 8.5 | 1200 |
| 8 | 8 | 75 | 33.5 | 10.5 | 1525 |
| 9 | 9 | 82 | 35 | 11.5 | 1975 |
| 10 | 10 | 90 | 40.5 | 12.5 | 2300 |
| 12 | 12 | 107 | 47.5 | 14.5 | 2500 |
| 14 | 14 | 125 | 54.5 | 17 | 2800 |
