Reliable Lifting with Hidea G80 Eye Screws for Industrial Applications

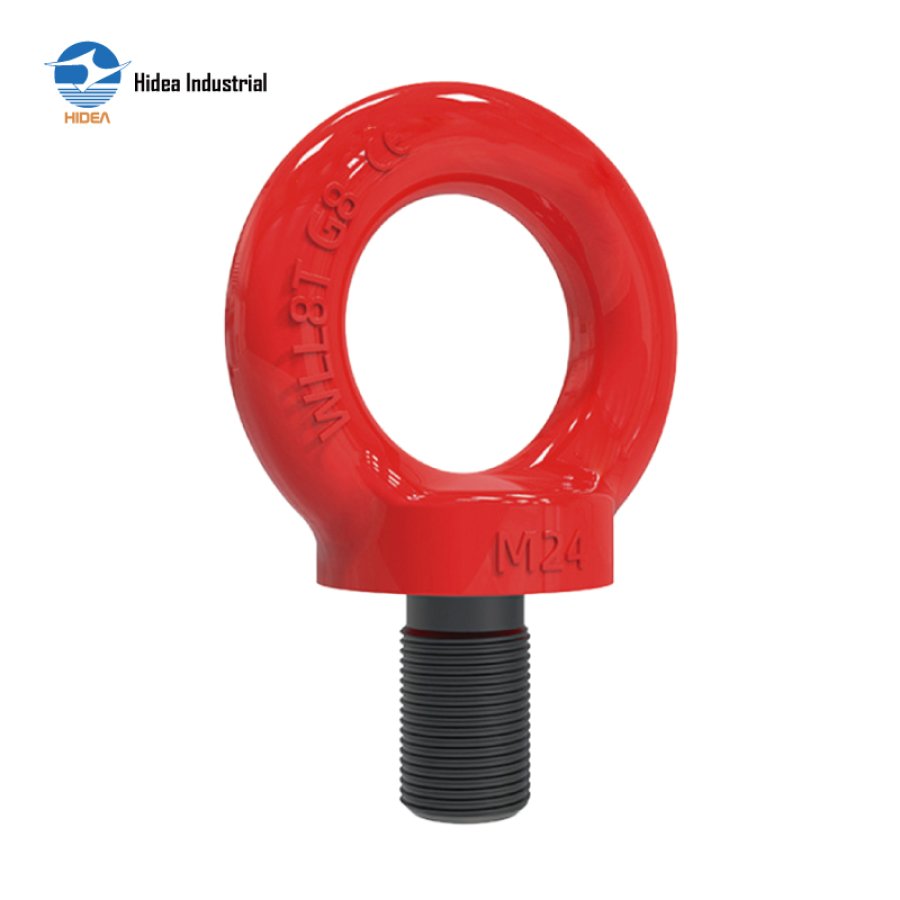

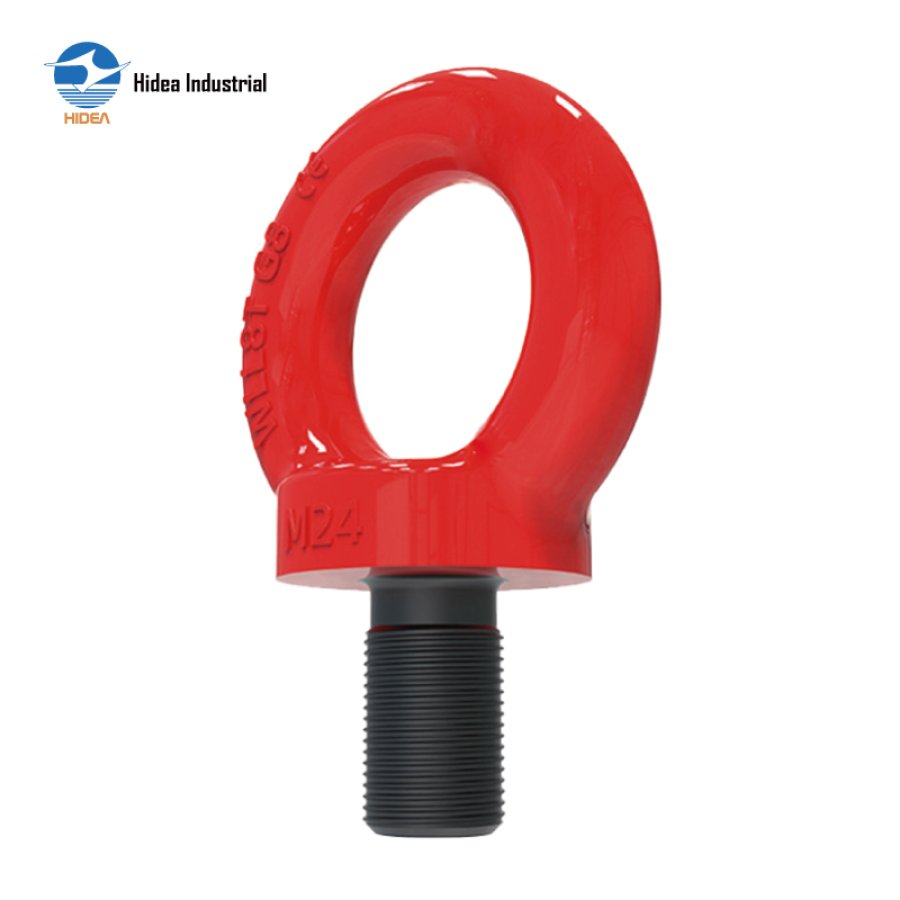

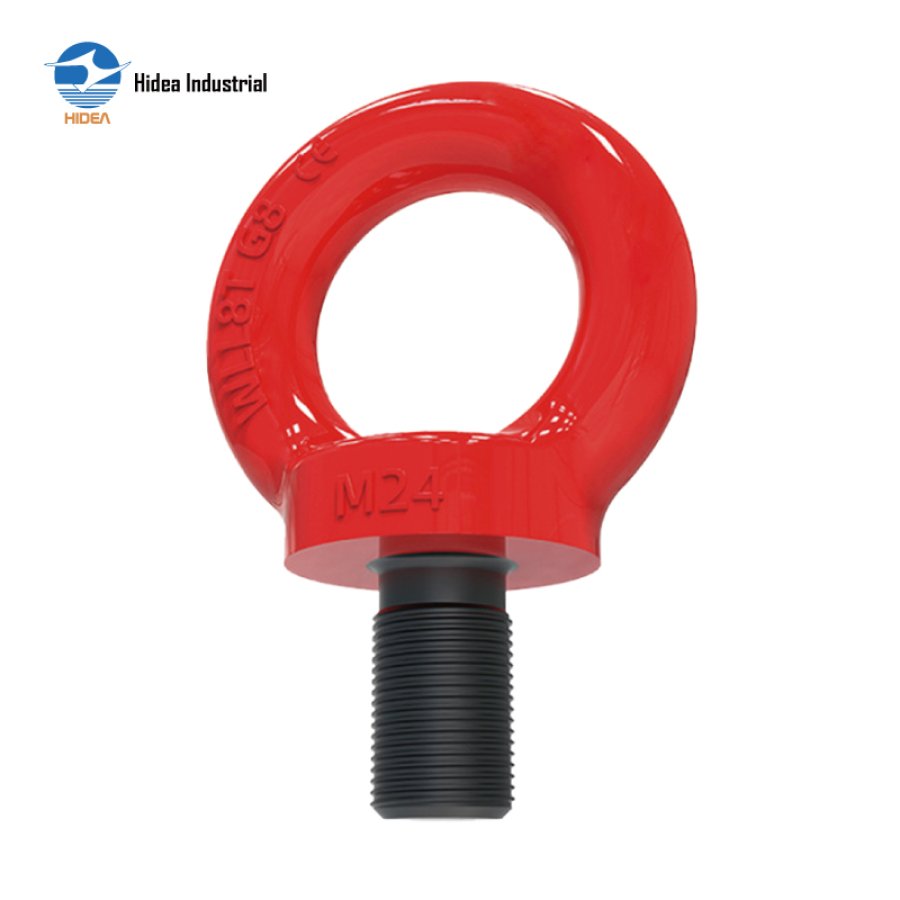

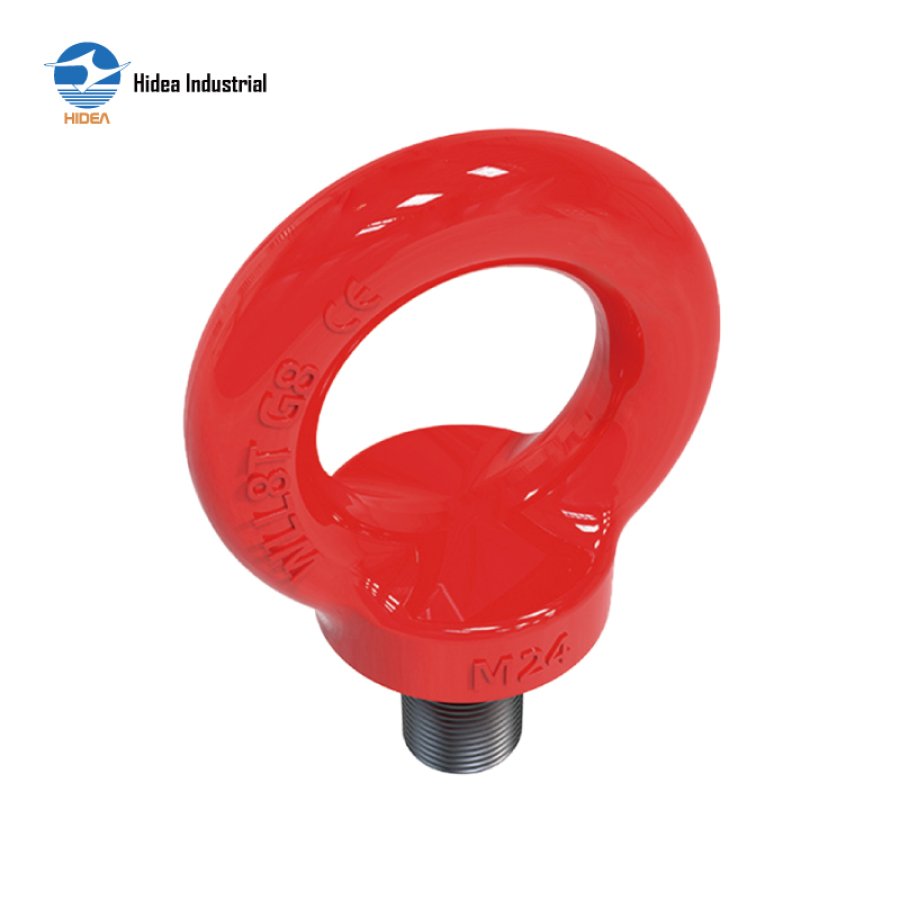

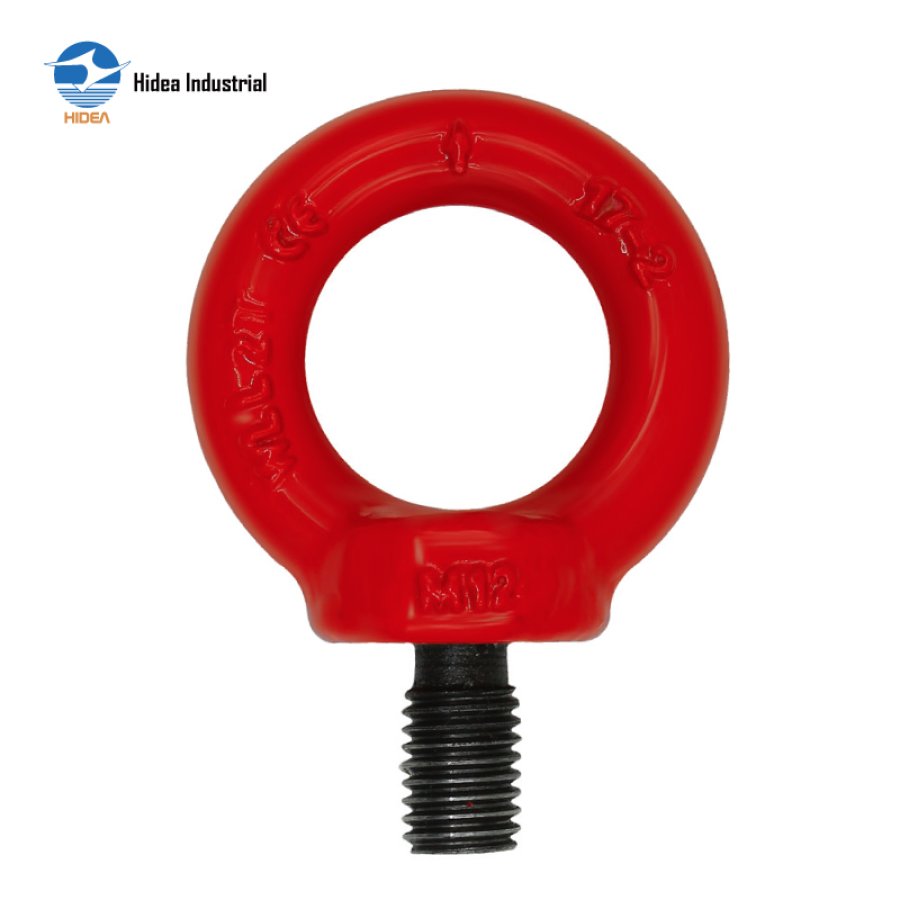

G80 EYE SCREW

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH450-G80 EYE SCREW

ITEM NO.	WEIGHT (kg)	WLL(T)		Torque (N.m)	D	K	Ф	L
ITEM NO.	WEIGHT (kg)	WLL0°	WLL90°	Torque (N.m)	D	K	Ф	L
20RH450-M6	0.05	0.4	0.15		28	13	16	42
20RH450-M8	0.06	0.8	0.4	10-15	36	15	20	51
20RH450-M10	0.11	1	0.4	10-15	45	18	25	63
20RH450-M12	0.18	2	0.75	10-15	54	22	30	75
20RH450-M14	0.28	3	1	20-30	63	28	35	89.5
20RH450-M16	0.29	4	1.5	20-30	63	28	35	90
20RH450-M18	0.42	5	2		72	30	40	101
20RH450-M20	0.45	6	2.3	50-70	72	30	40	101
20RH450-M22	0.67	7	2.8		81	34.5	45	115.5
20RH450-M24	0.87	8	3.2	130-160	90	38	50	128
20RH450-M27	0.88	10	4	180-220	90	38	60	128
20RH450-M30	1.66	12	4.5	200-250	108	45	60	154
20RH450-M33	1.72	14	5	250-270	108	45	60	154
20RH450-M36	2.65	16	7	280-400	126	55	70	183
20RH450-M39	2.80	20	8	280-400	126	55	70	183
20RH450-M42	4.03	24	9	500-600	144	65	80	212
20RH450-M45	4.25	28	10	500-600	144	65	80	212
20RH450-M48	6.38	32	12	500-650	166	70	90	238
20RH450-M52	6.60	36	13.5		166.5	70	90	238
20RH450-M56	8.80	40	15	600-900	184	80	100	267
20RH450-M64	12.40	50	17	600-900	206	90	110	293
