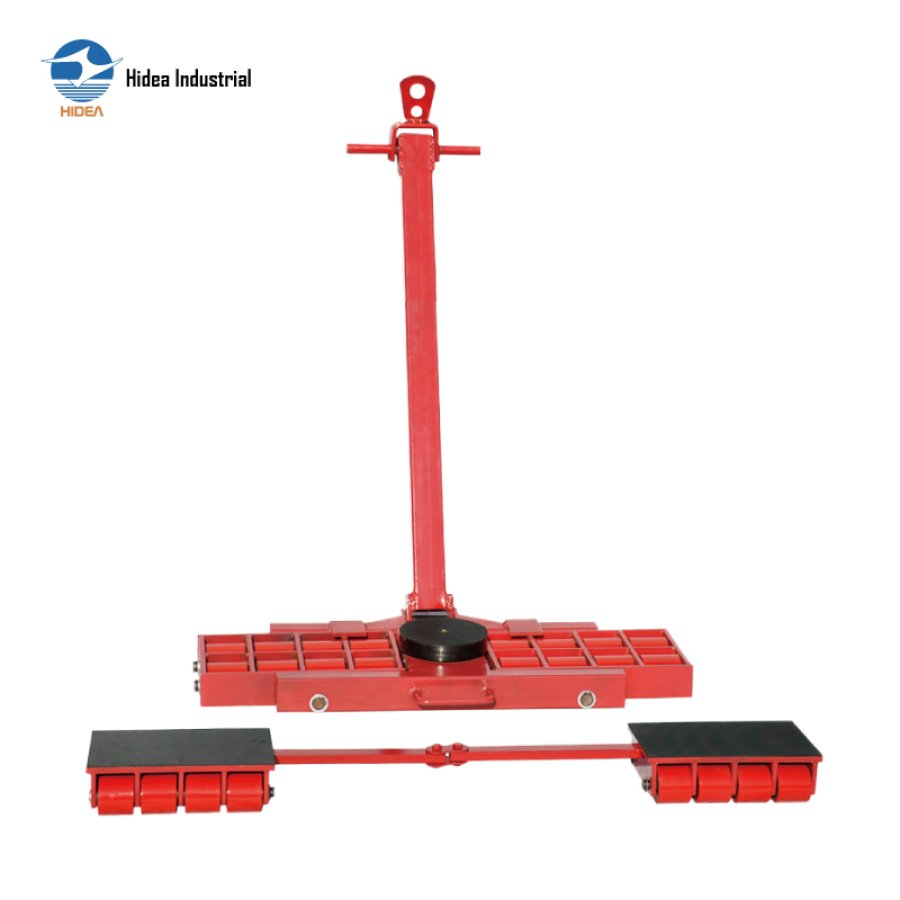

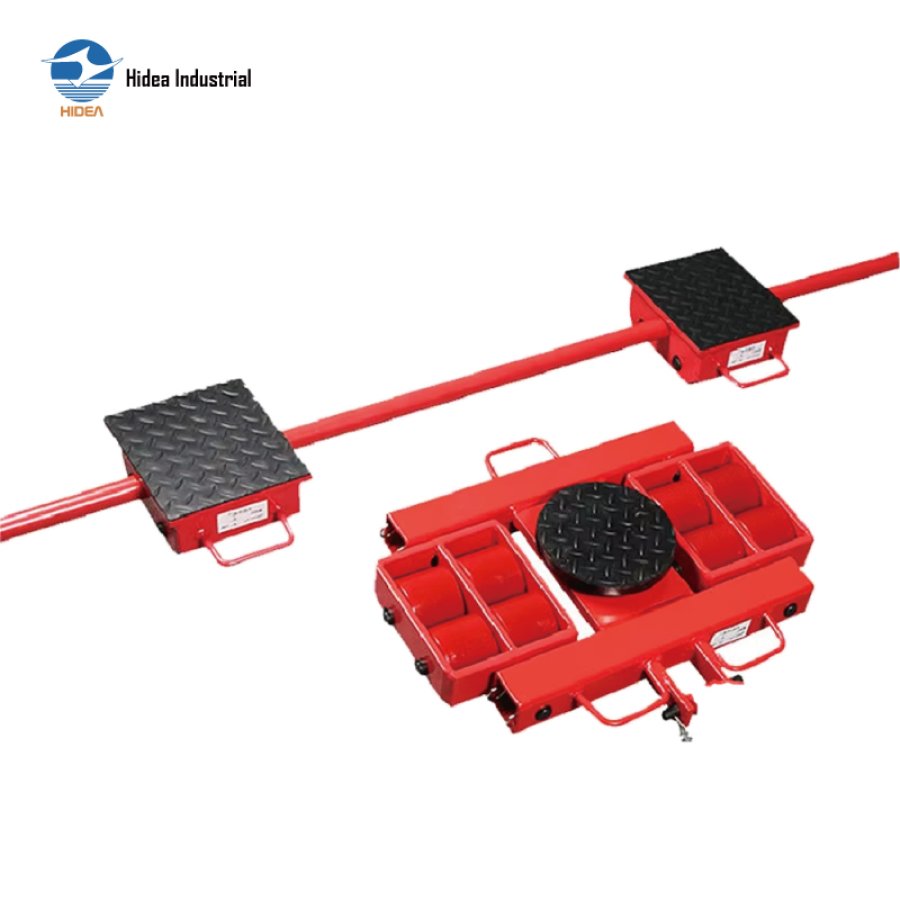

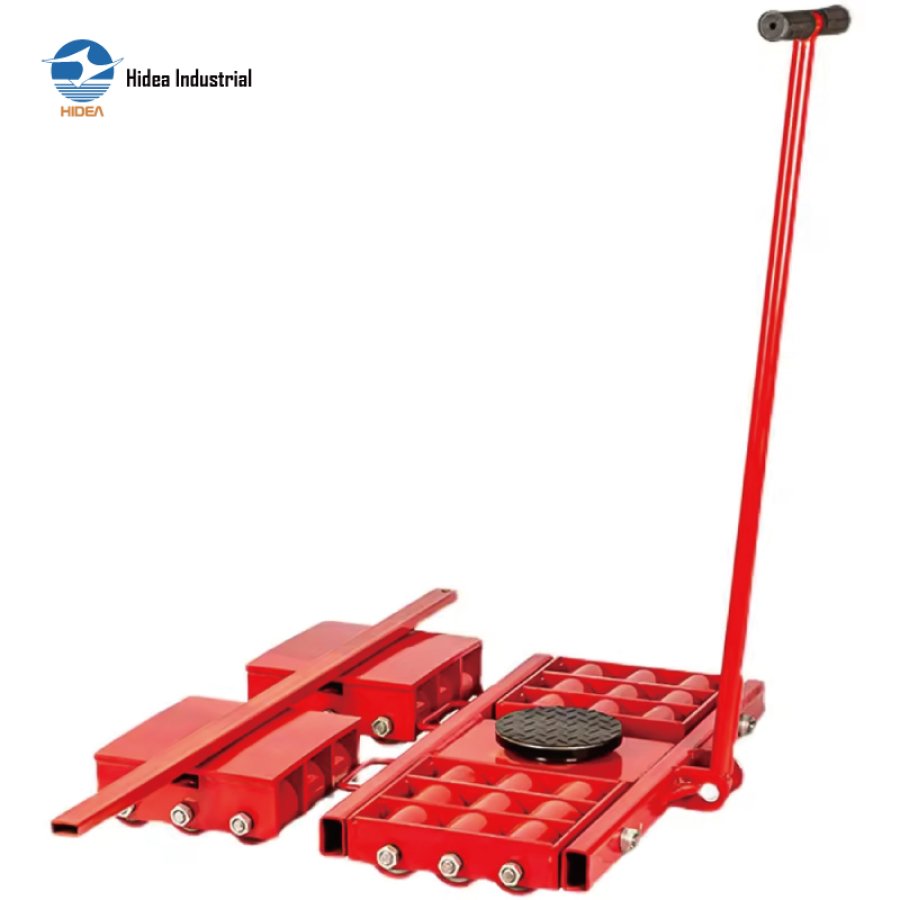

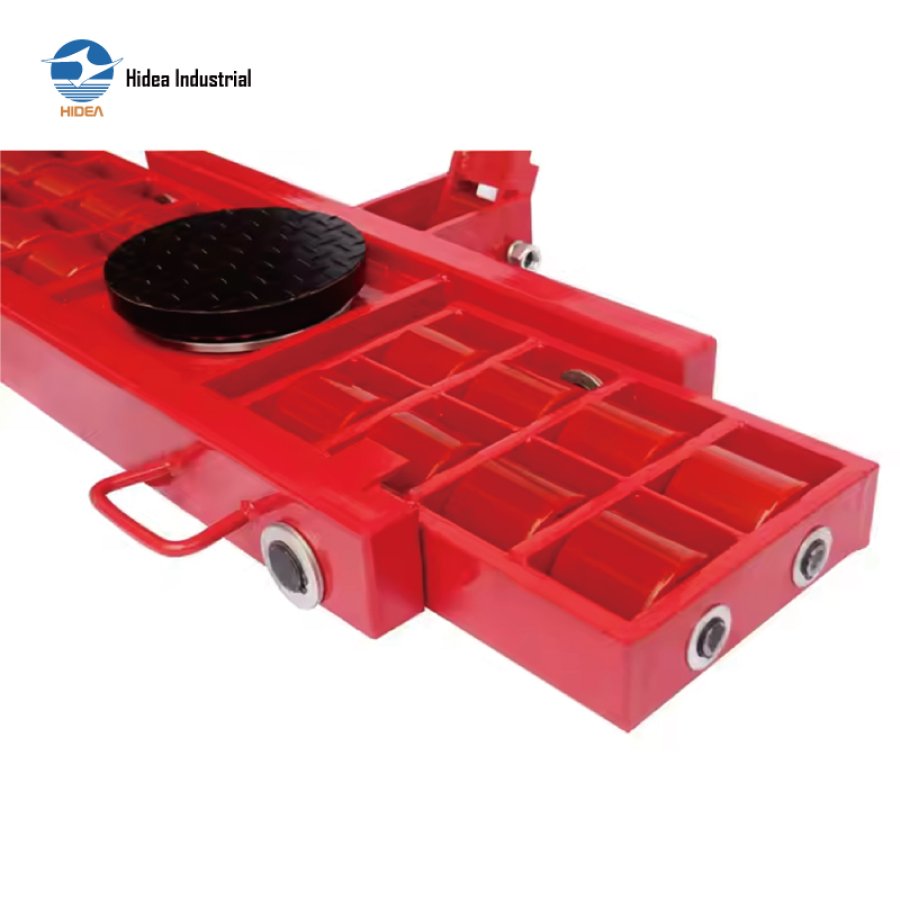

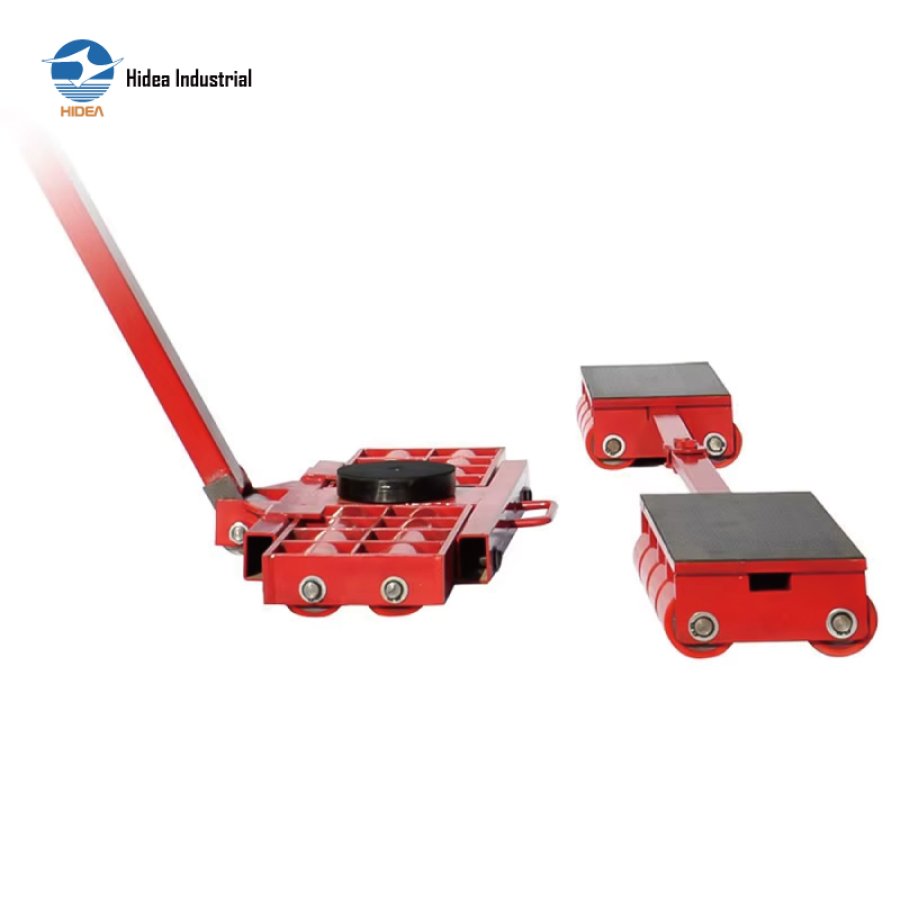

The X+Y combined floor tanks, with the front X hauling part tank, it can provide automatic adjustment and keep balance of loads on uneven grounds
The rear part of the tanks can be positioned with a flexible distance from the front, and the 2 tank units width of rear part Y can be adjusted, so as to adapt to the size of the load
The hauling handles are flexible and user friendly for gripping and load hauling for easier and smooth movement
The X+Y combination of floor tanks can transport much heavier loads, with free and flexible combinations of X4 + Y4 to X32 + Y32 tank wheels, usually the X & Y part equipped with the same quantity of wheels

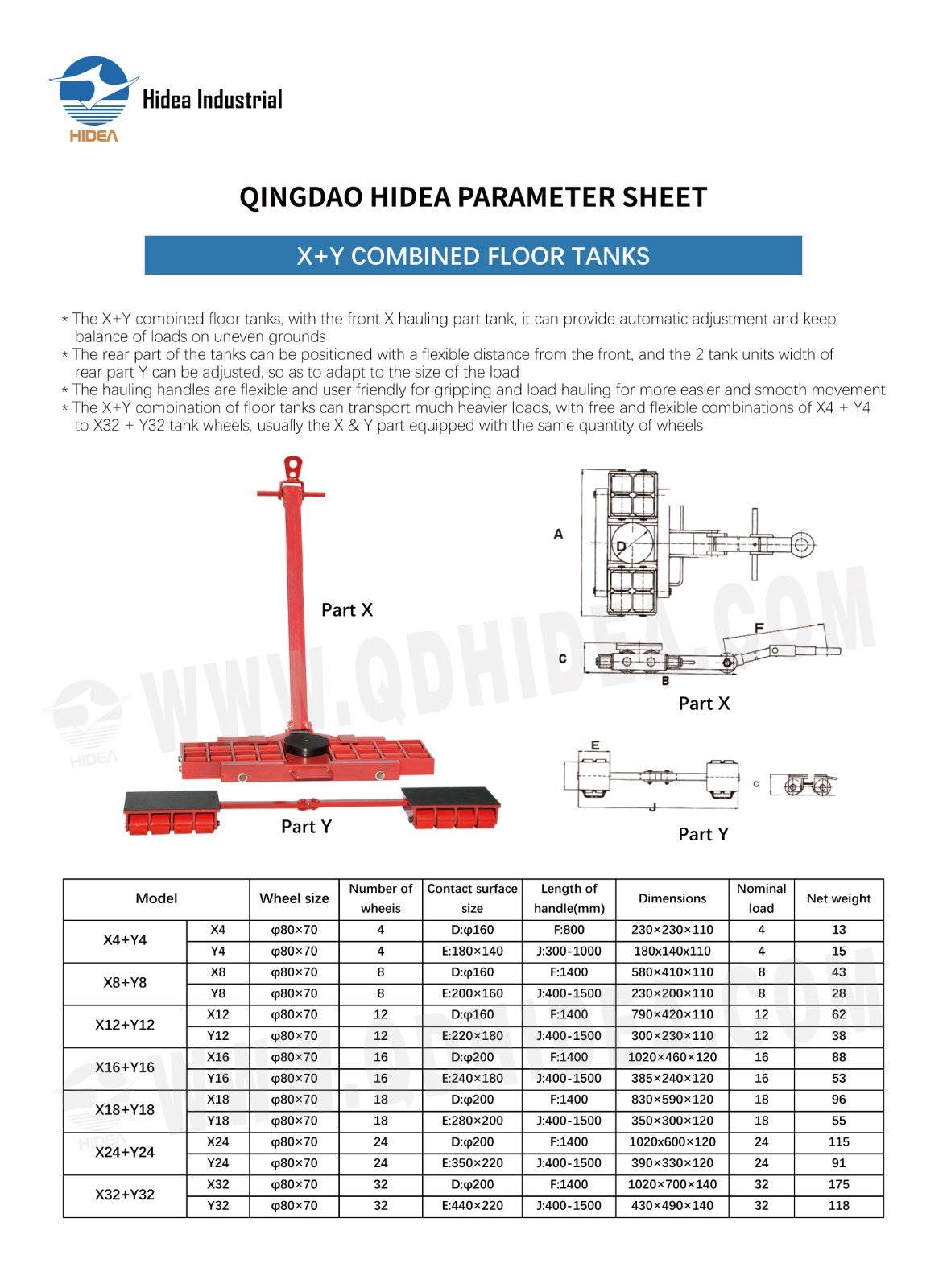

QINGDAO HIDEA PARAMETER SHEET FOR
X+Y COMBINED FLOOR TANKS
| Model | Wheel size | Number of wheeis | Contact surface size | Length of handle(mm) | Dimensions | Nominal load | Net weight | |||
| X4+Y4 | X4 | φ80×70 | 4 | D:φ160 | F:800 | 230×230×110 | 4 | 13 | ||
| Y4 | φ80×70 | 4 | E:180×140 | J:300-1000 | 180x140x110 | 4 | 15 | |||
| X8+Y8 | X8 | φ80×70 | 8 | D:φ160 | F:1400 | 580×410×110 | 8 | 43 | ||
| Y8 | φ80×70 | 8 | E:200×160 | J:400-1500 | 230×200×110 | 8 | 28 | |||
| X12+Y12 | X12 | φ80×70 | 12 | D:φ160 | F:1400 | 790×420×110 | 12 | 62 | ||
| Y12 | φ80×70 | 12 | E:220×180 | J:400-1500 | 300×230×110 | 12 | 38 | |||
| X16+Y16 | X16 | φ80×70 | 16 | D:φ200 | F:1400 | 1020×460×120 | 16 | 88 | ||
| Y16 | φ80×70 | 16 | E:240×180 | J:400-1500 | 385×240×120 | 16 | 53 | |||
| X18+Y18 | X18 | φ80×70 | 18 | D:φ200 | F:1400 | 830×590×120 | 18 | 96 | ||
| Y18 | φ80×70 | 18 | E:280×200 | J:400-1500 | 350×300×120 | 18 | 55 | |||
| X24+Y24 | X24 | φ80×70 | 24 | D:φ200 | F:1400 | 1020x600×120 | 24 | 115 | ||
| Y24 | φ80×70 | 24 | E:350×220 | J:400-1500 | 390×330×120 | 24 | 91 | |||
| X32+Y32 | X32 | φ80×70 | 32 | D:φ200 | F:1400 | 1020×700×140 | 32 | 175 | ||
| Y32 | φ80×70 | 32 | E:440×220 | J:400-1500 | 430×490×140 | 32 | 118 | |||
