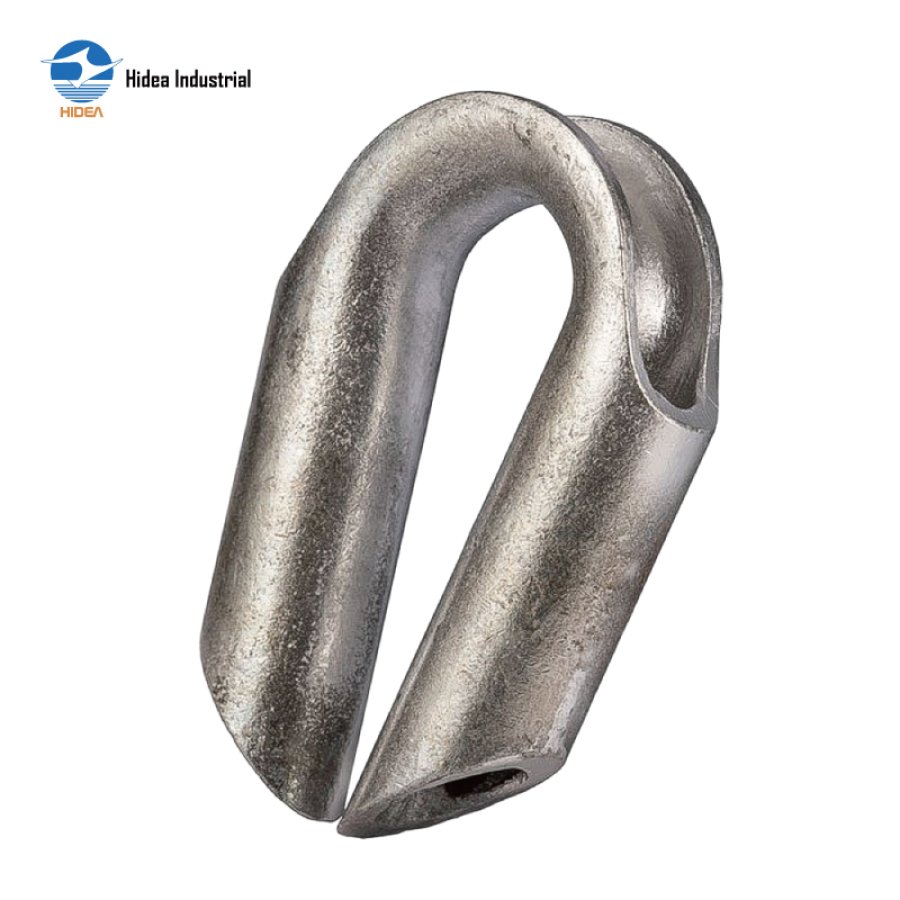

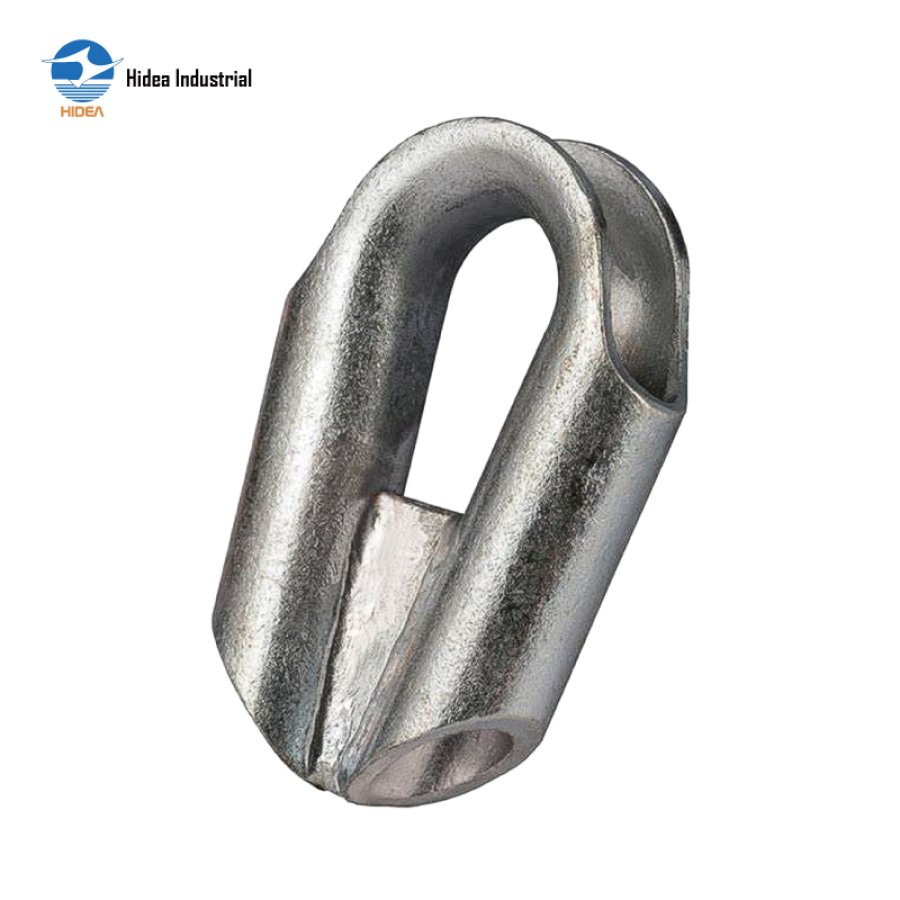

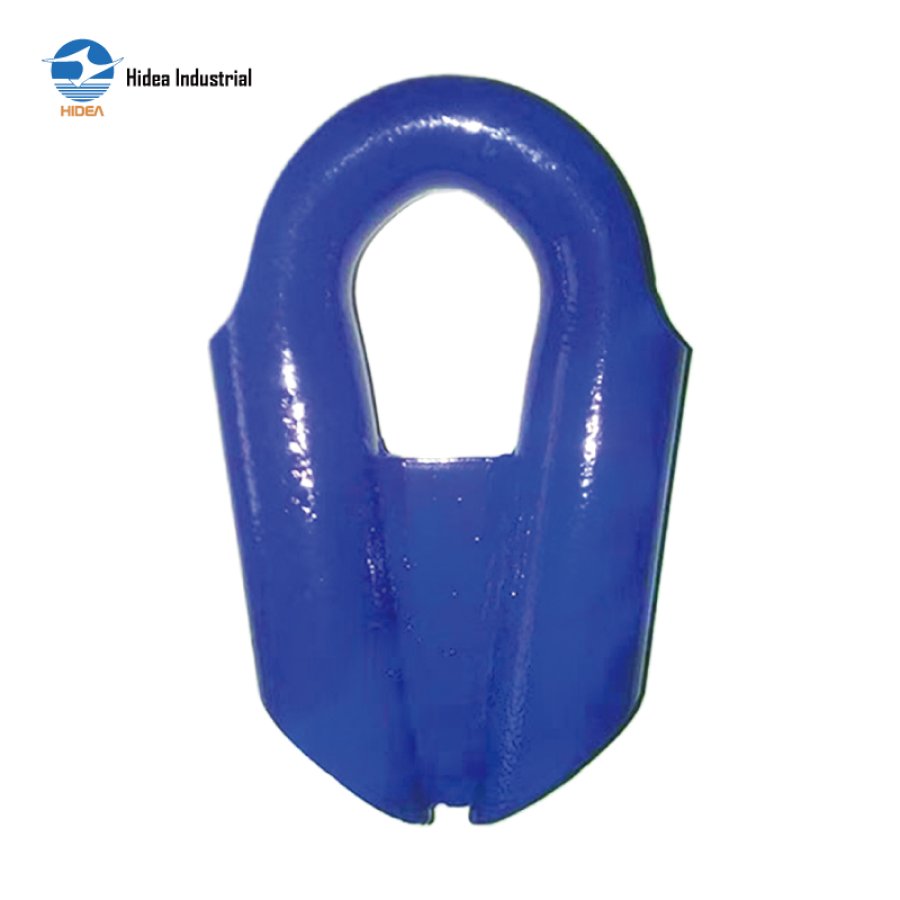

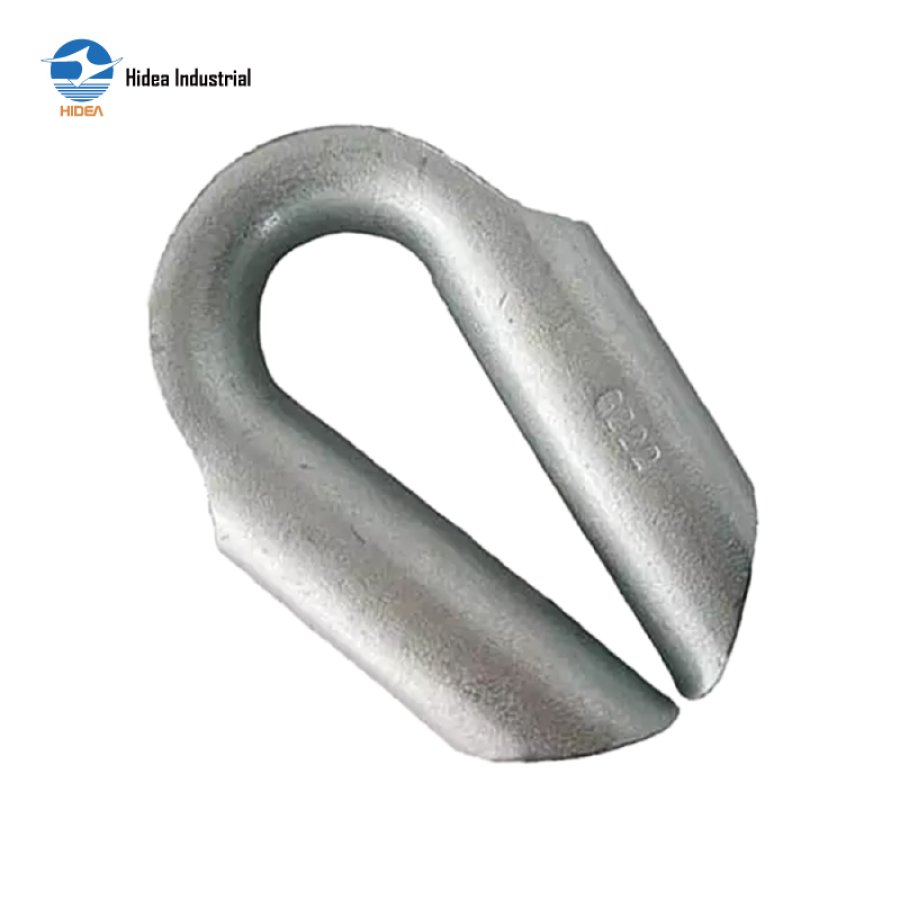

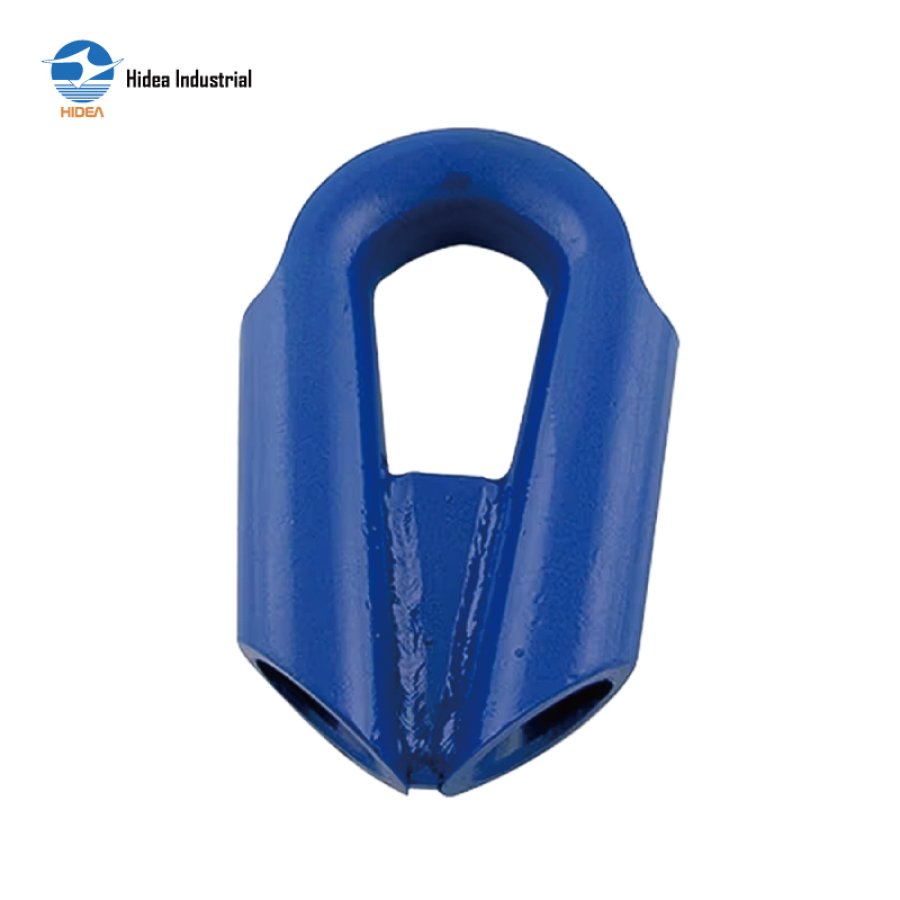

HIDEA Tilt Type Tube Thimble with Gusset: Stronger & Better Protection for Wire Rope

TUBE TUBULAR THIMBLE WITH GUSSET TILT

Material Seamless Mild Steel Tube
Stamped & Bent to shape, Machined & polished
Surface powder coated OR painted blue, black etc., OR Hot Dip Galv., Electro Galv. Or as requested
Temperature range -20°C up to +200°C
Tubular Thimble with Gusset / Stub Tilt mouths

Inquire Now

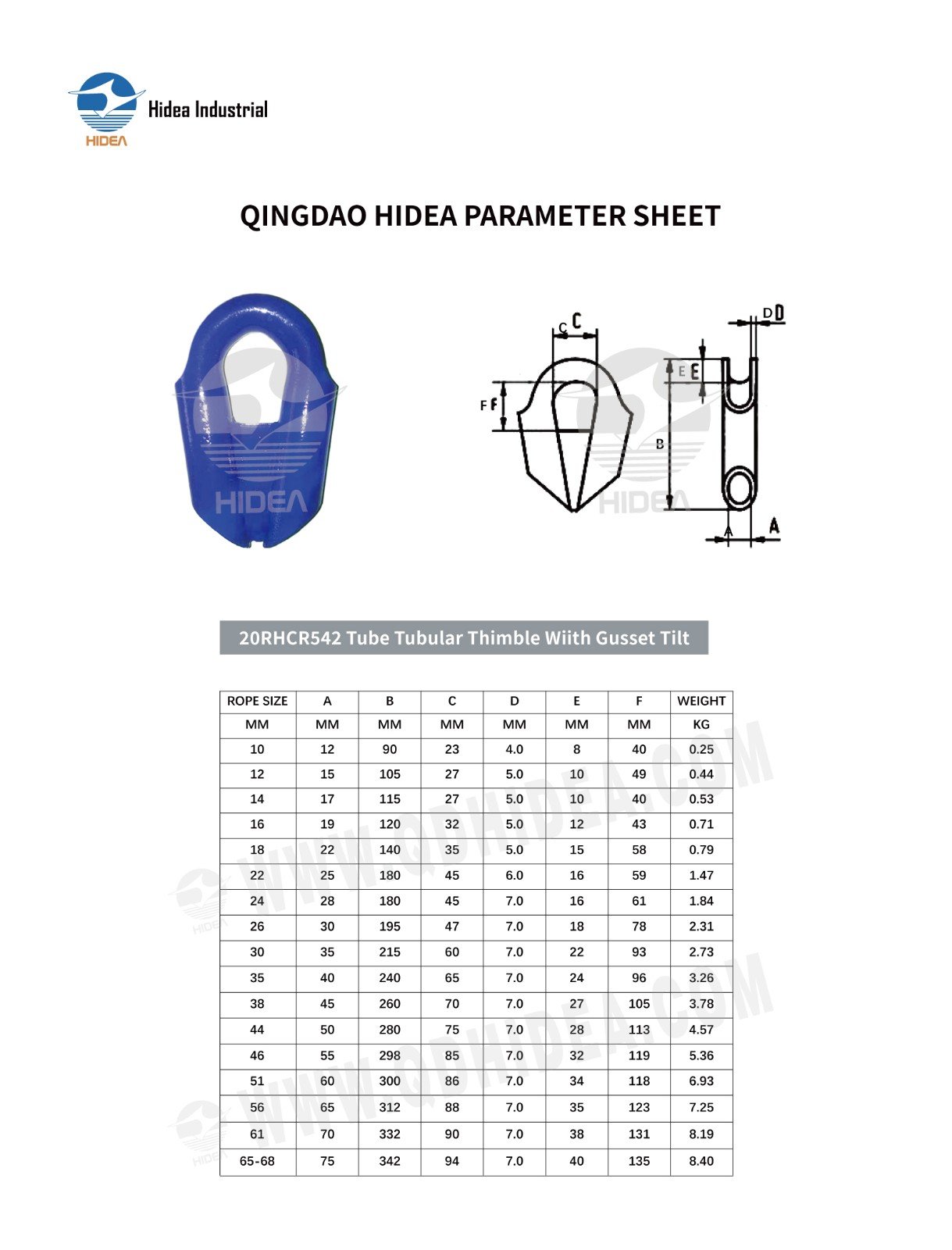

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR542 Tube Tublar Thimble Wiith Gusset Tilt

ROPE SIZE	A	B	C	D	E	F	WEIGHT
MM	MM	MM	MM	MM	MM	MM	KG
10	12	90	23	4.0	8	40	0.25
12	15	105	27	5.0	10	49	0.44
14	17	115	27	5.0	10	40	0.53
16	19	120	32	5.0	12	43	0.71
18	22	140	35	5.0	15	58	0.79
22	25	180	45	6.0	16	59	1.47
24	28	180	45	7.0	16	61	1.84
26	30	195	47	7.0	18	78	2.31
30	35	215	60	7.0	22	93	2.73
35	40	240	65	7.0	24	96	3.26
38	45	260	70	7.0	27	105	3.78
44	50	280	75	7.0	28	113	4.57
46	55	298	85	7.0	32	119	536
51	60	300	86	7.0	34	118	6.93
56	65	312	88	7.0	35	123	7.25
61	70	332	90	7.0	38	131	8.19
65-68	75	342	94	7.0	40	135	8.40
