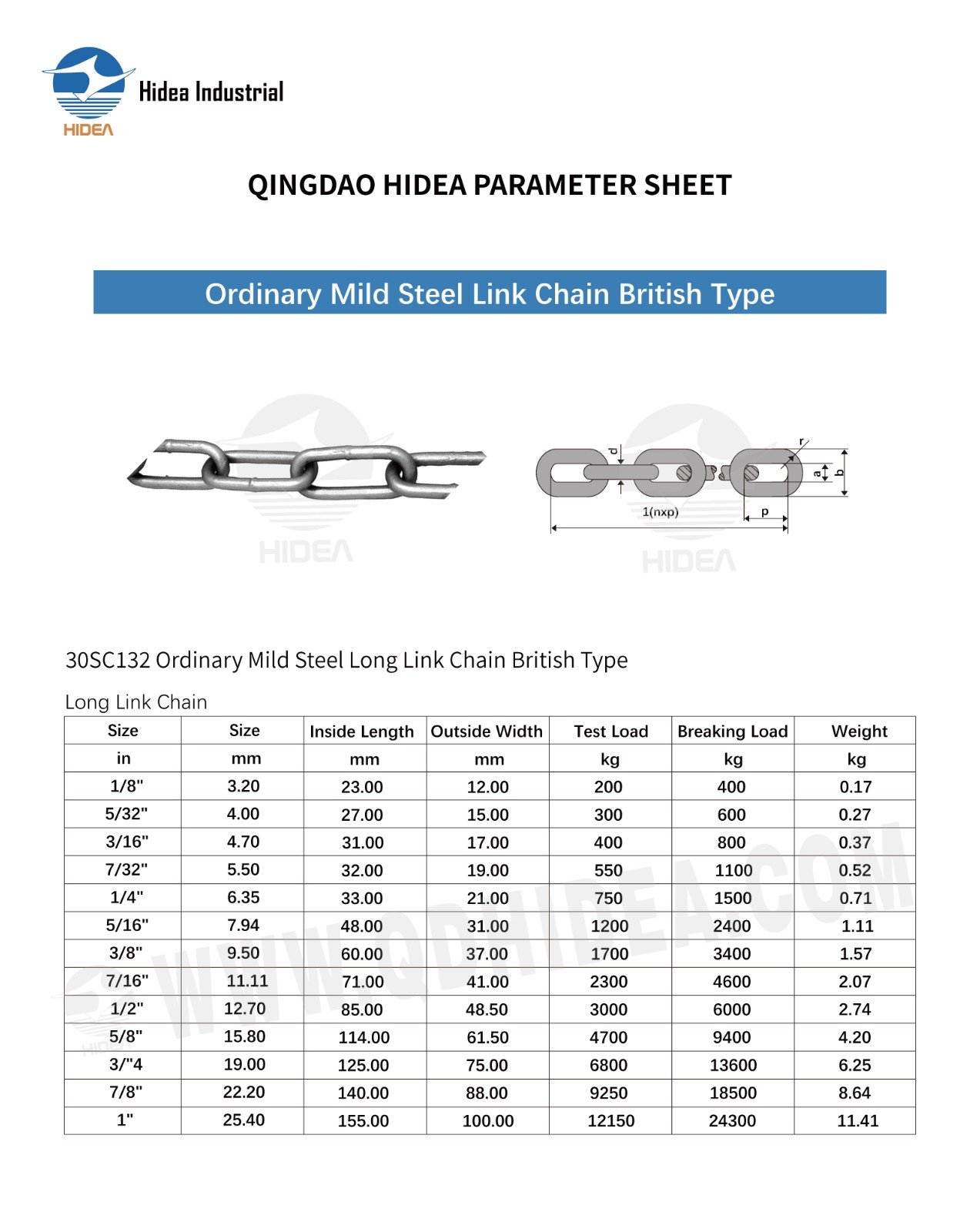

QINGDAO HIDEA PARAMETER SHEET FOR

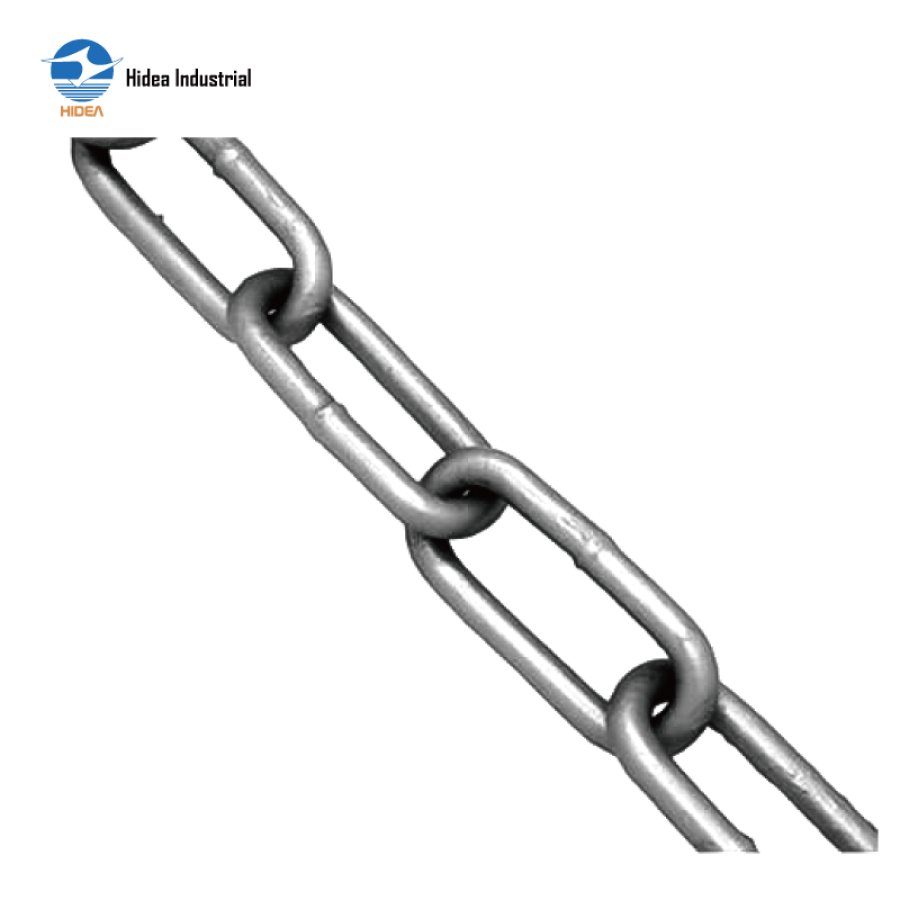

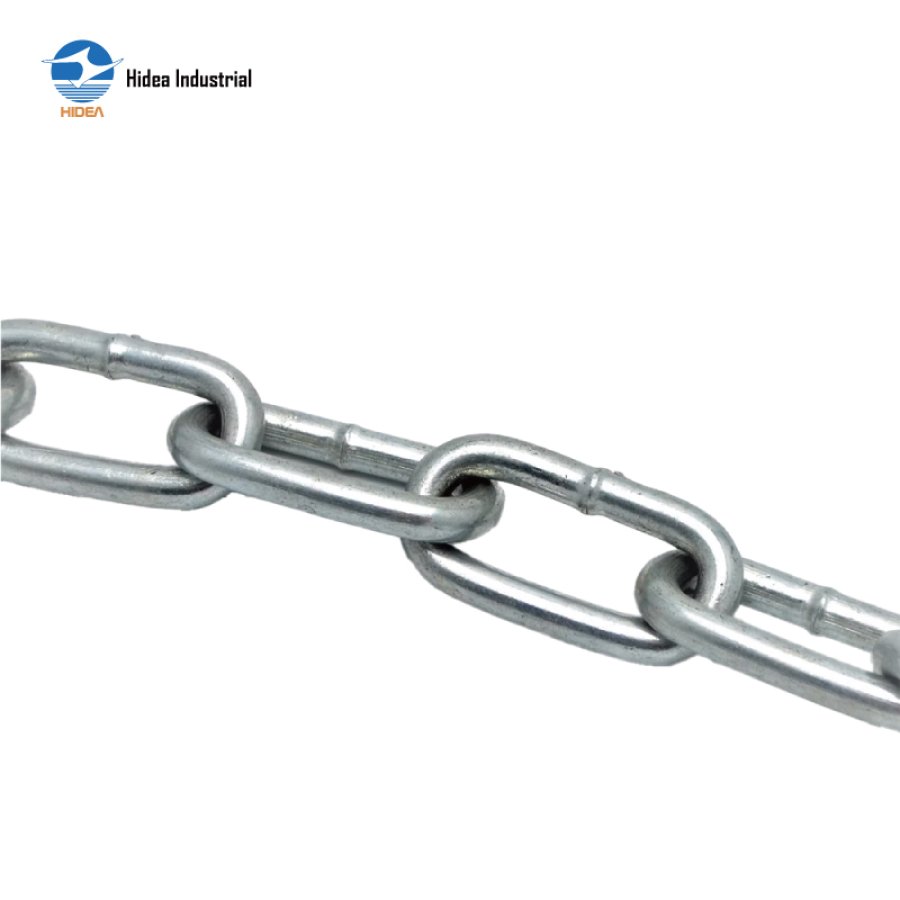

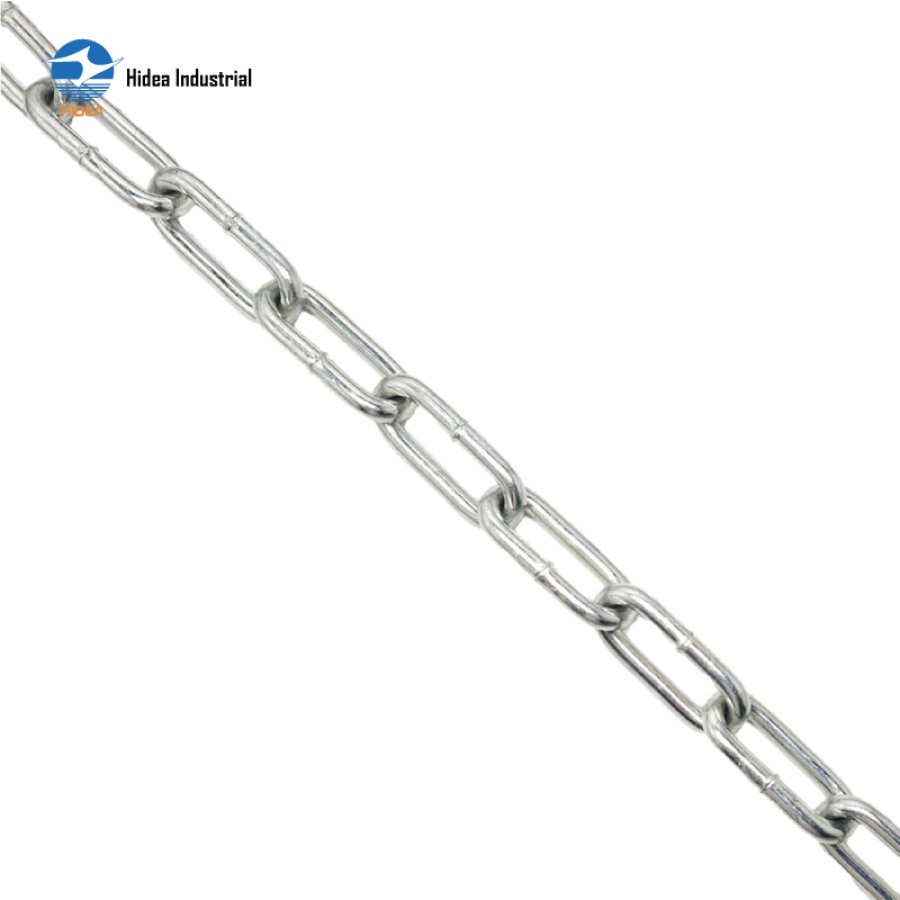

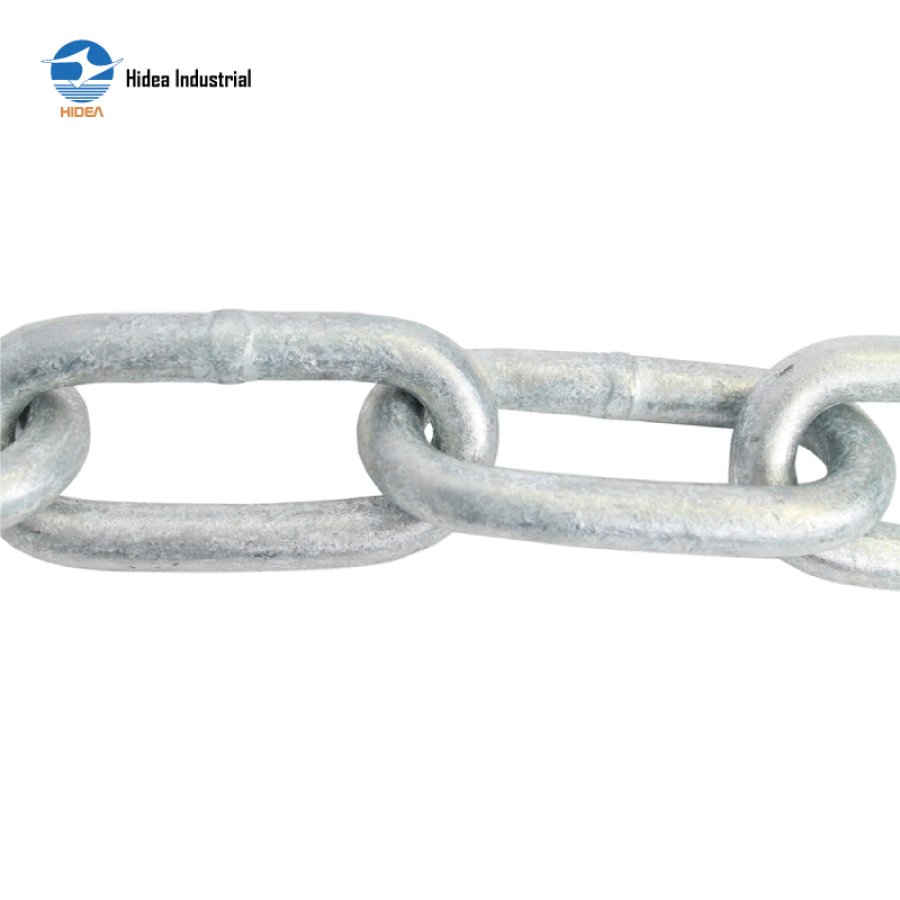

30SC132 Ordinary Mild Steel Long Link Chain British Type
| Size | Size | Inside Length | Outside Width | Test Load | Breaking Load | Weight | ||
| in | mm | mm | mm | kg | kg | kg | ||
| 1/8" | 3.20 | 23.00 | 12.00 | 200 | 400 | 0.17 | ||
| 5/32" | 4.00 | 27.00 | 15.00 | 300 | 600 | 0.27 | ||
| 3/16" | 4.70 | 31.00 | 17.00 | 400 | 800 | 0.37 | ||
| 7/32" | 5.50 | 32.00 | 19.00 | 550 | 1100 | 0.52 | ||
| 1/4" | 6.35 | 33.00 | 21.00 | 750 | 1500 | 0.71 | ||
| 5/16" | 7.94 | 48.00 | 31.00 | 1200 | 2400 | 1.11 | ||
| 3/8" | 9.50 | 60.00 | 37.00 | 1700 | 3400 | 1.57 | ||
| 7/16" | 11.11 | 71.00 | 41.00 | 2300 | 4600 | 2.07 | ||
| 1/2" | 12.70 | 85.00 | 48.50 | 3000 | 6000 | 2.74 | ||
| 5/8" | 15.80 | 114.00 | 61.50 | 4700 | 9400 | 4.20 | ||
| 3/"4 | 19.00 | 125.00 | 75.00 | 6800 | 13600 | 6.25 | ||
| 7/8" | 22.20 | 140.00 | 88.00 | 9250 | 18500 | 8.64 | ||
| 1" | 25.40 | 155.00 | 100.00 | 12150 | 24300 | 11.41 | ||
