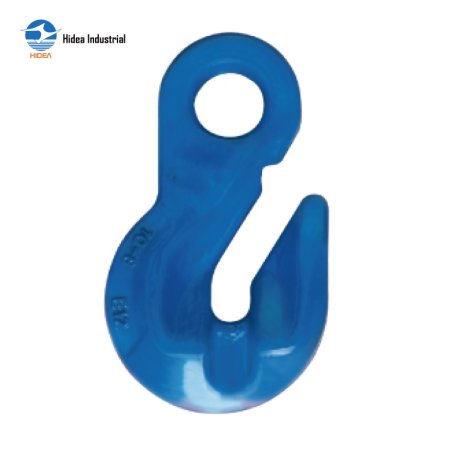

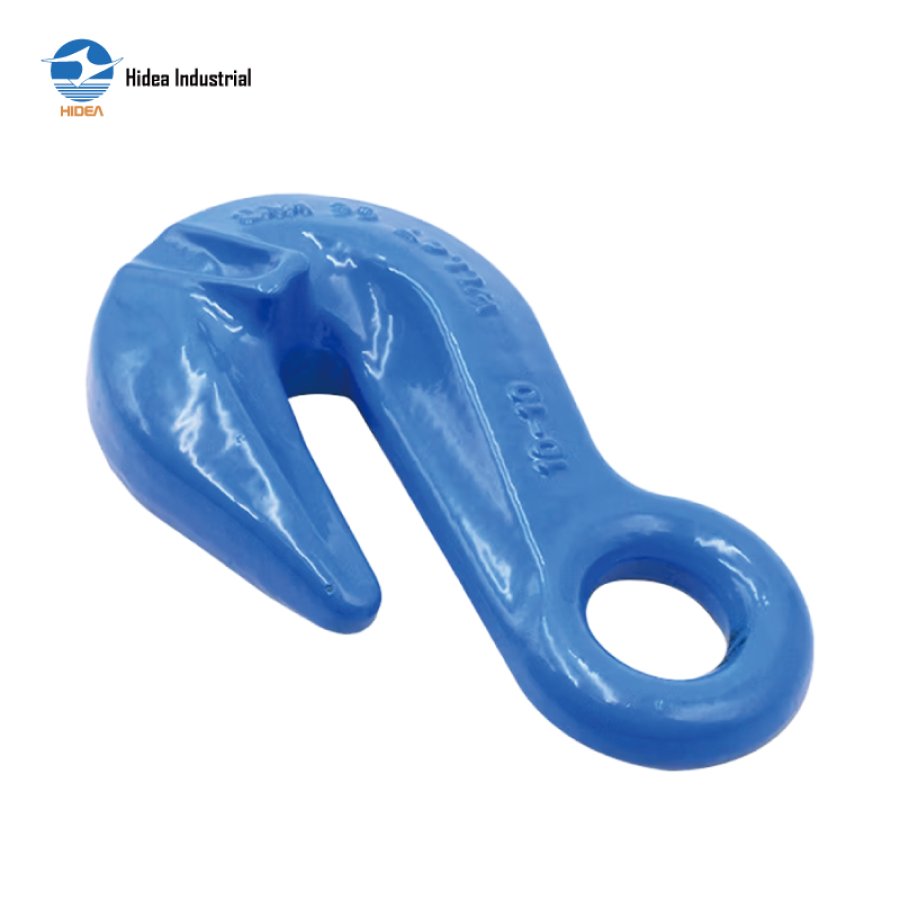

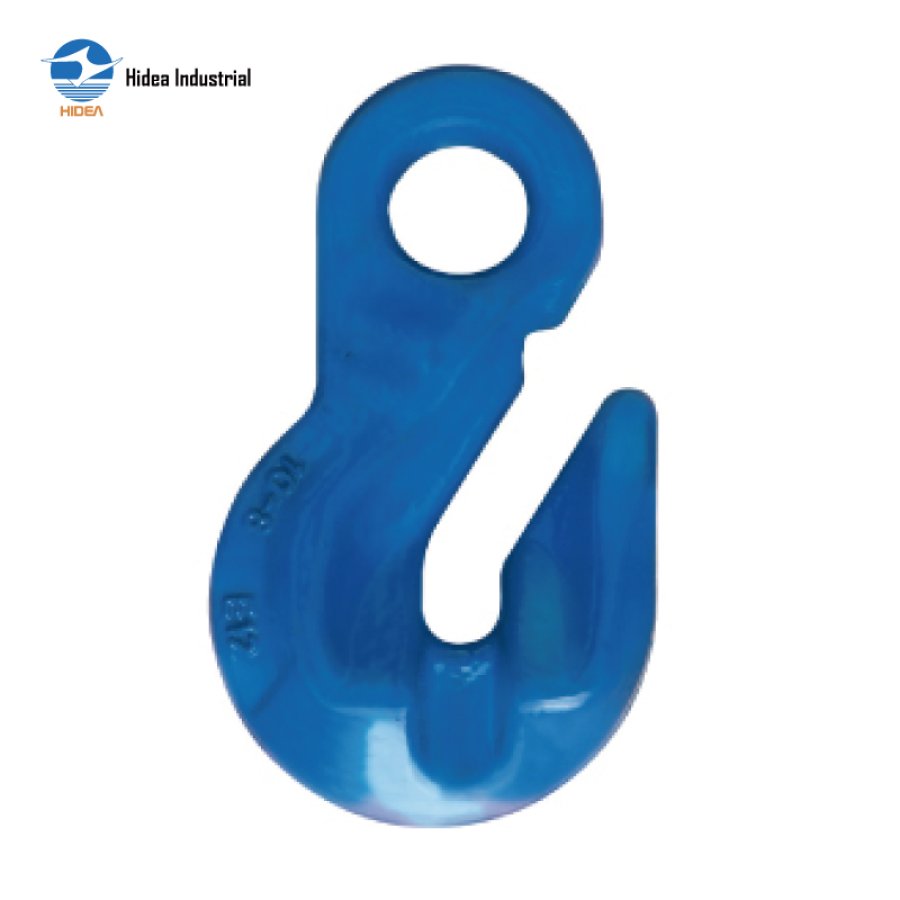

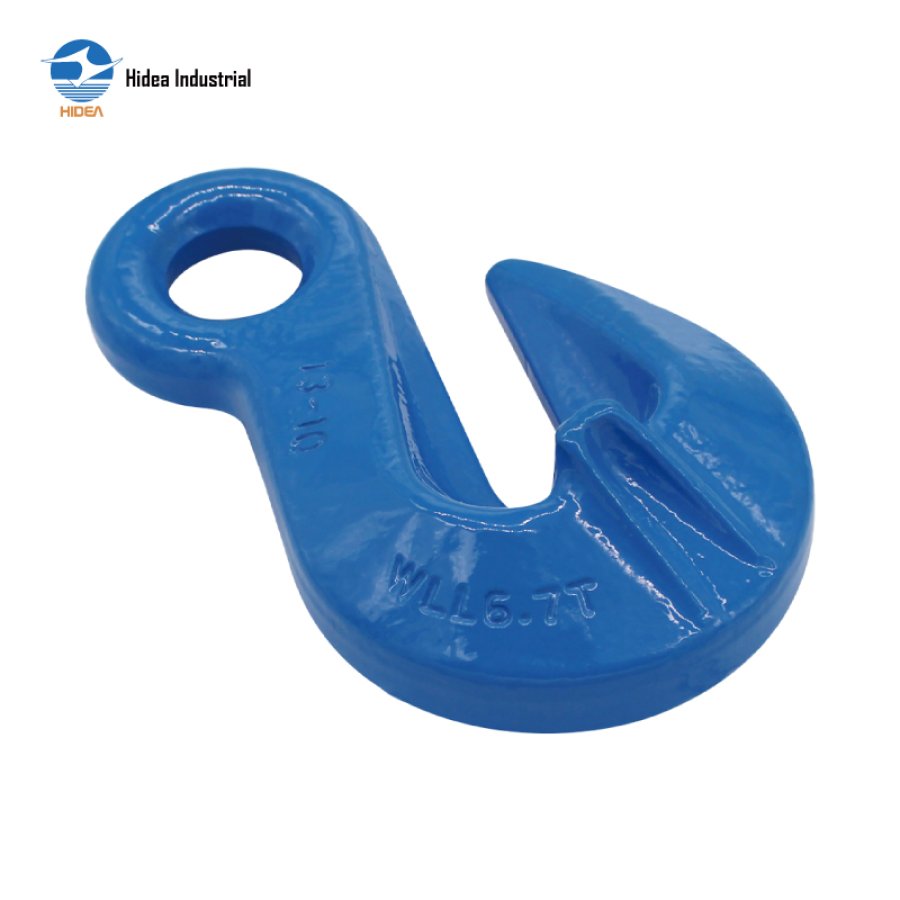

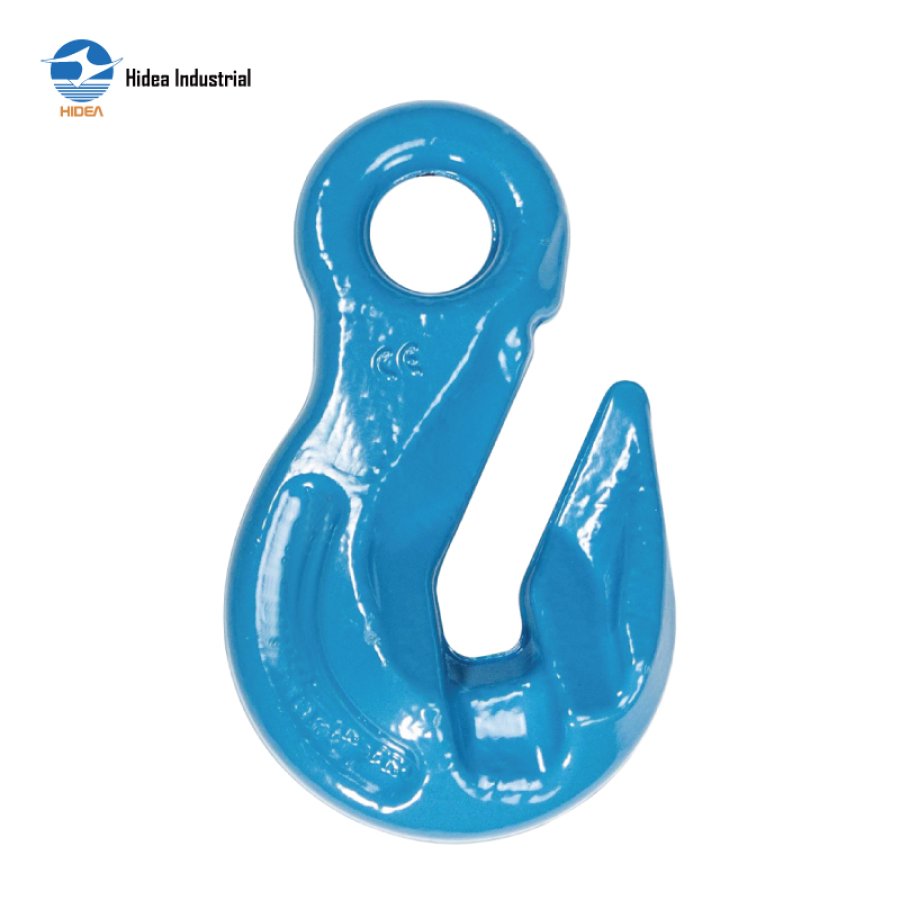

HIDEA G100 Lifting Eye Shortening Grab Hook – Safe & Efficient Load Handling

G100 SHORTENING GRAB HOOK WITH EYE

Forged super alloy steel-Quenched and Tempered
25% strong than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Wording Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder Plastified
Color code: Blue RAL5015

Inquire Now

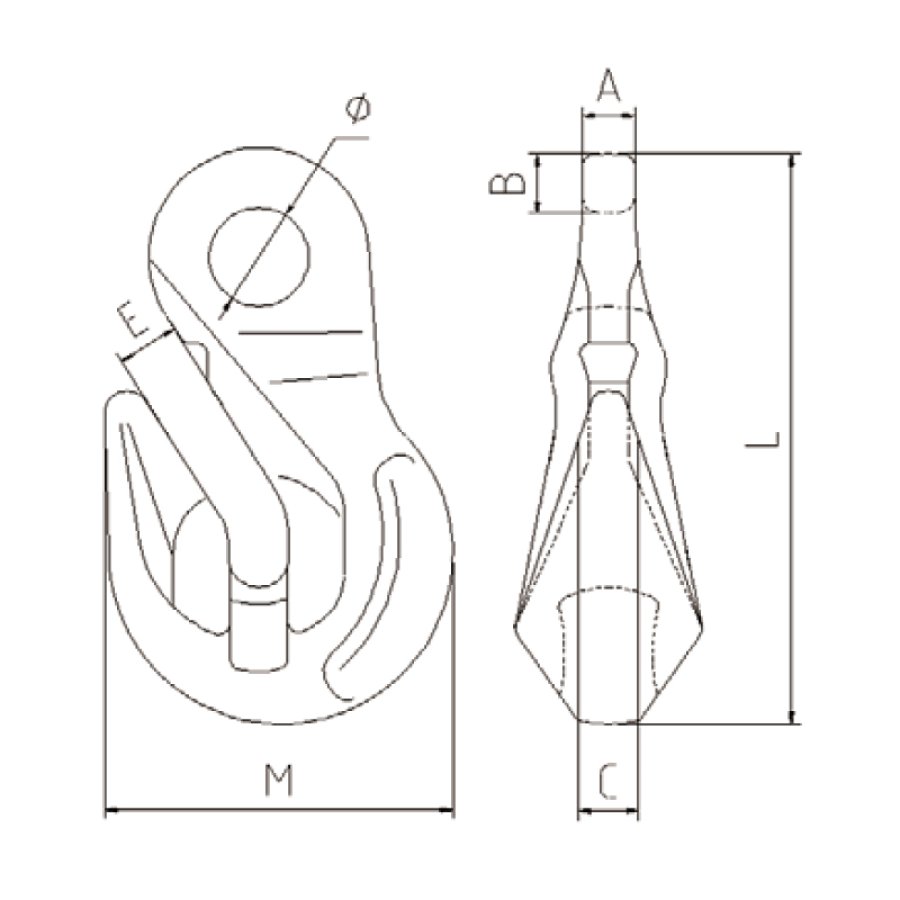

QINGDAO HIDEA PARAMETER SHEET FOR

20RH0901-G100 EYE SHORTENING GRAB HOOK

ITEM NO.	WEIGHT	WLL	B.L	A	B	C	E	M	ø	L
ITEM NO.	(kg)	(T)	(T)	A	B	C	E	M	ø	L
20RH0901-06	0.23	1.4	5.6	8	8	25.6	8.3	50	13.5	80.3
20RH0901-08	0.5	2.5	10	9.5	11	34	10.5	62.5	17.5	104
20RH0901-13	2.15	6.7	26.8	18.5	17	56	15.5	101	26	171
