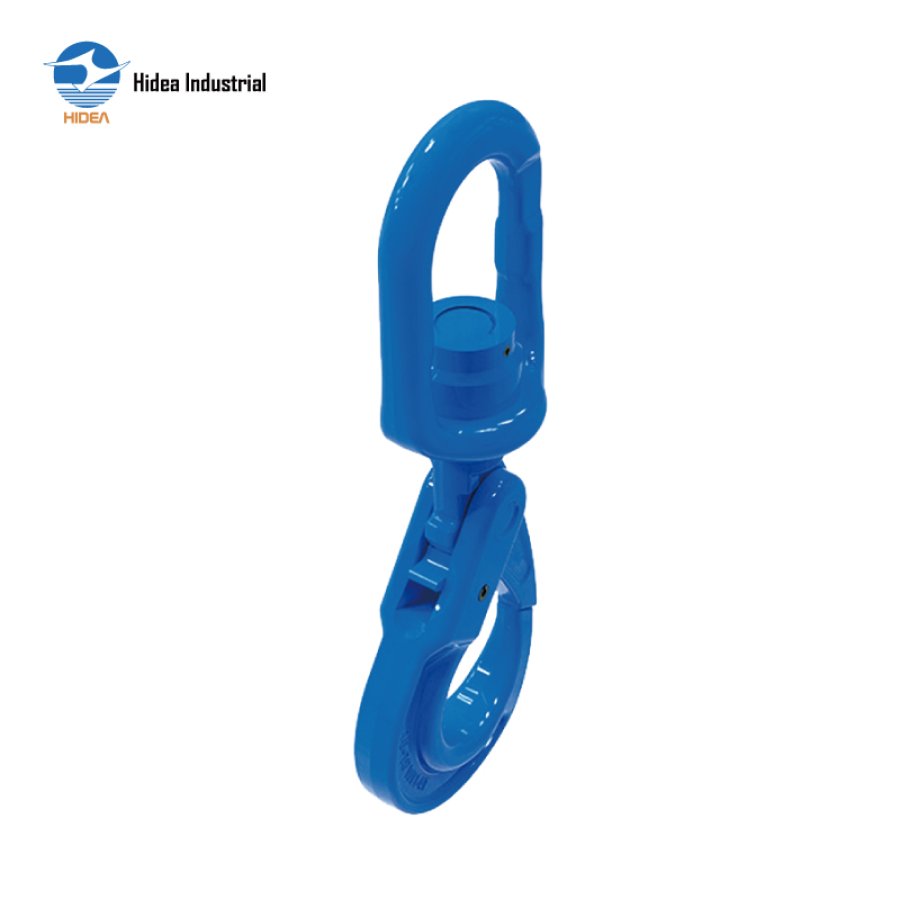

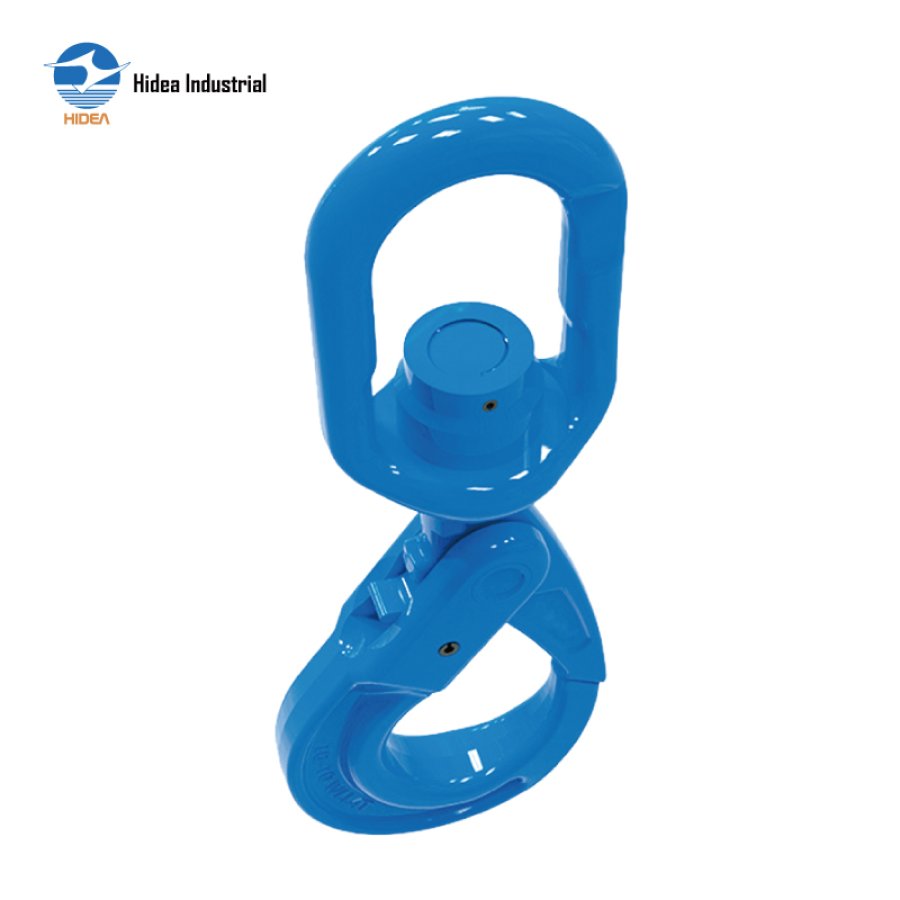

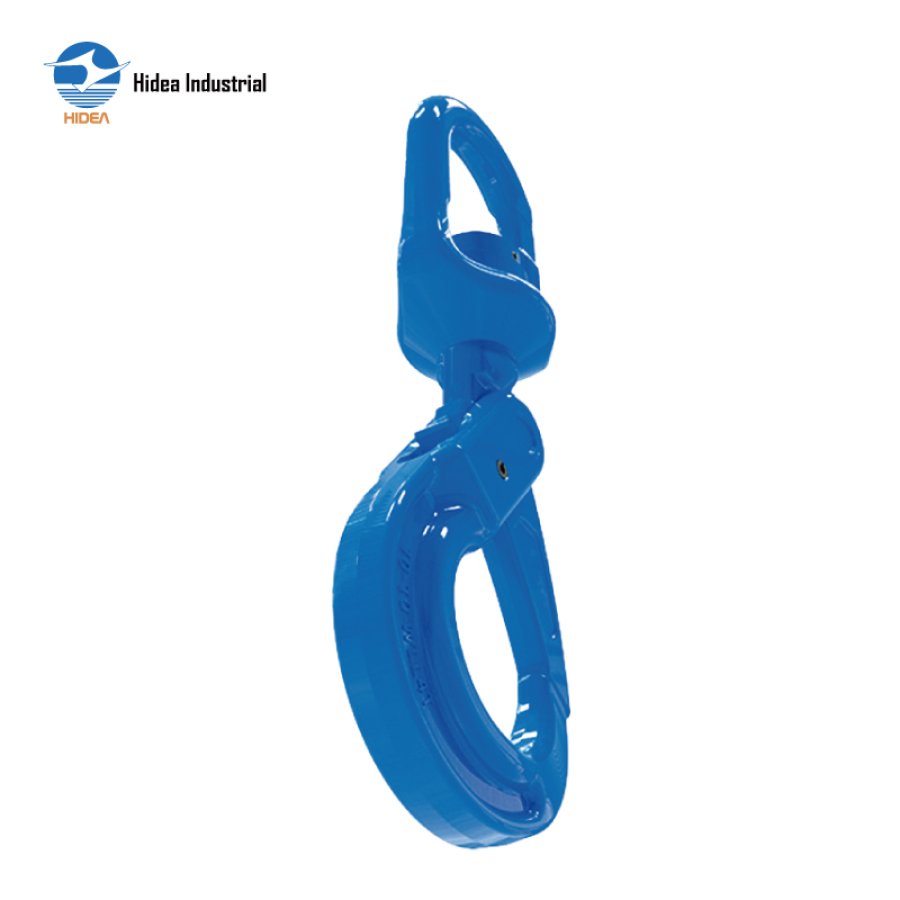

Hidea Grade 100 Swivel Hook with Bearing for Flexible Lifting Solutions

G100 SWIVEL SELF-LOCKING HOOK WITH BEARING

Forged super alloy steel-Quenched and Tempered
Suitable for G100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load limit
Sample tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder coating
Colour code: Blue RAL5015
This product is rated for overhead lifting

Inquire Now

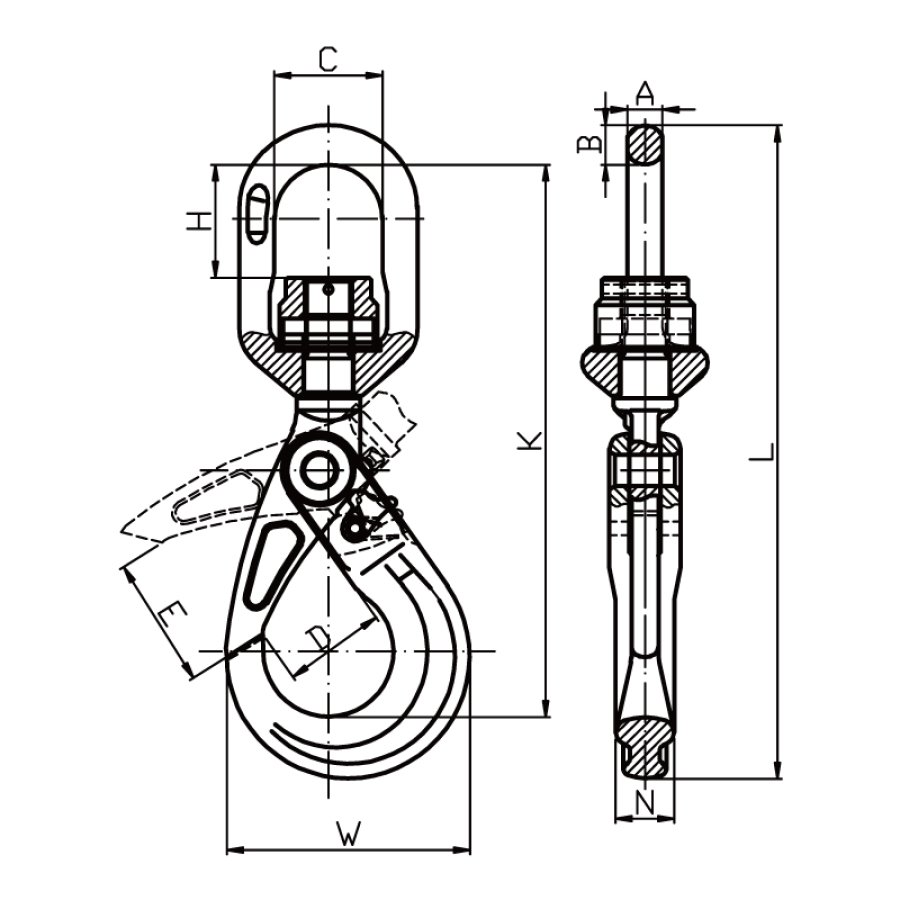

QINGDAO HIDEA PARAMETER SHEET FOR

20RH2701-G100 SWIVEL SELF-LOCKING HOOK WITH BEARING

ITEM CODE	WEIGHT	WLL	B.L	A±1.5	B±1.5	C±2	D±2	E±2.5	N±1	H±3	K±3	L±5	W±3
ITEM CODE	(kg)	(T)	(T)	A±1.5	B±1.5	C±2	D±2	E±2.5	N±1	H±3	K±3	L±5	W±3
20RH2701-6	0.67	1.4	5.6	11.5	13	37	27	30	15	32	163	196.5	70
20RH2701-8	1.21	2.5	10	13	15	41	35.5	40	20	39	202	243	90
20RH2701-10	2.2	4	16	15.5	17.5	48	45	48	26	48	244	289	108
20RH2701-13	4.4	6.7	26.8	17	19	55	52.5	63	32.5	57	292	351	138
20RH2701-16	7.48	10	40	21.5	26	62	62	75	38	62	346	422	170
20RH2701-20	13.75	16	64	26.5	28.5	76	76	80	50	72	396	487	191
20RH2701-22	18.81	19	76	33	33	97	79	95	52	97	465	563	208
