Hidea Cast-In Lifting Loop: Strong and Reliable Solutions for Precast Concrete Lifting

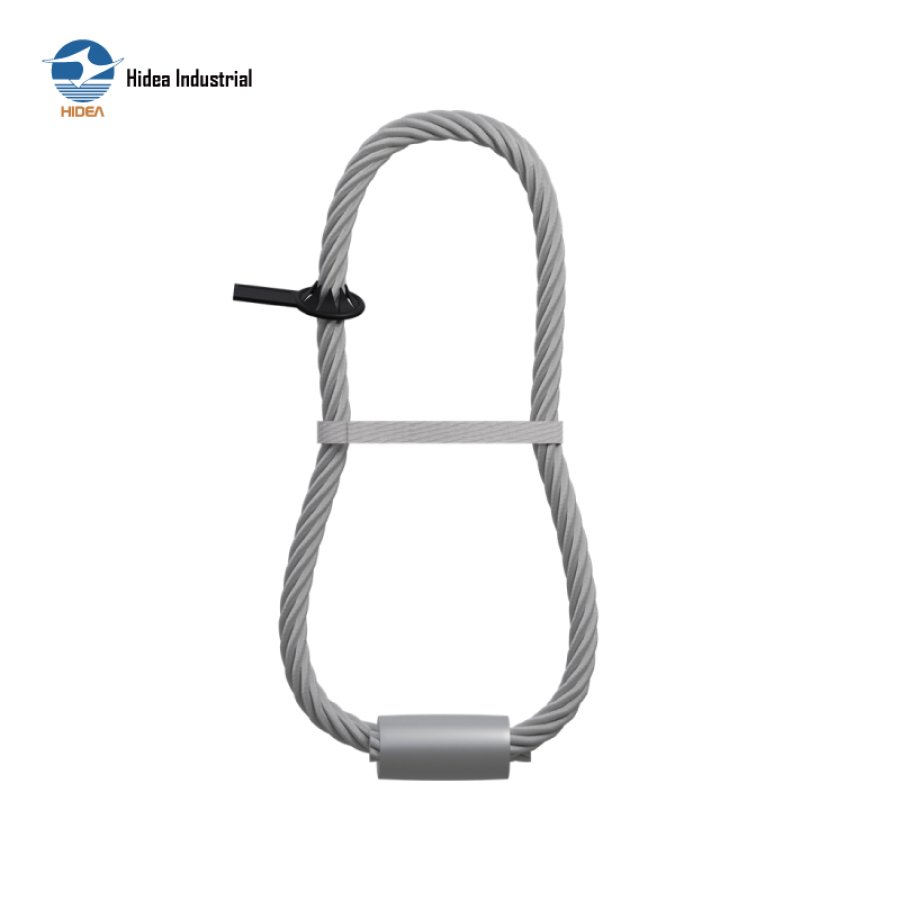

PRECAST CONCRETE LIFTING CAST-IN LOOP

Prestressed / precast concrete elements lifting device lifting Loop with Threaded Socket

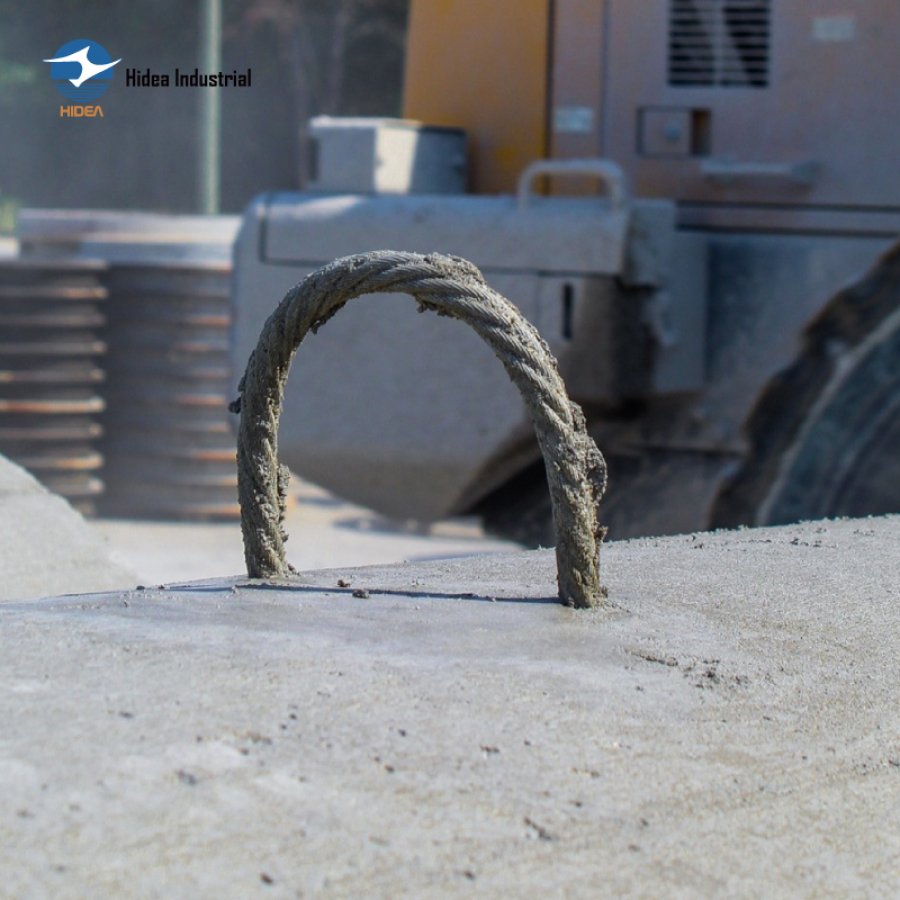

Cast-in loops are concrete elements lifting anchors, different from conventional threaded steel loops while they are invisible after assembled.
suitable for lifting foundation elements, concrete beams and hollow-core slab transportation.

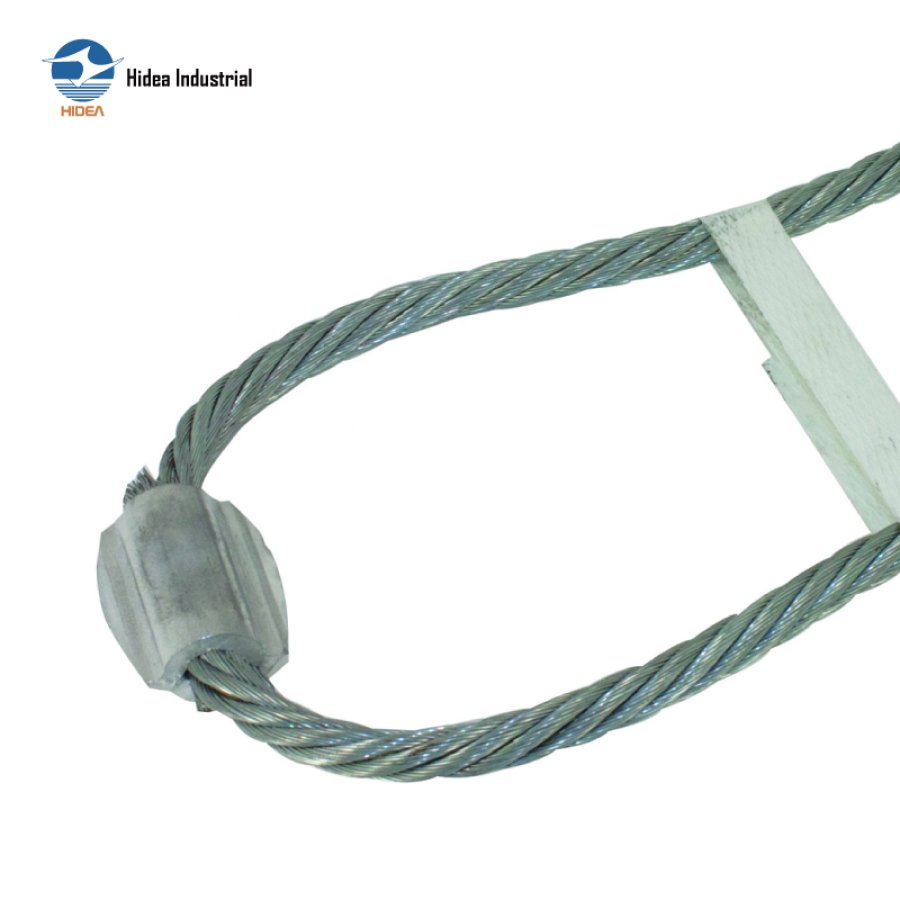

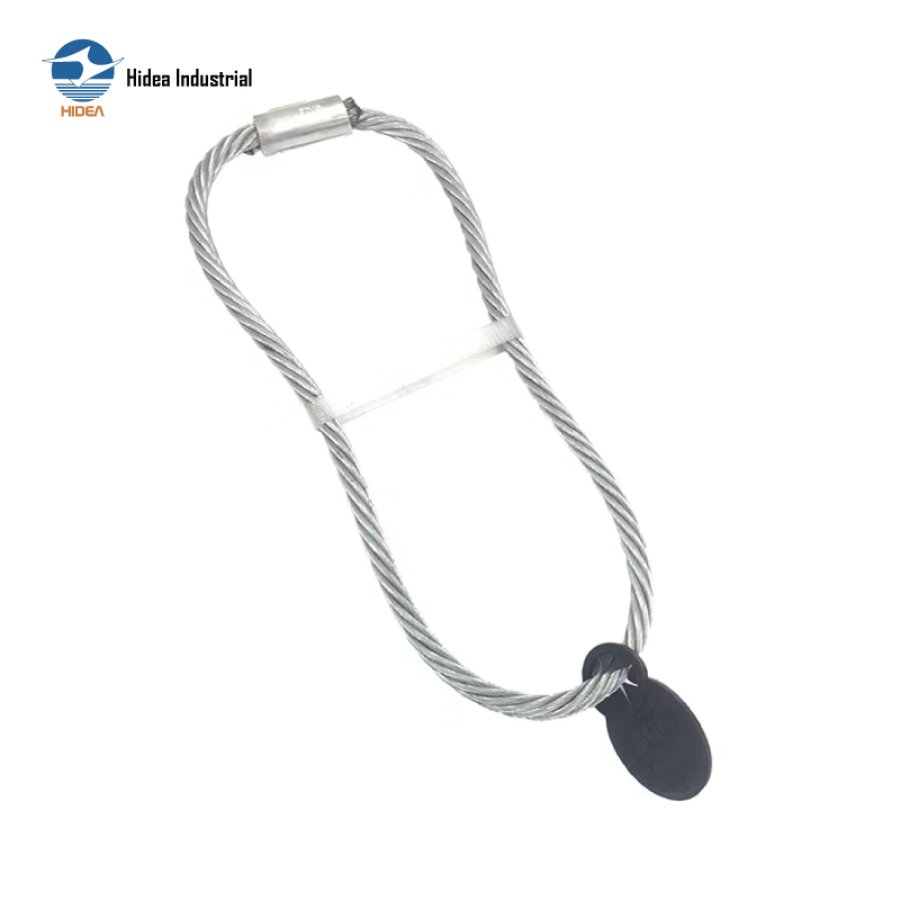

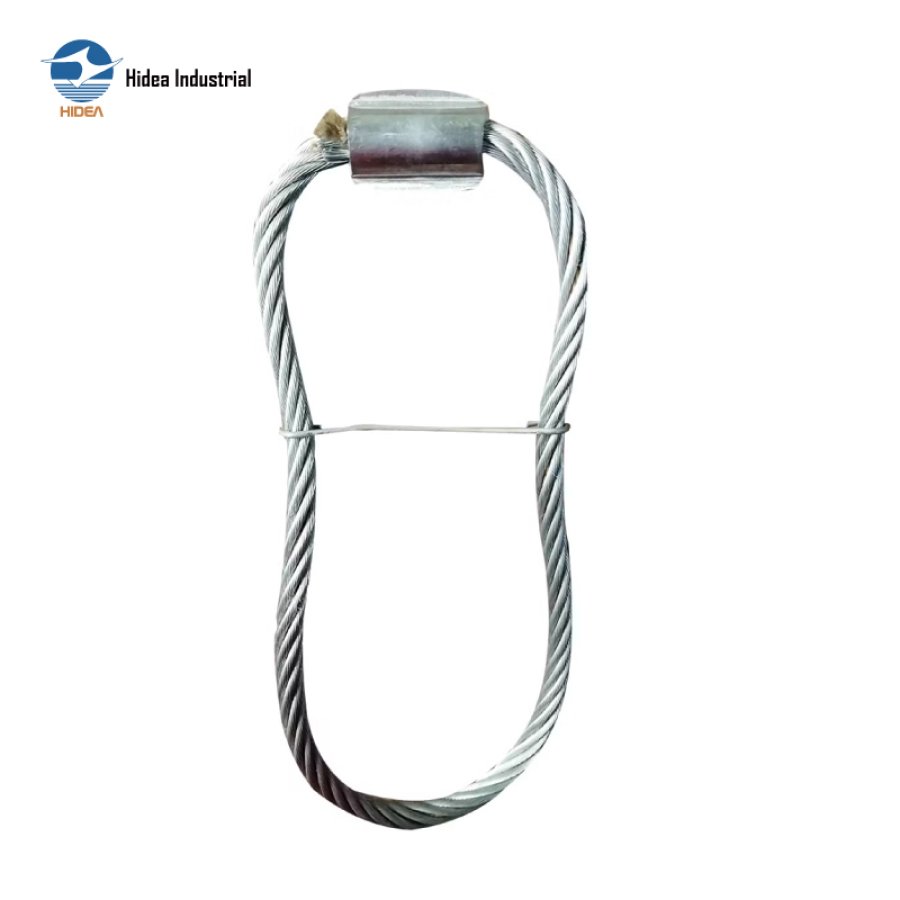

This lifting System is composed of steel wire, oval shaped lifting anchors and pocket formers to fix the wire loops to the concrete for lifting.

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

PRESTRESSED/PRECAST CONCRETE ELEMENTS LIFTING DEVICE

	Loop					Al Ferrule			Label
Load (t)	h (mm)	B1 (mm)	B (mm)		Wire rope DR (mm)	d (mm)	L (mm)	L1 (mm)	D (mm)	d (mm)	φ (mm)
0.8	200	65	85		6	12	27	5	37	23	20
1.2	225	70	90		7	14	32	5	37	23	20
1.6	24	70	100		8	16	36	5	37	23	20
2.0	265	95	125		9	18	40	5	37	23	20
2.5	28	115	140		10	20	45	5	37	23	20
4.0	345	130	160		12	24	54	5	37	23	20
5.2	390	160	180		14	28	63	5	37	23	20
6.3	415	180	210		16	32	72	5	52	38	40
8.0	460	170	220		18	36	100	15	52	38	40
10.0	510	180	250		20	40	90	10	52	38	40
12.5	570	225	280		22	44	99	10	52	38	40
16.0	640	240	295		24	48	108	10	52	38	40
20.0	715	260	320		28	56	117	10	52	38	40
25.0	800	300	380		30	60	126	10	52	38	40
