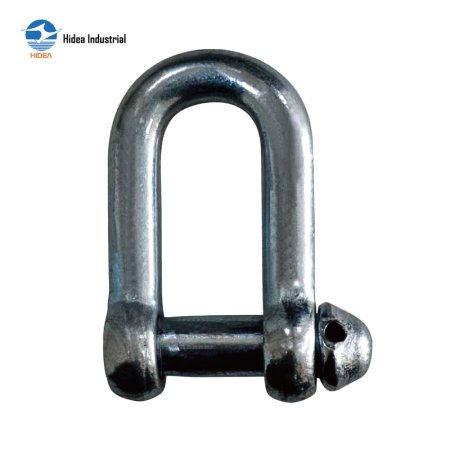

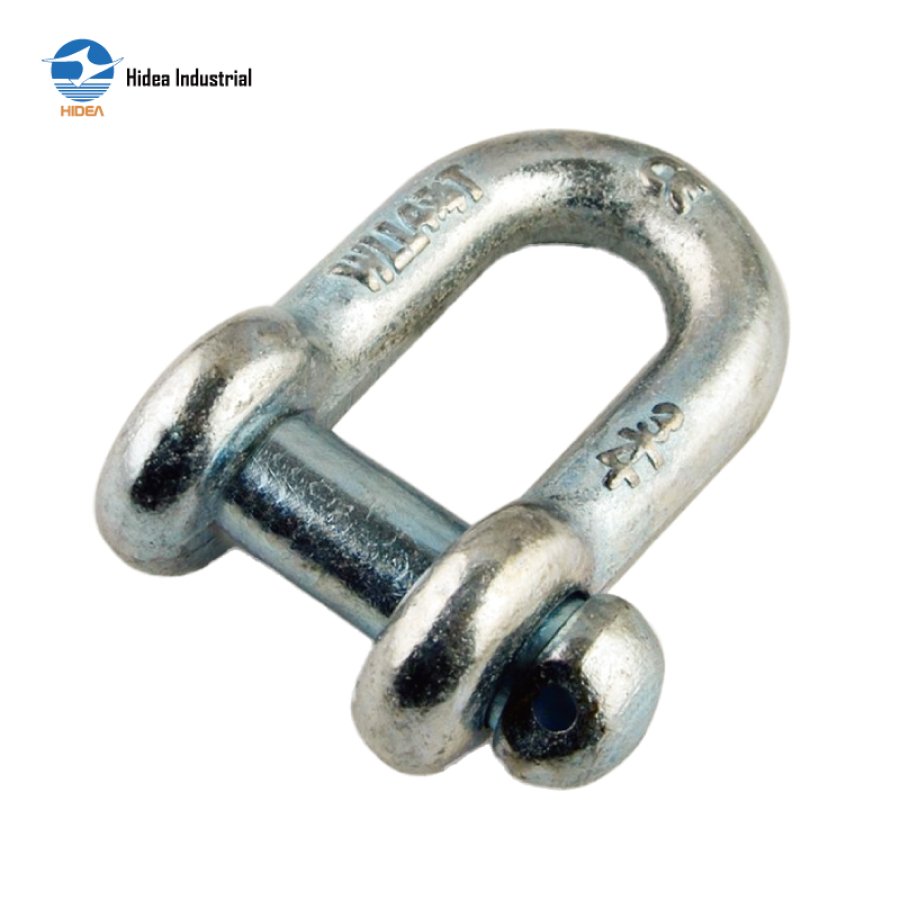

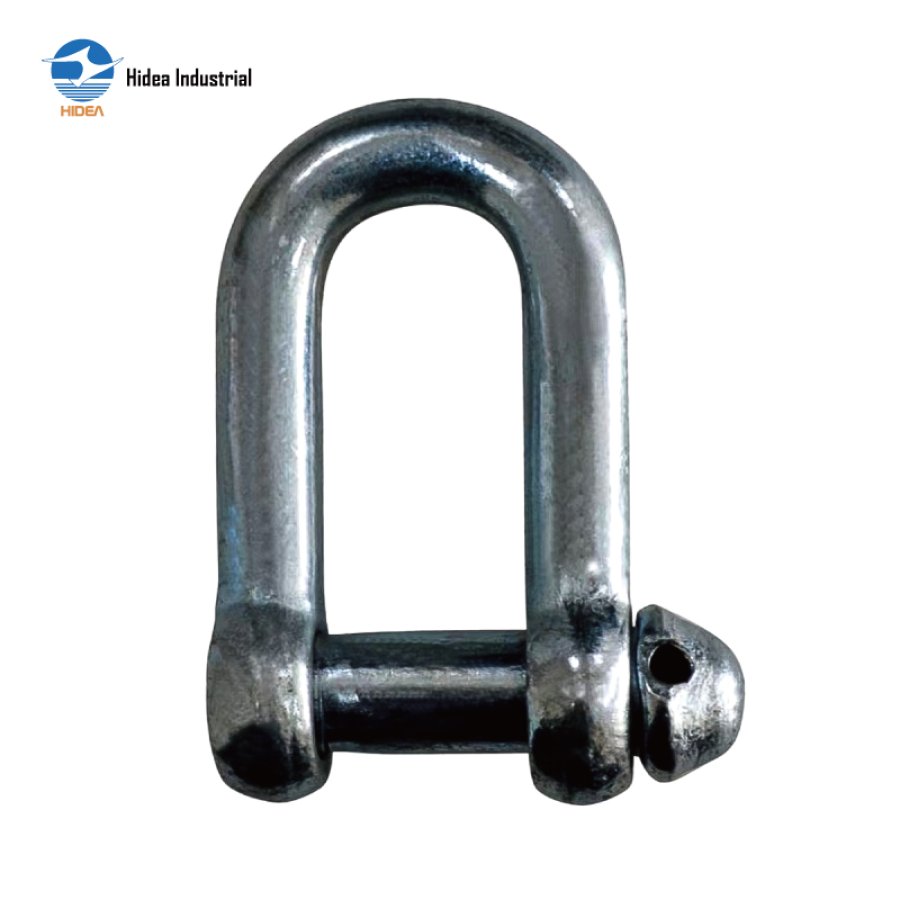

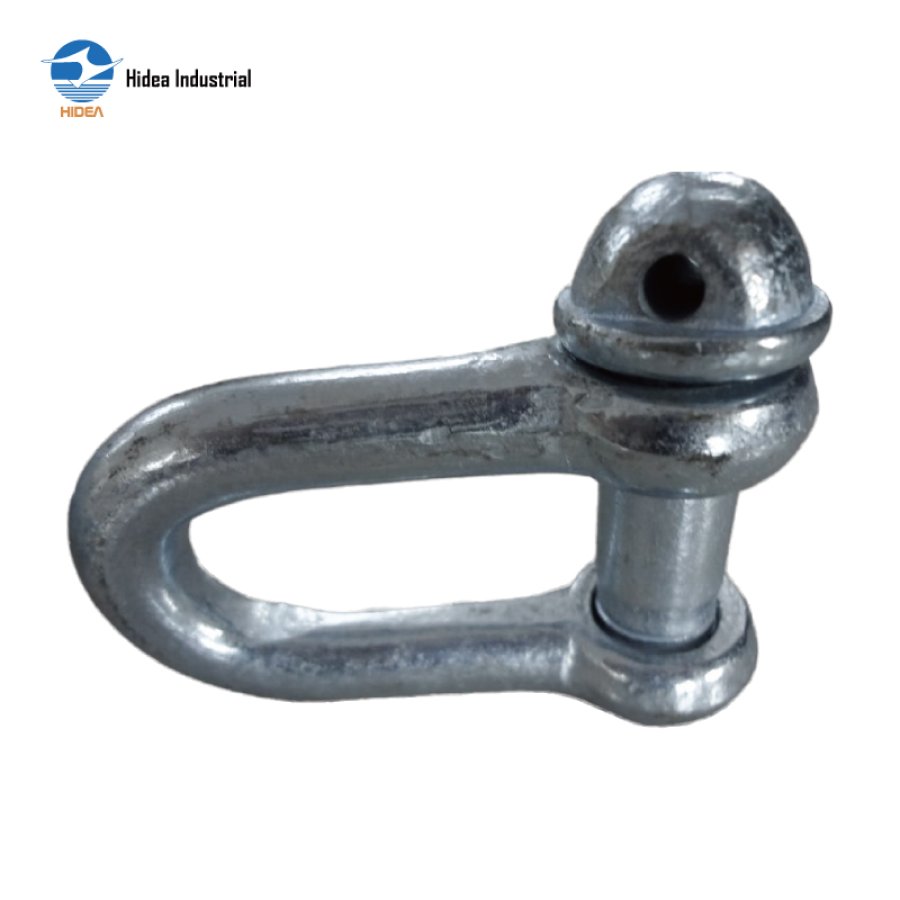

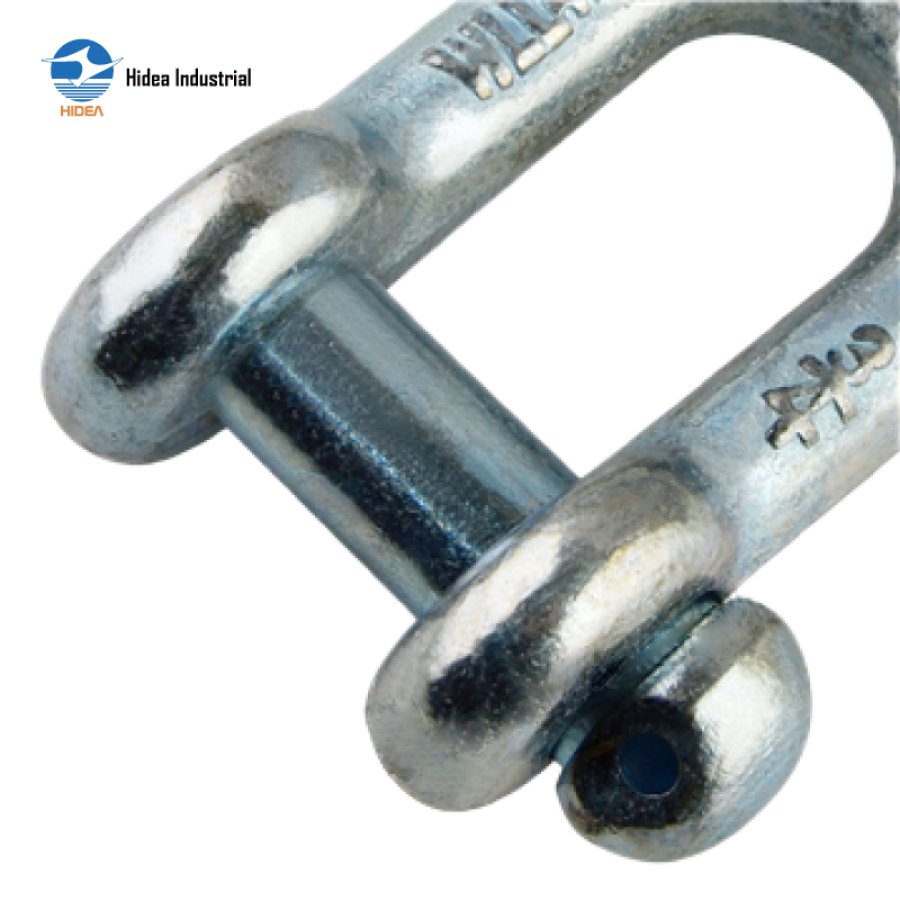

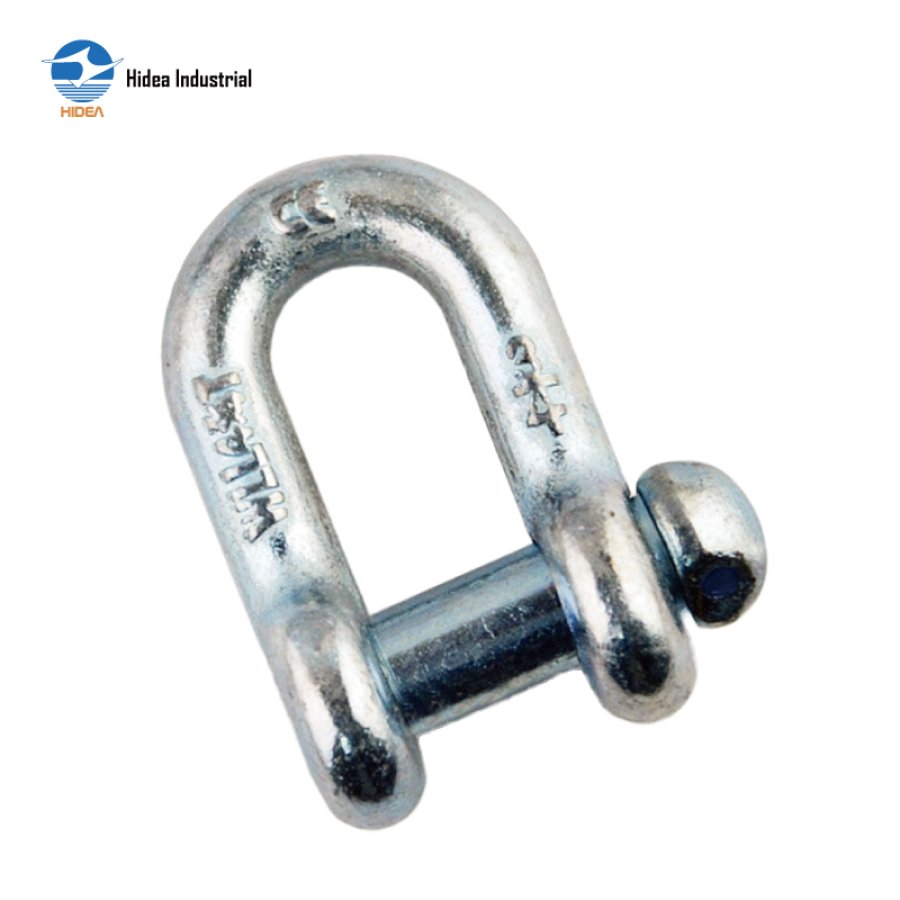

Hidea Dee Shackle with Round Head Pin: Strong and Secure Connections

D TYPE COMMERCIAL TRAWLING SHACKLE ROUND HEAD PIN

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 5:1 & certificates available
Surface Electro galvanized (EG), powder coated OR self-colored

Inquire Now

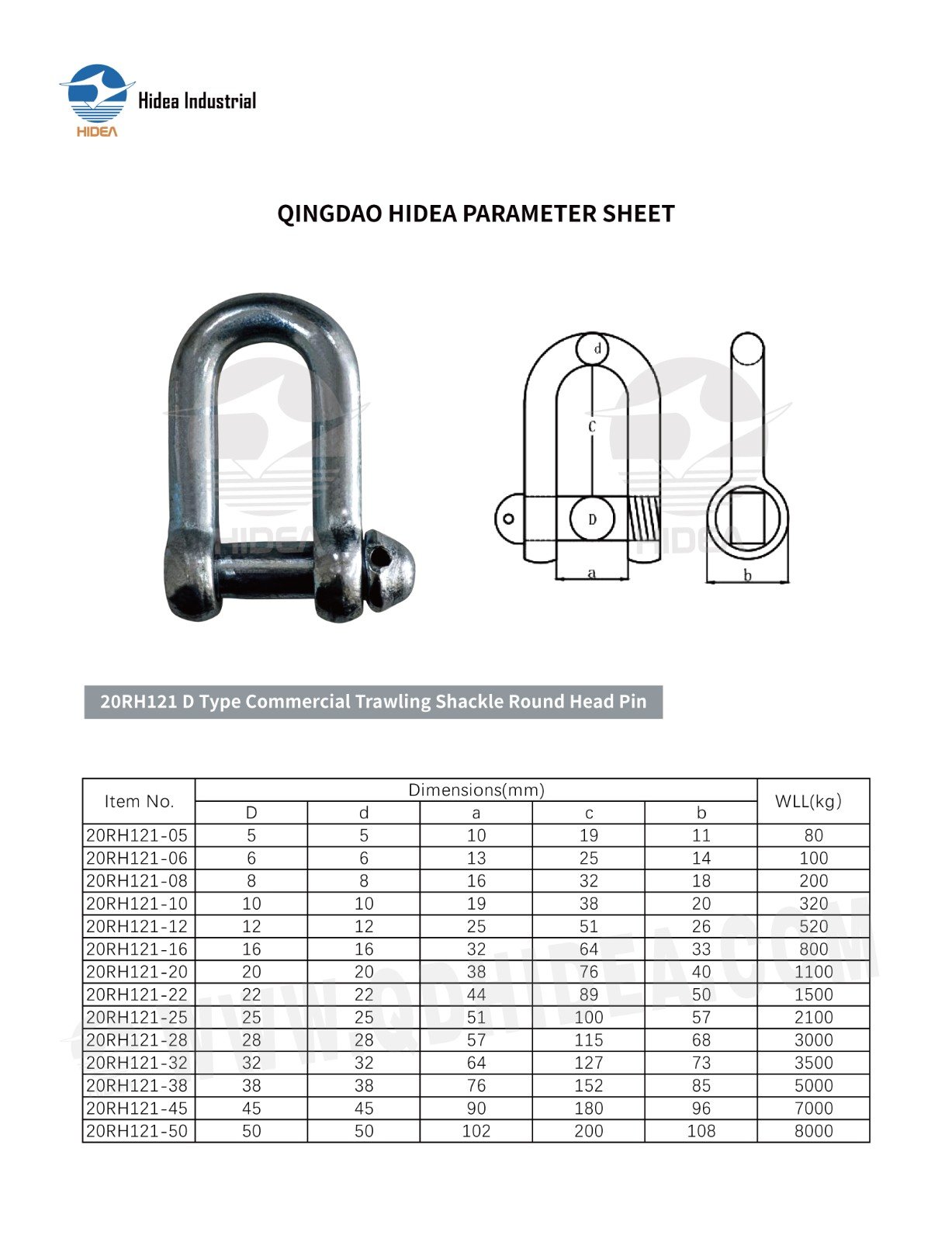

QINGDAO HIDEA PARAMETER SHEET FOR

20RH121D Type Commercial Trawling Shackle Round Head Pin

Item No.	Dimensions(mm)					WLL(kg)
Item No.	D	d	a	C	b	WLL(kg)
20RH121-05	5	5	10	19	11	80
20RH121-06	6	6	13	25	14	100
20RH121-08	8	8	16	32	18	200
20RH121-10	10	10	19	38	20	320
20RH121-12	12	12	25	51	26	520
20RH121-16	16	16	32	64	33	800
20RH121-20	20	20	38	76	40	1100
20RH121-22	22	22	44	89	50	1500
20RH121-25	25	25	51	100	57	2100
20RH121-28	28	28	57	115	68	3000
20RH121-32	32	32	64	127	73	3500
20RH121-38	38	38	76	152	85	5000
20RH121-45	45	45	90	180	96	7000
20RH121-50	50	50	102	200	108	8000
