Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
With latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

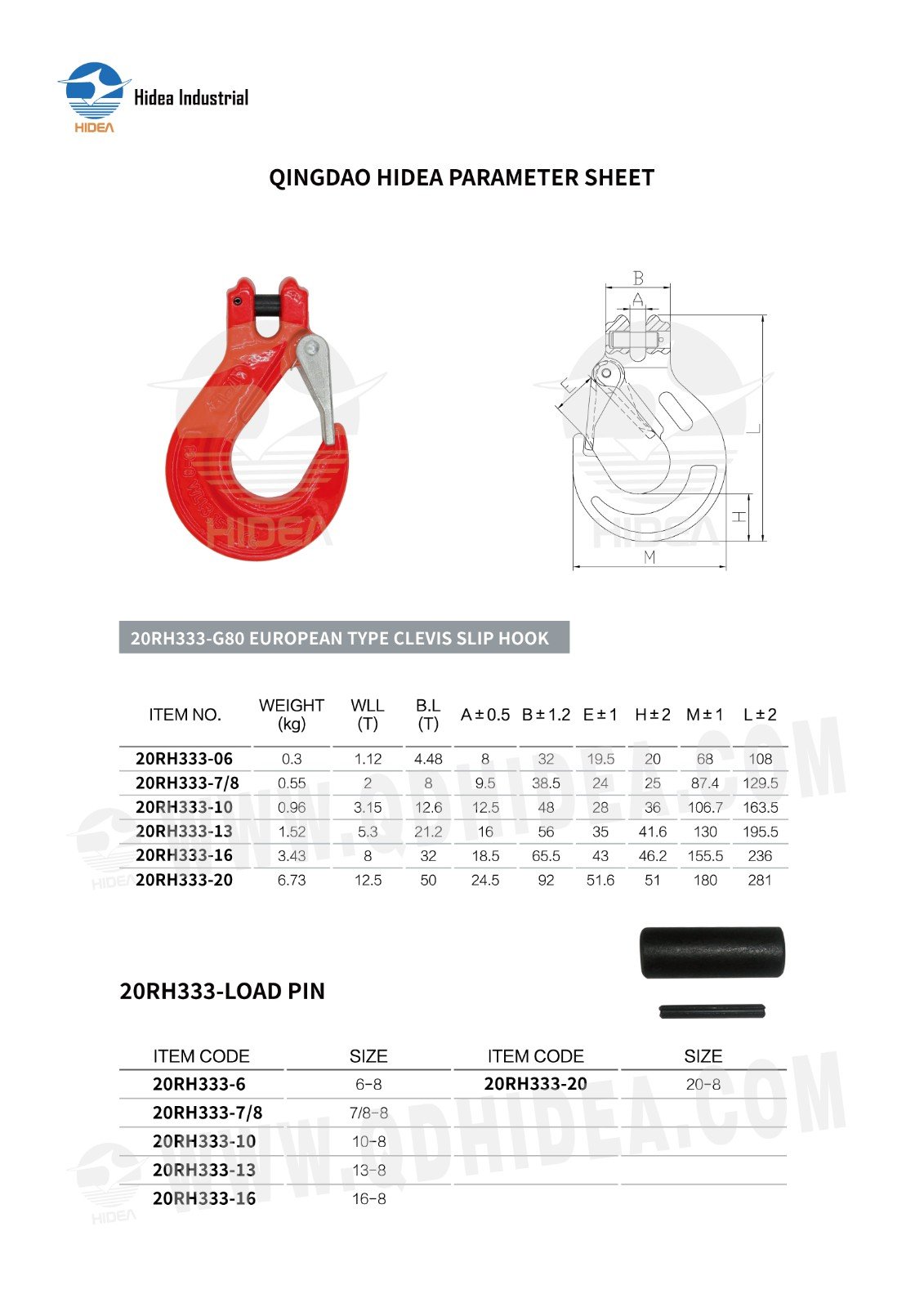

QINGDAO HIDEA PARAMETER SHEET FOR
20RH333-G80 EUROPEAN TYPE CLEVIS SLIP HOOK
| ITEM NO. | WEIGHT (kg) | WLL | B.L | A±0.5 | B±1.2 | E±1 | H±2 | M±1 | L±2 | |||||
| (T) | (T) | |||||||||||||
| 20RH333-06 | 0.3 | 1.12 | 4.48 | 8 | 32 | 19.5 | 20 | 68 | 108 | |||||
| 20RH333-7/8 | 0.55 | 2 | 8 | 9.5 | 38.5 | 24 | 25 | 87.4 | 129.5 | |||||
| 20RH333-10 | 0.96 | 3.15 | 12.6 | 12.5 | 48 | 28 | 36 | 106.7 | 163.5 | |||||
| 20RH333-13 | 1.52 | 5.3 | 21.2 | 16 | 56 | 35 | 41.6 | 130 | 195.5 | |||||
| 20RH333-16 | 3.43 | 8 | 32 | 18.5 | 65.5 | 43 | 46.2 | 155.5 | 236 | |||||
| 20RH333-20 | 6.73 | 12.5 | 50 | 24.5 | 92 | 51.6 | 51 | 180 | 281 | |||||
