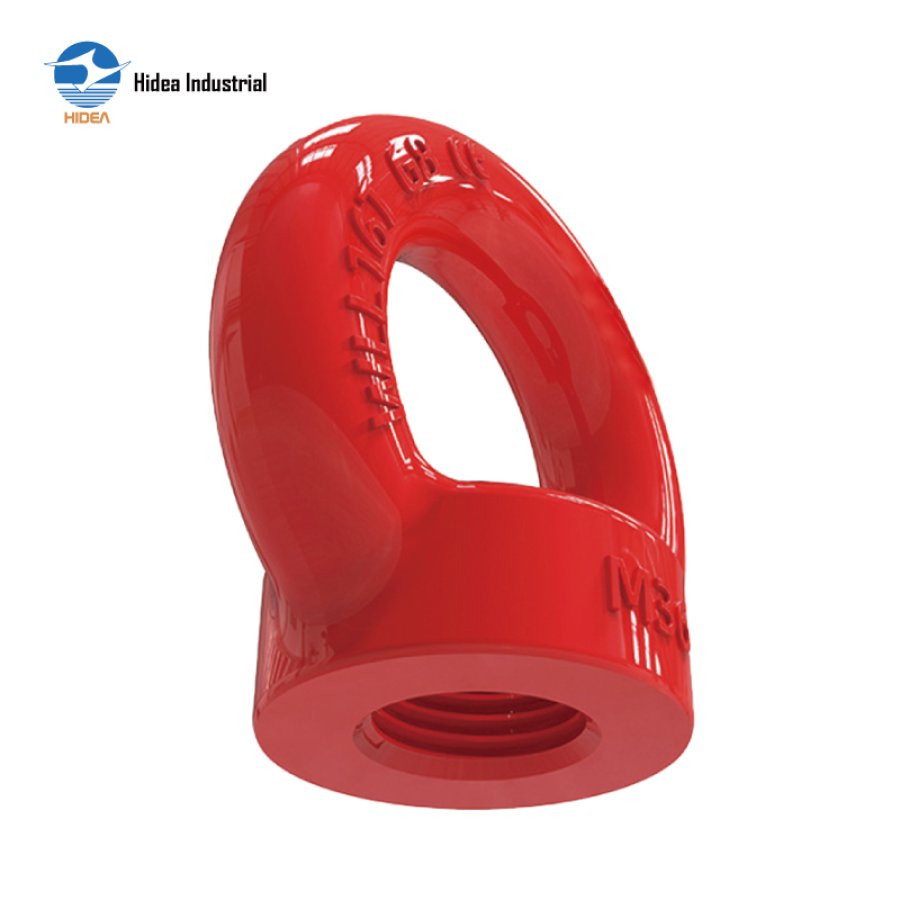

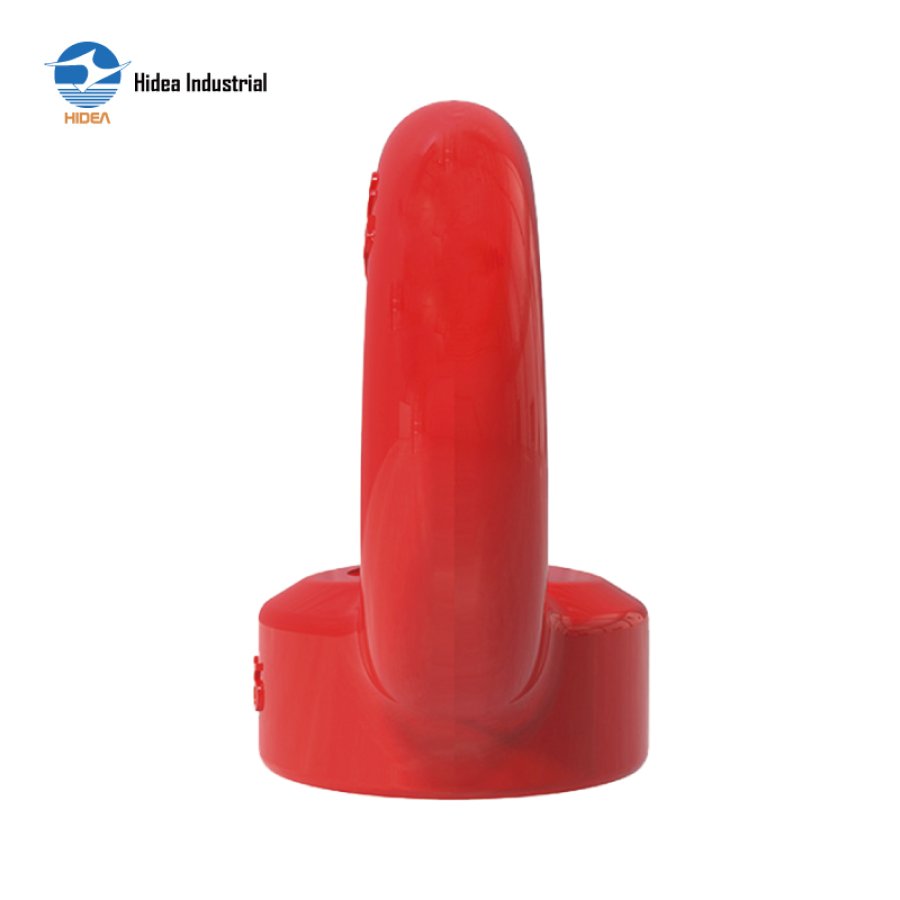

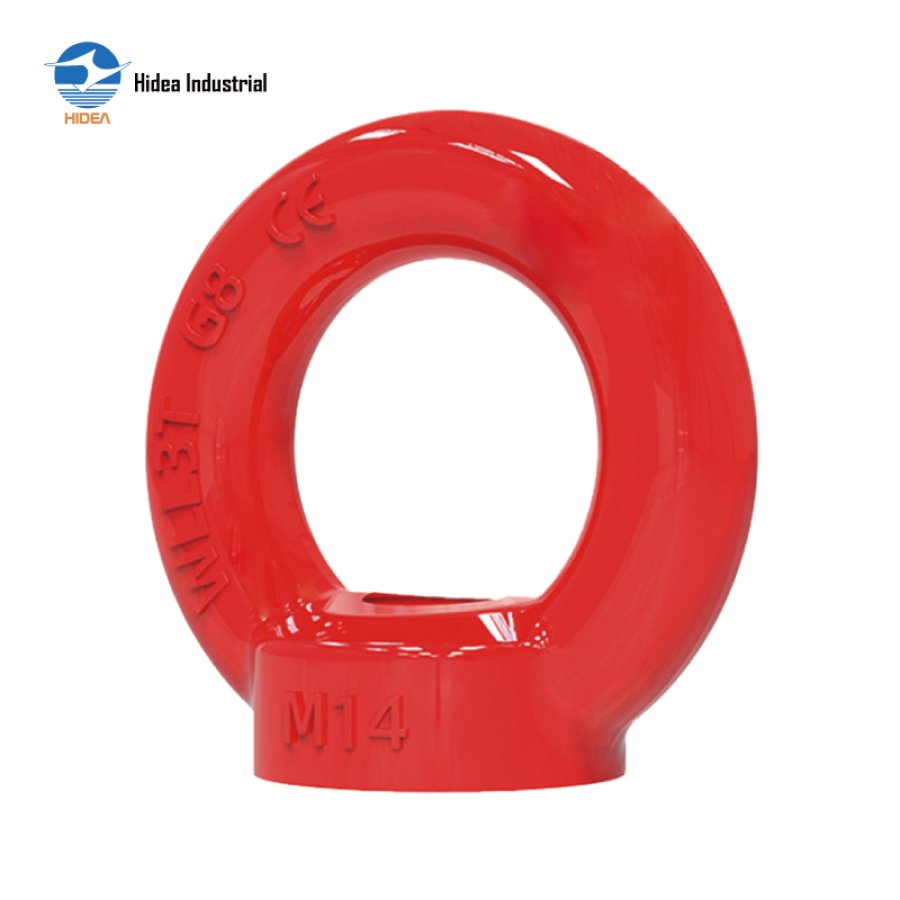

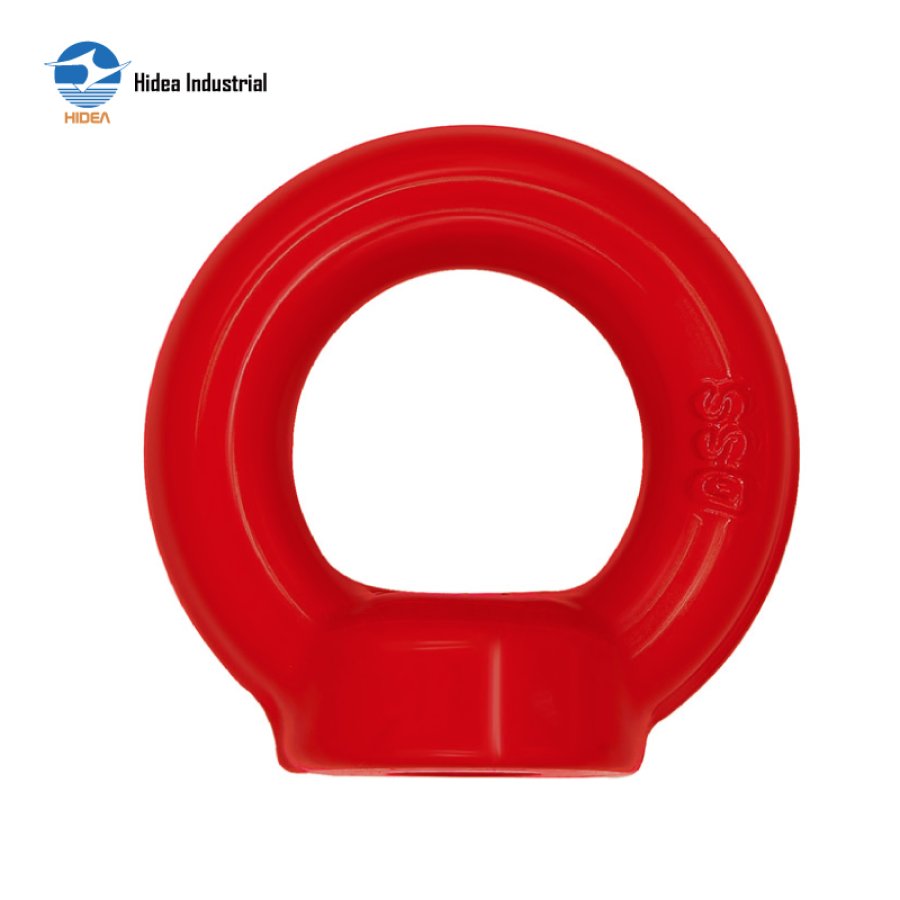

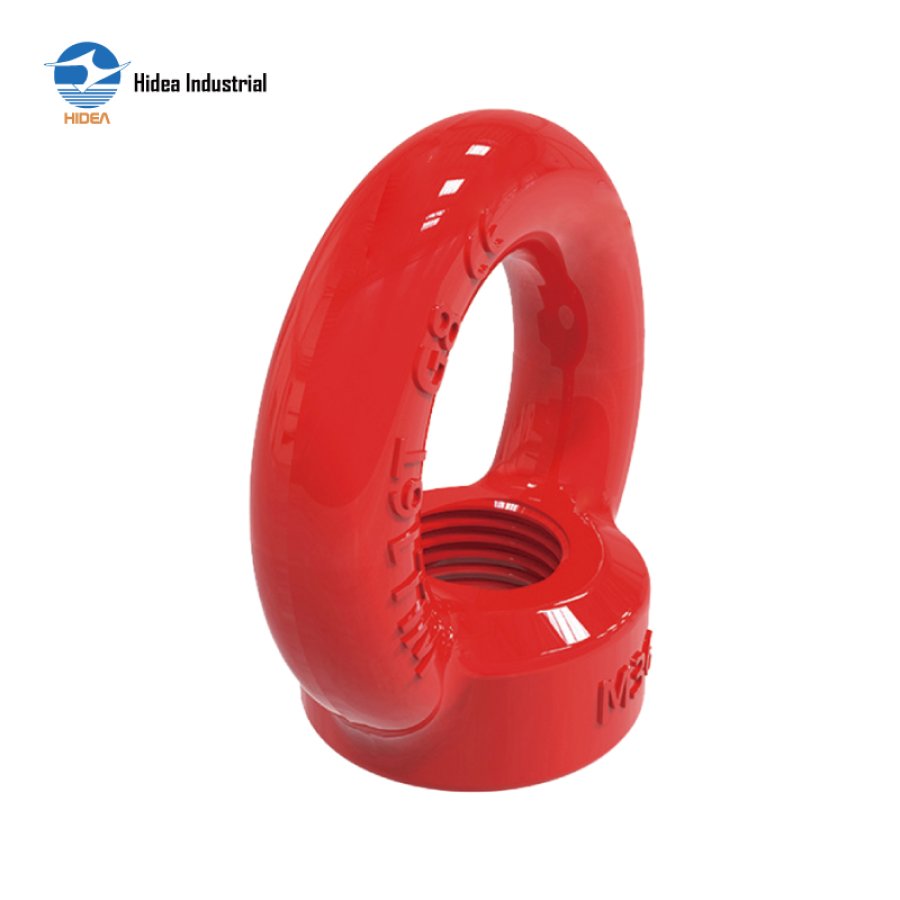

G80 Forged Eyebolt Nut

G80 EYE NUT

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection

Inquire Now

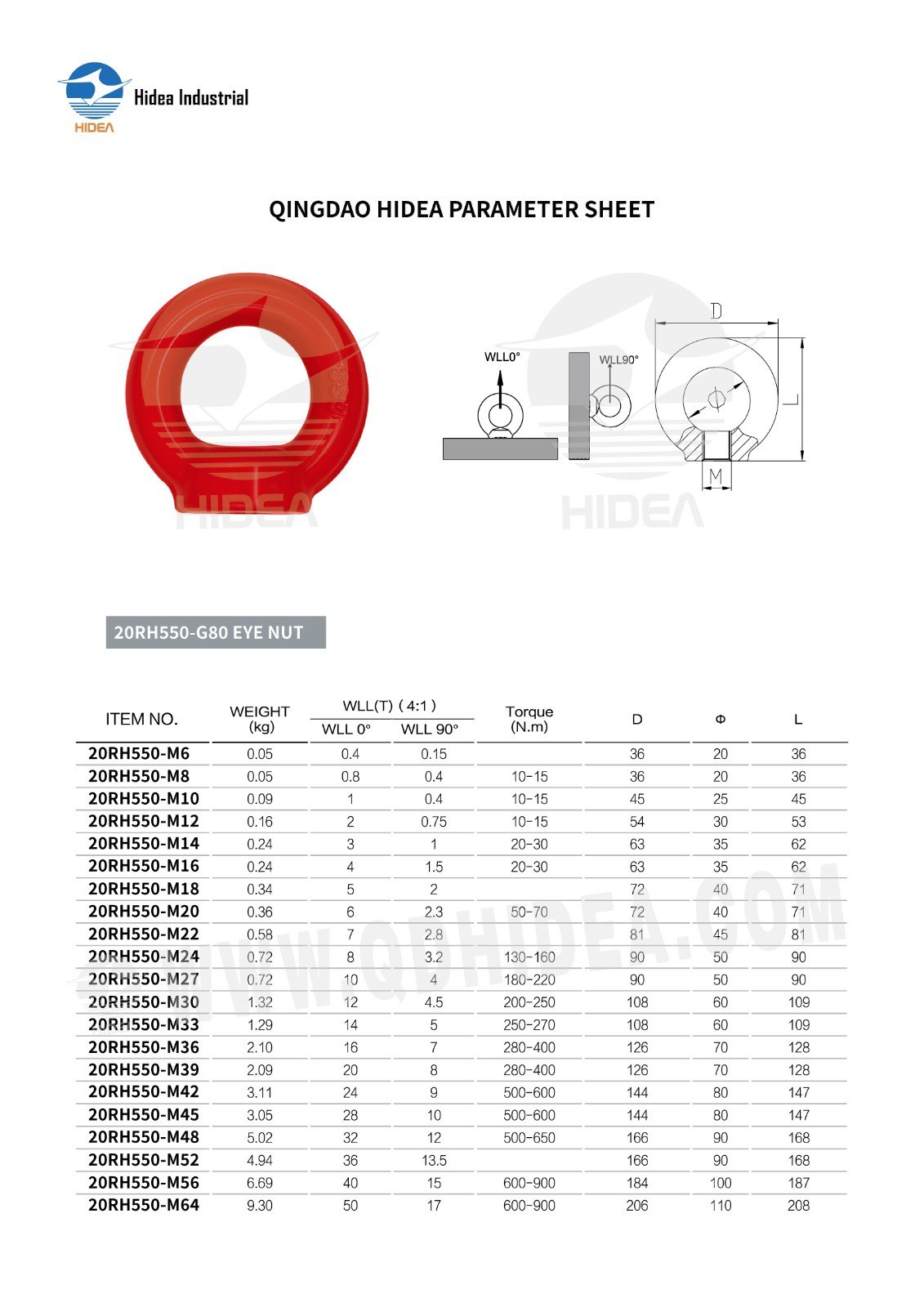

QINGDAO HIDEA PARAMETER SHEET FOR

20RH550-G80 EYE NUT

ITEM NO.	WEIGHT (kg)	WLL(T)(4:1) WLL0° WLL90°		Torque (N.m)	D	Ф	L
20RH550-M6	0.05	0.4	0.15		36	20	36
20RH550-M8	0.05	0.8	0.4	10-15	36	20	36
20RH550-M10	0.09	1	0.4	10-15	45	25	45
20RH550-M12	0.16	2	0.75	10-15	54	30	53
20RH550-M14	0.24	3	1	20-30	63	35	62
20RH550-M16	0.24	4	1.5	20-30	63	35	62
20RH550-M18	0.34	5	2		72	40	71
20RH550-M20	0.36	6	2.3	50-70	72	40	71
20RH550-M22	0.58	7	2.8		81	45	81
20RH550-M24	0.72	8	3.2	130-160	90	50	90
20RH550-M27	0.72	10	4	180-220	90	50	90
20RH550-M30	1.32	12	4.5	200-250	108	60	109
20RH550-M33	1.29	14	5	250-270	108	60	109
20RH550-M36	2.10	16	7	280-400	126	70	128
20RH550-M39	2.09	20	8	280-400	126	70	128
20RH550-M42	3.11	24	9	500-600	144	80	147
20RH550-M45	3.05	28	10	500-600	144	80	147
20RH550-M48	5.02	32	12	500-650	166	90	168
20RH550-M52	4.94	36	13.5		166	90	168
20RH550-M56	6.69	40	15	600-900	184	100	187
20RH550-M64	9.30	50	17	600-900	206	110	208
