HIDEA G-411 Standard Thimbles for Optimal Wire Rope Performance

banner

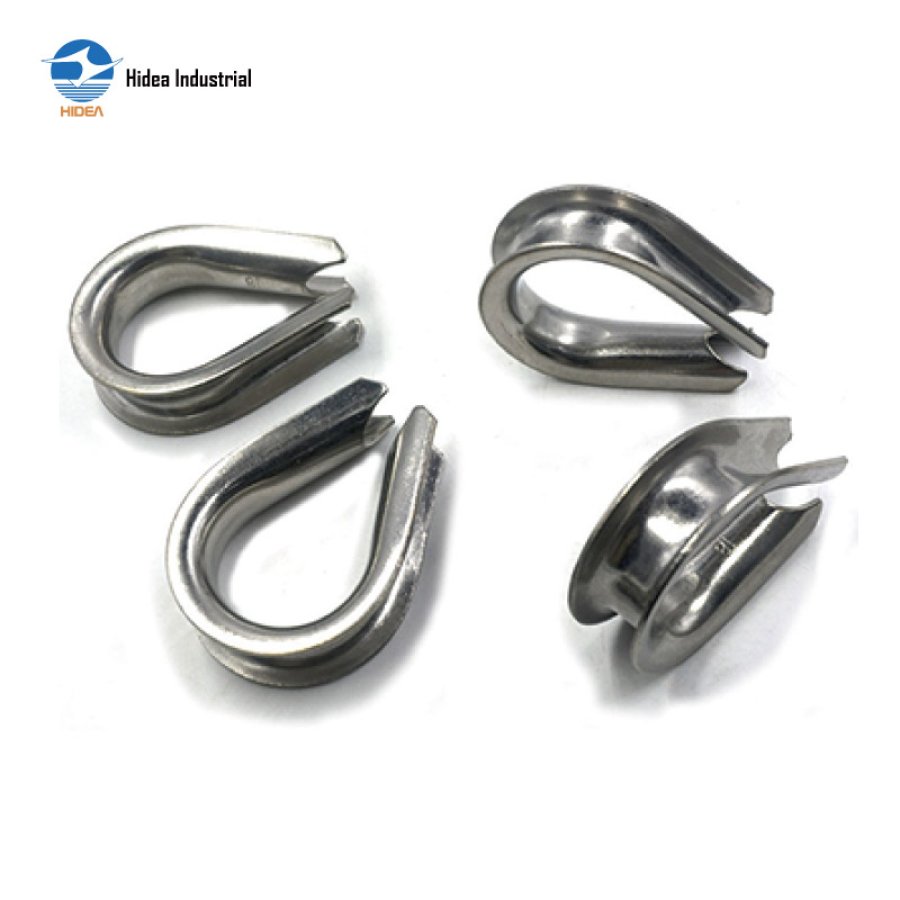

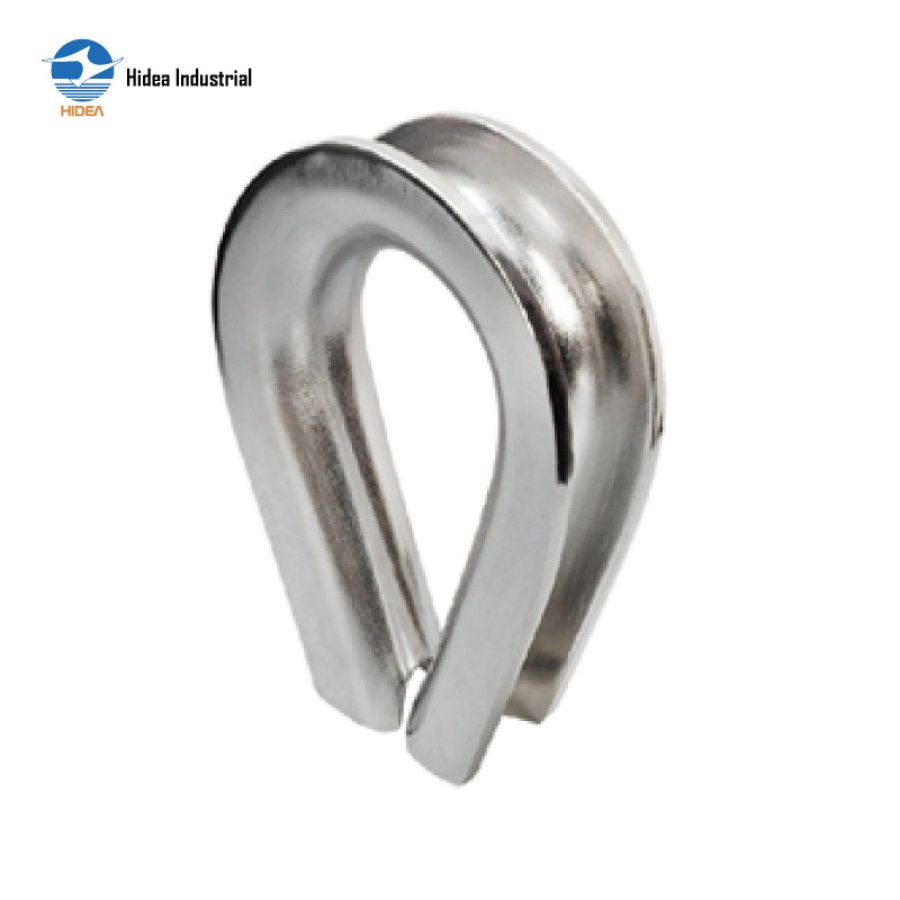

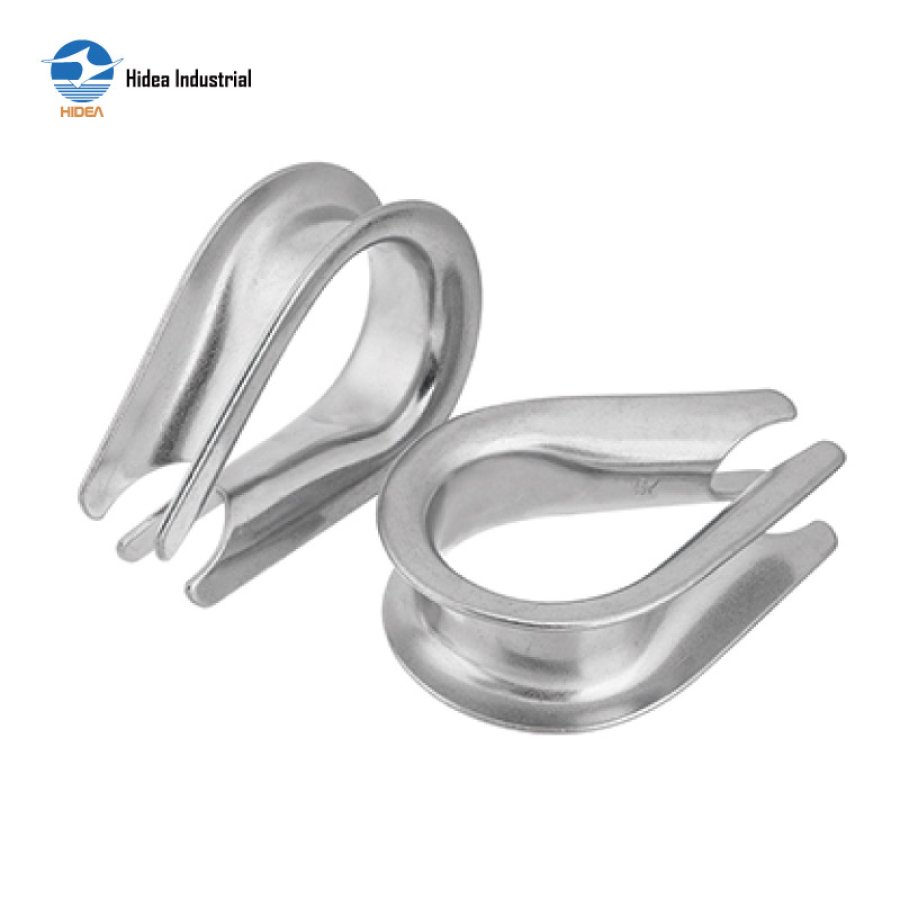

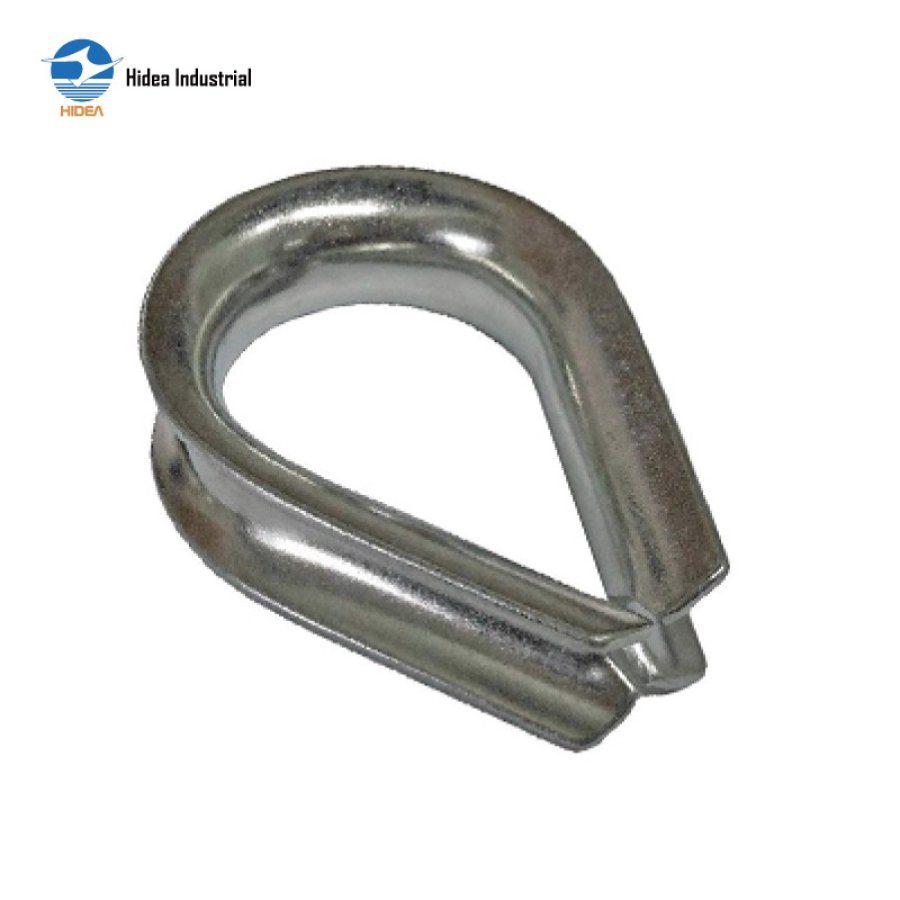

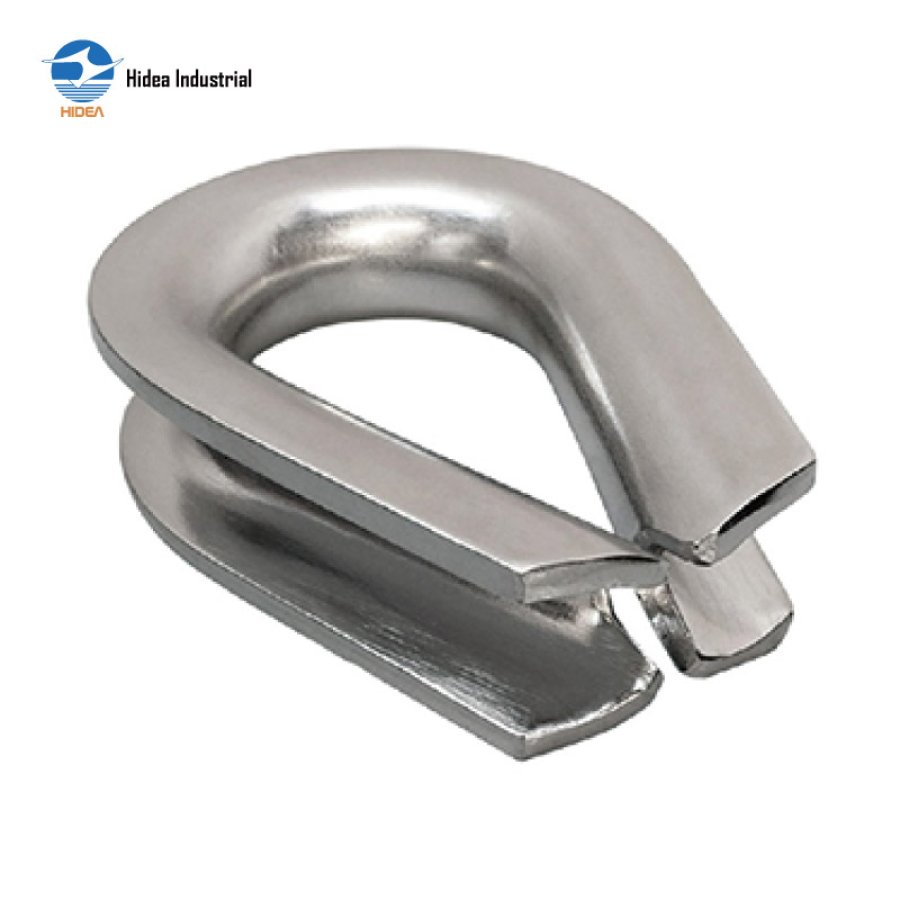

HIDEA G-411 Standard Wire Rope Thimble

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS076-US   G411   thimble

A.          A(inch)B(inch)C(inch)D(inch)E(inch)F(inch)G(inch)H(inch)
20RHS076-031.94 1.31 1.06 0.69 0.25 0.16 0.05 0.13
20RHS076-051.94 1.31 1.06 0.69 0.31 0.22 0.05 0.13
20RHS076-061.94 1.31 1.06 0.69 0.38 0.28 0.05 0.13
20RHS076-082.13 1.5 1.25 0.81 0.44 0.34 0.05 0.13
20RHS076-102.38 1.63 1.47 0.94 0.53 0.41 0.06 0.16
20RHS076-122.75 1.88 1.75 1.13 0.69 0.53 0.08 0.19
20RHS076-163.5 2.25 2.38 1.38 0.91 0.66 0.13 0.34
20RHS076-203.75 2.5 2.69 1.63 1.08 0.78 0.14 0.34
20RHS076-223.5 3.19 1.88 1.27 0.94 0.16 0.44
20RHSO76-256.69 4.25 3.75 2.5 1.39 1.06 0.16 0.41
20RHS076-28-326.25 4.5 4.31 2.75 1.75 1.31 0.22 0.50
20RHS076-358.15 7.54 5.71 3.54 1.89 1.42 0.23 0.59
20RHS076-388.86 8.11 6.50 4.13 2.03 1.56 0.23 0.63



Rigging Hardware Production Scene


索具生产2

链条生产
