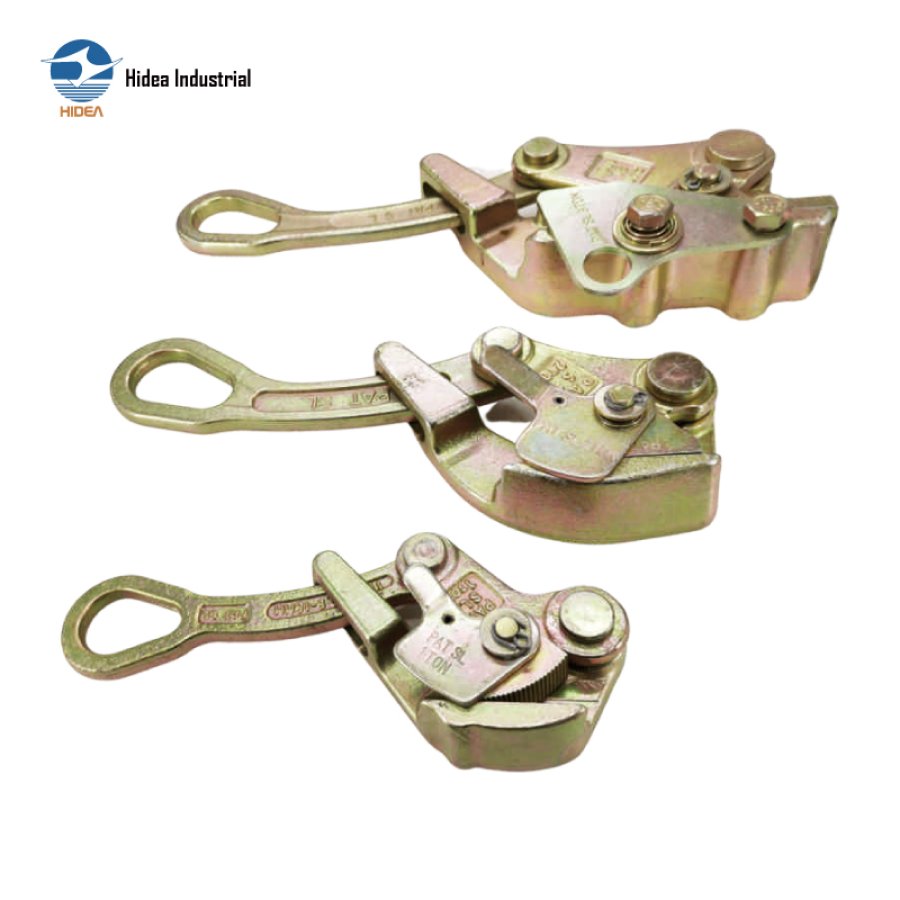

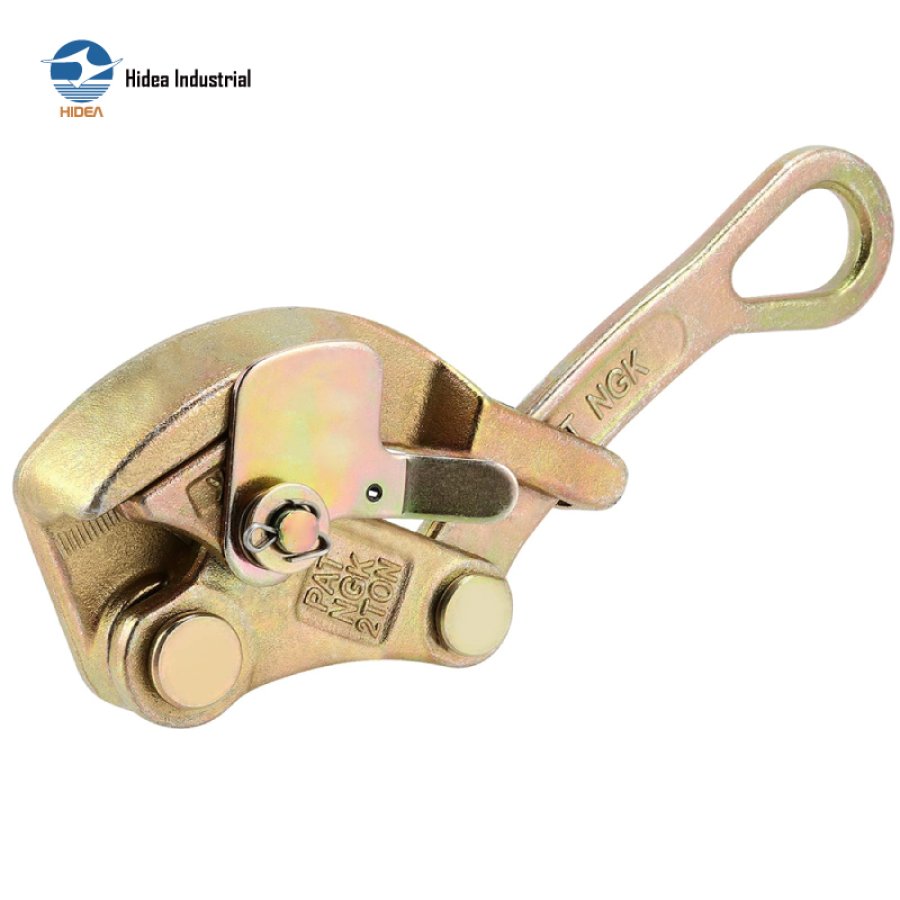

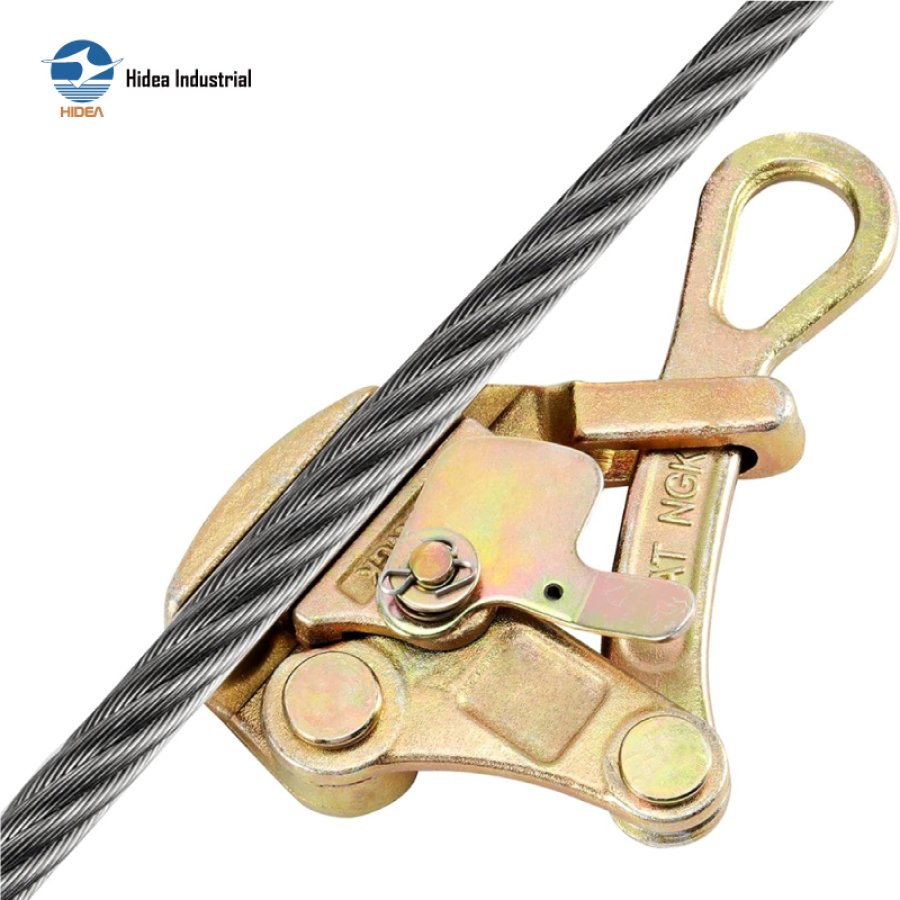

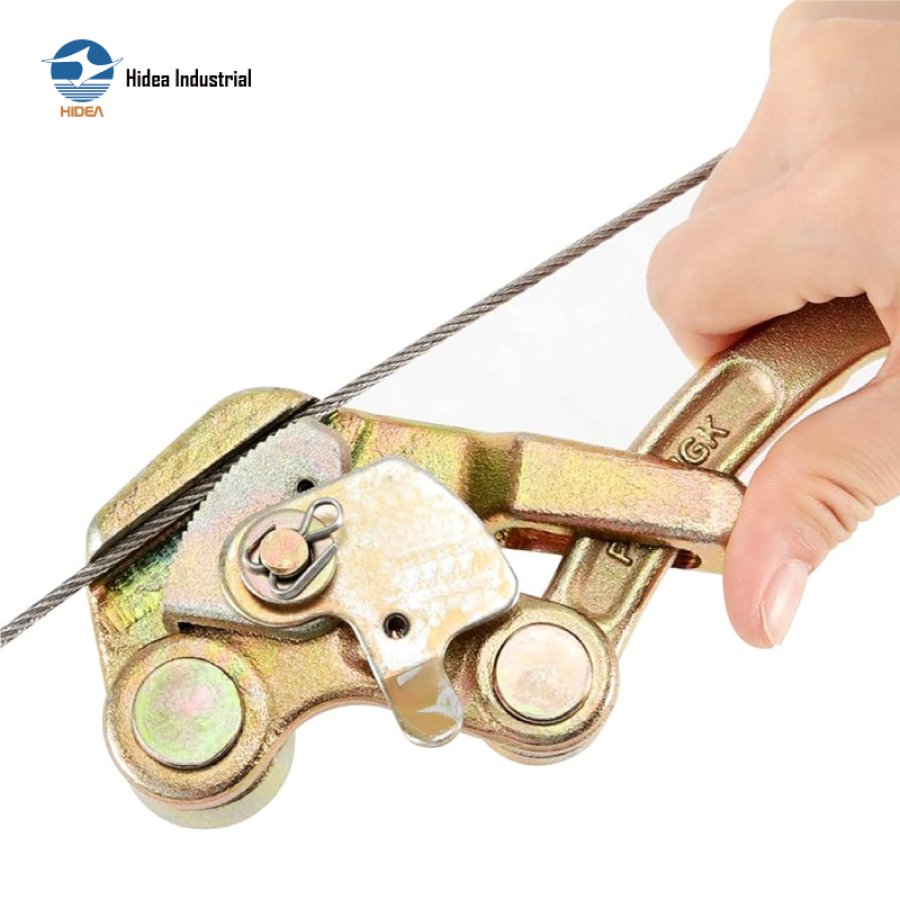

The JIS / Japanese Type wire rope grip, also known as cable grip puller, is a device used to grip and secure wire ropes or cables during lifting or pulling operations, to attach cables to hooks or pulleys, or to provide extra grip on cables in high-stress situations; it can be used widely in industries such as construction, transportation, telecommunications and power engineering etc.
The JIS wire rope grips are manufactured from high quality carbon steel and die forged, properly heat treated; rated from 1T up to 3T with a gripping range from 2.5mm to 32mm

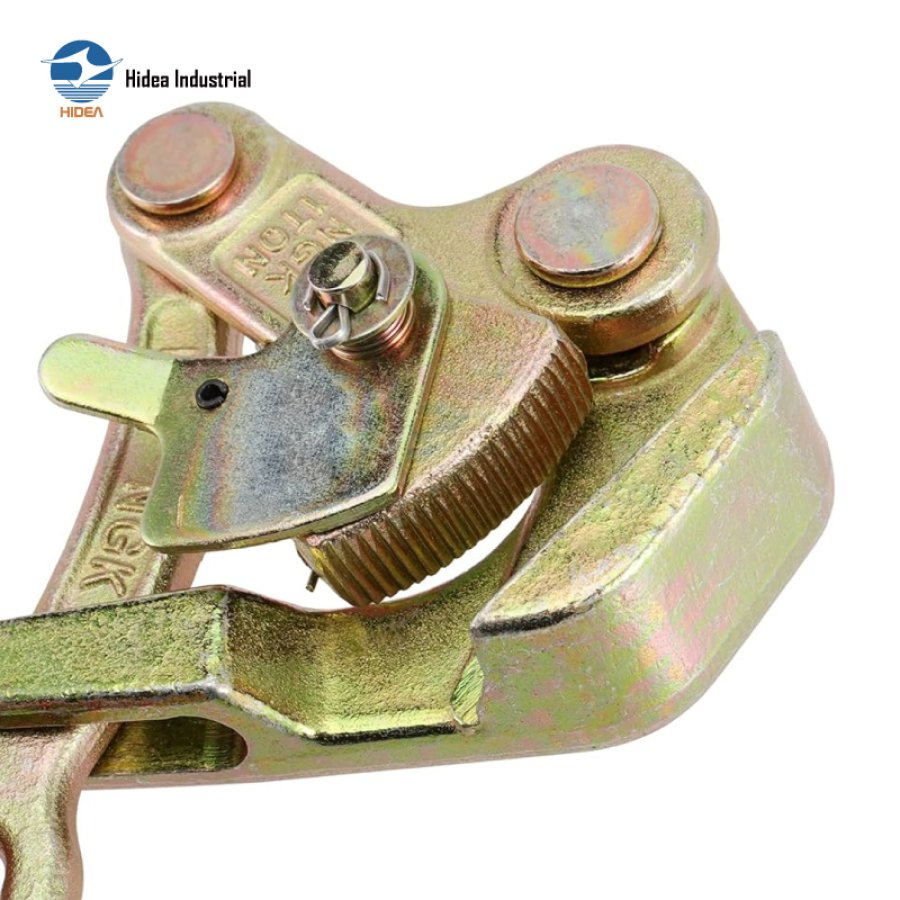

The JIS type cable grips are made with safe and stable jaw with a safety device to prevent the jump line of steel strand, to improve the gripping and occlusal force in use; sturdy and durable and with stable performances
The JIS type cable grips meeting standards of and in conformity with JIS, IEC 60900:2004, (OSHA) regulations & Machinery Directive 2006/42/EC

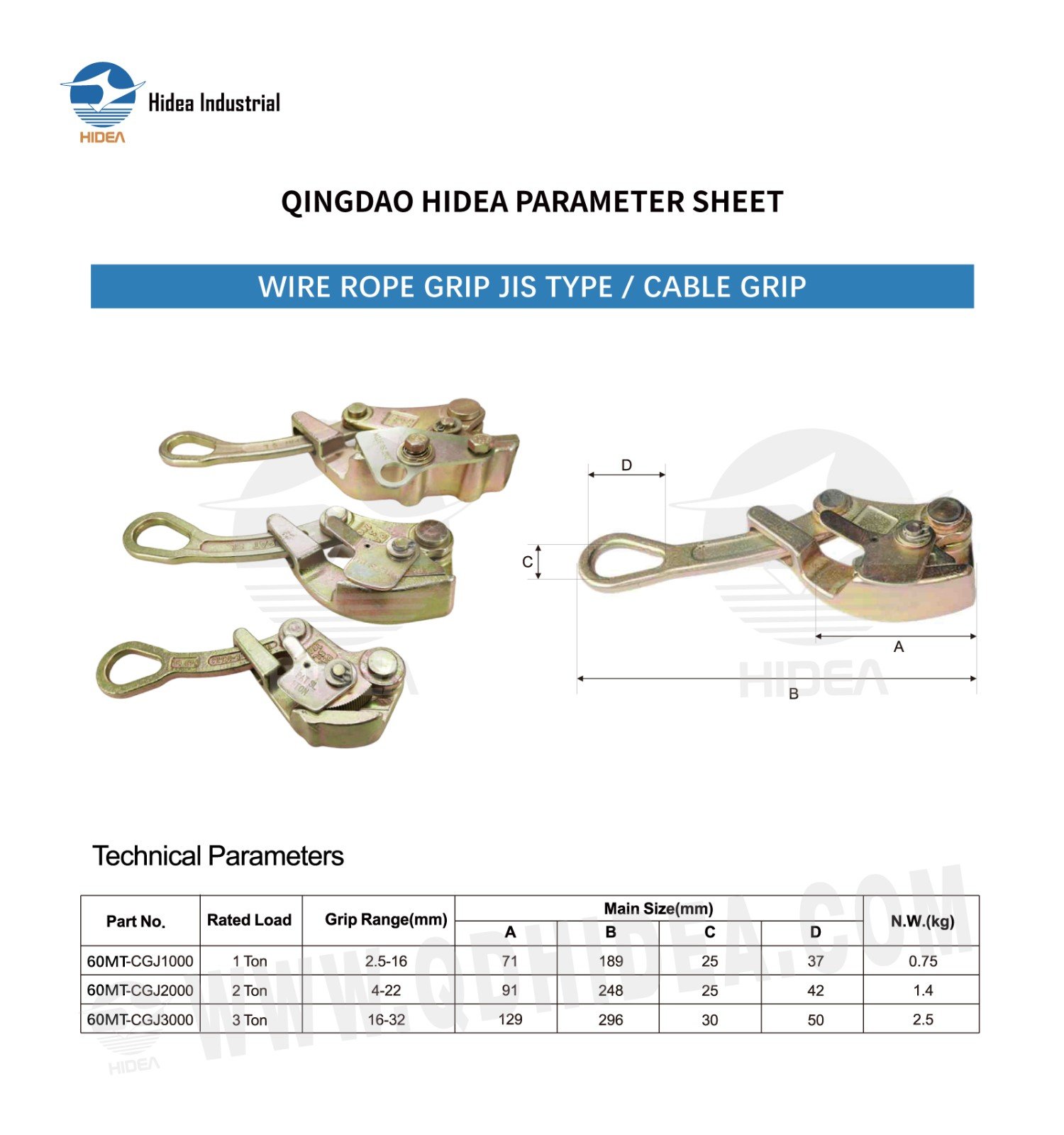

QINGDAO HIDEA PARAMETER SHEET FOR
WIRE ROPE GRIP JIS TYPE/CABLE GRIP
| Part No. | Rated Load | Grip Range(mm) | Main Size(mm) | N.W. (kg) | ||||||
| A | B | C | D | |||||||
| 60MT-CGJ1000 | 1 Ton | 2.5-16 | 71 | 189 | 25 | 37 | 0.75 | |||
| 60MT-CGJ2000 | 2 Ton | 4-22 | 91 | 248 | 25 | 42 | 1.4 | |||
| 60MT-CGJ3000 | 3 Ton | 16-32 | 129 | 296 | 30 | 50 | 2.5 | |||
